Buy Milesight UG63-915M UG63 Indoor AU915/AS923 LoRaWAN IoT gateway with PoE support [UG63-915M]

Milesight UG63-915M UG63 Indoor AU915/AS923 LoRaWAN IoT gateway with PoE support

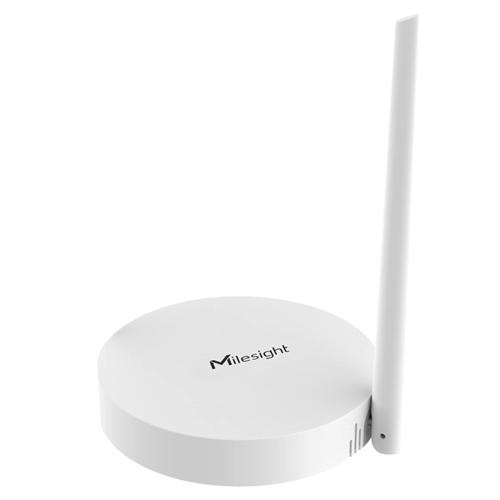

Milesight UG63 Indoor AU915/AS923 LoRaWAN IoT gateway with PoE support. The Milesight UG63 is a 8-channel lightweight indoor LoRaWAN IoT gateway. Adopting the SX1302 LoRa chip and a high-performance CPU, The UG63 supports connections with more than 2000 nodes and can cover 15 km in sight and about 2 km in an urbanized environment. With its compact size, it is ideally suited for offices, parking lots, campuses, hotels, exhibition centers and many other indoor areas. It also can be used to provide coverage for indoor blindspots. UG63 has both integrated mainstream network servers(such as TTN, ChirpStack, etc.), and is compatible with Milesight IoT Cloud for easy deployment
- High performance NXP industrial processor with big memory
- NXP Quad-Core Processor
- Semtech SX1302 LoRa Chip
- Multiple Backhaul Connectivity options
- Embedded Network Server
- Compatible with Multiple Network Servers
- Supports Listen Before Talk (LBT)
- Supports 2000+ end devices
Small in Size,
Big on Connectivity
8 Channels
Up to 2000 End-Nodes
Up to 2 km Communication Range in Urban Areas
Global Frequency Plans
(RU864/IN865/EU868/US915/AU915/KR920/AS923-1&2&3&4)
Wire-Free Deployment with 4G
With 4G LTE, UG63 brings a wireless communication , simplifying the network setup process. Moreover, the UG63 ensures versatile connectivity options and a reliable connection by supporting Ethernet and Cellular backhaul.
Cost-Effective for Small-Scale Deployments
UG63 is a cost-effective device designed to provide network coverage for numerous yet dispersed small-scale applications where the number of end nodes is limited, but each area requires its own gateway.
Eliminating Blind Spots
UG63, in collaboration with remote LoRaWAN® network server, can provide complementary network coverage to achieve comprehensive LoRaWAN® network coverage, leaving no blind spots in corner regions or weak signal regions
External Antennas for Enhanced Connectivity
The UG63 is outfitted with external LoRa and cellular antennas, enhancing signal range and strength. This feature guarantees robust communication between LoRaWAN® sensors and the cloud platform.
High Compatibility with Multiple Network Servers
- Remote Embedded NS
- Milesight DeviceHub LNS
- Milesight Development Platform LNS
- Compatible with Mainstream Network Servers
Easy Configuration via Wi-Fi
UG63 offers effortless Wi-Fi configuration within a 10-15 meter range, eliminating the need for proximity. This essential feature simplifies setup, particularly in challenging locations, saving time and enhancing accessibility. Note: Wi-Fi is solely utilized for configuration purposes.
Effortless Auto-P Configuration
UG63 integrates with the RPS (Redirection and Provisioning Service) service, enabling fast device deployment without user intervention. Upon powering up and connecting to the network, the device undergoes automatic configuration.

MPN
UG63-915M
CPU
528 MHz, ARM Cortex-A7
Memory
256 MB DDR4 RAM
Flash
4 GB eMMC
LoRaWAN Antenna
2 x Internal Antenna
Channels
8
Frequency Bands
AU915/AS923
Sensitivity
-140dBm Sensitivity @292bps
Output Power
27dBm Max
Protocol
V1.0 Class A/Class C and V1.0.2 Class A/Class C
Ethernet
1 × RJ45 (PoE PD support)
Data Rate
10/100 Mbps (Auto-Sensing)
Mode
Full or Half Duplex (Auto-Sensing)
Network Protocols
PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc
VPN
OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
Power Supply
5V Type C USB or 802.3 af PoE input
Consumption
= 4.2W
Ingress Protection
IP30
Dimensions
115 x 21 mm
Mounting
Desktop, Wall or Ceiling Mounting
Reset Button
1 × RST
Operating Temperature
-20°C to +50°C
Storage Temperature
-40°C to +85°C (-40? to +185?)
Relative Humidity
0% to 95% (non-condensing) at 25°C/77?
- MPN: UG63-915M
