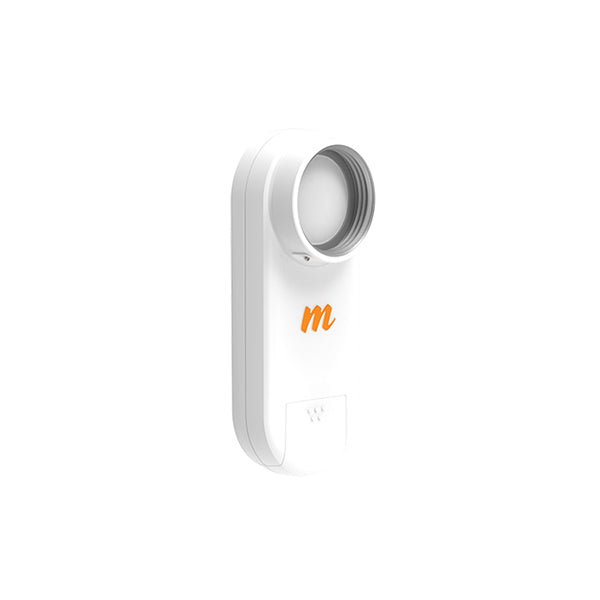

MIMOSA C5X 4.9-6.4 GHZ, 8 DBI MODULAR 500 MBPS POINT TO POINT/CPE BRIDGE RADIO

Mimosa c5x 4.9-6.4 ghz, 8 dbi modular 500 mbps point to point/cpe bridge radio. The mimosa c5x is the industry’s most versatile, modular, point to point/cpe wireless bridge radio solution with five gain options (8 dbi built in, or optional 12, 16, 20 and 25 dbi add on's). The ultra-rugged solution provides extended frequency operation from 4.9–6.4 ghz, with best-in-class noise immunity. Delivering the ultimate in flexibility and value, the c5x is the go-to solution for 5 ghz deployments. Out of the box, the c5x can be used in ptmp mode, with ethernet link speeds of up to 100 mbps. With the purchase of a ptmp speed feature key, speeds of up to 500 mbps will be unlocked in ptmp mode. To unlock and utilize ptp mode, with speeds of up to 700 mbps, a ptp feature key must be purchased.

Incredible RF Performance with Cassegrain and horn antenna options, the C5x reduces localized noise and provides immunity from interference with breakthrough front-to-back and front-to-side performance. Each antenna in the N5-X family is optimized to isolate noise with incredible sidelobe rejection.

FEATURES

Broadband service providers

Public safety and first responders

Enterprise and campus building interconnecting

Multipoint distribution for WiFi, video security and Smart Cities

Four Twist-On, Flexible Antenna Options

PTP or PTMP Modes (feature key may be required)

Extended Frequency 4.9–6.4 GHz

Best-in-Class Noise Immunity

Ultra Rugged

Low-Power Consumption

Ultra Reliable

Designed for WISP's

SPECIFICATIONS

Max Throughput: 700 Mbps IP (866 PHY)

Wireless Protocols: Mimosa SRS; WiFi Interop

Modes: PTP Backhaul & PTMP Client

Frequency Range: PTP/PTMP: 4900–6400 MHz (restricted by country of operation)

Max Output Power: 27 dBm

Antenna Gain: 8 dBi (native built in) or 12–25 dBi (with optional add on antennas)

System Power Method: Passive POE (24-56 VDC)

Max Power Consumption: 9.2 W average; 12.9 W max

Physical Dimensions: Height: 175 mm, Width: 70 mm, Depth: 61 mm

Weight: 0.4 kg

RF Connector Type: Mimosa N5-X twist-on

Wind Survivability: 200 km/h (125 mph)

Outdoor Ingress Protection Rating: IP55

Operating Temperature: -40°C to +55°C (-40°F to 131°F)

Operating Humidity: 5 to 100% condensing

Operating Altitude: 4,420 m (14,500’) max

Shock & Vibration: ETS 300-019-2-4 class 4M5

Ports: (1) 10/100/1000-BASE-T

PACKAGE CONTENT

1 x Mimosa C5X 8 Dbi Modular 500 Mbps Point To Point Cpe Bridge Radio

2 x Steel Hose Clamps
