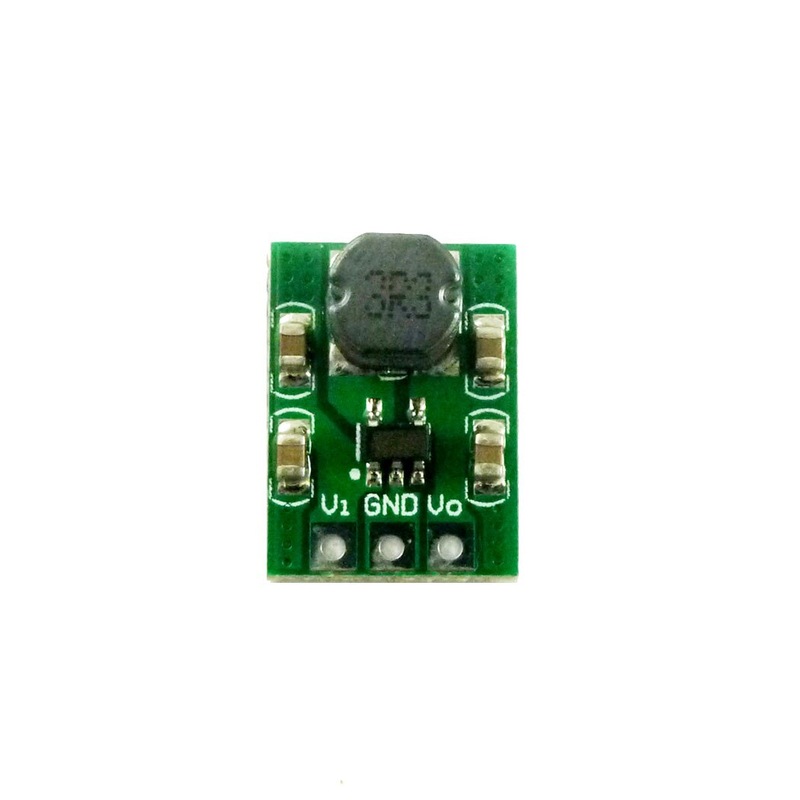

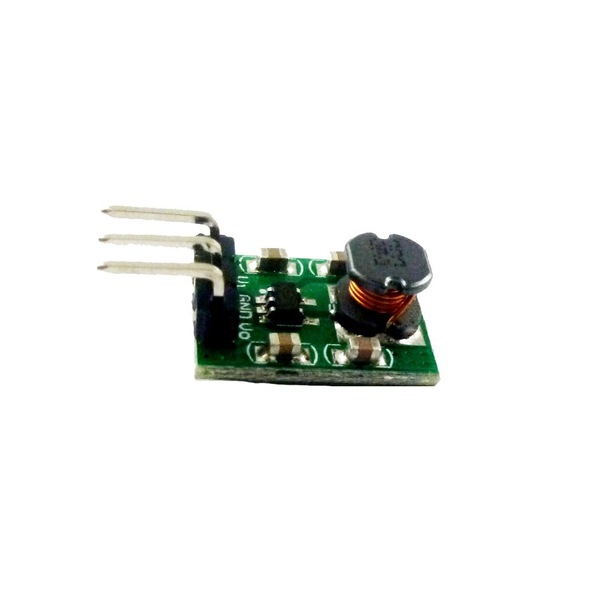

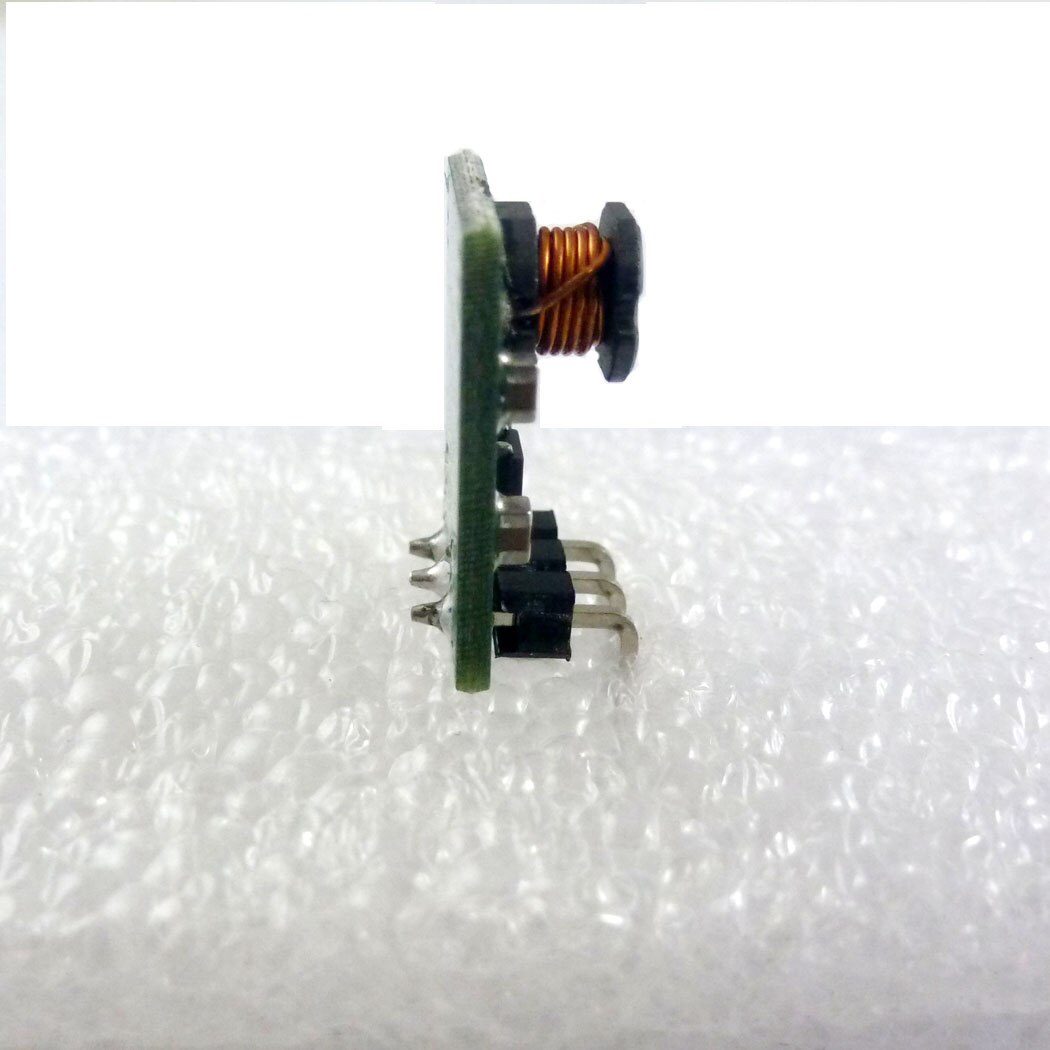

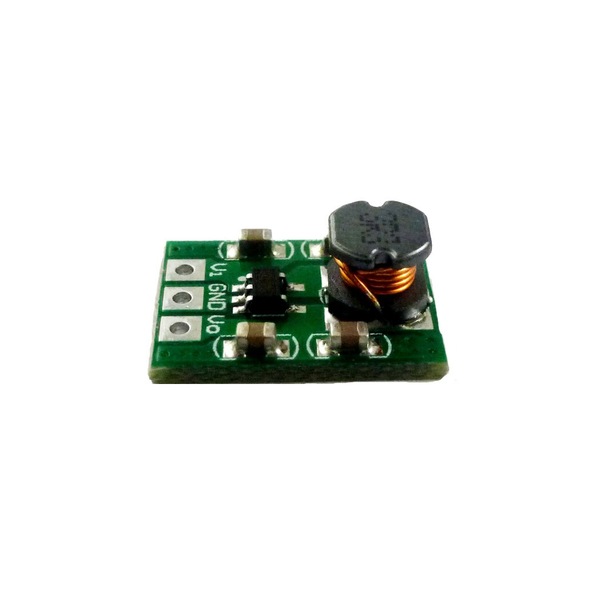

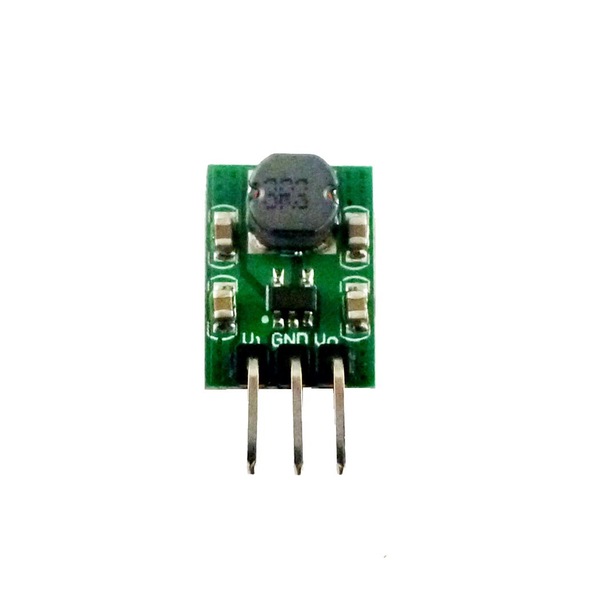

2A DC Buck Converter 3.3-5.5 to 3.3V Module Step Down Voltage Regulator no Pin

2A DC Buck Converter 3.3-5.5 to 3.3V Module Step Down Voltage Regulator no Pin

Be the first to review this product

Price	$23.57
	Earn 3x points and collect 69 Everyday Rewards points. Promotion ends 16/05/2024. Create a MyDeal Account or Login to link your card
Size	Please select an option
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/05/2024. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code UMYBF

Quantity

Add to wishlist

Description:

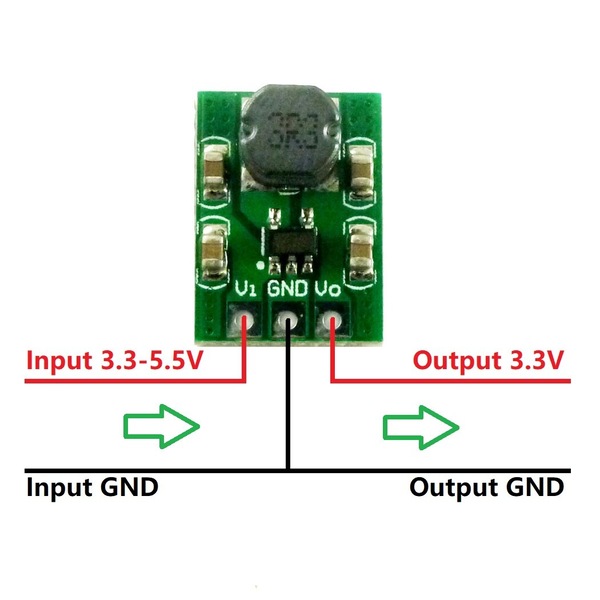

Input voltage 3.3-5.5V, output 3.3V (deviation ��2.0%)
Long time maximum output current 1.8A
Short time maximum output current 2.2A
Up to 97% efficiency(@4.2V to 3.3V/500MA)
Low Quiescent Current : 20uA
Overtemperature shutdown, input under-voltage protection, External soft start, and short circuit protection.
The maximum input voltage can not exceed 6V
INPUT 3.5V/1.4A;??? OUTPUT? 3.3V/1.5A
INPUT 3.7V/1.89A;? OUTPUT? 3.3V/2A
INPUT 4.2V/1.67A;? OUTPUT? 3.3V/2A
INPUT 4.5V/1.46A;? OUTPUT? 3.3V/2A
INPUT 5V/1.4A;?????? OUTPUT? 3.3V/2A
DC-DC Buck Step-down module working frequency 1.2MHZ.
Operating ambient temperature : -40~+85 Degrees Celsius
Size(Small):15mm x 11mm x 5.7mm
Weight(Very light) : 0.9g(no Pin)

Applications:

MCU Development Board : UNO MEGA2560 Pro mini FPGA/CPLD STM32
Breadboard Power
Wifi Module:ESP8266 ESP-12E NodeMcu V3 V2 Lua WIFI Internet of Things development board
Bluetooth module : HC-05 HC-06 SPP-C
Wireless UART module : HC-11 HC-12
wireless module : CC1101 CC2500 Nrf24l01+
3-3.5V led lights
Model aircraft Quadcopter
High Speed Brushless DC Motor

Attention :

This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

Packing list:1 PCSmini size 2A DC DC Buck Converter 3.3-5.5 to 3.3V Module
Estimated delivery time??About 10 business days.We will use standard shipment for the orders. Normally it may need about 10 days, but sometimes please note: Delivery times are as provided by our carriers and are estimates only. Delays may occur during peak.

Shipping Details

Please note it will need about 12~20days for the delivery!

Delivery times are as provided by our carriers and are estimates only. Delays may occur during peak periods, and due to factors outside the carriers control.

Thank you for your understanding!

Return policies :We 100% support our customers, If you are not satisfied or you have any problem with our products, please CONTACT US at once. We will help you free return the goods.

Warranty policies: Our products have 180 days warranty.
