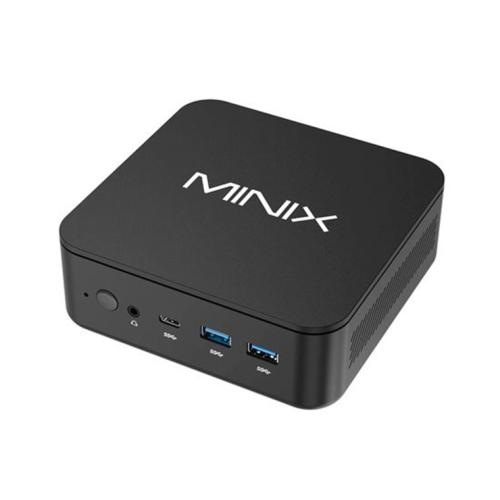

MINIX Mini PC NGC NR660 AMD Ryzen 6600H/16GB DDR5/512GBSSD/ Win 11 Pro (64-bit), with Dual LAN Wi-Fi 6E & BT 5. [NGC NR660]

Image 1
Image 2
Image 3
Shop More Products
MINIX Mini PC NGC NR660 AMD Ryzen 6600H/16GB DDR5/512GBSSD/ Win 11 Pro (64-bit), with Dual LAN Wi-Fi 6E & BT 5.


Powerful AMD Ryzen 5 6600H
This mini PC runs on a 6-core, 12-thread Ryzen 5 6600H with up to 4.5GHz boost, ideal for light gaming and multitasking. A cooling fan ensures stable performance during heavy use. It delivers up to 30% better performance than the Ryzen 5 5600U.
16GB DDR5 RAM with Expandable Storage
Comes with 16GB DDR5-4800MHz RAM (expandable to 64GB) and a 512GB PCIe 3.0 SSD (expandable up to 8TB via dual PCIe 4.0 slots). It's built for smooth multitasking and is upgradable to meet heavier workloads.
Triple Display Support with 4K 60Hz
Supports up to three 4K @ 60Hz displays via HDMI 2.0, DisplayPort 1.4, and USB-C 4.0. USB-C also supports 8K video output. Pre-installed with Windows 11 Pro for a seamless user experience.

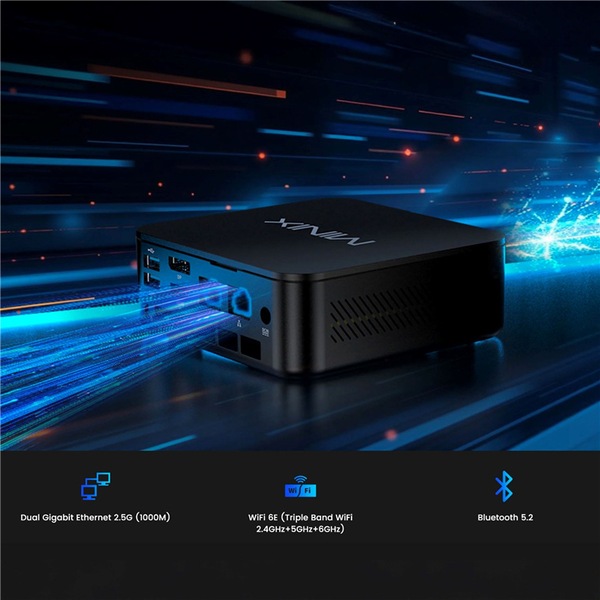

Fast Connectivity with Dual LAN, Wi-Fi 6E & BT 5.2
Features dual 2.5Gbps Ethernet, Wi-Fi 6E (2.4/5/6GHz), and Bluetooth 5.2 for fast, stable networking-ideal for streaming, gaming, and productivity.
Versatile Ports and Efficient Cooling
Includes USB-C 4.0 (40Gbps, 100W input/15W output), 3 USB-A 3.2 Gen2, 1 USB-A 2.0, and a 3.5mm audio jack. A copper pipe fan and thermal paste ensure efficient, quiet cooling under load.


General
Brand
MINIX
Name
NGC PRD
Model
NR660
Color
Black
Material
Full Plastic
Hardware
CPU
AMD Ryzenâ„¢ 5 6600H (12 Core, 12M Cache, up to 5.1 GHz)
GPU
AMD Radeonâ„¢ 660M
DDR
16GB DDR5-4800MHz
DDR Slot
2×DDR5 SO-DIMM (Up to 64GB, Not included)
SSD
512GB M.2 2280 PCIe 3.0×4 SSD
SSD Expansion
M.2 2280 PCIe 4.0×4 SSD Slot
WIFI & BT
Type
RZ616 MT7922A22M, BT5.2
I/O Prot
Front Button
1 × Power Button with White LED
Front Audio Jack
1 × Audio Output Combo Jack
Front USB Type A
2 × USB-A 3.2 Gen2
Front USB Type C
1 × USB-C 4.0 (Input 100W, Output 15W, 40Gbps) 4K@60Hz
Front Reset
1×Button
Rear USB Type A
1 × USB-A 2.0
Rear USB Type A
1 × USB-A 3.2 Gen2
Rear HDMI
2 × HDMI 2.1 TMDS 4K@60Hz
Rear USB Type_C
1×TBT4 (8K@60Hz) (DP, PD, Data)
Rear DP
1×DP1.4 4K@60Hz
REAR RJ4
2×RJ-45 2.5G Ethernet
Rear DC Jack
1×Input AC 100~240V, Output 19V 5A 95W Max, DC 2.5/5.5mm (Support RTC, EU US UK Adapter)
Software
Type
OS
System
Windows 11 Pro
Language Supported
Support Multi-language
Complete Machine Certification
Type
FCC CE UKCA ROHS WEEE PSE
WIFI Certification
Model
MT7922A22M
Contains FCC ID
RAS-MT7922A22M
Contains IC
7542A-MT7922A22M
CMIIT ID
2021AJ12359(M)
NCC ID
CCAI21Y10050T2
IMDA Standards
DB02941
ICC ID
R-C-MD6-MT7922A22M
TELEC RF
020-210086
TELEC TEL
D210041020
Environment
Operating Temperature
0~50°C @5~80%RH
Storage Temperature
-20~70°C
Relative Humidity
10~95% RH @ 40°C/104°F, Non-Condensing
Weight & Size
Product Dimension
130×127×46.9mm
Package Dimension
182×172×112 mm
Product Weight
483g
Package Weight
1463g
- MPN: NGC NR660

GTIN: 4897016412028

Reference ID: 14670134
