Description:
MJPT020 Electric RFID Access Control ID Password Safty Entry System Door Lock Magnetic Set
Features:
The operation is simple
Card capacity: 400, may be extended to 3000.
Support external card reader, to do a card reader.
Authentication mode: Card, password, Card + password.
Maximum swipe distance: 3cm.
Suitable for frame glass door

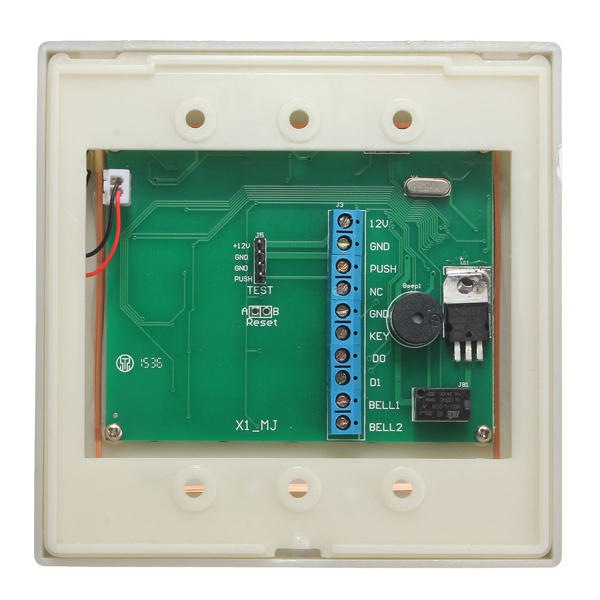

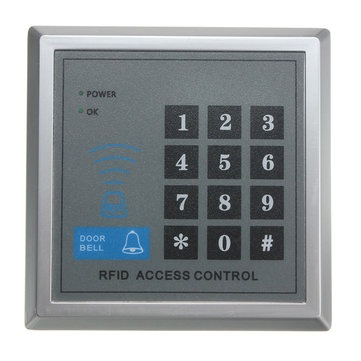

Host technical parameters:
Serial no. | Project | Index |
1 | Working voltage | DC12V |
2 | Electric current | 60mA |
3 | Unlock the electric current | ≤1000mA |
4 | Working temperature | -10�?mdash;70�?/td> |
5 | Working humidity | 0—100% |
6 | Frequency | 125KHz(EM CARD)13.56MHz(M1 CARD) |
7 | Initial programming password | 123456 |

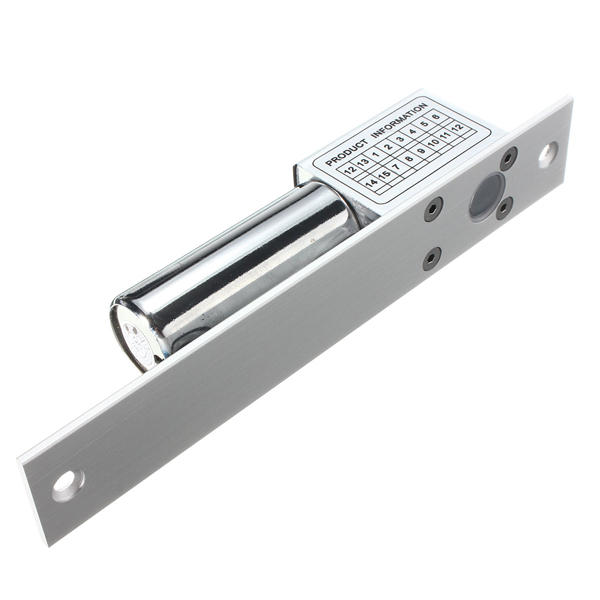

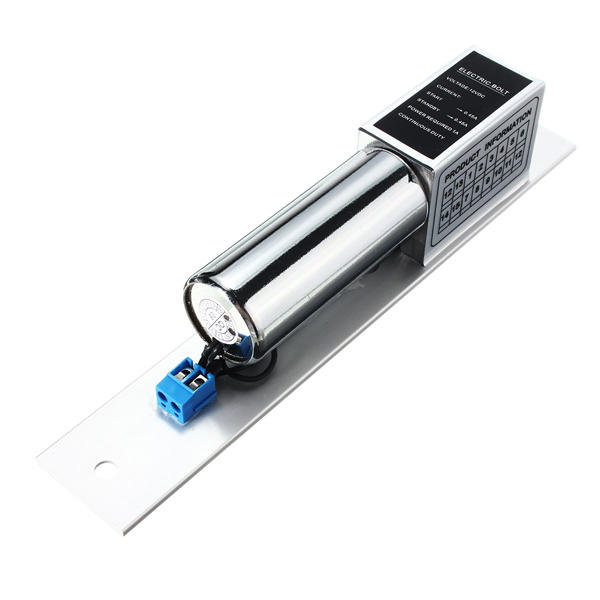

Electronic Bolt lockparameters:
Serial no. | Project | Index |
1 | Working voltage |
DC12V input |
2 | Working current | 150mA |
3 | Sustain tension: | 1000KG |
4 |
Lock body material | Metal. Built-in pure copper coils |
5 |
Installation method |
Concealed type power to close. Magnetic inductive type) |
6 |
Suitable for |
90 degrees of any box door open |

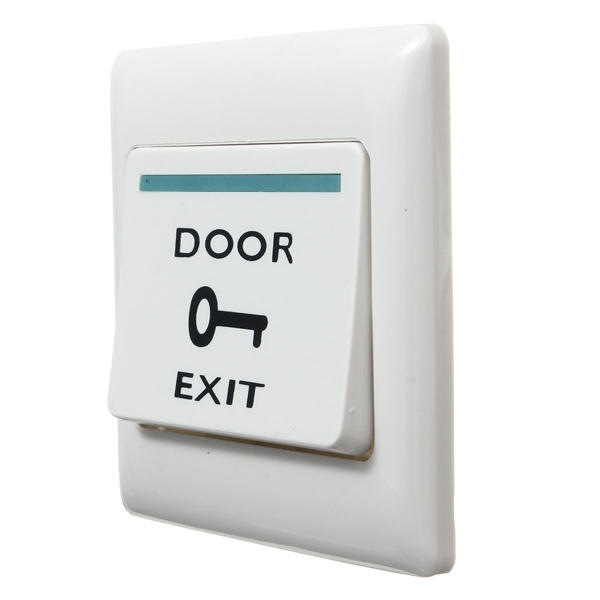

Switch technical parameters:
Serial no. | Project | Index |
1 | Size | 86*86*20mm |
2 | Standard structure | Fireproof material mixed resin |
3 | Electrical properties | The maximum durability 3A@36VDC |
4 | contact output | NO/COM contact |
5 | Durability test | One hundred thousand times aging test qualified |
6 | Suitable type | Apply the hollow frame and embedded type electric appliance box use |
7 |
Working temperature | -10~+55�?14-131F) |
8 | Working humidity |
0 |
9 | Panel processing | Fire prevention materials off surface treatment |
10 | weight | 0.134KG |

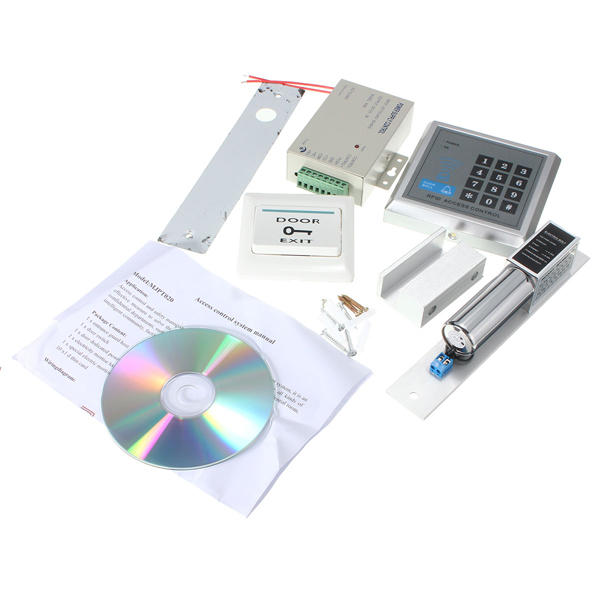

Package includes:

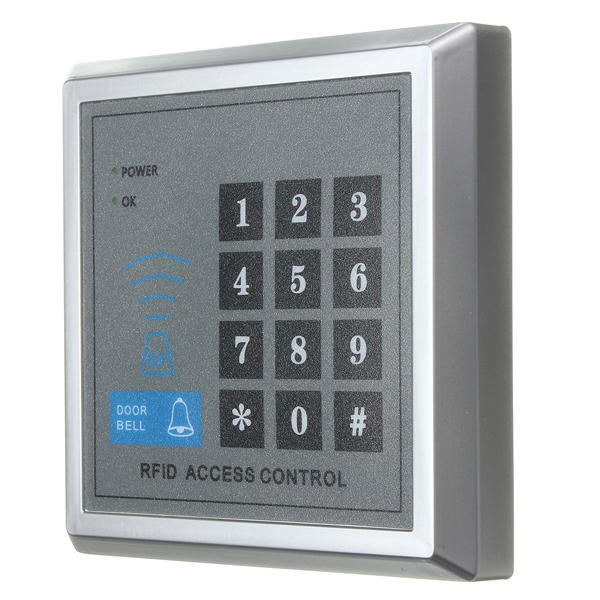

1 x entrance guard host

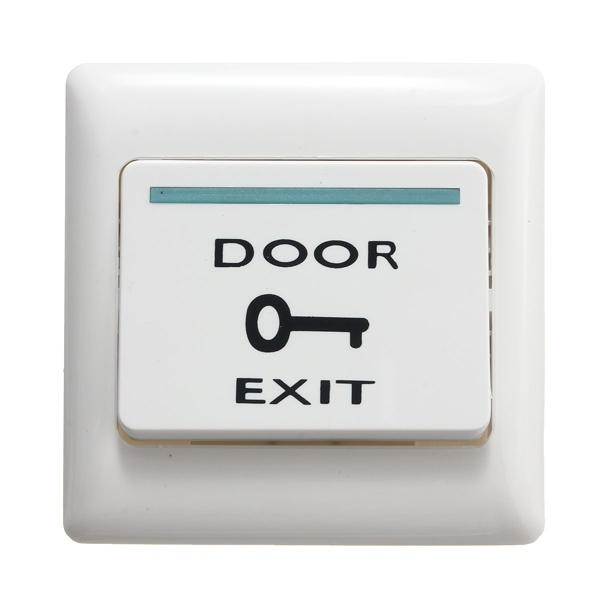

1 x door switch

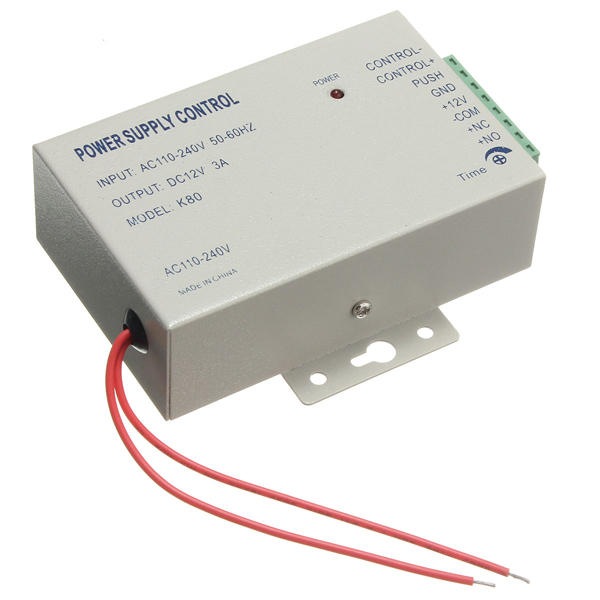

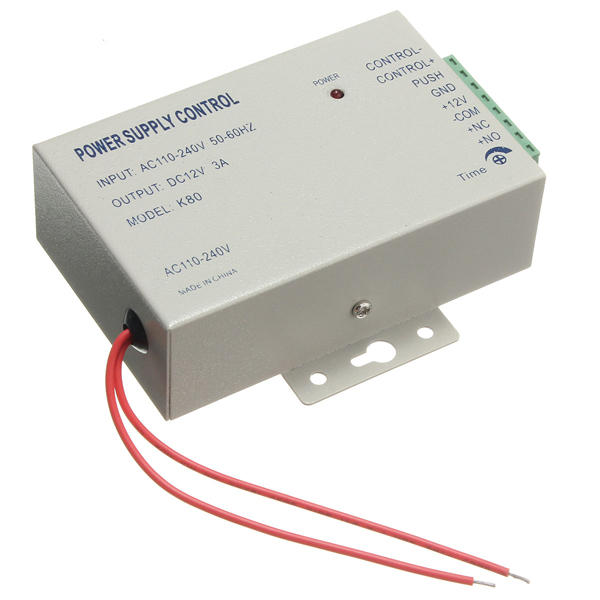

1 x door dedicated power supply
1 x Electronic lock
10 x buckle card
GTIN: 4151093687121
Reference ID: 4453901
