Description:
?
MJPT020 Electric RFID Access Control ID Password Safty Entry System Door Lock Magnetic Set
?
Features:?
?
The operation is simple
Card capacity: 400, may be extended to 3000.
Support external card reader, to do a card reader.
Authentication mode: Card, password, Card + password.
Maximum swipe distance: 3cm.
Suitable for frame glass door
?

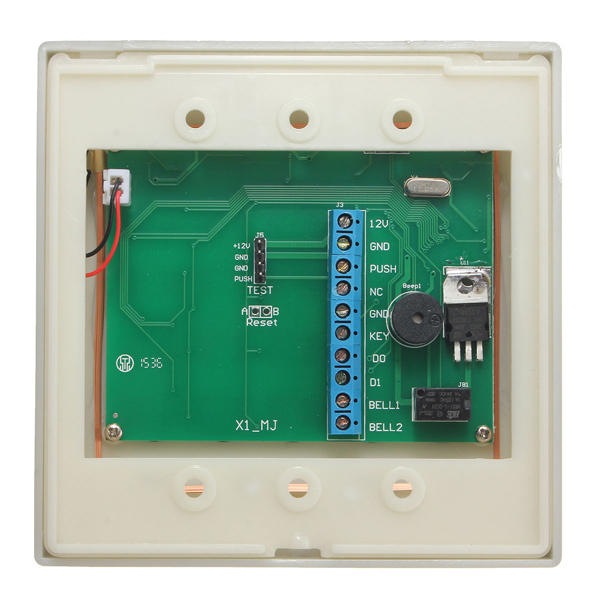

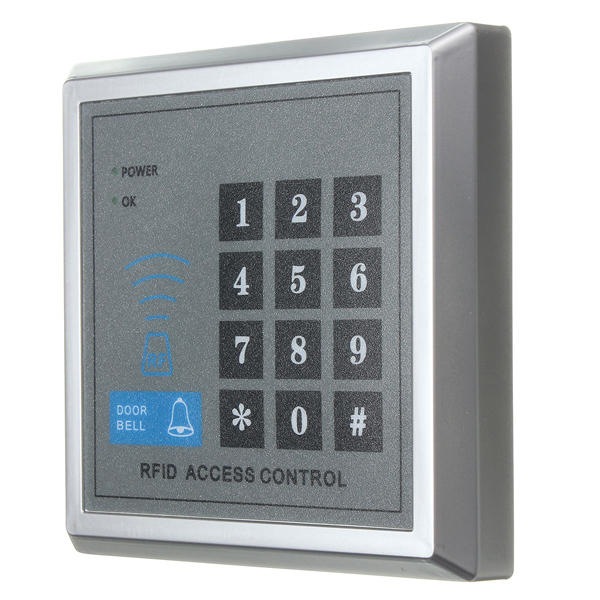

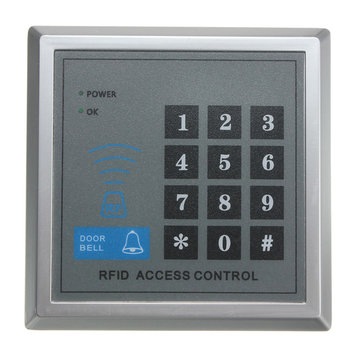

Host?technical parameters:
Serial?no. | Project | Index |
1 | Working voltage | DC12V |
2 | Electric current | 60mA |
3 | Unlock the electric current | ≤1000mA |
4 | Working temperature | -10??mdash;70??/td> |
5 | Working humidity | 0—100% |
6 | Frequency | 125KHz(EM CARD)13.56MHz(M1 CARD) |
7 | Initial programming?password | 123456 |
?
?

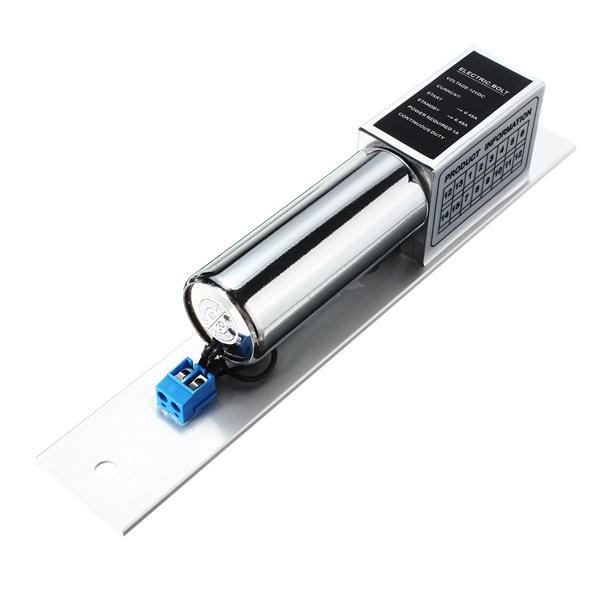

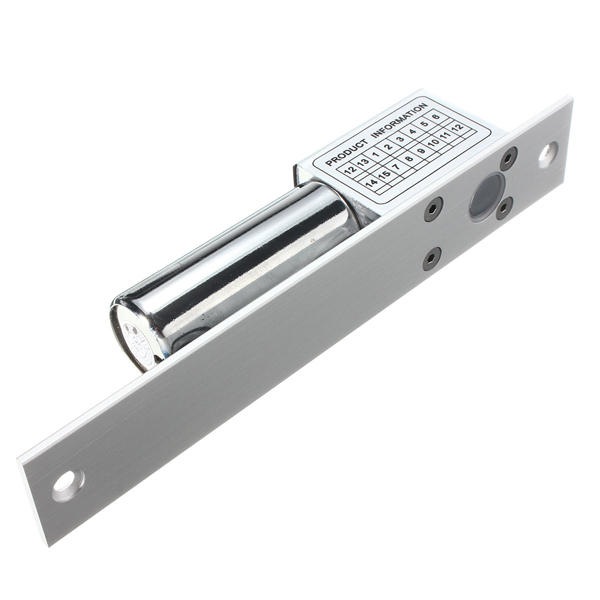

Electronic Bolt lockparameters:
Serial no. | Project | Index |
1 | Working?voltage |
DC12V input ? |
2 | Working current | 150mA |
3 | Sustain tension: | 1000KG |
4 |
Lock body material ? | ?Metal. Built-in pure copper coils |
5 |
Installation method ? |
Concealed type power to close. Magnetic inductive type) ? |
6 |
Suitable for ? |
90 degrees of any box door open ? |
?

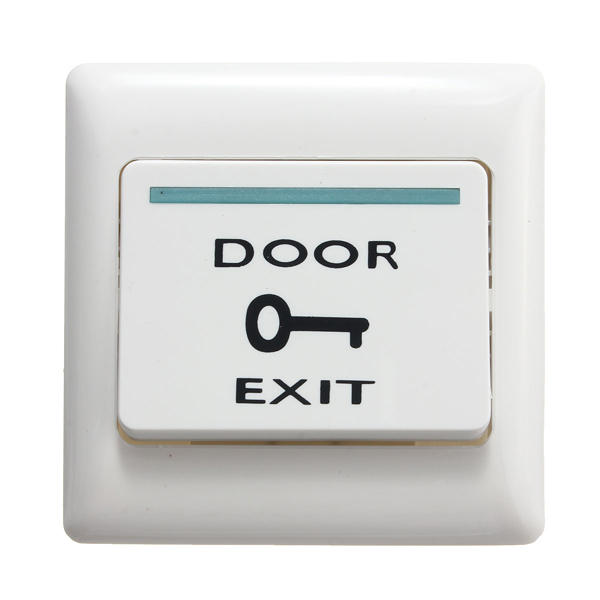

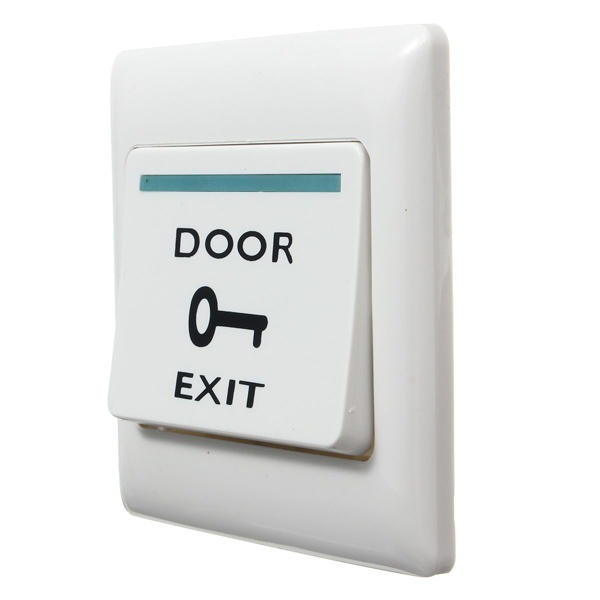

Switch?technical parameters:
Serial no. | Project | Index |
1 | Size | 86*86*20mm |
2 | Standard structure | Fireproof material mixed resin |
3 | Electrical properties | The maximum durability?3A@36VDC |
4 | contact ?output | NO/COM?contact |
5 | Durability test | One hundred thousand times aging test qualified |
6 | Suitable type | Apply the hollow frame and embedded type electric appliance box use |
7 |
Working temperature ? | -10~+55??14-131F) |
8 | Working humidity |
0 |
9 | Panel processing | Fire prevention materials off surface treatment |
10 | weight | 0.134KG |
?

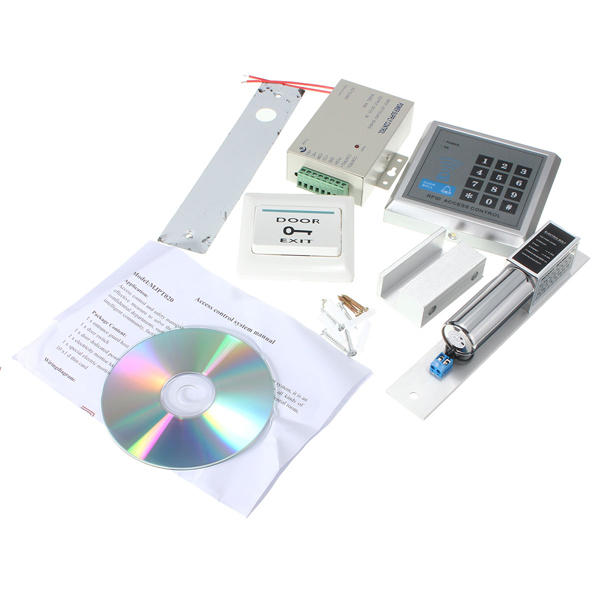

Package includes:?
?
1 x entrance guard host
1 x door switch

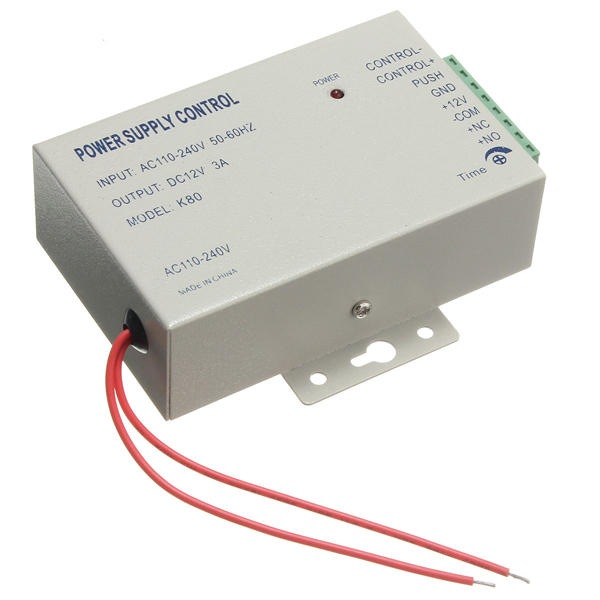

1 x door dedicated power supply
1 x Electronic lock
10 x buckle?card
?
?
GTIN: 4151093687121
