DESCRIPTION

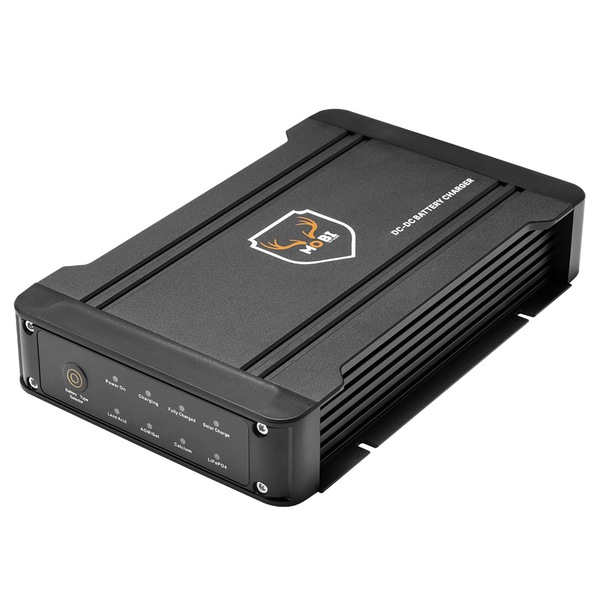

During camping and off-roading, it is important to have a reliable auxiliary power source, but it might run out of power if no charger is installed. And this is where our DC to DC charger comes into play.
Compared with traditional DC to DC charger, this device, which is suitable for AGM, Gel, calcium, LiON, VRLA and flooded battery, is compatible with smart alternator, which is prevalent in modern vehicles, trailers and caravans, to adjust voltage cut off. In addition to pulling power from alternator to charge auxiliary battery, it also has a built-in MPPT regulator to maximize energy absorption, thus reducing the load on your engine. Our charger also features pulse charging algorithm designed to recover your discharged battery. And over-charge, short circuit, over-temperature, thermal load, solar input overload, input/output reverse polarity protection have been integrated to offer an extra layer of protection.

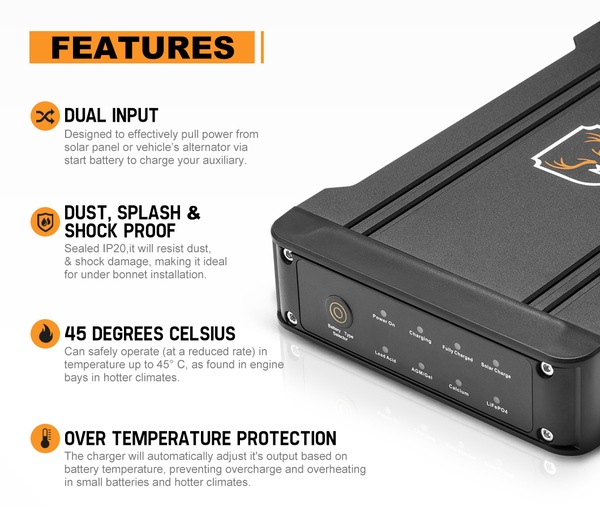

FEATURES

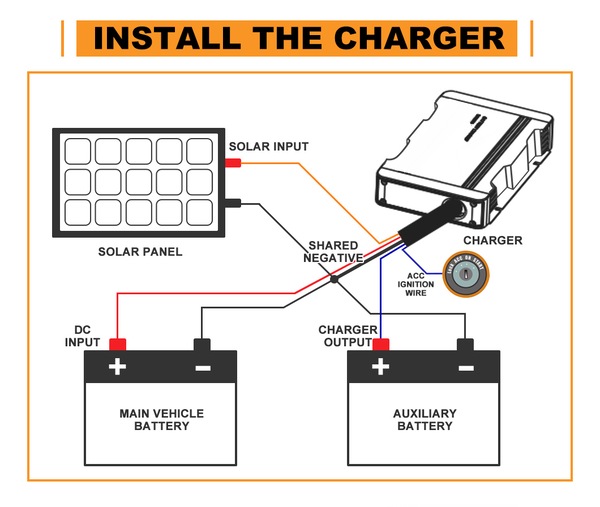

Dual Input: This Charger is designed to effectively pull power from solar panel or vehicle’s alternator to charge your auxiliary battery.

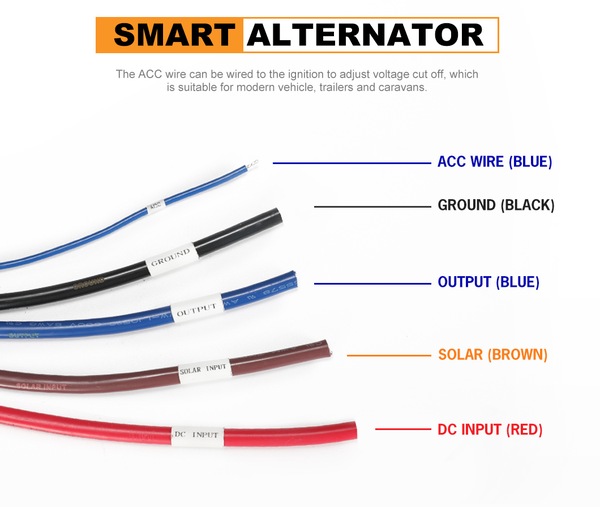

Smart Alternator Compatible: The ACC wire can be wired to the ignition to adjust voltage cut off, which is suitable for modern vehicle, trailers and caravans.
Pulse Charging Algorithm: This algorithm is designed to select the optimum charge mode and revive your discharged battery.
Multi-Stage Charging: This charger integrates bulk charge, absorption and constant voltage (float) to improve efficiency and prolong battery’s lifespan.
Multi Battery Types: Compatible with AGM, Gel, calcium, LiON, VRLA and flooded lead acid battery.
Built-In MPPT Regulator: The regulator is designed to harvest up more energy from the solar panel, thus reducing the load on your engine.
Multiple Protection: It integrates over-charge, short circuit, over-temperature, thermal load, solar input overload, input/output reverse polarity protection.
Internal Temperature Monitoring: This mechanism can effectively protect the circuit board, thus prolong the lifespan of the charger.

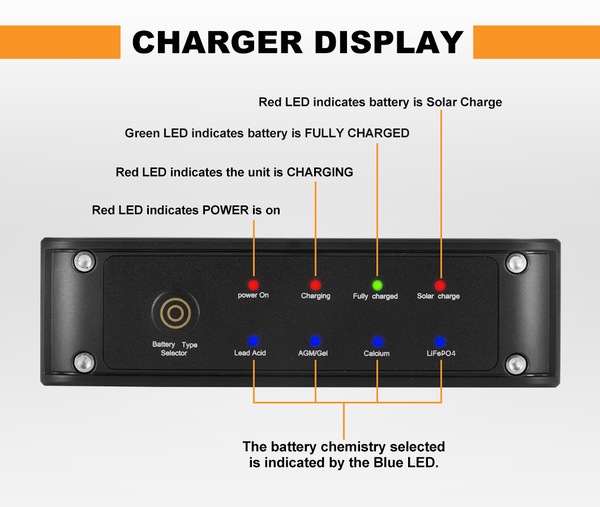

NOTE: Please select the right battery type before connecting second battery to this charger.

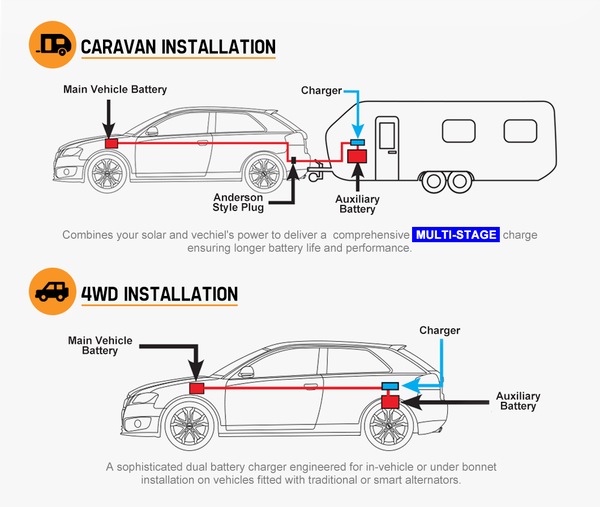

Superior Versatility: This DC to DC charger is ideal for 4WDs, caravans, RVs, trucks, campers, trailers, campervans, commercial vehicles and boats.
SPECIFICATIONS
Type:
Multi Stage 12V DC to DC
Features:
MPPT solar input,Smart alternator compatible
Model:
20A/30A/40A
Suitable Battery Type:
AGM/Gel/Lead Acid/Calcium/LiFePO4
Battery Range:
60-600Ah(20A)/ 90-900Ah(30A)/ 120-1200Ah(40A)
Input:
DC Battery:13-16 Volts Solar Input:16-25 Volts
Output/Charging Voltage:
13.5-15.4 Volts(Stops charging when alternator output or vehicle battery below 12.4 volts)
Max Output Current:
20A/30A/40A
Minimum Start Voltage:
2.0 Volts-For battery being charged
Soft Start:
Yes
PACKAGE INCLUDES
1x DC To DC Battery Charger
1x Manual
WARRANTY
1 Year Warranty
