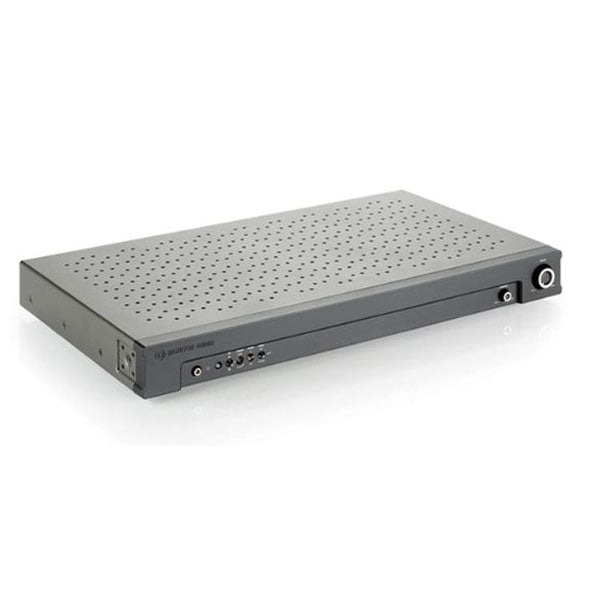

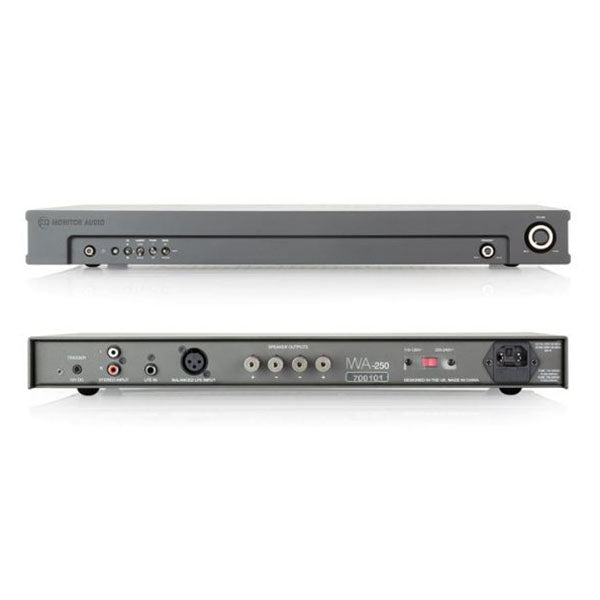

MONITOR AUDIO IWA-250 SWITCH MODE AMPLIFIER - 1 U RACK MOUNT CASE
The IWA-250 switch mode amplifier is a slim, powerful dedicated design in a heavy-duty 1U rack mount case, delivering up to 250 watts into 4 ohms
FEATURES
System Format: Active sub-woofer amplifier
Lower Frequency Limit: 25 Hz
Upper Frequency Limit: Variable 40 – 120 Hz @ 24 dB/Octave
Amplifier Output: 250 W @ < 1% THD+N
Drive Unit Complement: 4 – 8 ohms
Amplifier Classification: Class D amplifier with Switch mode power supply (SMPSU)
Cabinet Support: For use when using the dedicated back box
EQ: Music/ Movie/ Impact
Phase Control: 0 & 180 degrees
Auto Sensing: Line Level > 3.5mV
Input Level Requirements: Standby after approximately 15 minutes if no signal sensed
Input Impedance: > 20K ohms
Mains Input Voltage: AC 110 - 120 V ~ 50/60Hz AC 220 - 240 V ~ 50/60Hz (Factory Region Preset)
Connection: LFE in (Stereo RCA and Balanced), 12v Trigger in (3.5 mm mono mini-jack), left and right speaker output
Trigger Input: 5 - 12v via 3.5 mm mono mini-jack socket
Power Consumption
Standby: < 0.5 W (ErP approved)
Typical Idle: < 10 W Max Rated: 200 W
SPECIFICATIONS
Dimensions (H x W x D): 43.7 x 432 x 263 mm
PACKAGE CONTENTS
1 x Monitor Audio Switch Mode Amplifier 1 U Rack Mount Case
SKU: MON-IWA-250
