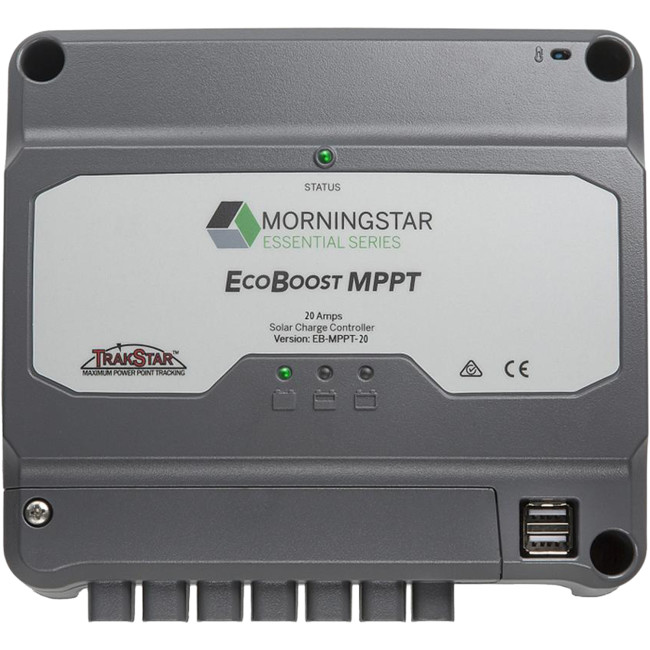

MORNINGSTAR EBMPPT20 12/24V 20A Mppt Regulator
,gravity=Center,allowExpansion)
Collect 406 Everyday Rewards points
Collect 406 Everyday Rewards points
The Morningstar EcoBoost MPPT™ solar charge controller is a high-efficiency, auto-detecting 12/24V controller that uses proprietary TrakStar Technology™ to ensure batteries reach full charge while protecting them from over-discharge. Designed for PV systems up to 1,120 watts, it also functions as a smart DC load controller, enhancing system reliability. With built-in USB ports for small DC loads, it offers excellent value, performance, and dependability for off-grid solar applications.
Durable, Maintenance-Free Design: Includes a conformally coated circuit board and corrosion-resistant terminals.
Optimized Energy Harvesting: TrakStar MPPT technology continuously adjusts to the true maximum power point throughout the day.
High Efficiency: Maintains excellent performance across all power levels.
Optional Integrated Meter: Displays real-time and historical system data; included in all "M" models.
USB Charging Ports: Two ports with a combined 3A output for mobile device charging.
Self-Diagnostics: Monitors system health and reports errors via LEDs or optional display.
Lighting Control: Automatically switches loads at dusk and dawn using PV array input.
Load Management: Direct DC load connection with programmable disconnect to protect batteries.
Flexible PV Array Configuration: Supports two modules in series for 12V or 24V battery systems.
Resources:
Weight [kg] | 1.4 |
Depth [mm] | 71 |
Brand | Morningstar |
IP Rating | IP20 indoor and vented |
Display Interface | LED & optional display |
Operating Temperature Range [°C] | -40°C to +60°C |
Compatible Battery Types | Flooded, Sealed |
Maximum Output Current [A DC] | 20 |
Adjustable Battery Charging Parameters | No |
Temperature Compensated Charging | Yes - temp sensor sold separately |
Mounting | Wall |
Maximum Solar Array Voc [V DC] | 120 |
Suggested Solar Capacity for 12V Batteries [W] | 400 |
Remote Communications | No |
Grounding Polarity | Negative |
Load Control [A DC] | 30 |
Width [mm] | 196 |
Length [mm] | 173 |
Suggested Solar Capacity for 24V Batteries [W] | 800 |
Family | EcoBoost MPPT |
Regulator Type | MPPT Solar Regulator |
Battery Bank Voltage | 12, 24 |
