This is a very compact and unique digital instrument panel for motorcycles.

It contains 251 ultra bright LEDs provide for an essentially rimless and extremely readable display surface. This intricate and innovative technology combines a maximum of display surface with minimal casing dimensions.

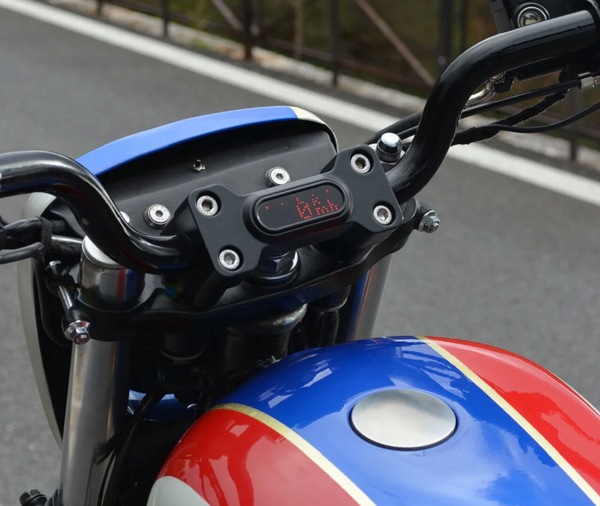

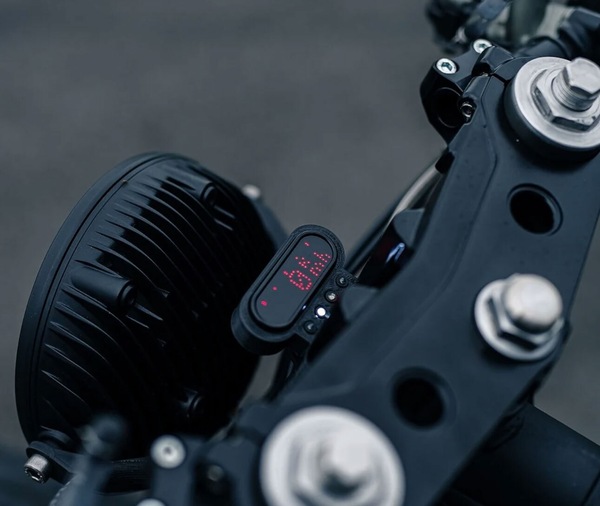

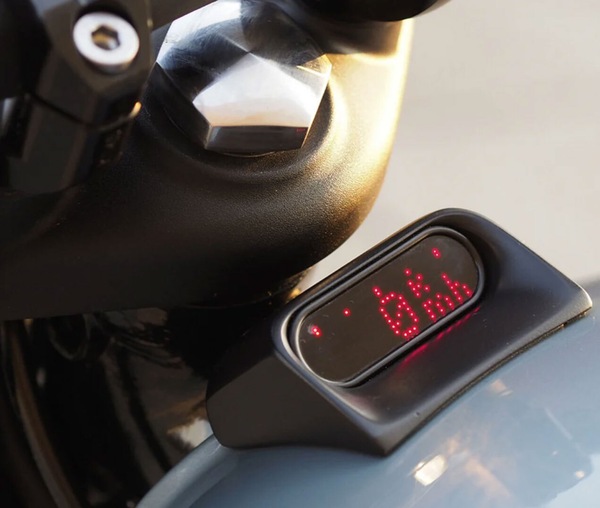

The unadorned and elegant design of the motoscope mini and its high class appearance fits every bike, trike or four-wheel vehicle. Exposed mounting can reinforce style and looks, but it might just as well be installed more discretely and 'clean' - with the mini, everything is possible!

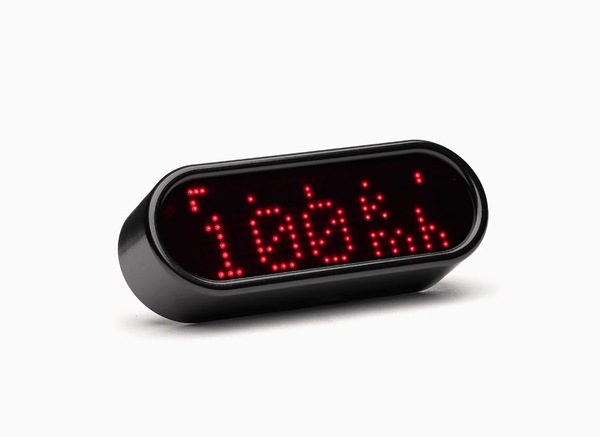

The high-quality aluminium casing is machined from solid metal and its surface is available in anodised black or polished silver. The electronics come completely moulded-in and are immune to weather, water, dust and vibrations.

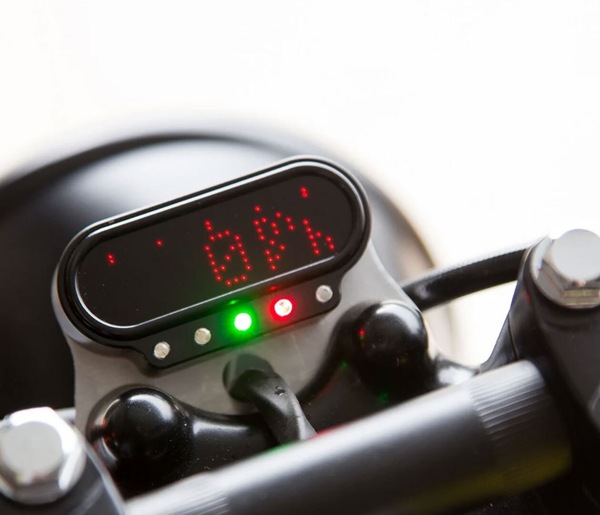

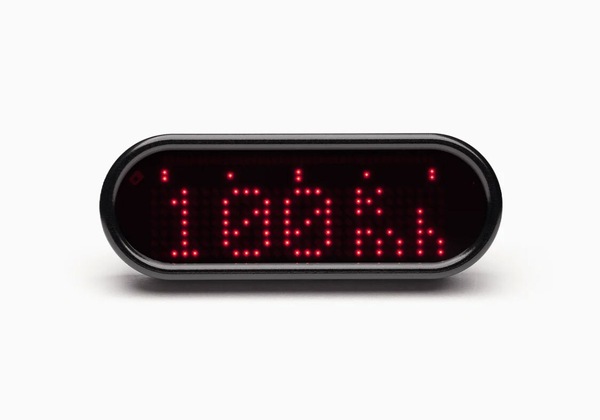

The innovative, ultra bright 251-LED dot matrix shows the engine speed in a scalable horizontal bargraph and all other features as easily readable numeric values. With the push of a button, the engine speed can be displayed as numerical value (rpm) as well.

• Instrument with approx. 75 cm connector cable
• Mini push-button
• Removable fuse
• 6 cable end connectors
• Speedometer sensor (M5 x 0,5 fine-pitch thread, stainless steel, IP 68) with 150 cm connector cable
• 2 powerful neodymium mini magnets
• 2 mounting screws M3
• Detailed installation and operating instructions

• Length, Height, Depth: 59 mm/21.5 mm/13 mm
• Weight: approx. 32 g
• Mount 2 x M3 threaded hole
• Power consumption, operating: approx. 100 mA (load dependent)
• Operating voltage: 7 V - 18 V
• Operating temperature: -20... +80C
• Rev counter (LED bargraph): 0 – 6, 8, 10 krpm
• Rev counter (numeric): 0 – 20 krpm
• Threshold adjustment/gear shift flash: 0 – 20000 rpm
• Speedometer: 0 – 999 km/h or mi/h
• Trip meter: 0 – 999.99 km or mi
• Total distance (adjustable): 99999 km or mi max.
• Travel time display: 0 – 99:59 h/min
