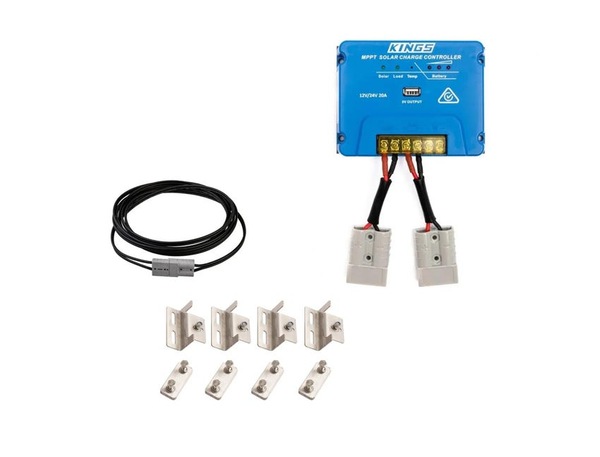

MPPT Solar Regulator + 6m Extension Lead + Solar Panel Mounting Brackets

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Limited Stock
$64.85

Collect 64 Everyday Rewards points

Log in to MyDeal to link your card
$30.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
Charge your batteries quickly and efficiently with the Adventure Kings 20A MPPT Solar Controller. Rated for up to 50V input it’s suitable for both 12 and 24V systems.

• A Maximum Power Point Tracking (MPPT) Controller applies a sophisticated charging algorithm that can constantly track the amount of power that the solar panel is generating from the sun and make the most of it in any conditions - as the conditions and solar panel output change, the MPPT tracks and follows the maximum power point for higher charging output and efficiency.

• A Solar Controller (also known as a Solar Regulator) is a must for safeguarding your battery from the high voltage output of solar panels. It does this by reducing the voltage to the level that the battery requires, for a safe and efficient charge. MPPT stands for Maximum Power Point Tracking - the unit maximises the output of the solar panel and can offer up to 30% more power from the same panel compared to a PWM regulator.

• Specifically designed for portable solar the 2.5mm2 copper cables minimise voltage drop. Of course each wire is individually insulated, plus there’s an extra 1mm thick PVC protective sheath that covers both cables. The sheath is heat and water resistant and offers extra abrasion resistance too – perfect for your next trip away or your next DIY project!

• STAINLESS STEEL BRACKETS Easily and securely mount your Adventure Kings Fixed Solar Panel to your roof rack or other flat surface with the Adventure Kings Solar Panel Mounting Brackets Kit! Made with tough stainless steel and using threaded alloy blocks they're strong and neat.

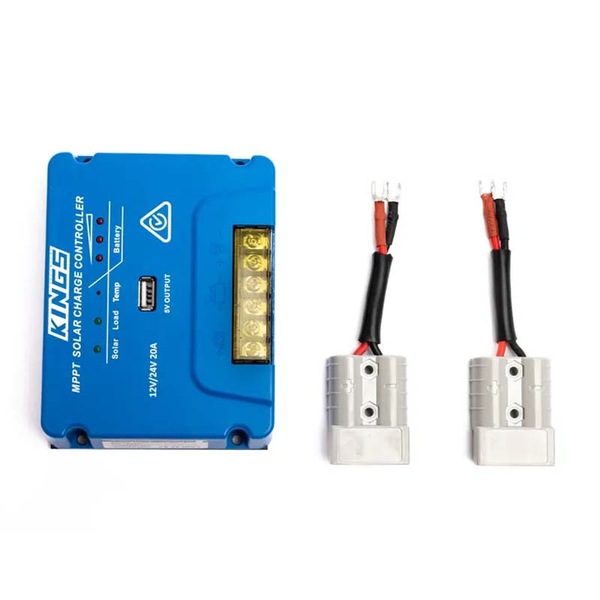

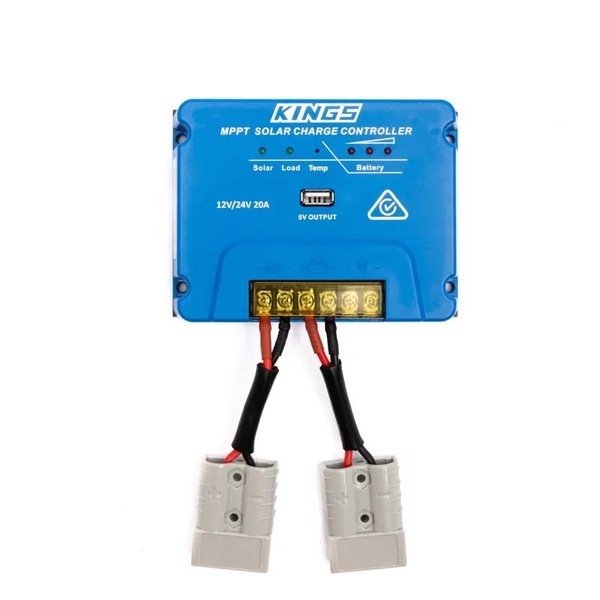

MPPT Regulator








• Up to 20Amps multi-stage Charging Capacity for Up To 300W of Solar


• For 4WDs, Caravans, Motorhomes & Off-Grid 12v Setups


• USB outlet & screw terminals for ease of use





Specifications:





• Regulator Type: Maximum Power Point Tracking


• Dimensions: 131×99.5×29.5(mm)(L×W×H)


• Regulator current rating: 20A charge / discharge


• Regulator Voltage: Suitable for 12V or 24V systems (automatic)


• Maximum Regulator Voltage input: 50V


• No-load current (standby current): <10mA


• Safety: Overload & short circuit protection ≥1.5x rated current


• USB output: 5V 1A

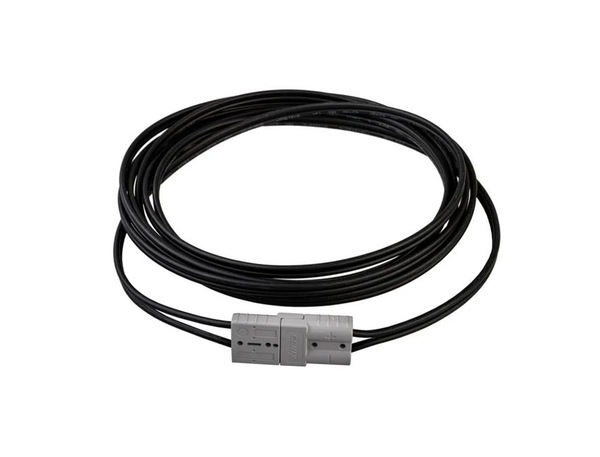

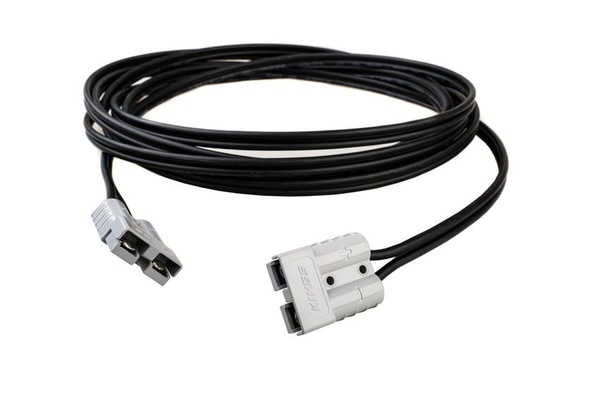

6M SOLAR EXTENSION LEAD
2.5MM2 HIGH QUALITY COPPER | HEAVY DUTY


Specifically designed for portable solar the 2.5mm2 copper cables minimise voltage drop.


Conductor Material Multi-Strand Copper 51x0.25
Conductor Cross Sectional Area (each wire) 2.5mm2
Insulation Material 0.8mm PVC
Outer Sheath material 1mm PVC
Outer Diameter 9.3mm
Recommended Maximum Current 20A
Operating Temperature Range -5°C~+70°
Plug Type Anderson-style Quick Connect
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Maximum Rated Voltage 300V

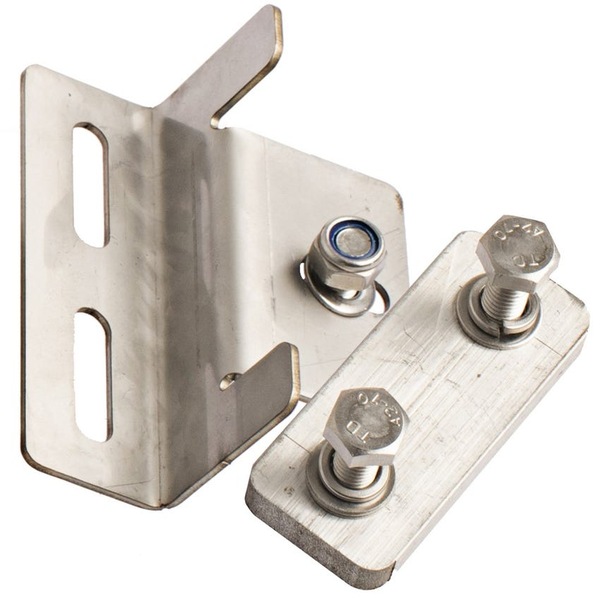

SOLAR PANEL MOUNTING BRACKETS MOUNTING HARDWARE INCL. STAINLESS STEEL


Easily and securely mount your Adventure Kings Fixed Solar Panel to your roof rack.


• Four heavy-duty brackets to mount a Kings 110W Solar Panel to your roofrack or other hard surface


• Bracket Material: Folded Stainless Steel


• Mounting Hardware: Stainless Steel


• Weight (four brackets combined): 800gm

MPN: SC-CO-MPPTREG-6MLEAD-110WBRACKET
