Mpt-7210A Aluminum Alloy Mppt Solar Panel Charge Controller With Lcd Display

Description:

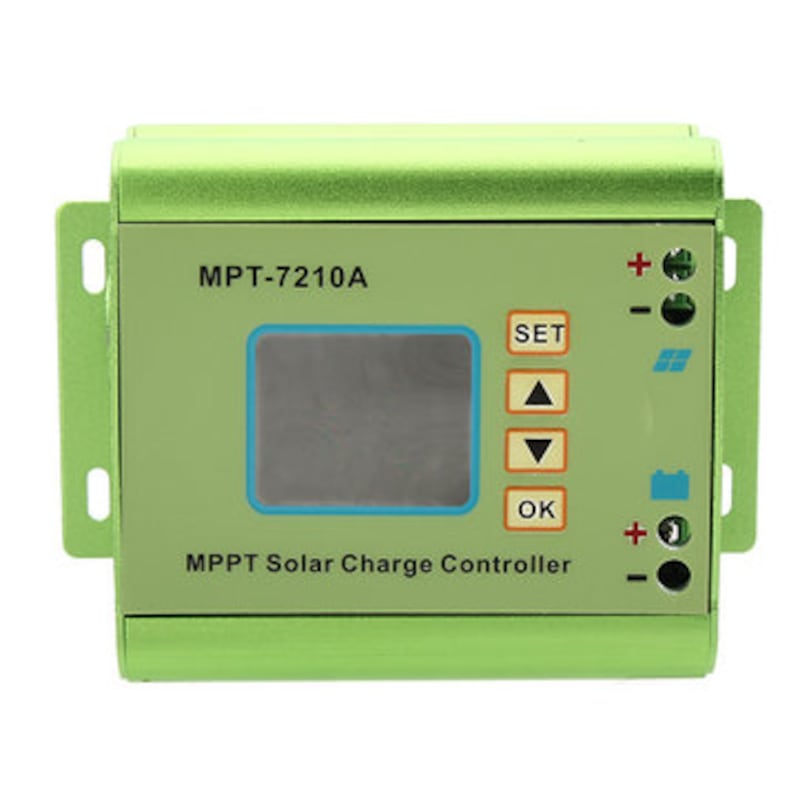

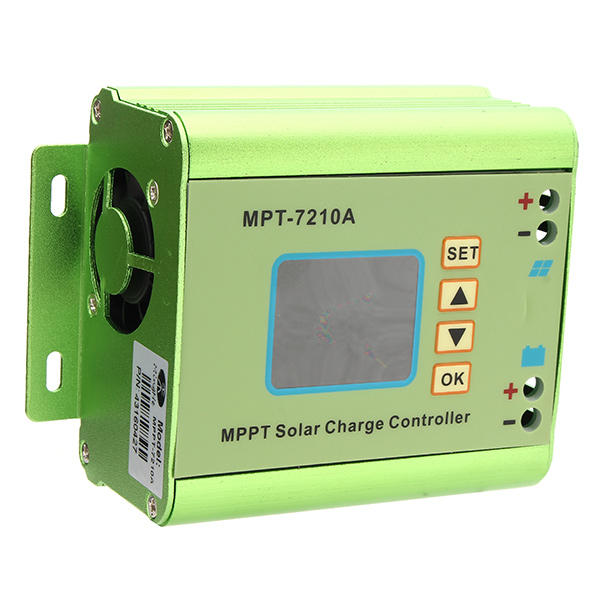

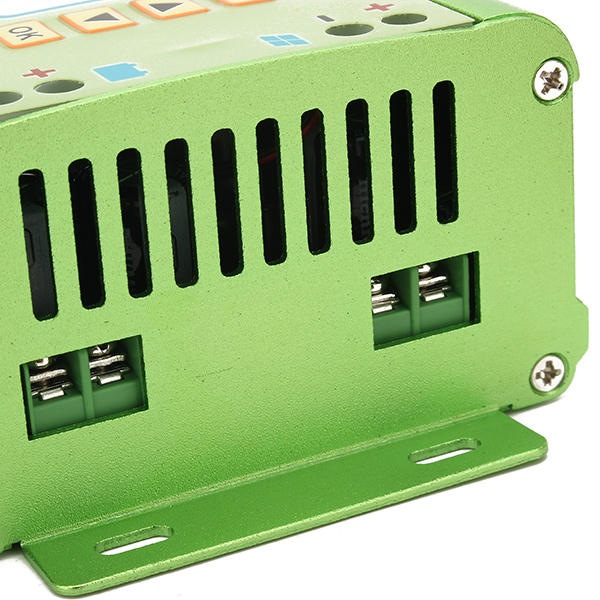

MPT-7210A Aluminum Alloy MPPT Solar Panel Charge Controller with LCD Display

Features:

Compatible with 24V / 36V / 48V / 60V / 72V battery pack system, can set the output voltage and current according to actual need.
Innovative MPPT technology and high tracking efficiency, can improve the generated energy.

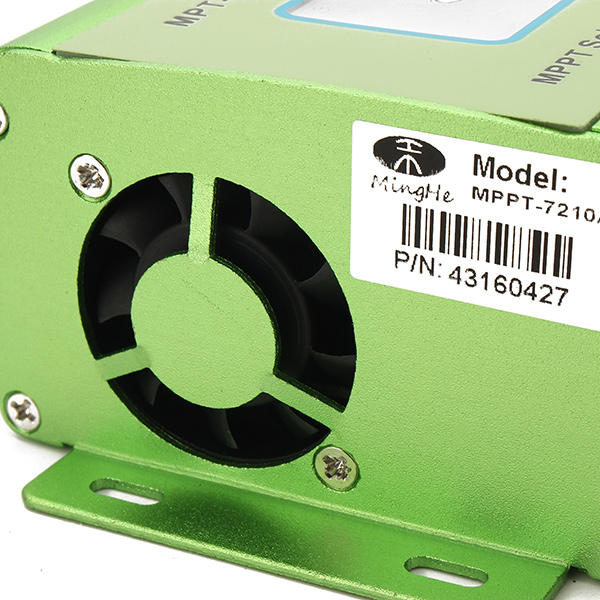

Excellent heat dissipation capability: Adopts advanced fan temperature control technology for quick controlling the heat.
Aluminum alloy case, durable for use.
LCD screen displays the current, current, power, charging time, etc..
Working modes: Selectable MPPT and DC-DC (MPPT for photovoltaic panels application and DC-DC for boost power supply).
Built-in 20 groups of data for user to set and store.
Max. output power is 600W, suitable for 100W - 600W solar panel.
Reverse connecting protection: MOS reverse connecting protection circuit at the input and output end for effectively protecting the controller and battery.
Overload protection: the controller will automatically cut off circuit if overload.
High-speed and high-performance design, great for solar charging use.

Specification:

Material: Aluminum Alloy
Type: Measuring instruments
Primary functions: MPPT Solar Charge Controller
Scope of application: Agricultural,Home appliance,Industrial,Office,Supermarket
Product weight: 0.4kg
Package weight: 0.45kg
Product size: 115*11*7cm

Package includes:

1 x MPT-7210A Aluminum Alloy MPPT Solar Panel Charge Controller, 1 x English User Manual
