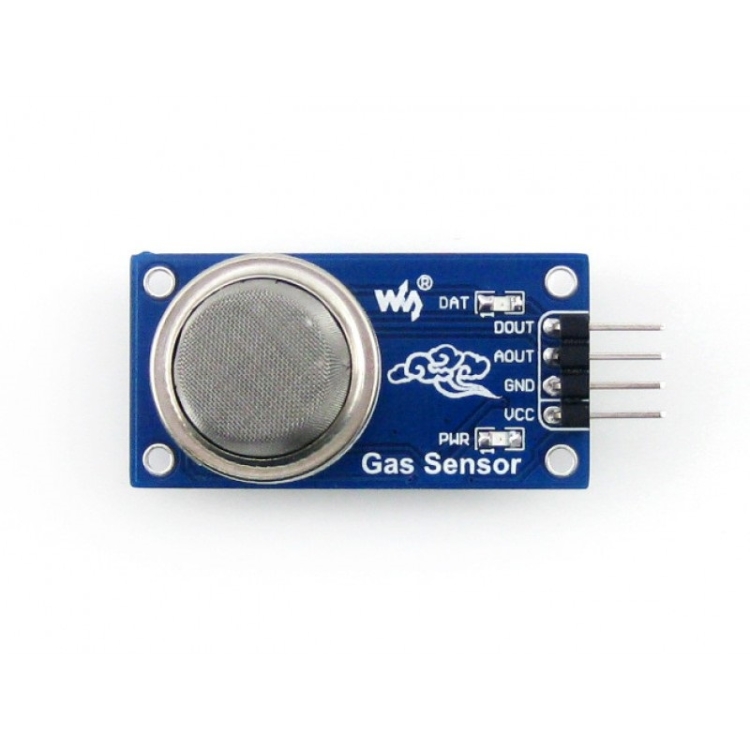

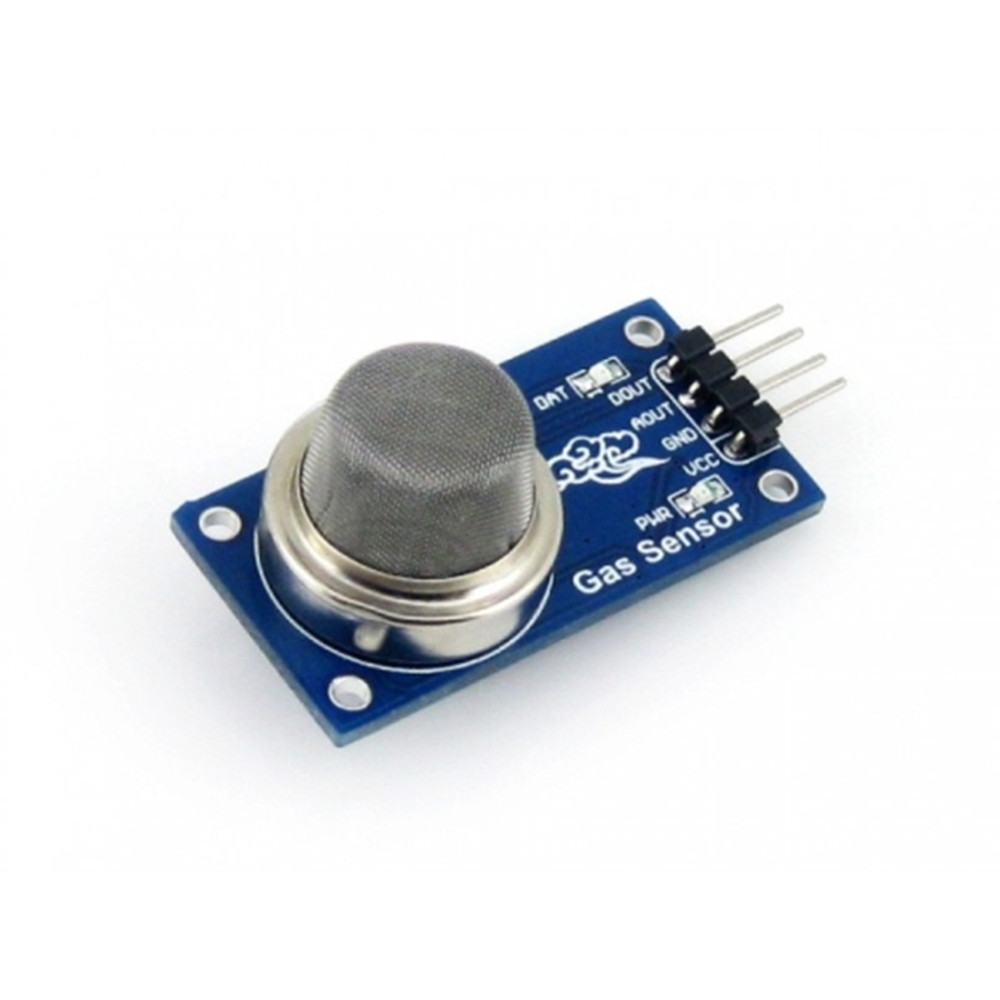

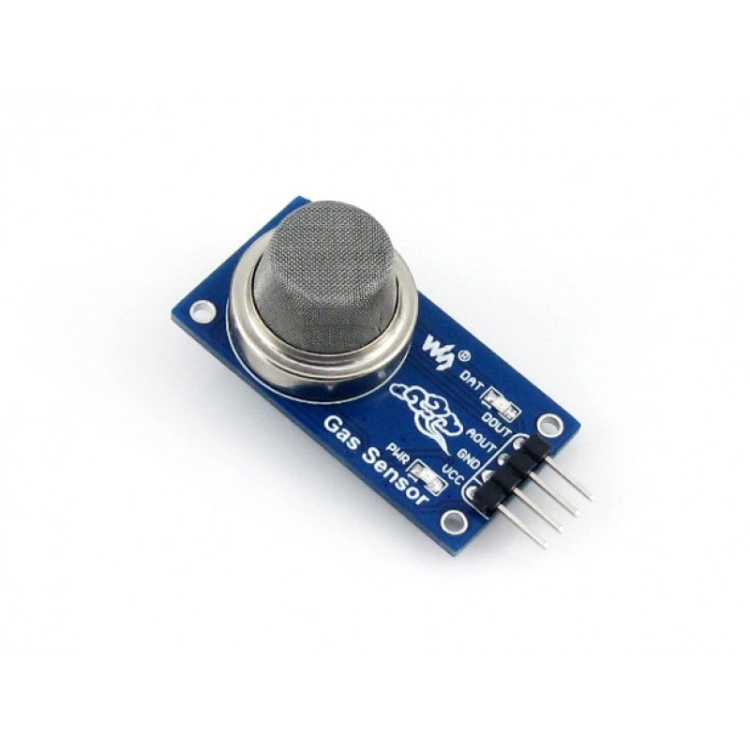

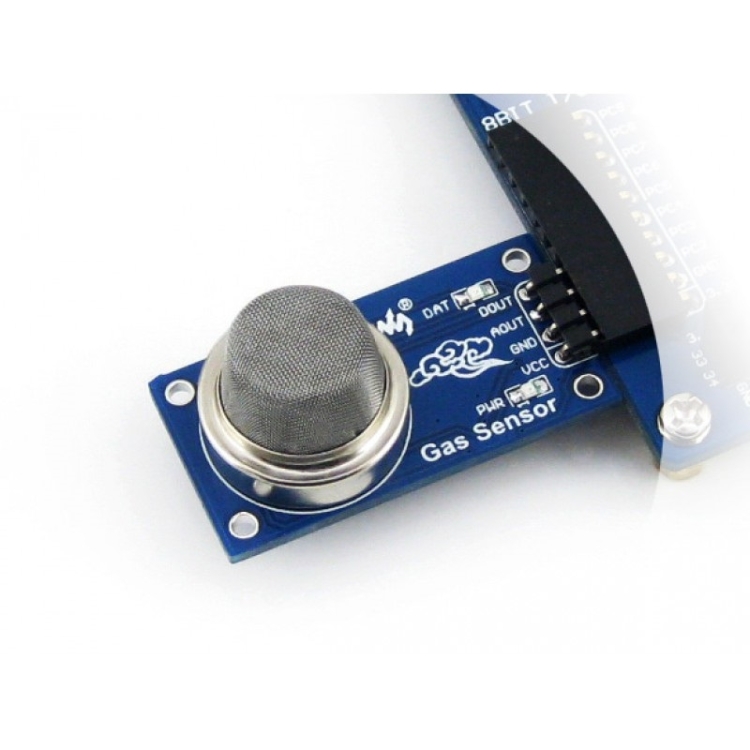

MQ-7 Gas Sensor
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 33 Everyday Rewards points
Dispatch in 2 business days
Collect 33 Everyday Rewards points
Dispatch in 2 business days
Overview
1. Sensitive for carbon monoxide
2. Output voltage boosts along with the concentration of the measured gases increases
3. Fast response and recovery
4. Adjustable sensitivity
5. Signal output indicator
Specifications
1. Power: 2.5V ~ 5.0V
2. Dimension: 40.0mm * 21.0mm
3. Mounting holes size: 2.0mm
Applications
Carbon monoxide monitor
How to Use
In the case of working with a MCU:
1. VCC: 2.5V ~ 5.0V
2. GND: Power supply ground
3. AOUT: MCU.IO (analog output)
4. DOUT: MCU.IO (digital output)
Package Contents
1. MQ-7 Gas Sensor x1
2. 4-pin custom connector jumper wire x1
GTIN: 6913664822243
