RCF MQ90SB 8" Compact 100V Line Subwoofer Black -

Image 1
Hurry! 4 items left!
$156

Collect 156 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout

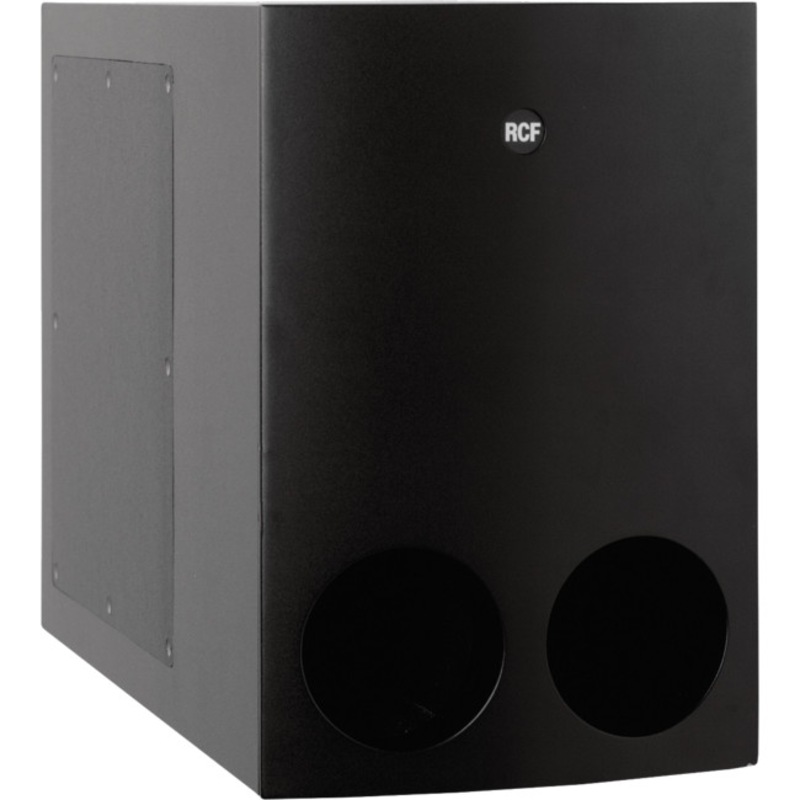

MQ 90SB COMPACT SUBWOOFER - BLACK

MQ 90S is a compact band-pass 8" subwoofer.
It can be connected through a removable Euroblock plugthat allows the parallel connection of other loudspeakers.
The cabinet material is MDF with a scratch resistant surface.
The subwoofer has internally a transformer for constant voltage lines (100 or 70 V).
The power selection is made by means of its selector.
It is for indoor use only (avoid to use it in very humid places).
It should be put on the floor of a room where "satellite" loudspeakers (for mid / high frequencies) are already present. MQ 90S belongs to RCF Monitor Q series.

Features
  • SubWoofer 8", expecially designed to be used with MonitorQ series speakers
  • Well suitable also for other RCF speakers such as PL40, PL6X, DU 100X, DP 2X
  • Power/RMS: 160/80W Bypass
  • Impedance: [Bypass] 16
  • [100V]: 60W - 30W - 15W - 7.5W - [70,7V]: 30W - 15W - 7.5W - 3.75 W
  • Crossover frequency: 200 Hz, 12 dB/oct
  • As the subwoofer range is non-directional, the unit can be installed in a semi-hidden position
  • Cabinet: material PVC covered Chipboard and Painted Front Medium density
  • Input: Euroblock connector
Applications
  • • Business application
  • • Audio visual applications
  • • Restaurants
  • • Pubs
Acoustical Specifications
  • Type of speaker: "band-pass" subwoofer
  • Frequency Response: 70 Hz - 220 kHz
  • Max SPL @ 1m: 107 dB
  • Power Handling: 60 W RMS
  • Peak Power Handling: 120 W PEAK
  • System Sensitivity: 89 dB
  • Impedance: 16
  • Crossover frequencies: 200 Hz
Transducers
  • Speaker: 8"
Input Section
  • Input connector :Removable 4 pole Euroblock
  • Constant voltage: 100 V, 70 V
  • Power Selection: 60 - 30 - 15 - 7.5 W (100V)
Cabinet
  • Hardware: Material PVC
  • Colour: Black (Also available in White)
Physical Specifications
  • Height: 300 / 11.81 mm/inch
  • Width: 203 / 7.99 mm/inch
  • Depth: 400 / 15.74 mm/inch
  • Net weight: 8.06 / 17.76 kg/lbs
information
  • Package height: 370 / 14.56 mm/inch
  • Package width: 265 / 10.43 mm/inch
  • Package depth: 470 / 18.50 mm/inch
  • weight: 9.24 / 20.59 kg/lbs
