[MS-iCraft B760M CROSS] MAXSUN MS iCraft B760M CROSS Intel Micro-ATX Motherboard

Image 1
Image 2
Image 3
Image 4
Image 5
Hurry! 10 items left!
$335.94

Collect 335 Everyday Rewards points

Log in to MyDeal to link your card
$14.95 Australia-wide (per-item)
Sold & shipped by Best Deal Computers
Secure ways to pay at checkout

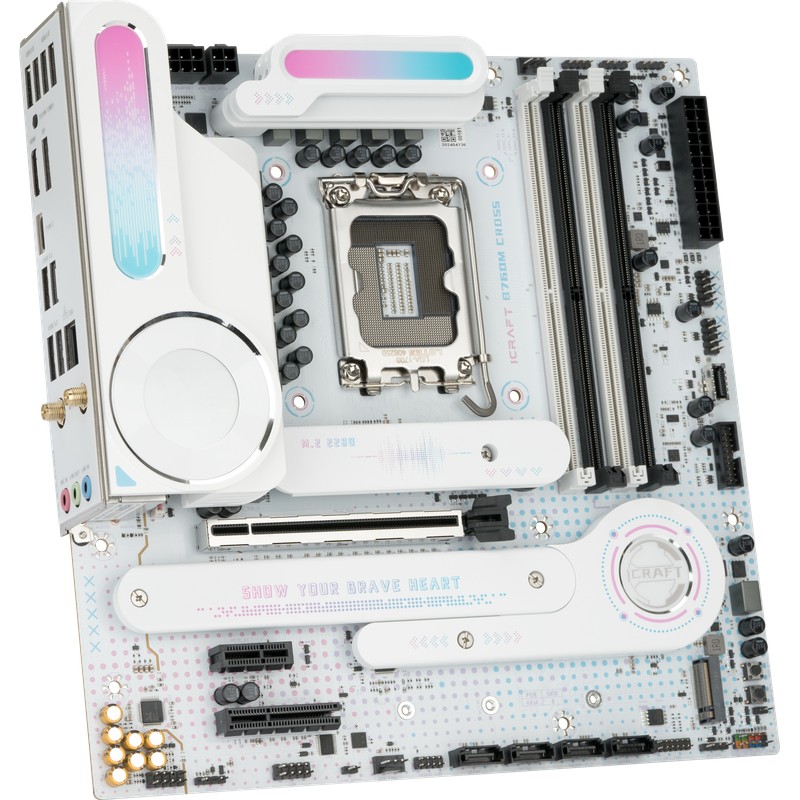

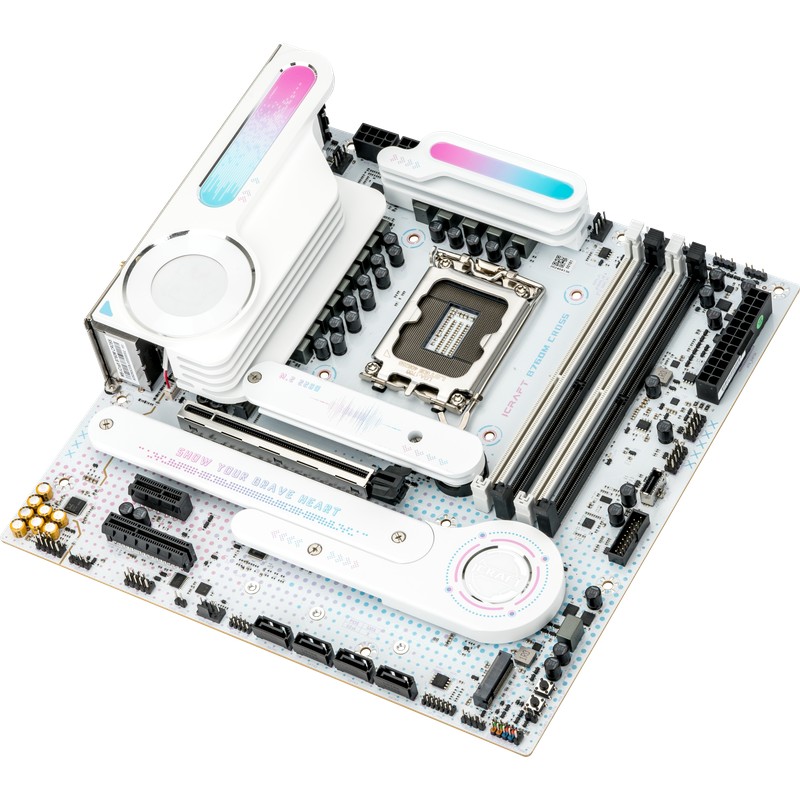

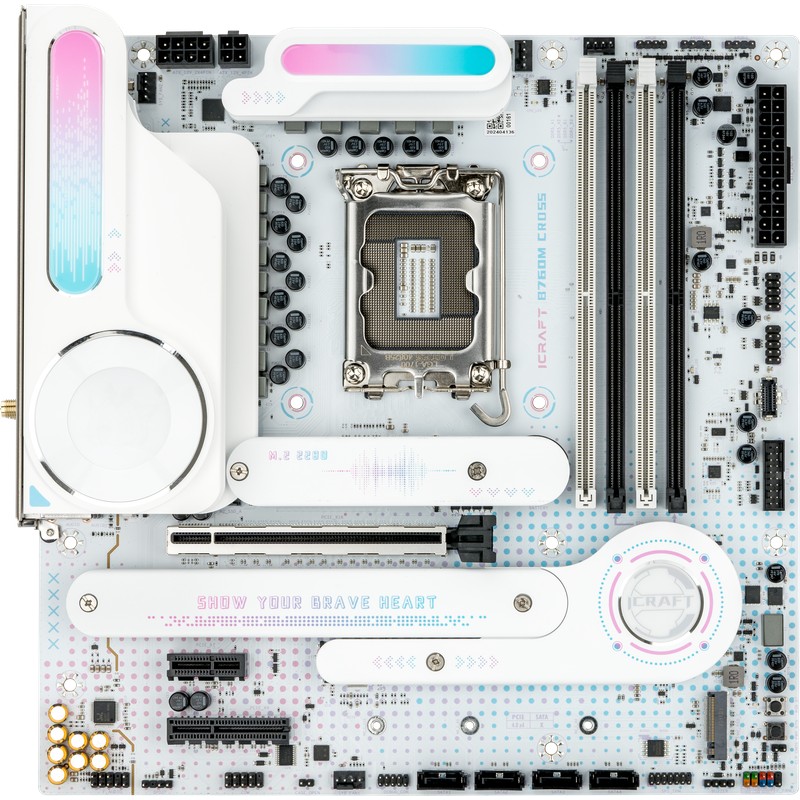

MAXSUN MS iCraft B760M CROSS Intel Micro-ATX Motherboard

MAXSUN MS-iCraft B760M CROSS - Model: MS-iCraft B760M CROSS Power: Supports PL1 253W and unlimited PL2, optimized for performance. Memory: DDR5 with heatsink, supports up to 7GHz+ overclocking. Expansion: 3x PCIe 4.0 M.2 slots, extended PCIe 5.0 x16 slot. Design: Gradient RGB coating and blinking SSD heatsink. Connectivity: Dual USB 3.2 Gen2x2 Type-C, 2.5Gbps Ethernet, Wi-Fi 6, Bluetooth 5.3. Power Management: 12+1+1 phase power, RT3628 chip. Compatibility: Compatible with Intel 13th & 14th Gen processors (LGA1700). Features: Reinforced PCIe slots, SATA lock, Smart Button, high-speed

Features:
  • Model:MS-iCraft B760M CROSS
  • Power:Supports PL1 253W and unlimited PL2, optimized for performance.
  • Memory:DDR5 with heatsink, supports up to 7GHz+ overclocking.
  • Expansion:3x PCIe 4.0 M.2 slots, extended PCIe 5.0 x16 slot.
  • Design:Gradient RGB coating and blinking SSD heatsink.
  • Connectivity:Dual USB 3.2 Gen2x2 Type-C, 2.5Gbps Ethernet, Wi-Fi 6, Bluetooth 5.3.
  • Power Management:12+1+1 phase power, RT3628 chip.
  • Compatibility:Compatible with Intel 13th & 14th Gen processors (LGA1700).
  • Features:Reinforced PCIe slots, SATA lock, Smart Button, high-speed
Specifications:
  • CHIPSET :INTEL B760
  • CPU :Supports 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors
    LGA 1700
  • MEMORY :4x DDR5, Maximum Memory Capacity 192GB
    Memory Support DDR5 7600(OC)/7200(OC)/7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MHz
  • ONBOARD GRAPHICS :1x DisplayPort 1.4
    1x HDMIport
    *HDMI port supports up to 4K@30Hz
    *Graphics specifications may vary between CPU types. Please refer to Intel for any updates.
  • EXPANSION SLOT :1x PCIe 5.0 x16 slot
    1x PCIe 3.0 x4 slot
    1x PCIe 3.0 x1 slot
  • STORAGE :M.2_1 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode)
    M.2_2 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode)
    M.2_3 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports
  • RAID :Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • USB :*Front USB (Total 7 ports)
    1x USB 3.2 Gen1 Type C (10Gbps)
    2x USB 3.2 Gen1 Type A
    4x USB 2.0

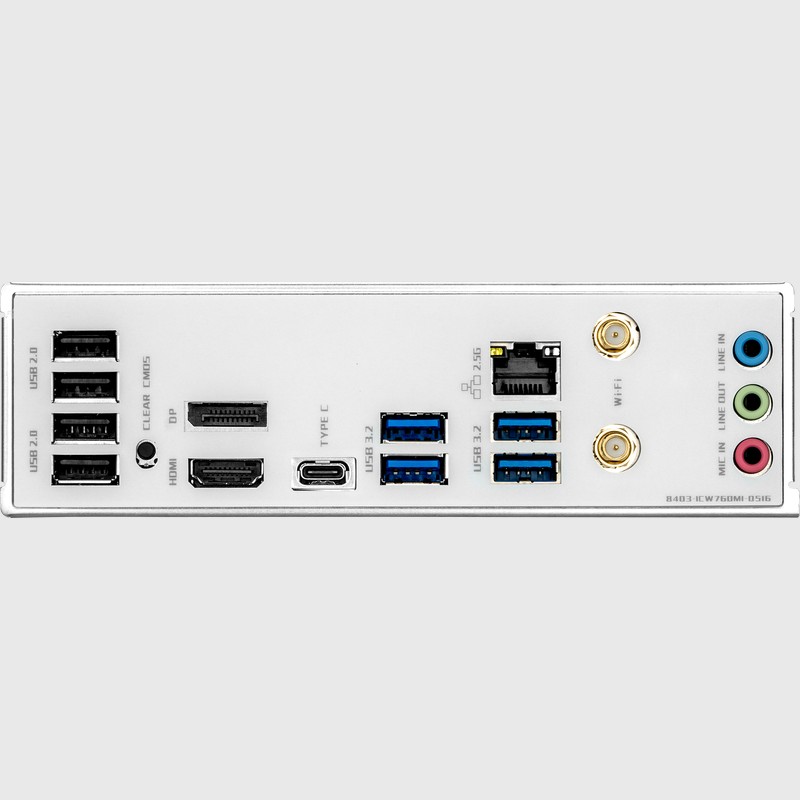

    *Rear USB (Total 9 ports)
    1x USB 3.2 Gen2 Type C (20Gbps)
    4x USB 3.2 Gen1 Type A
  • LAN :Realtek RTL8125BG 2.5G LAN
  • WIRELESS / BLUETOOTH :Intel Wi-Fi 6E AX211
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax
    Supports Bluetooth 5.3
  • AUDIO :Realtek ALC897 Codec
    7.1-Channel High Definition Audio
    Supports S/PDIF output
  • INTERNAL I/O :1x 24-pin Power Connector(ATX_PWR)
    1x 8+4-pin Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    2x System Fan
    3 x M.2 slots (Key-M)
    4x SATA 6Gb/s ports
    1x M.2 slots (Key-E)
    1x 4-Pin BUZZER
    2x 5V 3-Pin ARGB
    1x 12V 4-Pin RGB
    1x Clear CMOS
    1x Front Audio
    1x COM_A Port
    1x TPM pin header(Support TPM 2.0)
    1x RGB Button
    1x POWER Button
  • LED FEATURE :4x Distributed Debug LED
  • OPERATING SYSTEM :Support for Windows 11 64-bit, Windows 10 64-bit
  • FORM FACTOR :M-ATX
    245mm x 245mm

GTIN: 906425131490

Estimated Delivery Time Frame:1-7 business days
