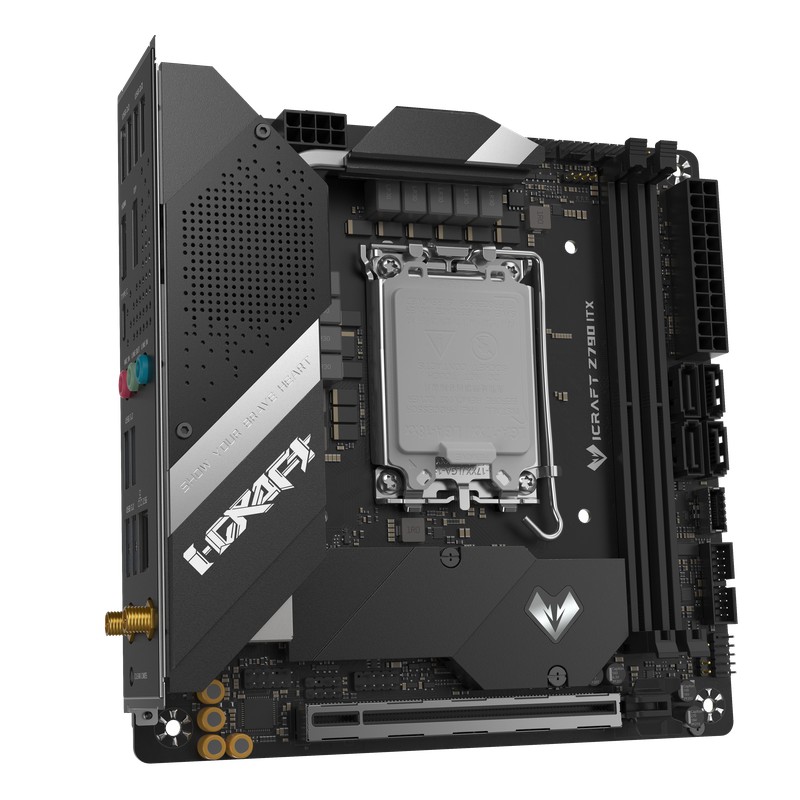

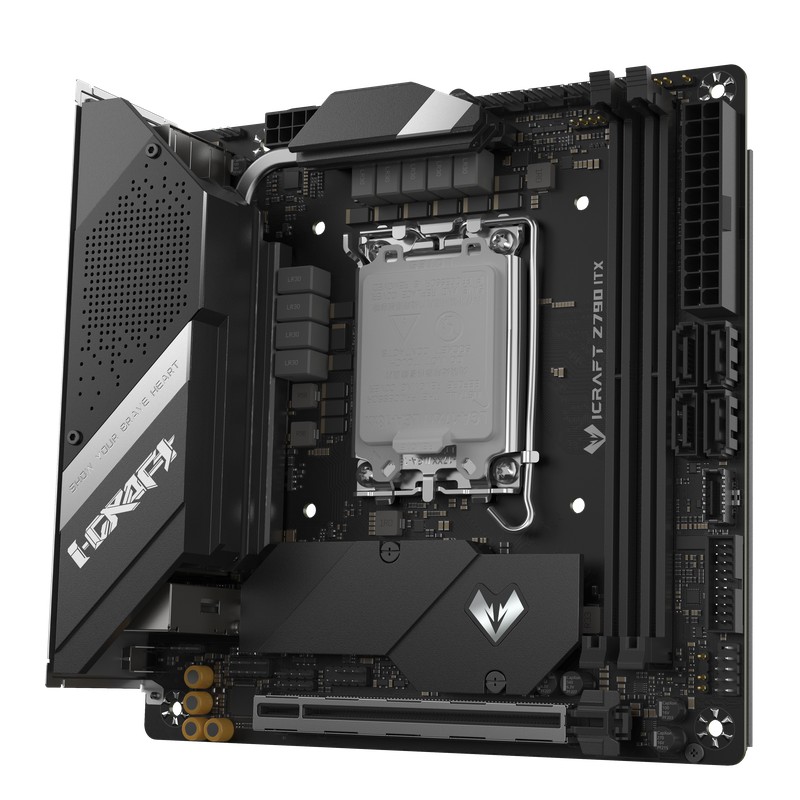

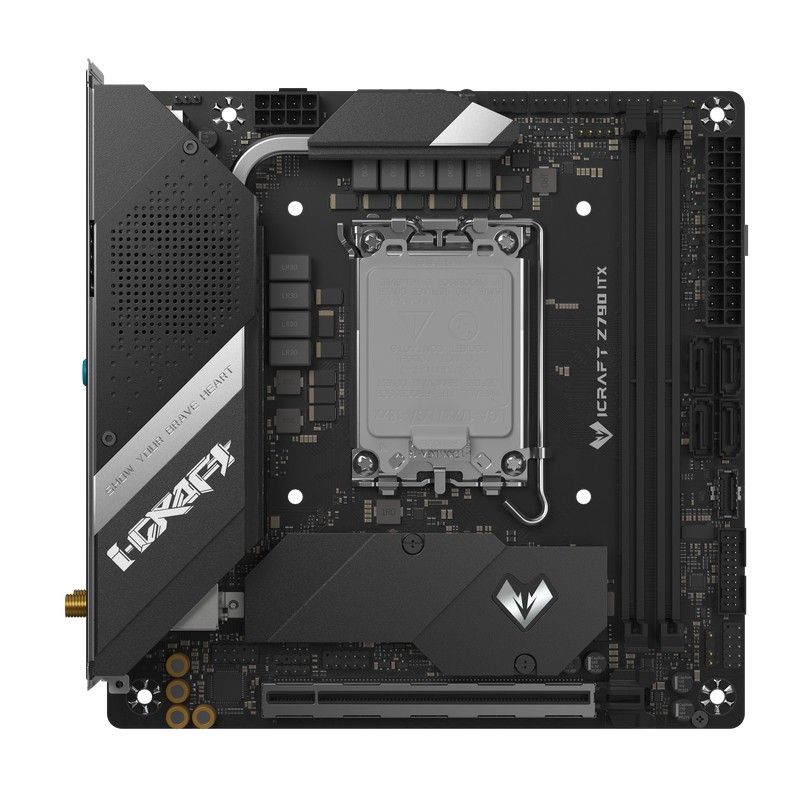

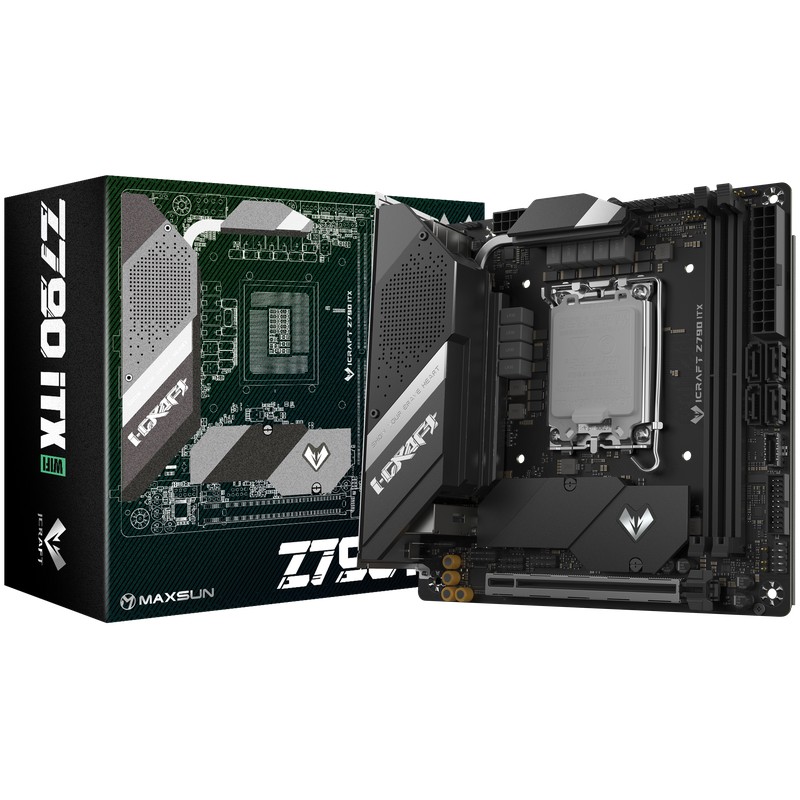

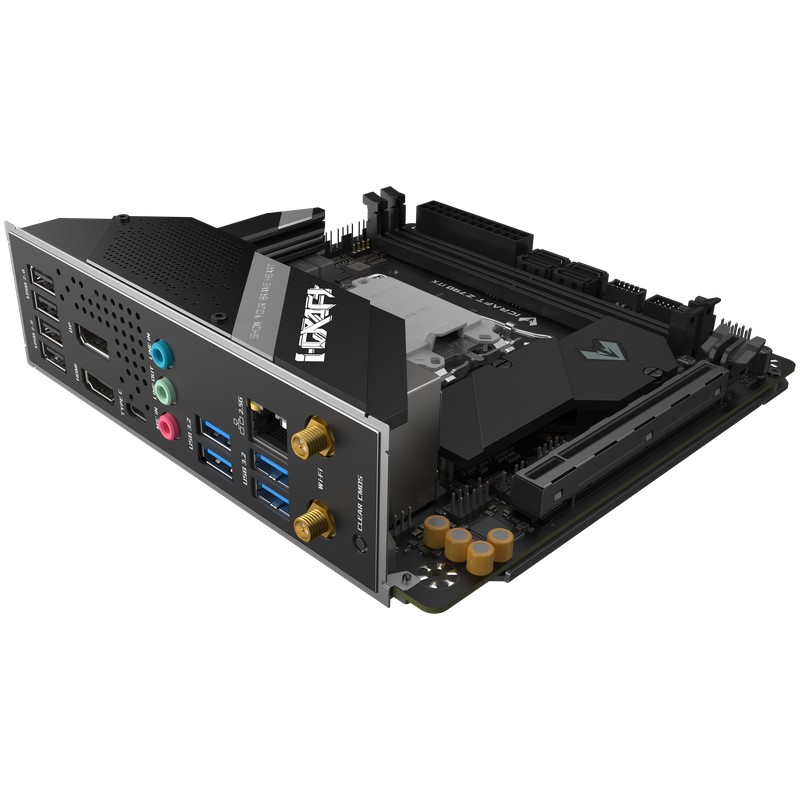

MAXSUN MS iCraft Z790ITX WIFI Intel Mini-ITX Motherboard

MAXSUN MS-iCraft Z790ITX WIFI V2 - Intel Core 14th Gen CPU 9 phases power supply 90A Dr.Mos RAA229131 PWM Hybrid cooling system DDR5 XMP 7400MHz+ 2.5G LAN 2*20G Type-C

Features:
  • Intel Core 14th Gen CPU
  • 9 phases power supply
  • 90A Dr.Mos
  • RAA229131 PWM
  • Hybrid cooling system
  • DDR5 XMP 7400MHz+
  • 2.5G LAN
  • 2*20G Type-C
Specifications:
  • CHIPSET :INTEL Z790
  • CPU :Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
    LGA 1700
  • MEMORY :2x DDR5, Maximum Memory Capacity 96GB
    Memory Support DDR5 7400+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
    Supports Intel XMP 3.0 OC
    Supports Dual-Controller Dual-Channel mode
  • ONBOARD GRAPHICS :1x DisplayPort 1.4
    1x HDMIport
    HDMI port supports up to 4K@30Hz
    Graphics specifications may vary between CPU types. Please refer to Intel for any updates.
  • EXPANSION SLOT :1x PCIe 5.0 x16 slot
  • STORAGE :M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports
  • RAID :Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • USB :Front USB (Total 6 ports)
    1x USB 3.2 Gen2 Type C
    2x USB 3.2 Gen1 Type A
    3x USB 2.0
    Rear USB (Total 9 ports)
    1x USB 3.2 Gen2x2 Type C
    4x USB 3.2 Gen1 Type A
    4x USB 2.0
  • LAN :Realtek RTL8125BG 2.5G LAN
  • WIRELESS / BLUETOOTH :Intel Wi-Fi 6E AX211
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax
    Supports Bluetooth 5.3
  • AUDIO :Realtek ALC897 Codec
    5.1-Channel High Definition Audio
  • INTERNAL I/O :1x 24-pin Power Connector(ATX_PWR)
    1x 8-pin Power Connector(CPU_PWR)
    1x CPU Fan
    1x AIO_PUMP
    2x System Fan
    2 x M.2 slots (Key-M)
    4x SATA 6Gb/s ports
    1x M.2 slots (Key-E)
    2x 5V 3-Pin ARGB
    1x 12V 4-Pin RGB
    1x 2-pin Clear CMOS
    1x Front Audio
    1x SPDIF OUT
  • LED FEATURE :4x Distributed Debug LED
  • OPERATING SYSTEM :Support for Windows 11 64-bit, Windows 10 64-bit
  • FORM FACTOR :ITX
    172mm x 172mm

GTIN: 906425131506
