[MS-Terminator B760ITX D4 WIFI] MAXSUN MS Terminator B760ITX D4 WIFI Intel Mini-ITX Motherboard

Image 1
Image 2
Image 3
Image 4
Image 5
Limited Stock
$239.51

Collect 239 Everyday Rewards points

Log in to MyDeal to link your card
$9.95 Australia-wide (per-item)
Sold & shipped by Best Deal Computers
Secure ways to pay at checkout

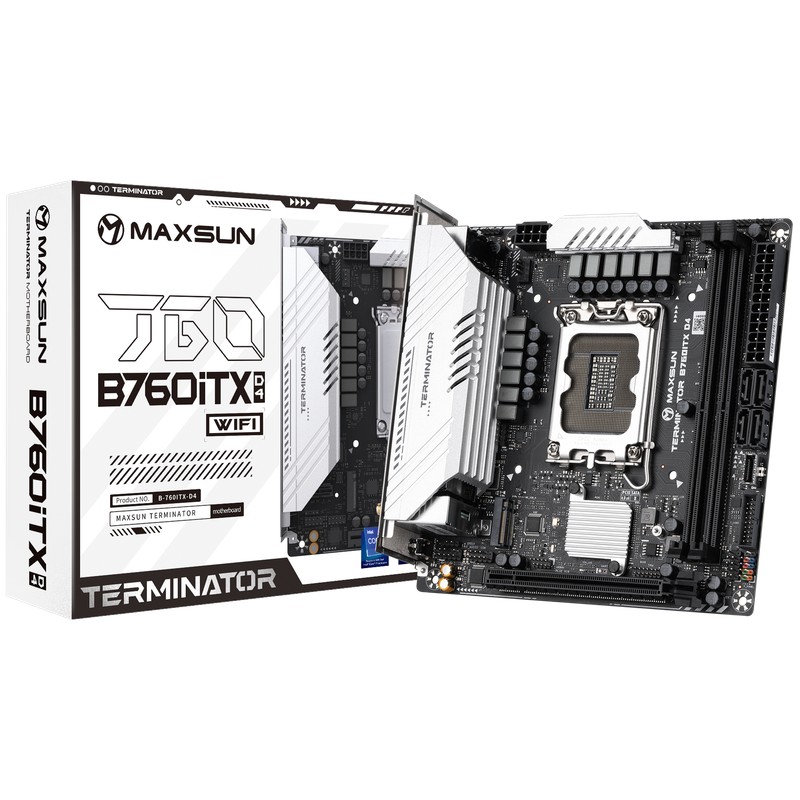

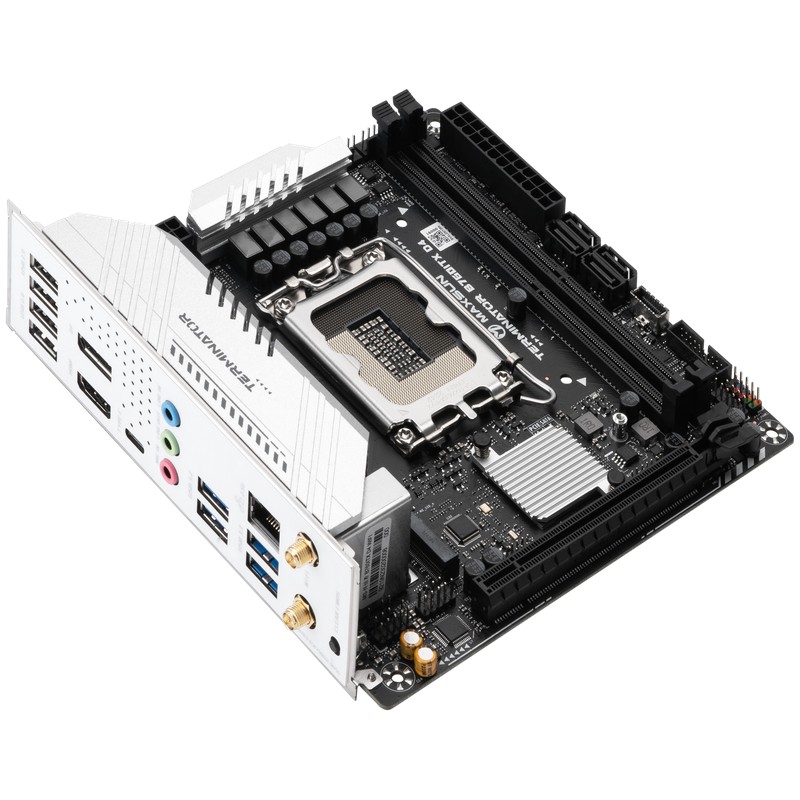

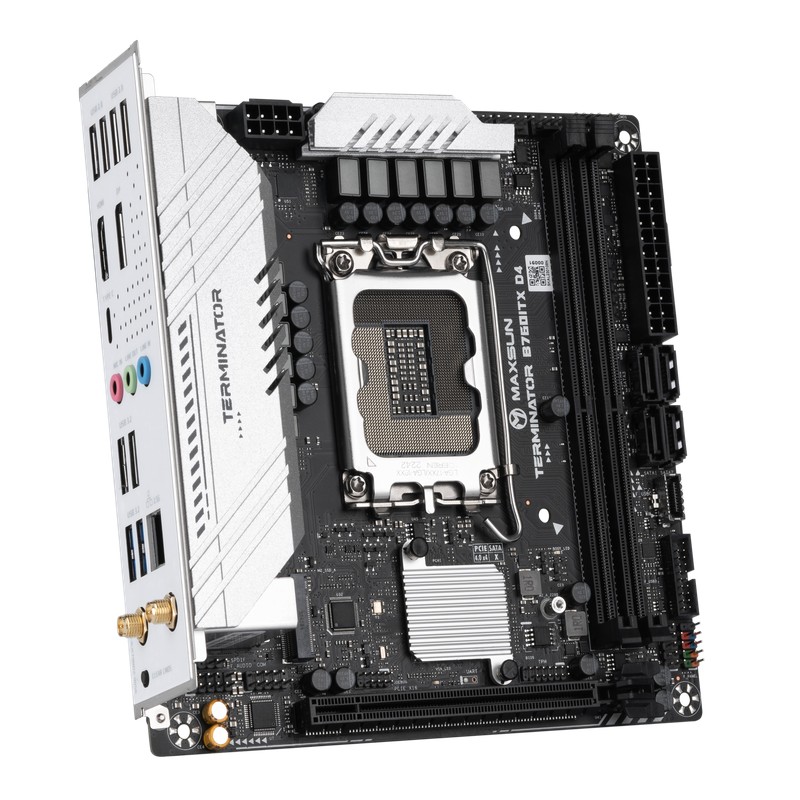

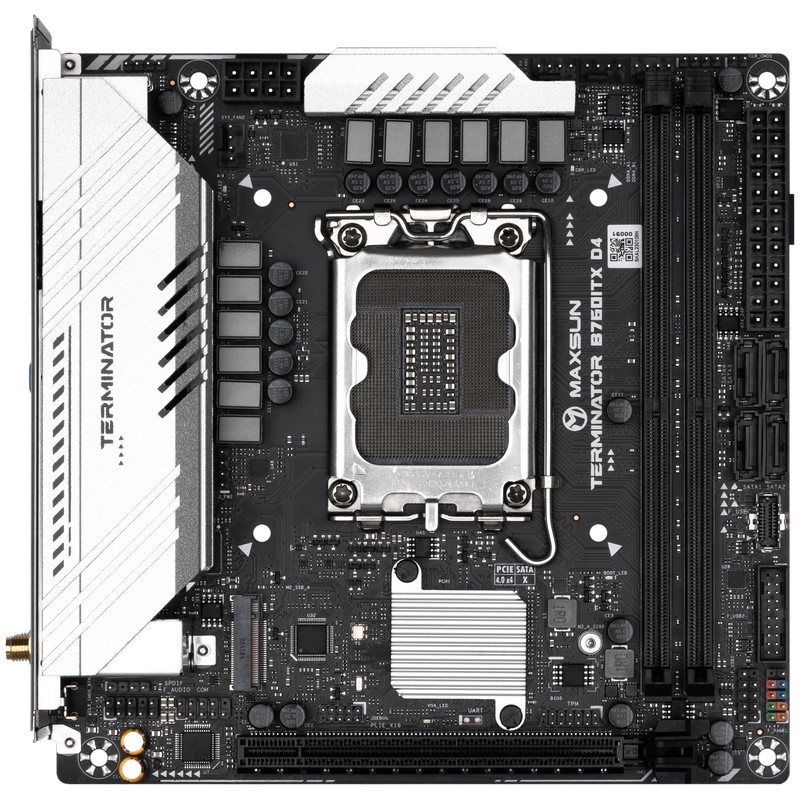

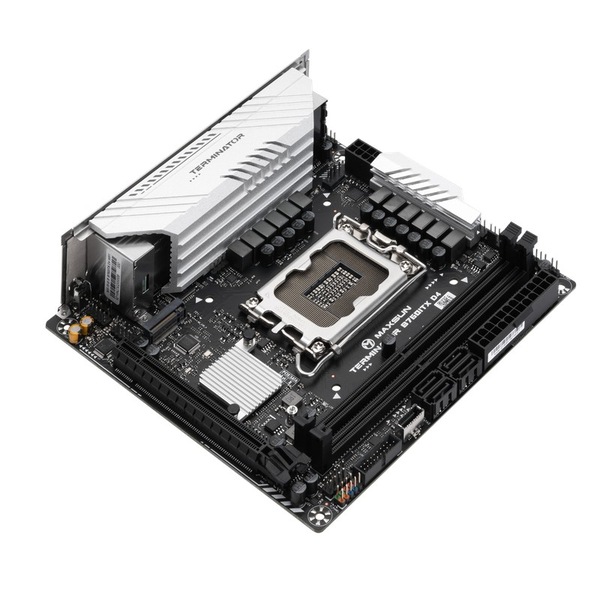

MAXSUN MS Terminator B760ITX D4 WIFI Intel Mini-ITX Motherboard

MAXSUN MS-Terminator B760ITX D4 WIFI V3 - 8+1+2 power supply Core 60A Dr. Mos Dual Type-C front and rear Dual M.2 hard drive interface 2.5G & WIFI6E network port

Features:
  • 8+1+2 power supply
  • Core 60A Dr. Mos
  • Dual Type-C front and rear
  • Dual M.2 hard drive interface
  • 2.5G & WIFI6E network port
Specifications:
  • CHIPSET :INTEL B760
  • CPU :Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
    LGA 1700
  • MEMORY :2x DDR4, Maximum Memory Capacity 64GB
    Memory Support DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz
    Supports Intel XMP 2.0 OC
    Supports Dual-Controller Dual-Channel mode
  • ONBOARD GRAPHICS :1x DisplayPort 1.4
    1x HDMIport
    *HDMI port supports up to 4K@30Hz
    *Graphics specifications may vary between CPU types. Please refer to Intel for any updates.
  • EXPANSION SLOT :1x PCIe 5.0 x16 slot
  • STORAGE :M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports
  • RAID :Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • USB :*Front USB (Total 5 ports)
    1x USB 3.2 Gen1 Type C
    2x USB 3.2 Gen1 Type A
    2x USB 2.0
    *Rear USB (Total 9 ports)
    4x USB 3.2 Gen1 Type A
    4x USB 2.0
  • LAN :Realtek RTL8125BG 2.5G LAN
  • WIRELESS / BLUETOOTH :Intel Wi-Fi 6E AX211
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax
    Supports Bluetooth 5.3
  • AUDIO :Realtek ALC897 Codec
    5.1-Channel High Definition Audio
  • INTERNAL I/O :1x 24-pin Power Connector(ATX_PWR)
    1x 8-pin Power Connector(CPU_PWR)
    1x CPU Fan
    1x PUMP Fan
    2x System Fan
    2 x M.2 slots (Key-M)
    4x SATA 6Gb/s ports
    1x CLR_CMOS
    1x 4-Pin BUZZER
    1x Front Audio
    1x COM Port
    1x 9-Pin JDEBUG
    1x TPM pin header(Support TPM 2.0)
    1x 3-Pin SPDIF
  • LED FEATURE :4x Distributed Debug LED
  • OPERATING SYSTEM :Support for Windows 11 64-bit, Windows 10 64-bit
  • FORM FACTOR :ITX
    170mm x 170mm

GTIN: 906425131513
