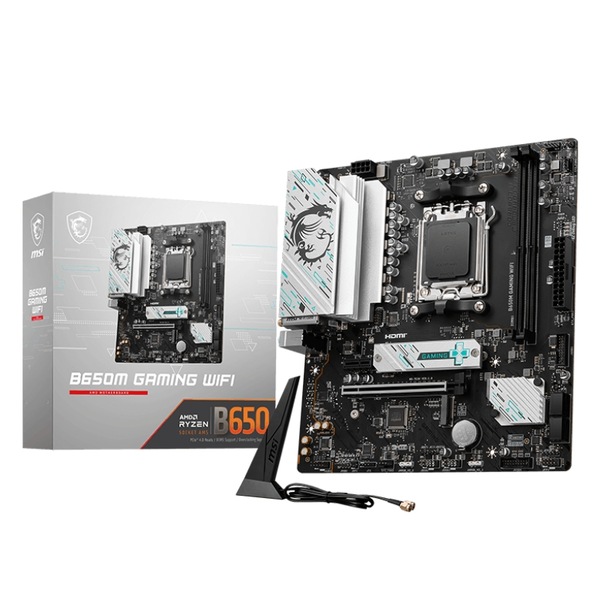

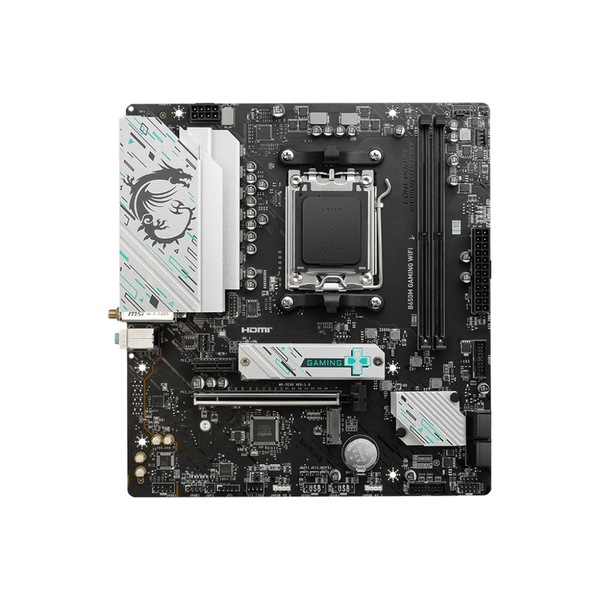

MSI B650M GAMING WIFI Motherboard, for AMD CPU, DDR5, AM5, Micro-ATX MB

Image 1
Image 2
Image 3
Limited Stock
$224.65

Collect 224 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Best Deal Computers
Secure ways to pay at checkout

MSI B650M GAMING WIFI

Features:
  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, up to 7800+(OC) MHz
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen4 M.2
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
Specifications:
  • Chipset :AMD B650
  • CPU :Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
    Socket AM5
  • Memory :2x DDR5, Maximum Memory Capacity 128GB
    Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 7800+ MHz
    • 1DPC 2R Max speed up to 6400+ MHz
    Supports Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Supports AMD EXPO™
  • Onboard Graphics :1x HDMI™
    Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
    1x DisplayPort
    Support DP 1.4, maximum resolution of 4K 60Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
  • Slot :1x PCI-E x16 slot
    Supports x16/x1
    • Supports x16 (For Ryzen™ 9000 and 7000 Series processors)
    • Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
    • Supports x4 (For Ryzen™ 5 8500G processor)
    1x PCI-E x1 slot
    PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
  • Audio :Realtek® ALC897 Codec
    7.1-Channel High Definition Audio
  • Storage :2x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
    M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
    4x SATA 6G
    • The M2_2 slot will be unavailable when using Ryzen™ 5 8500G processor
  • RAID :Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
    Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
  • USB :2x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    3x USB 5Gbps Type A (Rear)
    1x USB 5Gbps Type C (Rear)
    4x USB 5Gbps Type A (Front)
  • LAN :Realtek® RTL8125BG 2.5Gbps LAN
  • Internal IO :1x Power Connector(ATX_PWR)
    1x Power Connector(CPU_PWR)
    1x CPU Fan
    3x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    2x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    4x USB 5Gbps Type A ports
  • WIRELESS LAN & BLUETOOTH :AMD Wi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX
    Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
    Supports 802.11 a/ b/ g/ n/ ac/ ax
    Supports Bluetooth® 5.3**
    * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
    ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
  • LED FEATURE :4x EZ Debug LED

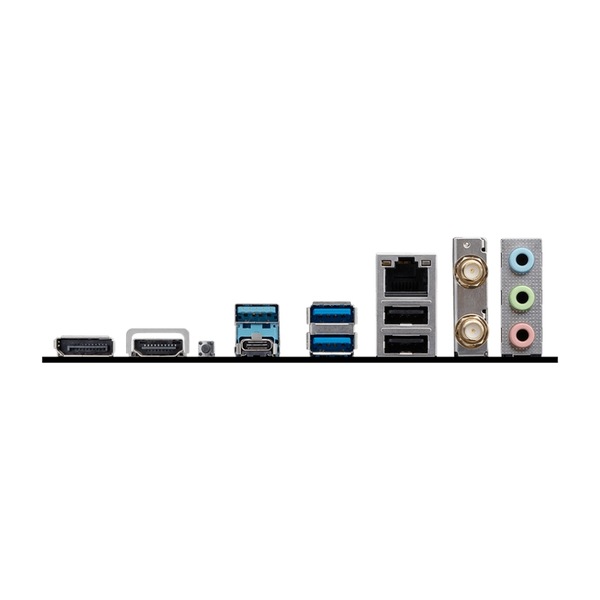

  • BACK PANEL PORTS :
    1. DisplayPort
    2. HDMI™
    3. USB 3.2 Gen 1 5Gbps (Type-A)
    4. 2.5G LAN
    5. Wi-Fi / Bluetooth
    6. Audio connectors
    7. Flash BIOS Button
    8. USB 3.2 Gen 1 5Gbps (Type-C)
    9. USB 3.2 Gen 1 5Gbps (Type-A)
    10. USB 2.0
  • OPERATING SYSTEM :Support for Windows® 11 64-bit, Windows® 10 64-bit
  • PCB Info :mATX
    226mmx243.84mm

SKU: MB-MSI-B650MGWF
