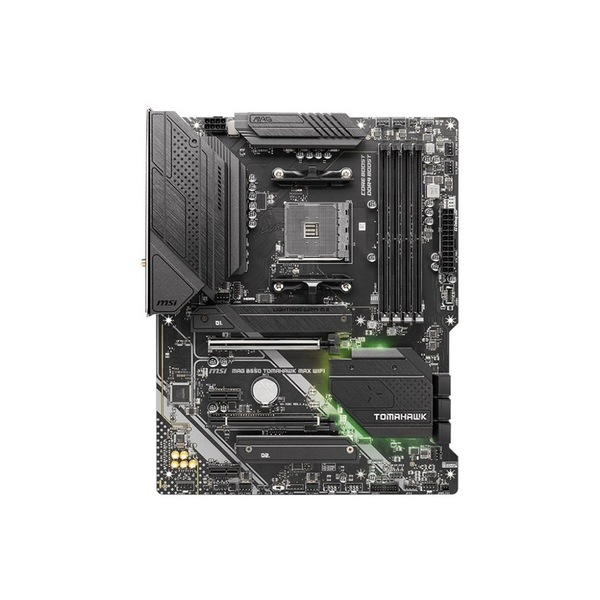

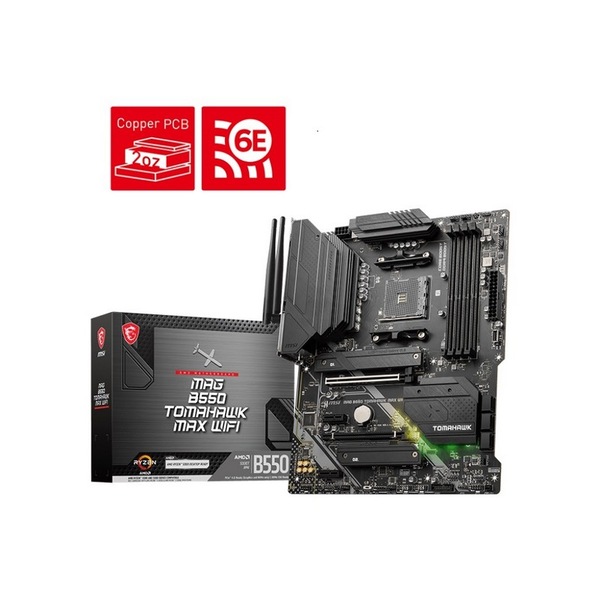

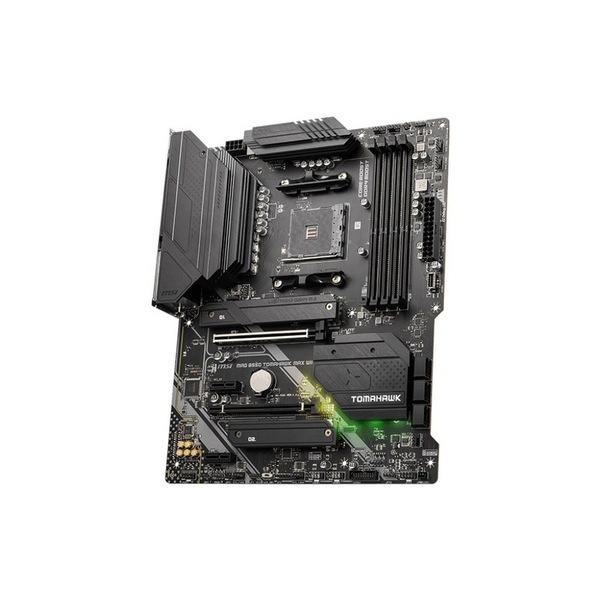

MSI MAG B550 TOMAHAWK MAX WIFI AM4 M.2 HDMI WiFi 6E ATX Gaming Motherboard

Image 1
Image 2
Image 3
Limited Stock
$280.07

Collect 280 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Best Deal Computers
Secure ways to pay at checkout
Pay in 4 interest-free payments of $70.02 with Learn More

MSI MAG B550 TOMAHAWK MAX WIFI AM4 ATX MB 4xDDR4-128G 2xPCIEx16 2xPCIEx1 2xM.2 6xSATAIII 1xUSB3.2 2xUSB2.0

MSI MAG B550 TOMAHAWK MAX WIFI AMD AM4 DDR4 Lightning Gen 4 M.2 HDMI WiFi6E ATX Gaming Motherboard

Features:
  • Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
  • Supports DDR4 Memory, up to 5100+(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
  • Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
  • Enhanced Power Design: 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
  • 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
  • Pre-installed I/O Shield: Better EMI protection and more convenience for installation.
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
  • Multi-GPU: With Steel Armor PCI-E slots. Supports AMD Crossfire™
Specifications:
  • Processor :

    Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors

    See supported processors from MSI Official Site

  • Chipset :

    AMD B550 Chipset

  • Memory :
    • 4 x DDR4 memory slots, support up to 128GB 1
      • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
      • Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866/ 5000/ 5100+ MHz by A-XMP OC MODE
        • 1DPC 1R max speed 5100 MHZ
        • 1DPC 2R max speed 3866 MHZ
        • 2DPC 1R max speed 4000 MHZ
        • 2DPC 2R max speed 3600 MHZ
    • Dual channel memory architecture
    • Supports non-ECC UDIMM memory
    • Supports ECC UDIMM memory
    • Supports un-buffered memory
    1. Please refer MSI Official Site for more information on compatible memory.

    See supported memory from MSI Official Site

  • Expansion Slot :
    • 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1
    • 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2
    • 2x PCIe 3.0 x1 slots
    1. The supported specification depends on installed processor.
    2. When installing devices in M.2_2, PCI_E2 & PCI_E3 slots at the same time, PCI_E3 slot will be unavailable, and M2_2 slot only supports PCIe x2.
  • Multi-GPU :
    • Supports AMD CrossFire™ Technology
  • Onboard Graphics :
    • 1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2
      Support HDCP 1.4 & 2.3
    • 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1
    • Maximum shared memory of 16 GB
    1. Available for the processor with integrated graphics.
    2. Graphics specifications may vary depending on the CPU installed.
  • Storage :

    AMD B550 Chipset

    • 6x SATA 6Gb/s ports
    • 2x M.2 slots (Key M)
      • M2_1 slot (from AMD Processor)
        • Supports PCIe 4.0/ 3.0 x4 1
        • Supports SATA 6Gb/s
        • Supports 2242/ 2260/ 2280/ 22110 storage devices
      • M2_2 slot (from AMD B550 chipset)
        • Supports PCIe 3.0x4
        • Supports 2242/ 2260/ 2280 storage devices
    1. The supported specification depends on installed processor.
  • RAID :
    • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
  • USB :

    AMD B550 Chipset

    • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
    • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

    AMD Processor

    • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
    • 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
  • Audio :Realtek® ALC897 Codec
    • 7.1-Channel High Definition Audio
    • Supports S/PDIF output
  • LAN :
    • 1x Realtek® RTL8125B 2.5Gbps LAN controller
  • WIRELESS LAN & BLUETOOTH :
    • AMD Wi-Fi 6E
    • The Wireless module is pre-installed in the M.2 (Key-E) slot
    • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps
    • Supports 802.11 a/ b/ g/ n/ ac/ ax
    • Supports Bluetooth® 5.2 2, FIPS, FISMA
    1. Wi-Fi 6E 6GHz may depend on every country's regulations and will be ready in Windows 10 build 21H1 and Windows 11.
    2. Bluetooth® 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
  • Internal connectors :
    • 1x 24-pin ATX main power connector
    • 1x 8-pin ATX 12V power connector
    • 6x SATA 6Gb/s connectors
    • 2x M.2 slots (M-Key)
    • 1x USB 3.2 Gen 1 5Gbps Type-C port
    • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
    • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    • 1x 4-pin CPU fan connector
    • 1x 4-pin water-pump fan connector
    • 6x 4-pin system fan connectors
    • 1x Front panel audio connector
    • 2x System panel connectors
    • 1x Chassis Intrusion connector
    • 2x 4-pin RGB LED connectors
    • 2x 3-pin RAINBOW LED connectors
    • 1x TPM module connector
    • 1x Clear CMOS jumper
    1. Back panel ports :
      1. Keyboard / Mouse
      2. DisplayPort 1.4
      3. 2.5G LAN Port
      4. USB 3.2 Gen 2 10Gbps Type-A
      5. Wi-Fi / Bluetooth Antenna
      6. Audio Connectors
      7. Flash BIOS Button
      8. USB 2.0 Port
      9. HDMI™ 2.1 Port
      10. USB 3.2 Gen 1 5Gbps Type-A
      11. USB 3.2 Gen 2 10Gbps Type-C
      12. Optical S/PDIF OUT
    2. Dimensions :
      • ATX Form Factor
      • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
    3. Mounting :

      9 mounting holes

    4. Operating System :

      Support for Windows® 11 64-bit, Windows® 10 64-bit

    5. Box content :
      1. MSI® does not guarantee the risks or damages caused by changing the cover.
      2. These pictures are for reference only and may vary without notice.

    SKU: MB-MSI-B550TMWF
