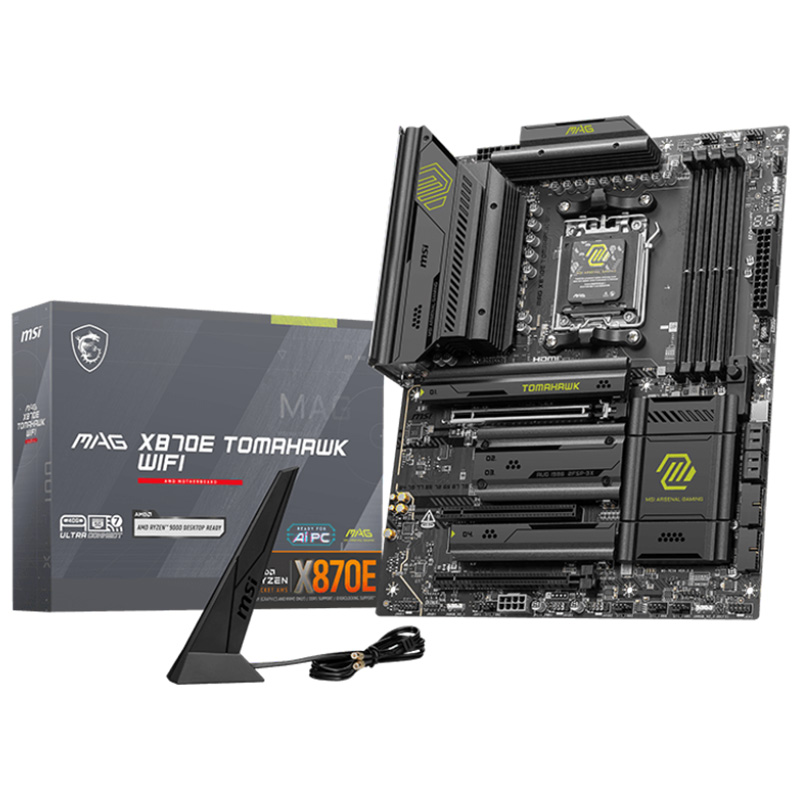

MSI MAG X870E Tomahawk WIFI AM5 ATX Motherboard (MAG X870E TOMAHAWK WIFI)

Image 1
Hurry! 5 items left!
$674.20

Collect 674 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Umart Online
Secure ways to pay at checkout
Pay in 4 interest-free payments of $168.55 with Learn More






SPECIFICATIONS:

Chipset

AMD X870E

CPU

Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5

Memory

4x DDR5 UDIMM, Maximum Memory Capacity   256GB
Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

Onboard Graphics

1x HDMI
Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz*
2x Type-C DisplayPort
USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics
**Graphics specifications may vary depending on the CPU installed

Slot

3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)

Audio

Realtek ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-bit/384kHz playback on front panel
Supports S/PDIF output

Storage

4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G

M.2_1 slot (From CPU)
• Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)

M.2_2 slot (From CPU)
• Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors)

*The M2_2 slot will be unavailable when using Ryzen 8500/ 8300 Series processors.
**USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0   x4.

RAID

•Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
•Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

*RAID 5 configuration is only supported by Ryzen 9000 series processors.
*RAID 10 for M.2 NVMe storage devices is only supported by Ryzen 9000/7000 series processors.

USB

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
3x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
2x USB 40Gbps Type C (Rear)

LAN

1x Realtek 8126 5G LAN

Internal IO

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports

Wireless LAN & Bluetooth

Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

LED Feature

4x EZ Debug LED
1x EZ Digit Debug LED

Back Panel Ports

Clear CMOS Button

USB 10Gbps Type-A

USB 5Gbps Type-A

USB 2.0

5G LAN

Wi-Fi / Bluetooth

Audio connectors

Flash BIOS Button

HDMI

USB 40Gbps Type-C

USB 10Gbps Type-C

USB 10Gbps Type-A

Operating System

Support for Windows 11   64-bit

Box Content

MSI MAG X870E TOMAHAWK WIFI Motherboard

Quick Installation Guide

European Union Regulatory Notice

Shout-Out Flyer

2 x SATA Cables

EZ M.2 Clip II Remover

M.2 Plate Screw

USB Drive

PCB Info

ATX
243.84mmx304.8mm




SKU: 82311
