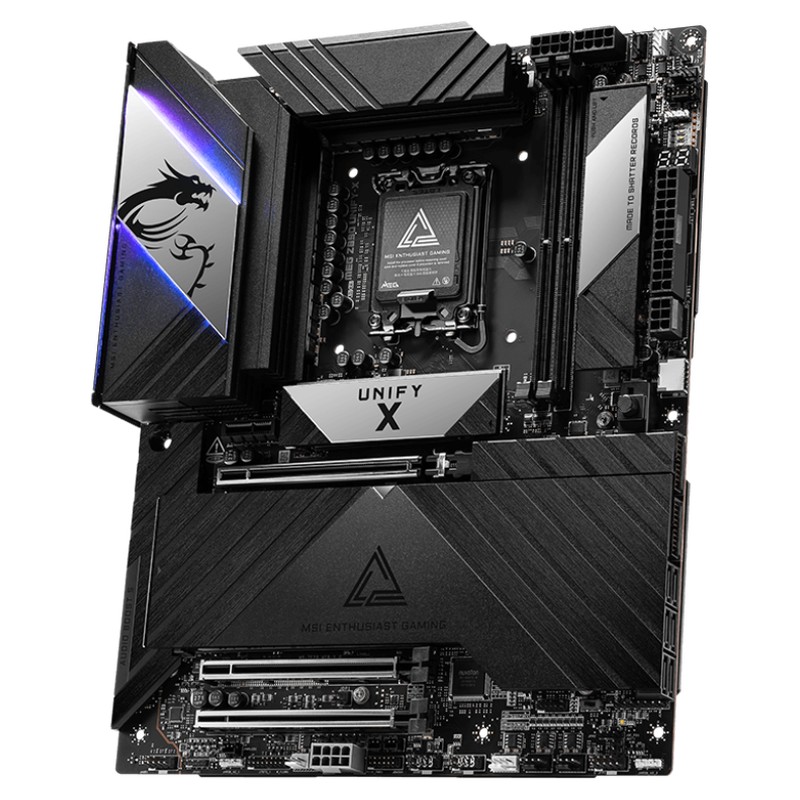

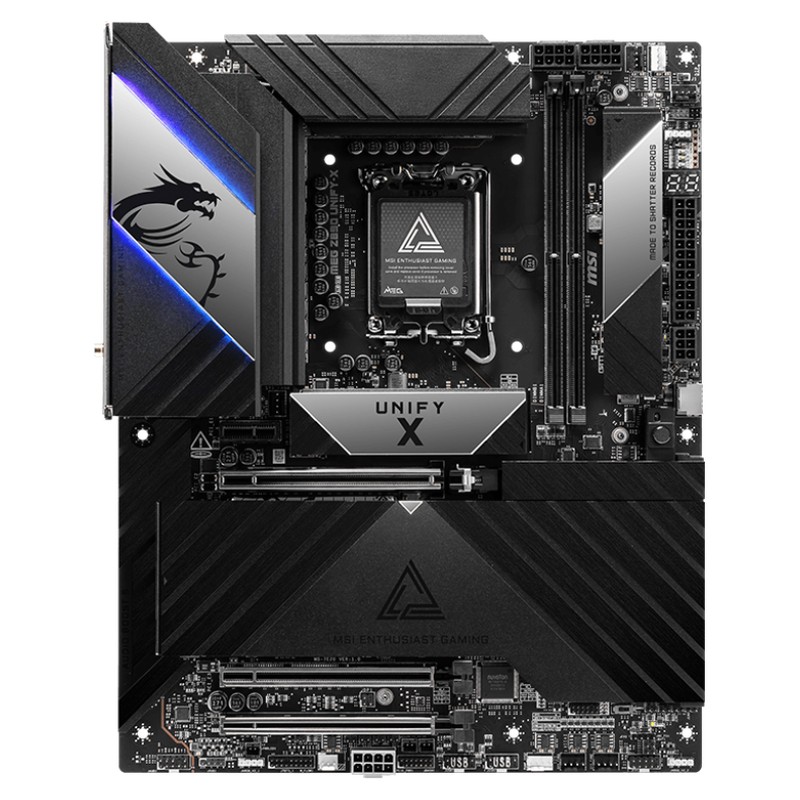

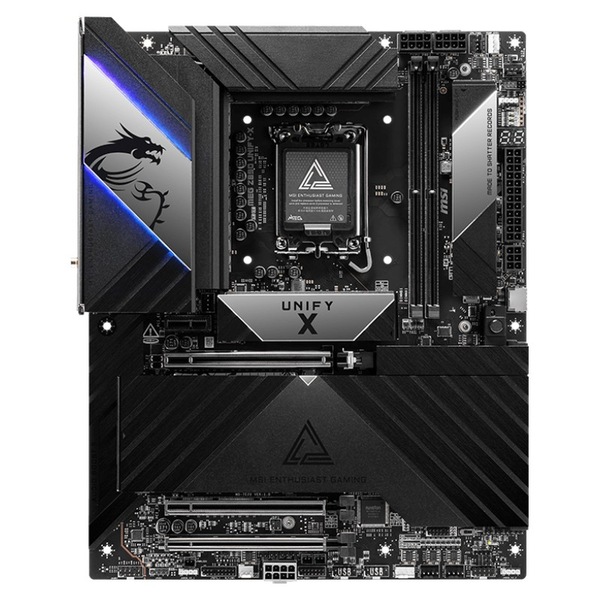

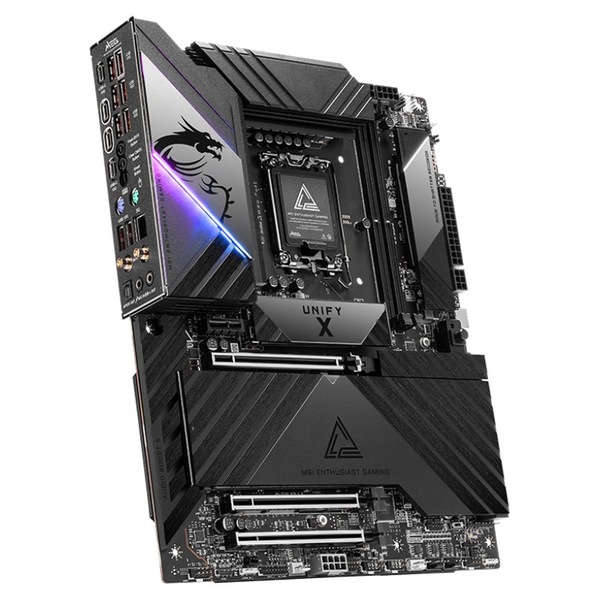

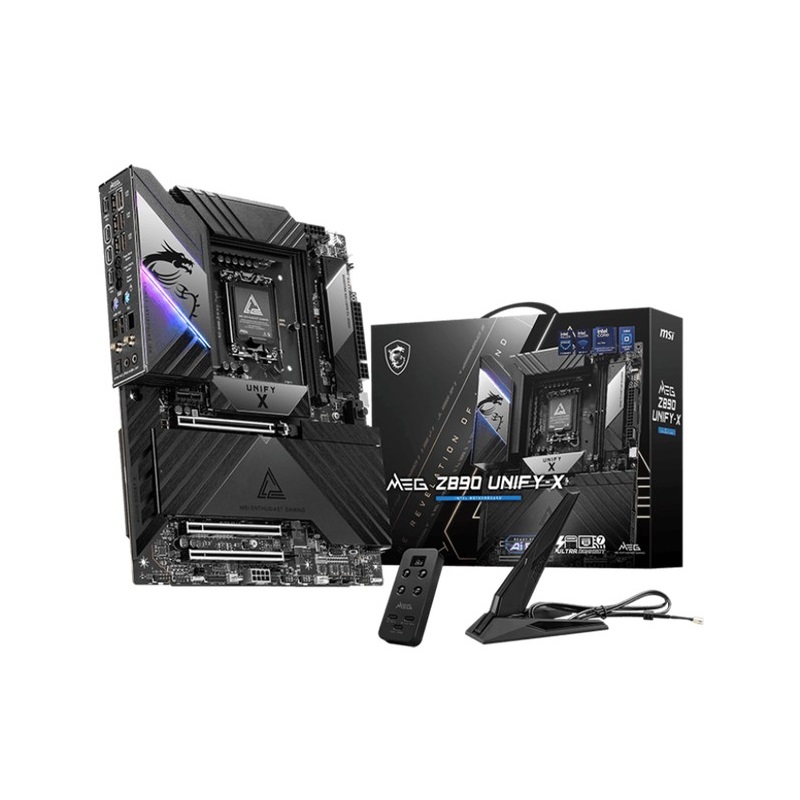

MSI MEG Z890 UNIFY X Intel ATX Motherboard

The MEG Z890 UNIFY-X Intel LGA1851 motherboard features TLVR inductor, and Ultra Connect including Wi-Fi 7, 5G LAN and high-speed Thunderbolt. The latest technology make it an ultimate gaming motherboard for overclocking and AI PCs.

Features:
  • Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket
  • Supports DDR5 Memory, Dual Channel DDR5 9600+ MT/s (OC)
  • Ultra Performance:Direct 20+2+1+1 Phases, TLVR Inductors, 110A SPS, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material.
  • Frozr Guard:Aluminum Cover, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
  • EZ DIY:EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna.
  • Ultra Connect:Dual Thunderbolt 4 ports, Intel Killer 5G LAN, and Full-speed Intel Killer Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
  • Lightning Fast Game Experience:PCIe 5.0 slots, Onboard 6x M.2 Connectors with Lightning Gen 5 Solution, Front USB 20G with 60W USB Power Delivery.
  • Audio Boost 5:Reward your ears with studio grade sound quality for the most immersive gaming experience.
Specifications:
  • Chipset :INTEL Z890
  • CPU :Supports Intel Core Ultra Processors (Series 2)
    LGA 1851
  • Memory :2x DDR5 UDIMM, Maximum Memory Capacity 128GB
    Memory Support 9600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
    Max. overclocking frequency:
    1DPC 1R Max speed up to 9600+ MT/s
    1DPC 2R Max speed up to 7200+ MT/s
    Supports Intel
    POR Speed and JEDEC Speed
    Supports Memory Overclocking and Intel
    XMP 3.0
    Supports Dual-Controller Dual-Channel mode
    Supports Non-ECC, Un-buffered memory
    Supports CUDIMM
    * The DIMM slots on this motherboard only have single-sided latches.** Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product's Support page or visit Official MSI Website.
  • Onboard Graphics :2x Type-C DisplayPortThunderbolt 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
    * Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
  • Slot :3x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
    * PCI_E2 slot will run at x8 speed and PCI_E3 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in M2_4 slot.** PCI_E4 will be unavailable when installing M.2 SSD in the M2_3 slot.
  • Audio :Realtek
    ALC4080 Codec7.1-Channel USB High-Performance Audio
    Supports S/PDIF output
    Supports up to 32-Bit/384 kHz playback on front panel
  • Storage :6x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280/2260 devices
    M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
    M.2_6 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
    6x SATA 6G
    * M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment.** SATA3 will be unavailable when installing M.2 SATA SSD in the M2_5 slot.*** Please refer to the manual for M.2 SSD heatsink restrictions.
  • RAID :Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
  • Onboard Thunderbolt :2x Thunderbolt4 ports (Rear)Support up to 40Gbps transfer rate with Thunderbolt devices
    Support up to 20Gbps transfer rate with USB4 devices
    Support up to 10Gbps transfer rate with USB 3.2 devices
    Support up to 5V/3A,15W power charging
    Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
    Support up to 8K display
  • USB :4x USB 2.0 (Front)4x USB 5Gbps Type A (Front)8x USB 10Gbps Type A (Rear)2x USB 10Gbps Type C (Rear)1x USB 20Gbps Type C (Front)
    * To achieve USB PD 60W fast charging for JUSBC1, the PD_PWR1 connector needs to be connected to the power supply unit.
  • LAN :1x Intel
    Killer E5000B 5G LAN
  • Internal IO :1x Thunderbolt5 card connector(JTBT5, support RTD3)
    1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x Power Connector(PCIE_PWR 8pin)
    1x Front Type-C Quick Charge Connector(PD_PWR1)
    1x CPU Fan
    2x Combo Fan (Pump_Sys Fan)
    4x System Fan
    1x EZ Conn-header (JAF_2)
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Water Flow connector
    1x Slow Mode Booting Jumper(JSLOW)
    1x Front Audio (JAUD)
    2x Thermal Sensor connectors(T_SEN)
    1x Tuning Controller connector(JDASH)
    3x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    V-check point
    4x USB 2.0 ports
    4x USB 5Gbps Type A ports
    1x USB 20Gbps Type C ports
  • WIRELESS LAN & BLUETOOTH :Intel
    Killer BE1750x Wi-Fi 7
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
    Supports Bluetooth
    5.4**, MLO, 4KQAM
    * 6GHz band support may depend on every country's regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
  • LED FEATURE :4x EZ Debug LED
    1x EZ Digit Debug LED

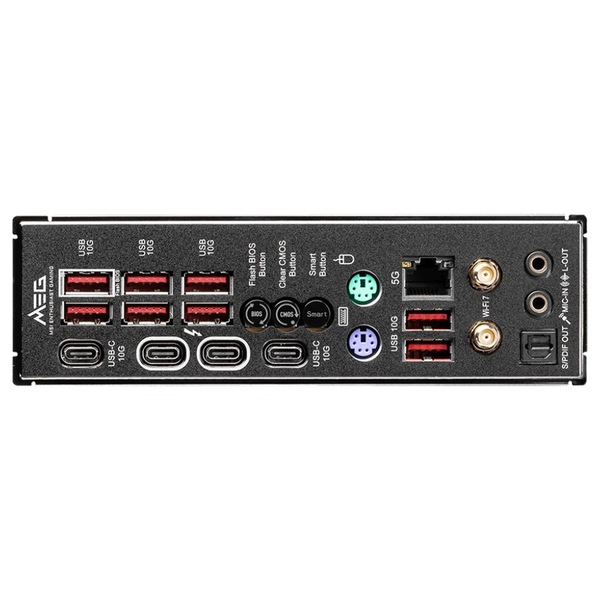

  • BACK PANEL PORTS :USB 10Gbps (Type-A)
    Flash BIOS Button
    Clear CMOS Button
    Smart Button
    5G LAN
    Wi-Fi / Bluetooth
    HD Audio Connectors
    USB 10Gbps (Type-C)
    Thunderbolt 4 40Gbps (Type-C)
    Keyboard / Mouse
    Optical S/PDIF-Out
  • OPERATING SYSTEM :Support for Windows
    11 64-bit
  • PCB Info :ATX
    243.84mmx304.8mm

GTIN: 4711377266970
