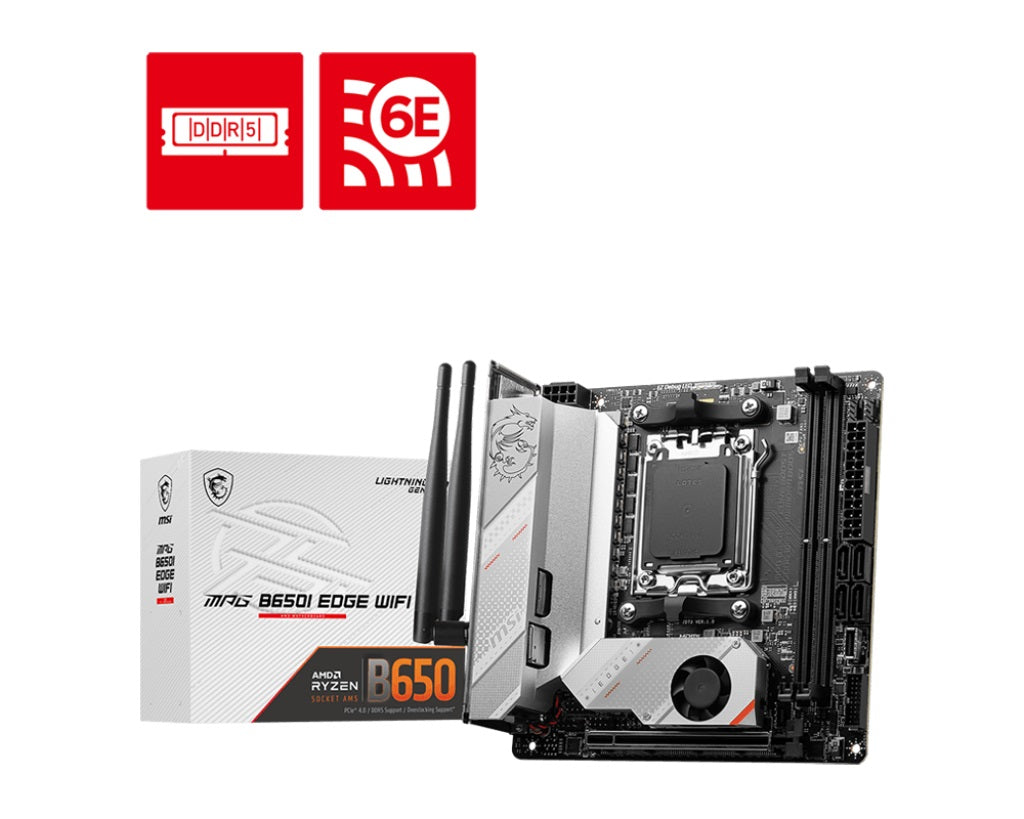

MSI MPG B650I EDGE WIFI AMD AM5 M-ITX Motherboard, 2x DDR5 ~64GB, 1x PCI-E x16, 2x M.2, 4x SATA, 2x USB2.0, 5x USB 3.2, 1x USB-C

• MSI MPG B650I EDGE WIFI AMD AM5 M-ITX Motherboard, 2x DDR5 ~64GB, 1x PCI-E x16, 2x M.2, 4x SATA, 2x USB2.0, 5x USB 3.2, 1x USB-C
• CHIPSETAMD B650
• CPU SUPPORTSupports AMD Ryzen™ 7000 Series Desktop Processors
• Socket AM5
• MEMORY2x DDR5, Maximum Memory Capacity 64GB
• Memory Support DDR5 6600+(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz
• Max. overclocking frequency:
• 1DPC 1R Max. speed up to 6600+ MHz
• 1DPC 2R Max. speed up to 6000+ MHz
• Support Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports AMD EXPO™
• ONBOARD GRAPHICS1x HDMI™
• Support HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz*
• Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• EXPANSION SLOT1x PCI-E x16 slot
• PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
• MULTI-GPUSupports AMD MULTI-GPU
• STORAGE2x M.2 slot
• M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• 4x SATA 6G port
• RAIDSupports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
• USB2x USB 2.0 (Front)
• 2x USB 3.2 Gen1 Type A (Rear)
• 2x USB 3.2 Gen1 Type A (Front)
• 3x USB 3.2 Gen2 Type A (Rear)
• 1x USB 3.2 Gen2 Type C (Front)
• 1x USB 3.2 Gen2x2 Type C (Rear)
• LANRealtek® RTL8125BG 2.5Gbps LAN
• PCB DIMENSIONMini-ITX
• 170mmx170mm
