MBM-B760MAWIFI

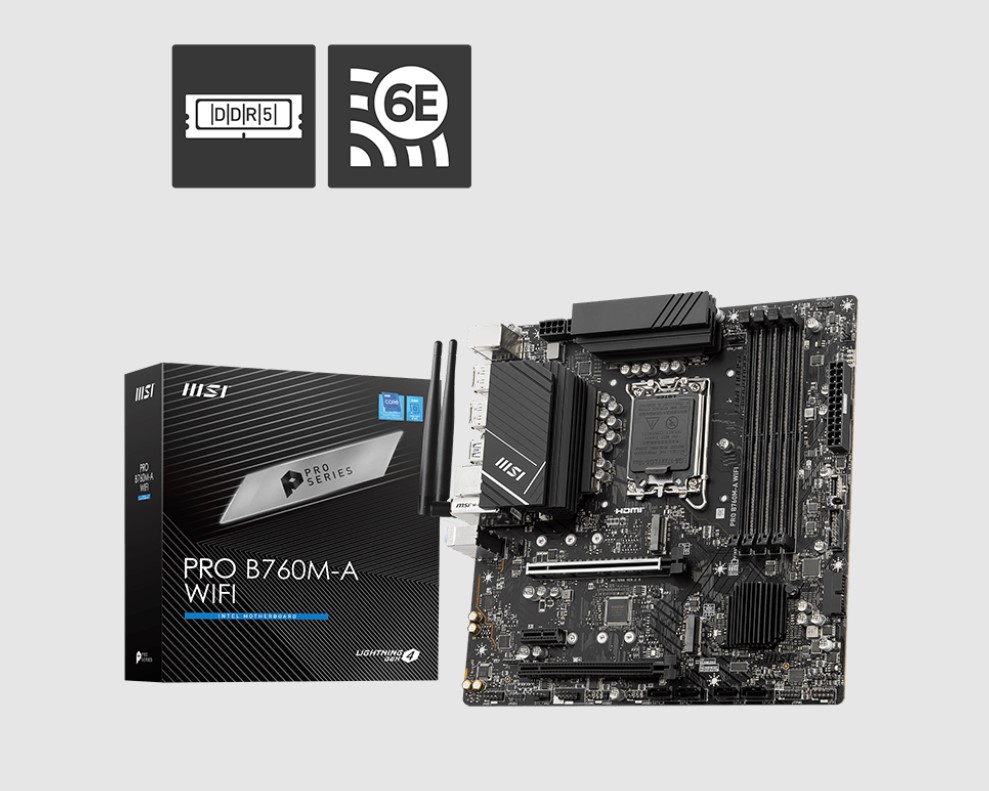

MSI PRO B760M A WIFI ATX Motherboard, 4x DDR5~256GB, 2x HDMI , 2x PCI-E x 16, 2x M.2, 4x SATA, 6x USB 2.0 1 USBx C
SPECIFICATIONS:
CHIPSET INTEL B760
CPU SUPPORT Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700
MEMORY 4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Max speed up to 6800+ MHz
1DPC 2R Max speed up to 6400+ MHz
2DPC 1R Max speed up to 6000+ MHz
2DPC 2R Max speed up to 5600+ MHz
ONBOARD GRAPHICS 2x HDMI
2x DisplayPort
EXPANSION SLOT 2x PCI-E x16 slot
STORAGE 2x M.2 4x SATA 6G
USB
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
2x USB 10Gbps Type A (Rear)
PCB DIMENSION (W L) mATX 243.84mmx243.84mm
GTIN: 4711377059572
