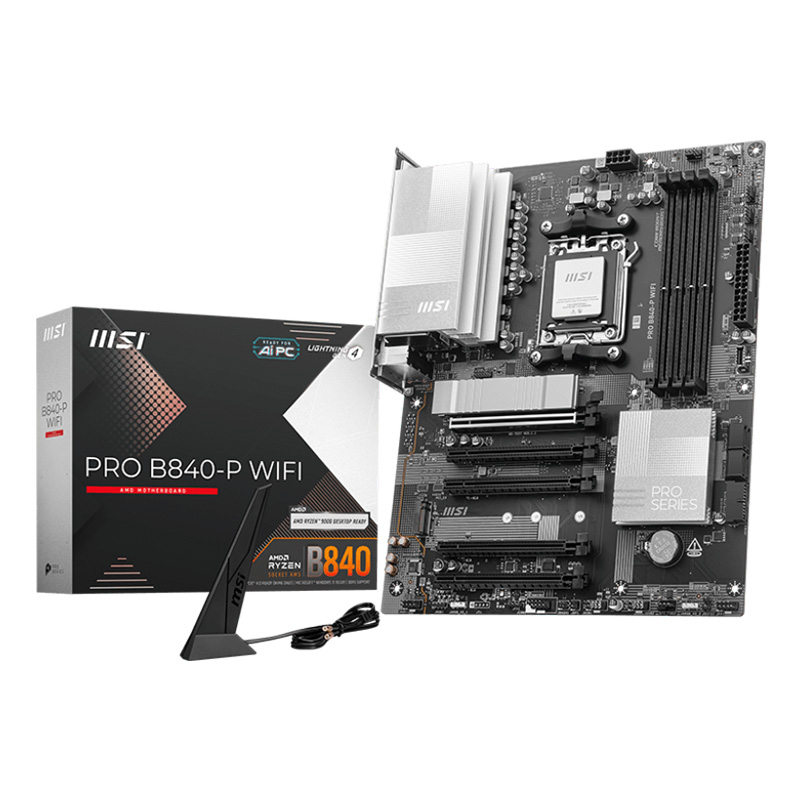

MSI PRO B840-P WIFI AM5 ATX Motherboard (PRO B840-P WIFI)

Image 1
Hurry! 5 items left!
$248.60

Collect 248 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Umart Online
Secure ways to pay at checkout





SPECIFICATIONS:

Chipset

AMD B840

CPU

Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8000+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

Onboard Graphics

1x HDMI
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot

5x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset)
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E1 slot
• Supports PCIe 4.0 x16 (For Ryzen 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processors)

Audio

Realtek ALC897
7.1-Channel High Definition Audio

Storage

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
4x SATA 6G

M2_2 slot
• Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 7000 Series processors)
• Supports up to PCIe 3.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors)
• Supports up to PCIe 3.0 x2 (For Ryzen 8500/ 8300 Series processors)

*Please refer to the manual for M.2 SSD heatsink restrictions.

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA   storage devices

USB

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)

LAN

Realtek 8125D 2.5G LAN

Internal IO

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports

Wireless LAN & Bluetooth

Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

LED Feature

4x EZ Debug LED

BACK Panel Ports

Clear CMOS Button

USB 10Gbps Type-A

USB 2.0

2.5G LAN

Wi-Fi / Bluetooth

Audio connectors

Flash BIOS Button

HDMI

USB 10Gbps Type-C

USB 5Gbps Type-A

Operating System

Support for Windows 11   64-bit

Box Content

MSI PRO B840-P WIFI Motherboard

European Union Regulatory Notice

Quick Installation Guide

EZ M.2 Clip II Remover

2 x EZ M.2 Clip II

EZ Wi-Fi Antenna

SATA Cable

PCB Info

ATX
243.84mmx304.8mm




SKU: 81960
