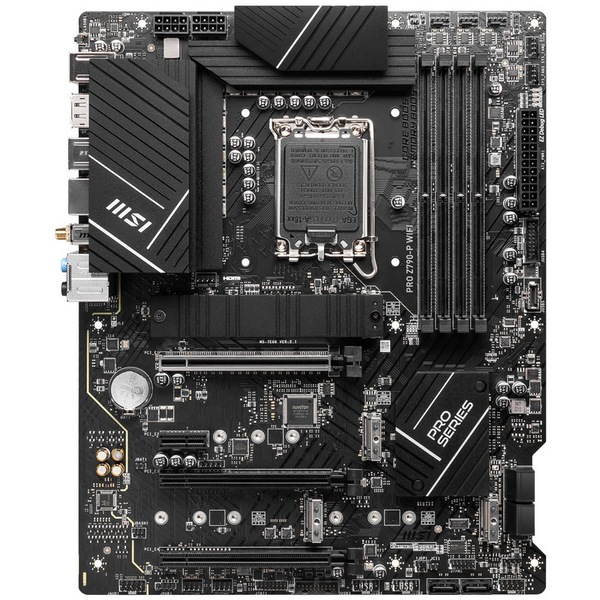

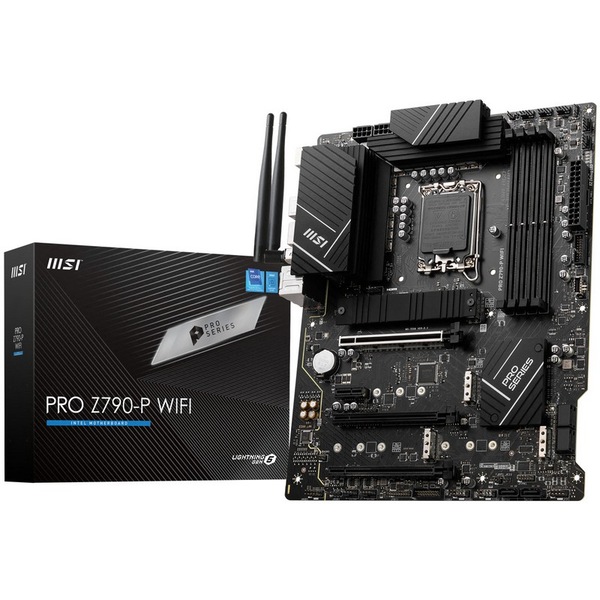

MSI PRO Z790-P WIFI Pro Z790-P Wi-Fi DDR5 Motherboard, PCIe 5.0/Wi-Fi 6E, support Intel LGA 1700

Image 1
Image 2
Image 3
$470.58

Sold Out

Notify me when this product is back in stock

To understand how we handle your personal information, see our Privacy Collection Notice and Privacy Policy.

Shop More Products
Sold & shipped by Best Deal Computers

MSI PRO Z790-P WIFI Intel LGA 1700 MINI-ITX Motherboard, 4x DDR5 128GB, 1x PCI-E x 16, 1x PCI-E x 14, 4x M.2, 6x SATA, 4x USB 3.2, 4x USB2.0,MSI PRO Z790-P WIFI Intel LGA 1700 ATX Motherboard, 4x DDR5 128GB, 1x PCI-E x 16, 1x PCI-E x 14, 4x M.2, 6x SATA, 4x USB 3.2, 4x USB2.0,

CHIPSET: INTEL Z790

CPU SUPPORT: Supports 12th/13th Gen Intel|| Core| Processors, Pentium|| Gold and Celeron|| Processors

LGA 1700

MEMORY: 4x DDR5, Maximum Memory Capacity 128GB
Memory Support 7000+(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz
Max. overclocking frequency:
| 1DPC 1R Max speed up to 7000+ MHz
| 1DPC 2R Max speed up to 6600+ MHz
| 2DPC 1R Max speed up to 6400+ MHz
| 2DPC 2R Max speed up to 5600+ MHz
Supports Intel|| XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
ONBOARD GRAPHICS: 1x HDMI|
1x DisplayPort
Support HDMI| 2.1 with HDR, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT: 3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 PCIe 3.0 supports up to x1 (From Chipset)
STORAGE: 4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6G port

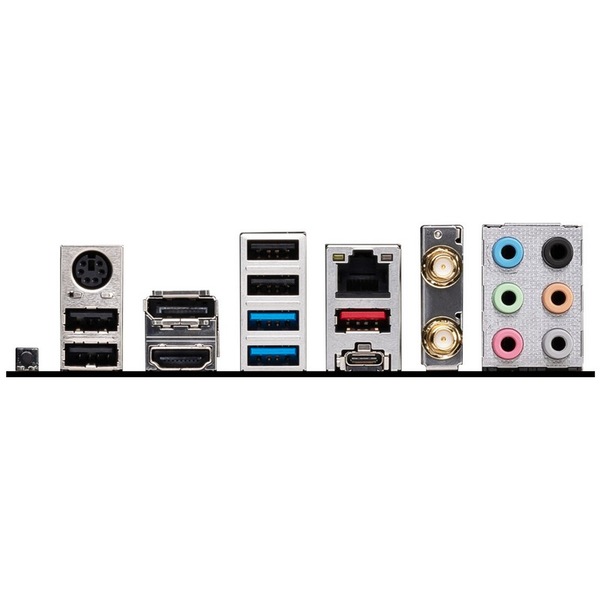

USB: 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
PCB DIMENSION: ATX 243.84mmx304.8mm

SKU: MB-MSI-Z790-PWF

Reference ID: 9320631
