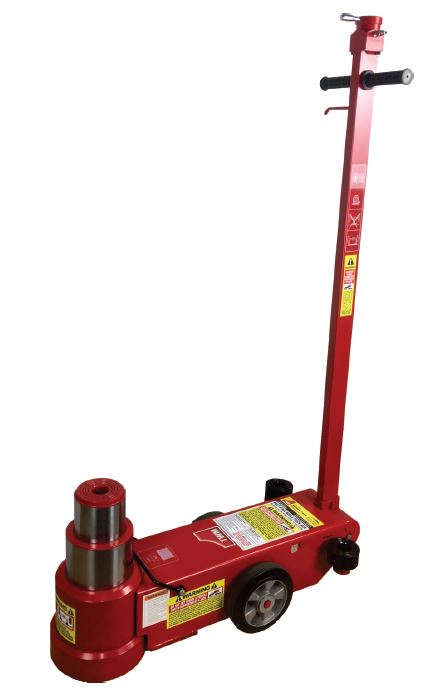

MULTI STAGE TRUCK JACK 80T/50T
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 2699 Everyday Rewards points
Collect 2699 Everyday Rewards points
This product is designed for heavy duty truck,
trailer workshop shop use, rail and bus work
and even for roadside service calls.
The narrow chassis design fits easily between
tandem wheels, while the chassis base is
contoured so wheels make contact
with the ground when the jack is not under
load.
Wheels are raised off the ground when
under load to prevent damage.
The overload and bypass safety valves
prevent the jack from being used beyond
its rated capacity and ram over-extensions.
The jack has a self-retracting ram, as well
as an integrated filter to protect the air motor.
Super Heavy Duty, 2 Stage 80 Tonne
and 50 Tonne built tough for the rigors
of heavy-duty trucking, agricultural and fleet
businesses.
The piston head seal design is borrowed
from industrial technology providing a
superior low and high-pressure seal, giving
this jack a much better hold under severe
load conditions.
The extra-long 138cm handle can be locked
in 3 positions for easy positioning of this
jack in hard-to-reach places.
An integral Descent Metering Valve
maintains a controlled and safe lowering
of the load.
Single piece base construction provides
superior strength for increased load stability
Double polished chromed pistons allow for
much tighter tolerances which reduce oil
bypassing and reduced ram scoring.
Air assisted lowering speeds up ram retraction.
Built-in overload safety valve prevents
damage to unit due to excessive load.
Comes with 2 extensions (75mm & 45mm)
and saddle adaptor.
Units are tested to -25˚C and +45˚C as well
as off centre loading to ensure a long life under
even the harshest conditions.
First Stage: 80,000kg Safe Working Capacity
Second Stage: 50,000kg Safe Working Capacity
First Stage 80T Hydraulic Lift: 111mm
Second Stage 50T Hydraulic Lift: 102mm
Minimum Height: 230mm
Maximum Height: 565mm
Adaptors: 75mm and 45mm
Handle Length: 1380mm
Operating Air Pressure: (Mpa):0.9-1.2 (145-175psi)
Chassis: 930x340x230mm
Nett Weight: 106kg
Package Size: 980x390x230mm
Handle Box: 1390x280x110mm
Gross weight: 115kg
NOTE: Always follow Jack Safety Lifting Instructions
MPN: ATXLHTJM8050
