Description：

Equipped with gigabit ports and VDSL2/ADSL2+ dual-mode modem, delivering up to 300Mbps dual-band Wi-Fi for home/office use. Features 4 gigabit ports (1WAN+3LAN), USB expansion, and RJ11 voice port supporting SIP/VoIP calls. Built-in smart antennas and 6kV surge protection ensure stable signal and secure connectivity. TR069 remote management compatible, supports Windows/macOS/Linux systems for plug-and-play setup. CE/RoHS certified, includes splitter, cables, and accessories in 195×130×36mm compact design.

Features: High-speed VDSL2 Modem Router with Gigabit Ports for fast everyday Wi-Fi. Wi-Fi speeds up to 300 Mbps and versatile connectivity. Easy setup and management, with powerful antennas and 6kV surge protection for secure browsing.

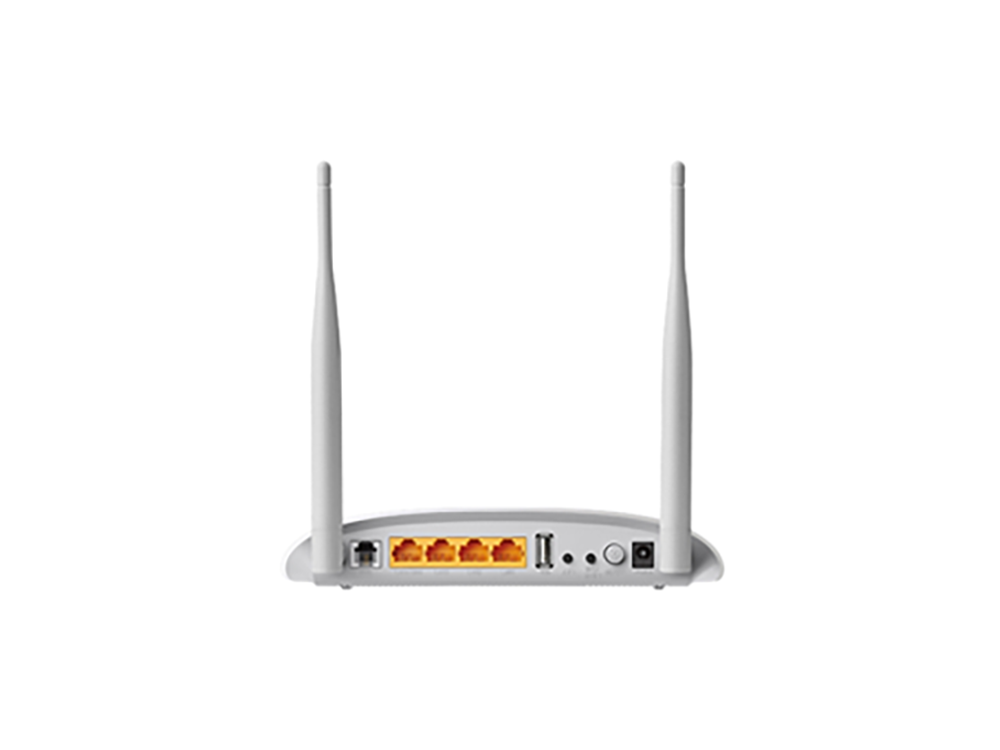

Ports: 1× 10/100 Mbps LAN/WAN Port, 3× 10/100 Mbps LAN ports, 1×
RJ11 port, 1× USB 2.0 Port
Button: WPS/Reset Button, Wi-Fi Button, Power On/Off Button
External Power Supply: 9V/0.85A
IEEE Standards: IEEE 802.3, 802.3u
VDSL2 Standards: ITU-T G.993.2, ITU-T G.993.5 (G.vector), ITU-T
G.998.4 (G.INP)
ADSL Standards: Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT),
ITU-T G.994.1 (G.hs), ITU-T G.995.1
ADSL2 Standards: ITU-T G.992.3 (G.DMT.bis)
ADSL2+ Standards: ITU-T G.992.5
Dimensions ( W x D x H ): 7.7 × 5.1 × 1.4 in. (195 × 130 × 36 mm)
Certification: CE, RoHS
Package Contents: DSL Modem Router TD-W9970
External DSL Splitter
RJ11 DSL Cable
RJ45 Ethernet Cable
Quick Installation Guide
Power Adapter
System Requirements: Windows 10/8.1/8/7/Vista/XP or Mac OS or Linux-based operating system

Packaging:
1 x Router TD-W9970 entity
1 x Packaging box
1 x Power source
1 x User manual
1 x Ethernet cable
1 x Telephone line
