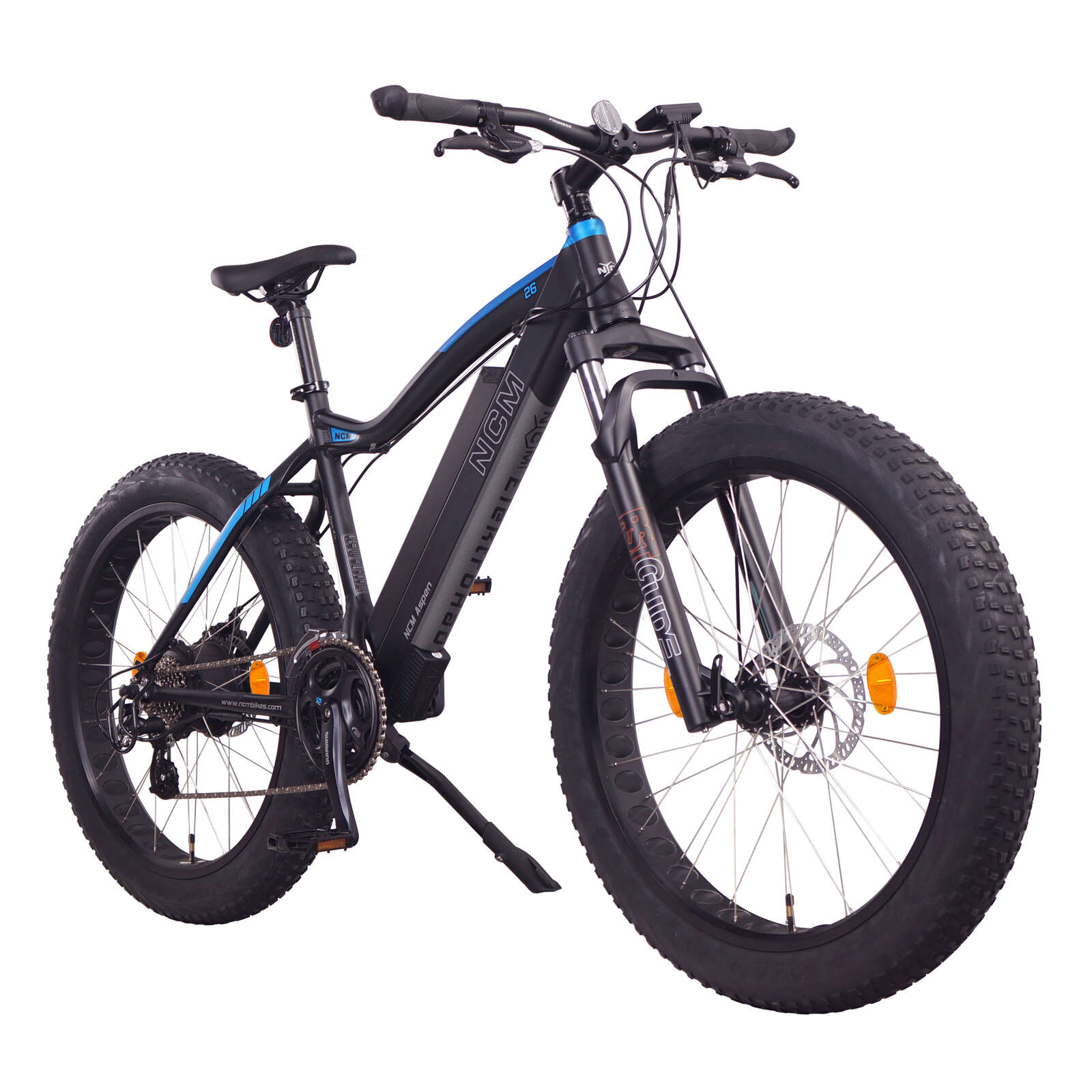

NCM Aspen Plus Fat Electric Bike, E-Bike with a large tire width, specially developed in Iceland for riding on snow and ice, is highly capable. Equipped with a sturdy aluminum frame, rigid handlebar, and ergonomic saddle, this E-MTB provides excellent performance. The large surface area of its fat tires makes it ideal for soft terrain such as sand and gravel, allowing for effective transfer of power to the road. Its high top tube adds to its strength and stability, creating a reliable and powerful ride.

BIKE COMPONENTS

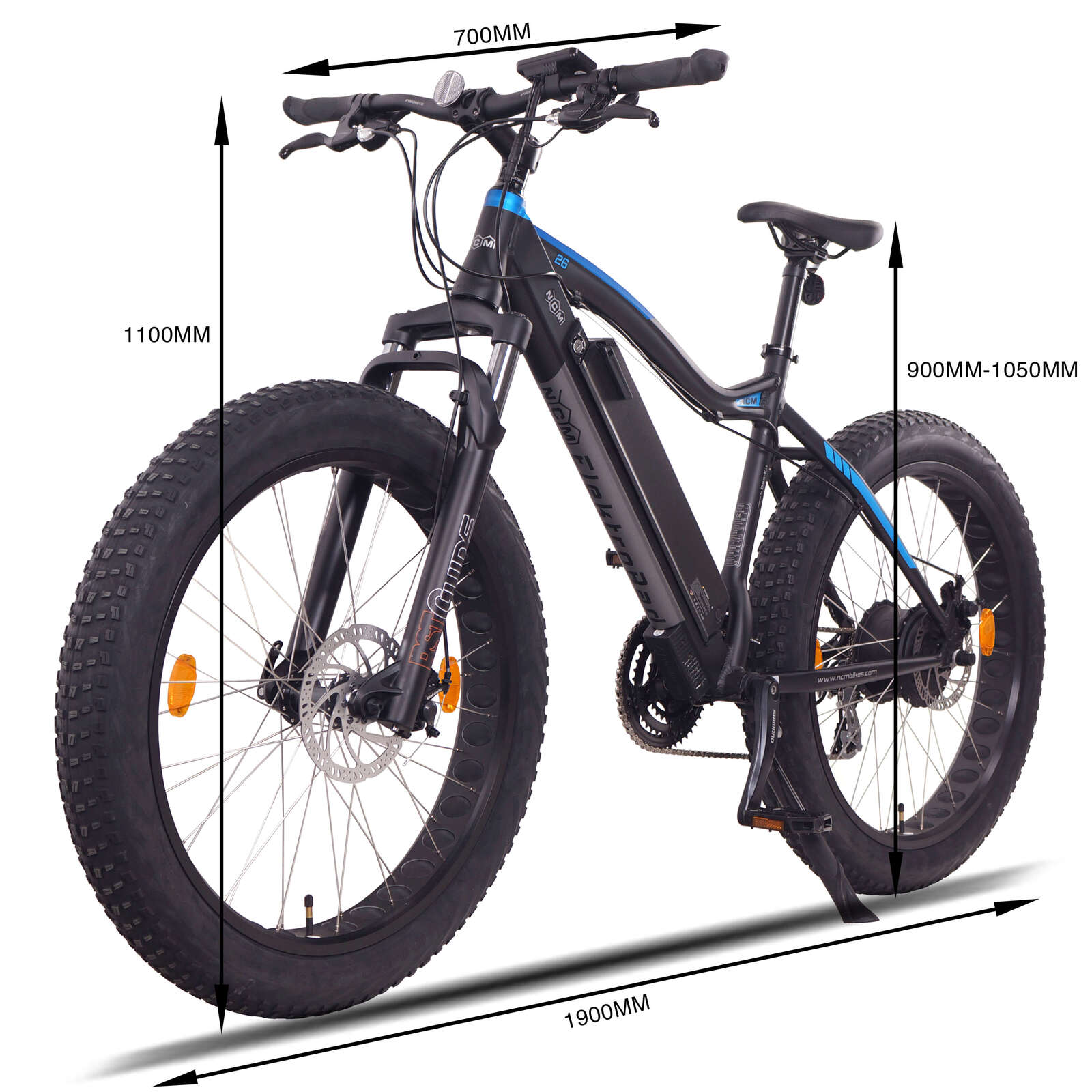

Frame: Alu. 6061, 26"*18.9 inches

Suspension Fork: RST, Guid-TNL-26, Alu.

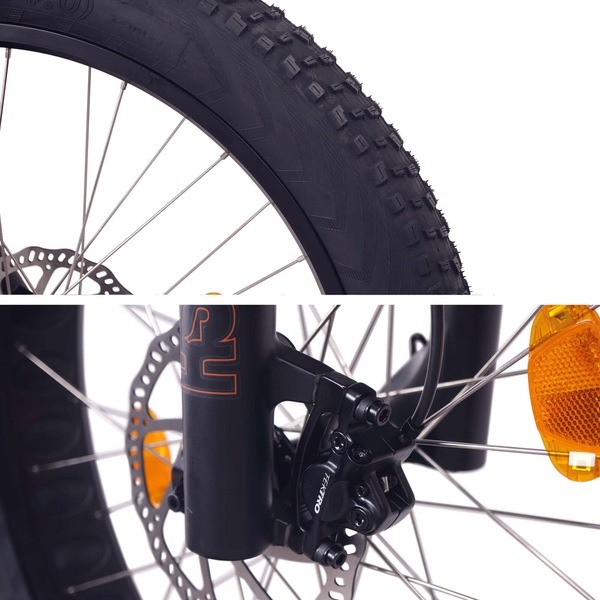

Brake: F/R: Tektro Hydraulic Disc Brakes,HD-E350

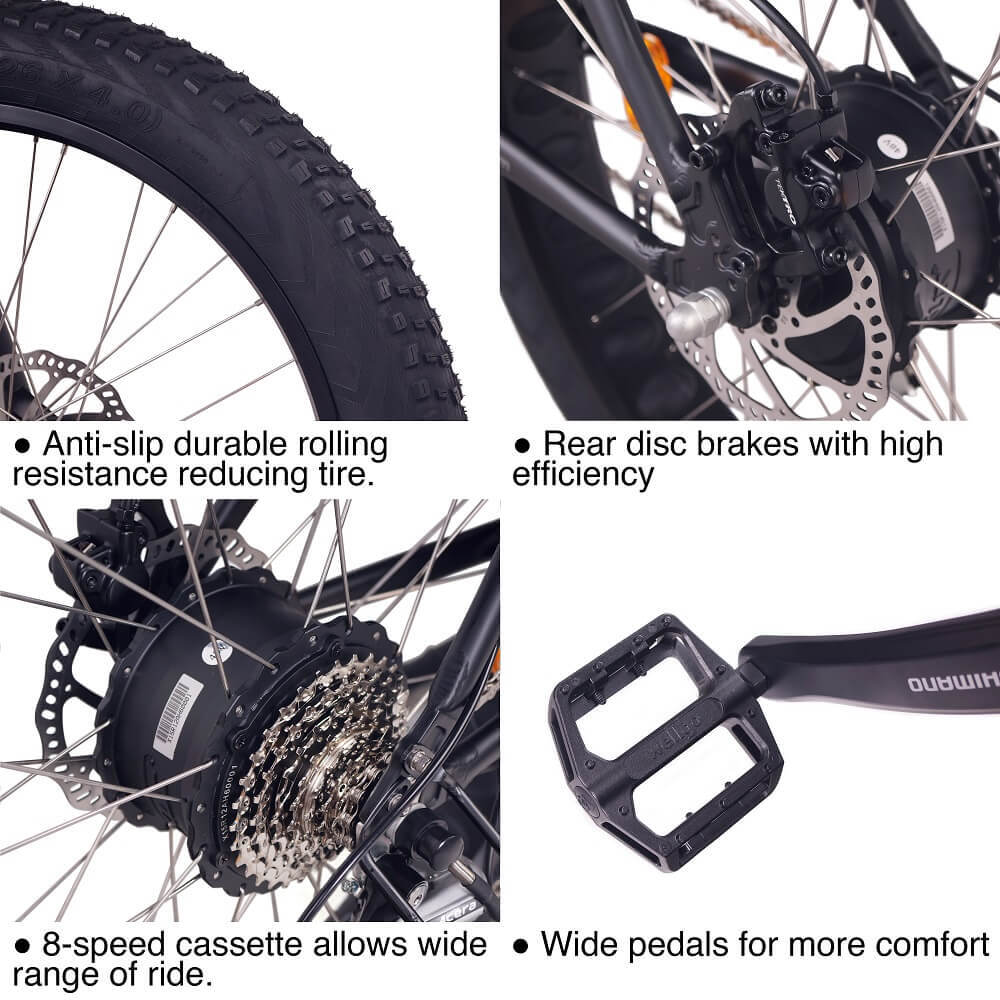

Freewheel: 8 Speed, 11-32T, Sliver

Tire: CST, C1752, 26"*4.0, Black

Saddle: Selle Royal, LOOKIN, Black

Stem: Promax. Alu.MA-471, Ext 90mm

Crank: Shimano, Acrea, 28/38/48T

Shifter: Shiamno,Altus, F: M315-L, 3-Speed; R: M315-8R, 8-Speed

Front Derailleur: Shimano, Altus, M310, 3-Speed

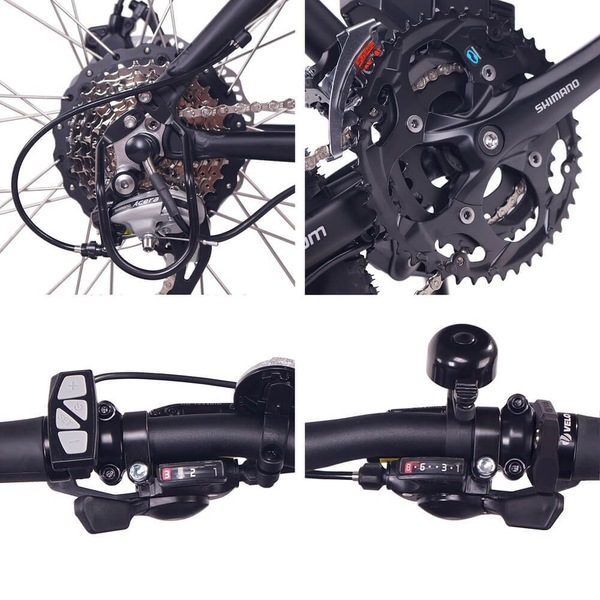

Rear Derailleur: Shimano, Acera, M360, 8-Speed

ELECTRIC COMPONENTS

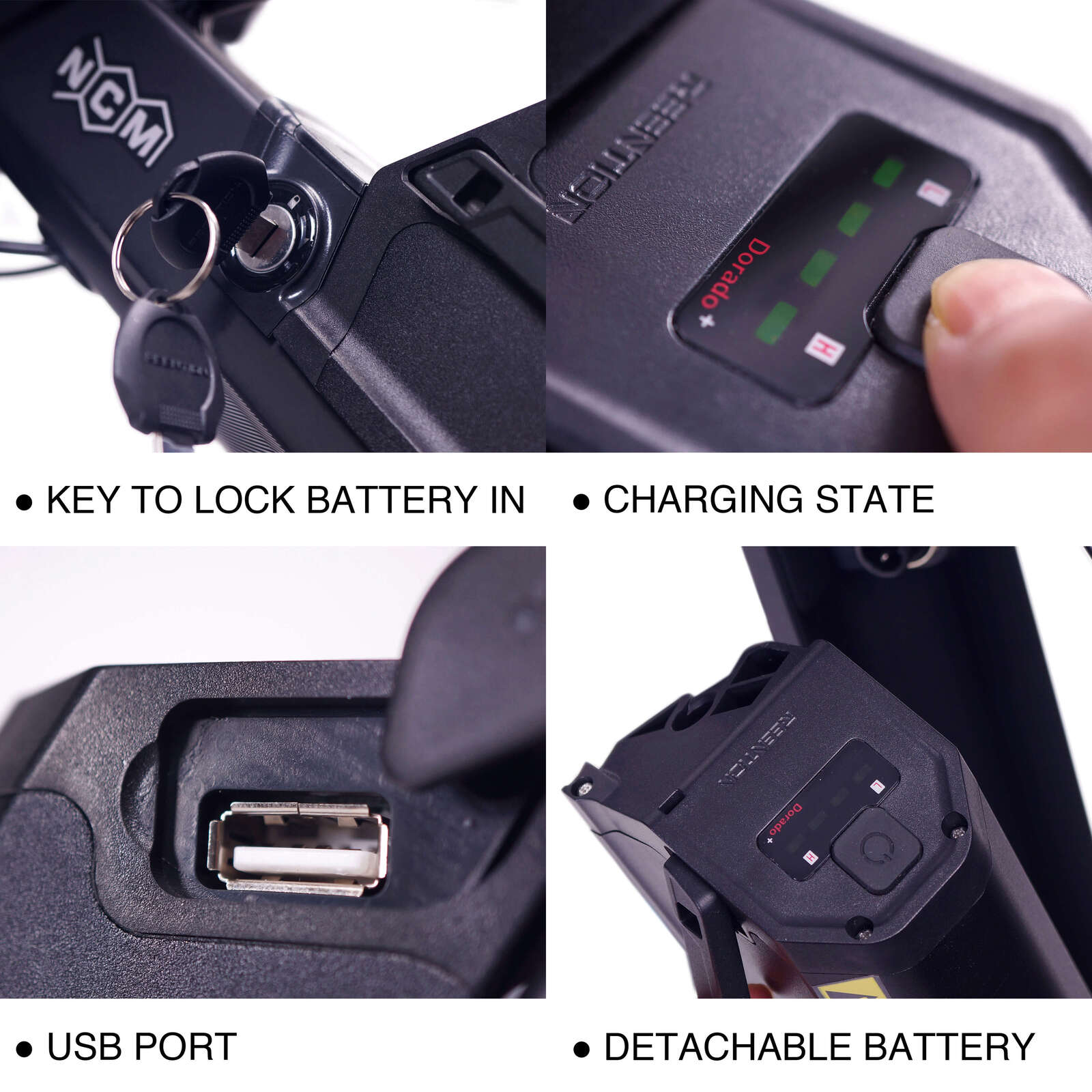

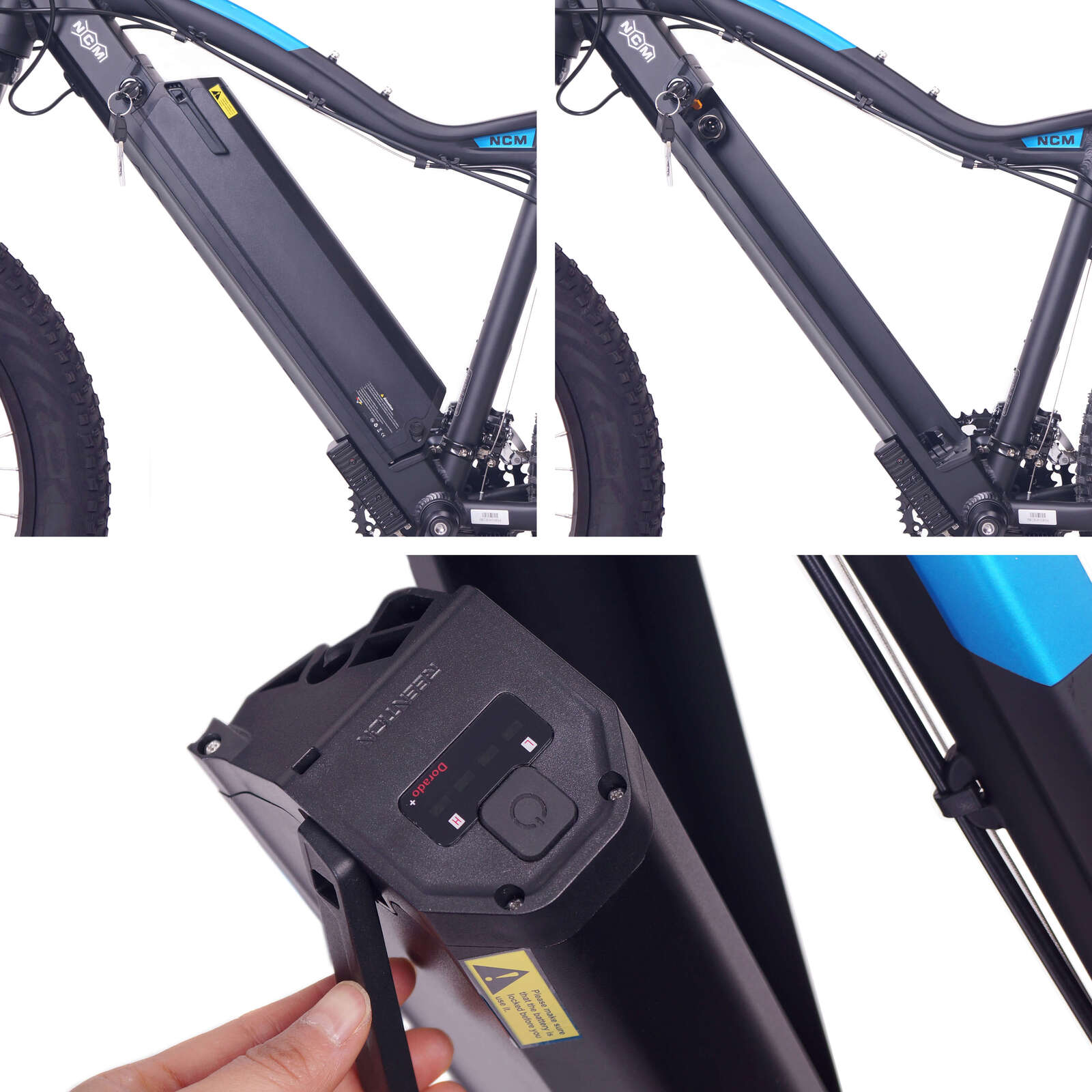

Battery: Das-Kit, i5-4816, 48V 16AH, 768WH

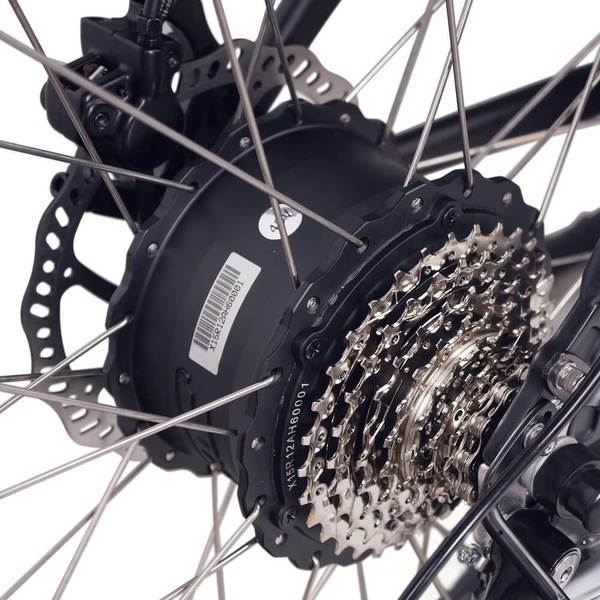

Motor: Das-Kit, X15-fat, Rear drive motor, 48V 250W - 750W, 25KM/H

Controller: Das-Kit, CT5-I5, 48V 18A

Charger: 48V 3A, US standard

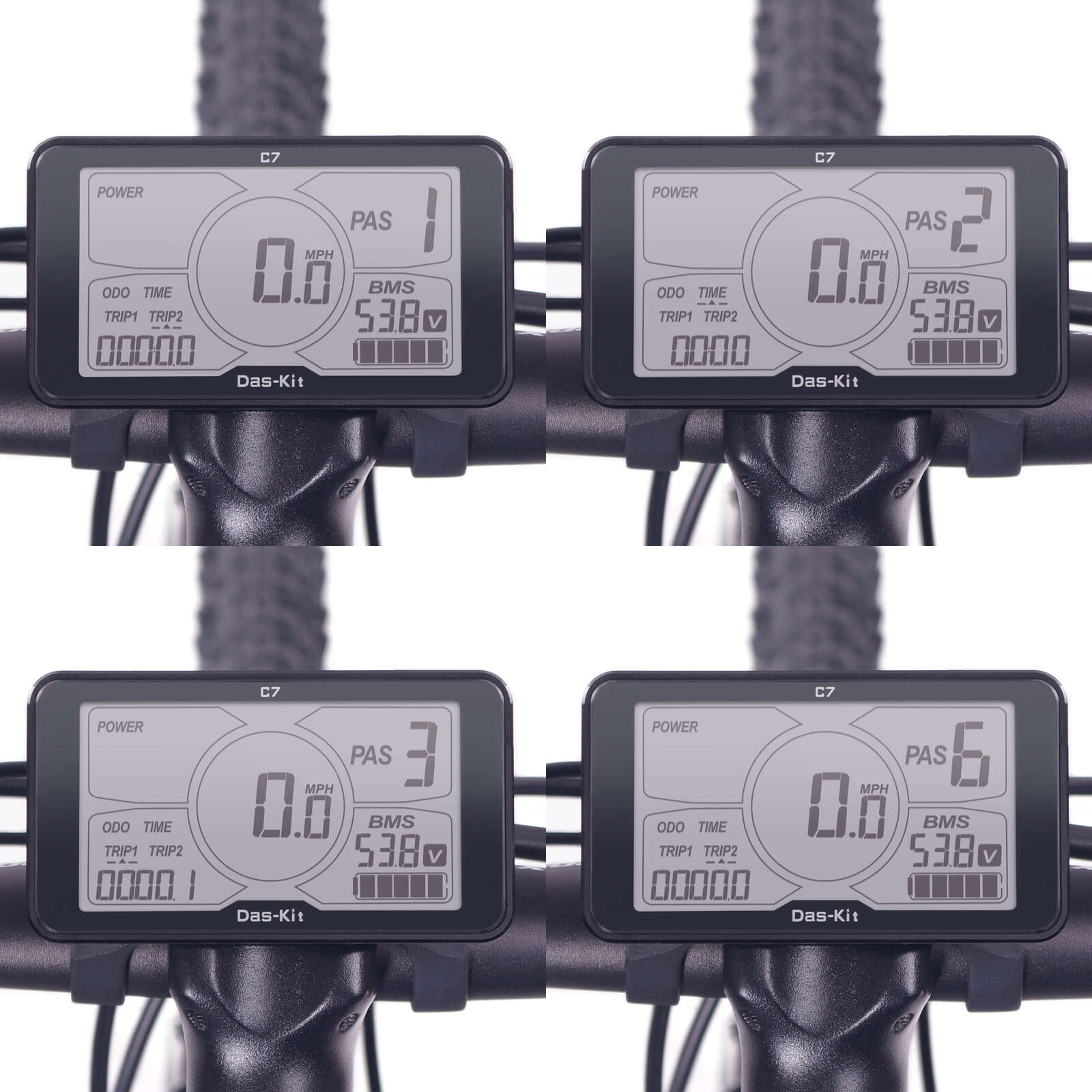

Display: Das-Kit, C7, 6 Levels

Front Light: Cateye, Front reflector

Rear Light: Cateye, Rear reflector

WEIGHT

Net Weight (with battery): 30.0kg

Battery Weight: 4.0kg

Max Load (driver+bike): 125.0kg

Warranty

• 1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
• 2 year warranty on the bike frame
• Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
• Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.

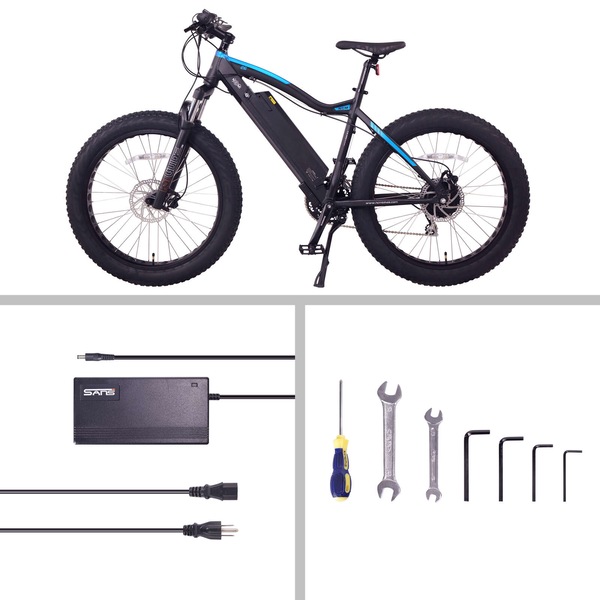

• 1 x Aspen + e-bike
• 1 x DC483DE 48v charger
• 1 x tool kit
