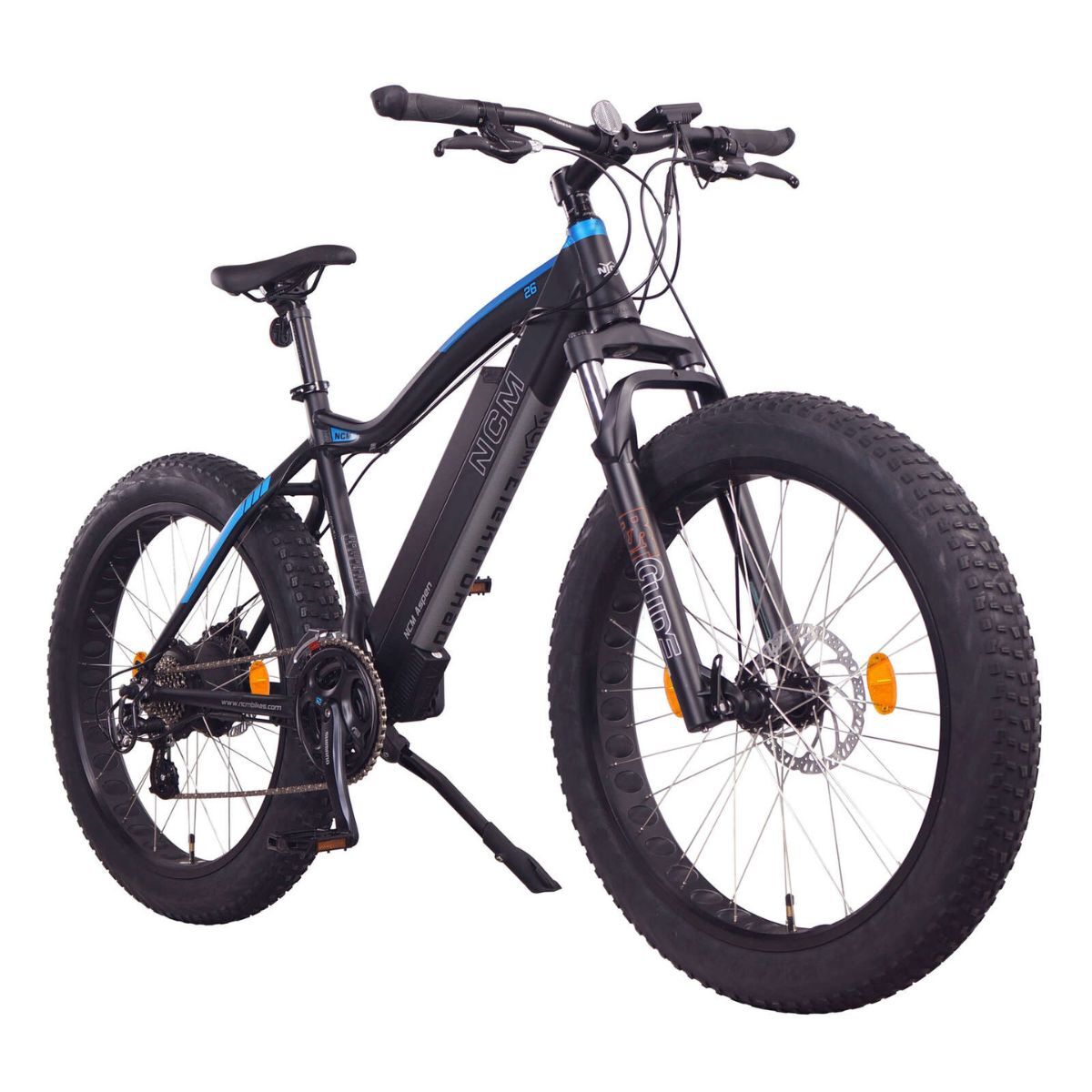

NCM Aspen Plus Fat Electric Bike, E-Bike, 48V 16Ah 250W-750W, E-MTB 768Wh Battery [Black 26]

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Hurry! 14 items left!
$2399

Collect 2399 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Leon Cycle
Secure ways to pay at checkout

Leon Cycle is the manufacturer of NCM and ET.Cycle Electric Bikes. Buy from Leon Cycle & we will guarantee for ourĀ product quality, & warranty.

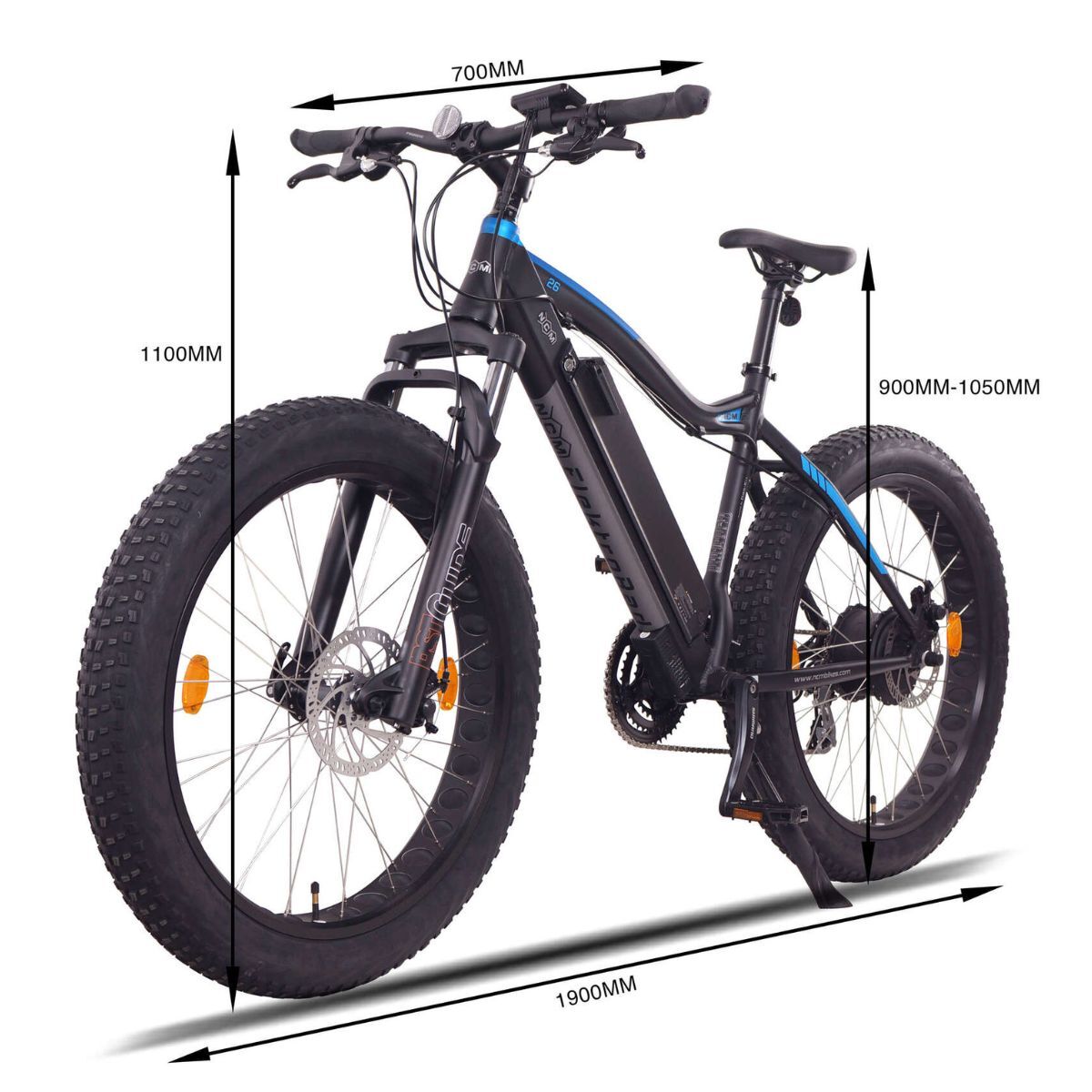

General Information

  • Weight: 26ā€= 30kg
  • Type: E-Fat Mountain bike
  • Wheel size: 26ā€
  • Load capacity: Max. 120kg
  • Maximum speed: 25km/h

Battery Information:

  • Lithium-ion Battery
  • Model:Ā i5-4816PĀ (Approvals: NSW REAS #CCS-250306-EA)Ā
  • Ratings:Ā DC 48V, 16Ah, 768WhĀ

Electric parts

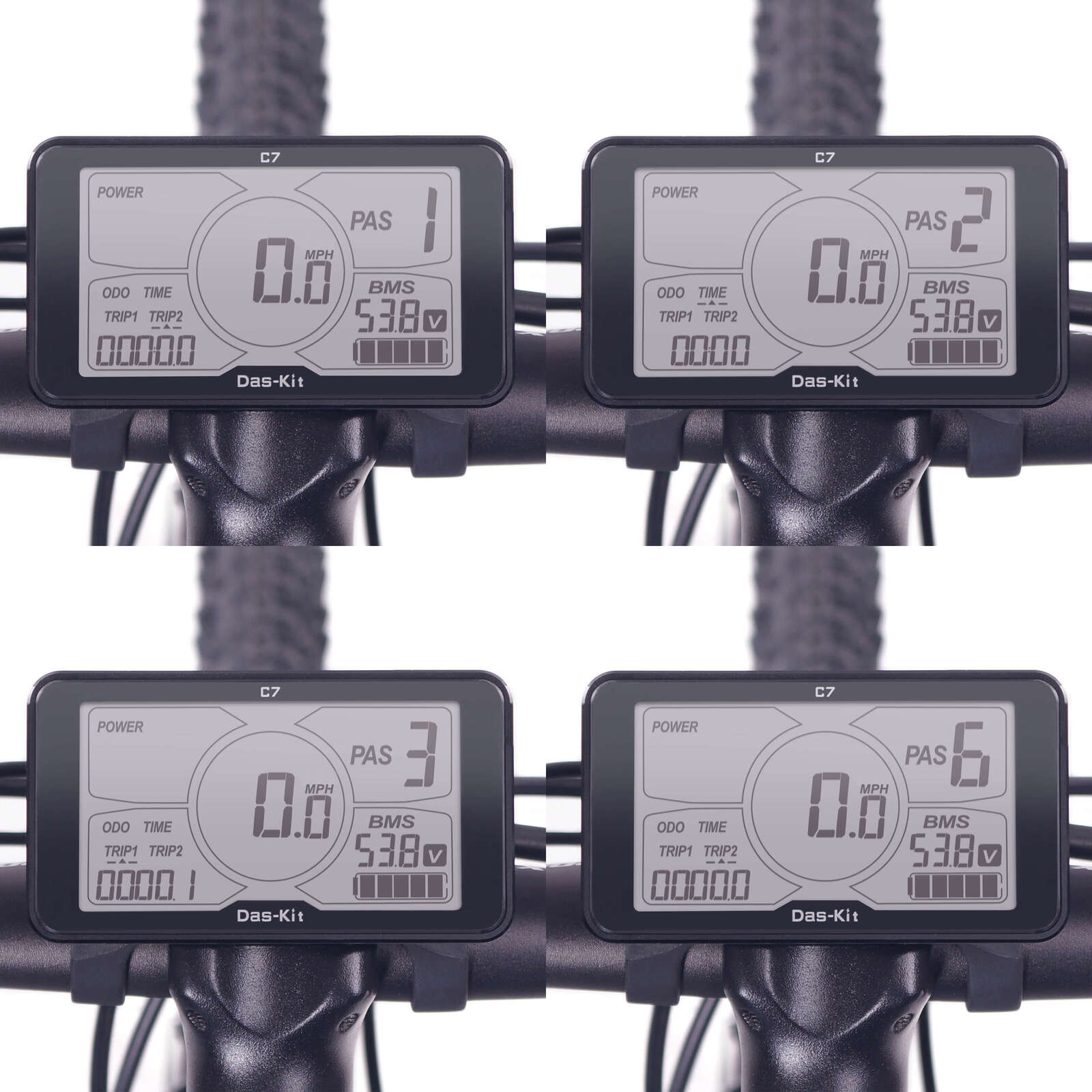

  • Display: Das-Kit, C7, LCD, 6 Assistance levels, up to 6km/h power assist walk
  • Controller: Das-Kit, CT5-I5, 48V 18A

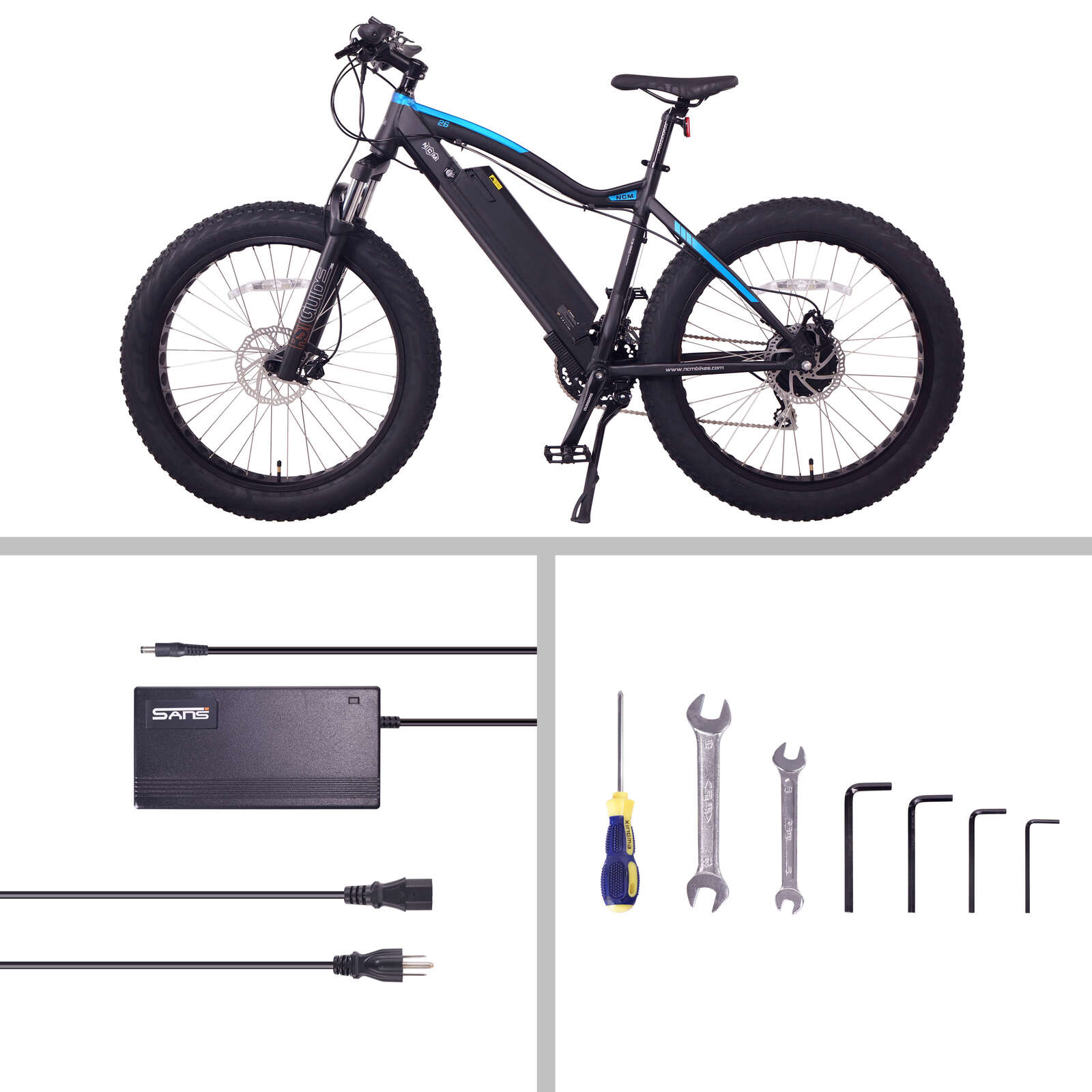

  • Charger:Ā DC483DE 48V 2AĀ (Approvals: ERAC, NSW REAS #TUV026262EA, EESS: E2022081360)

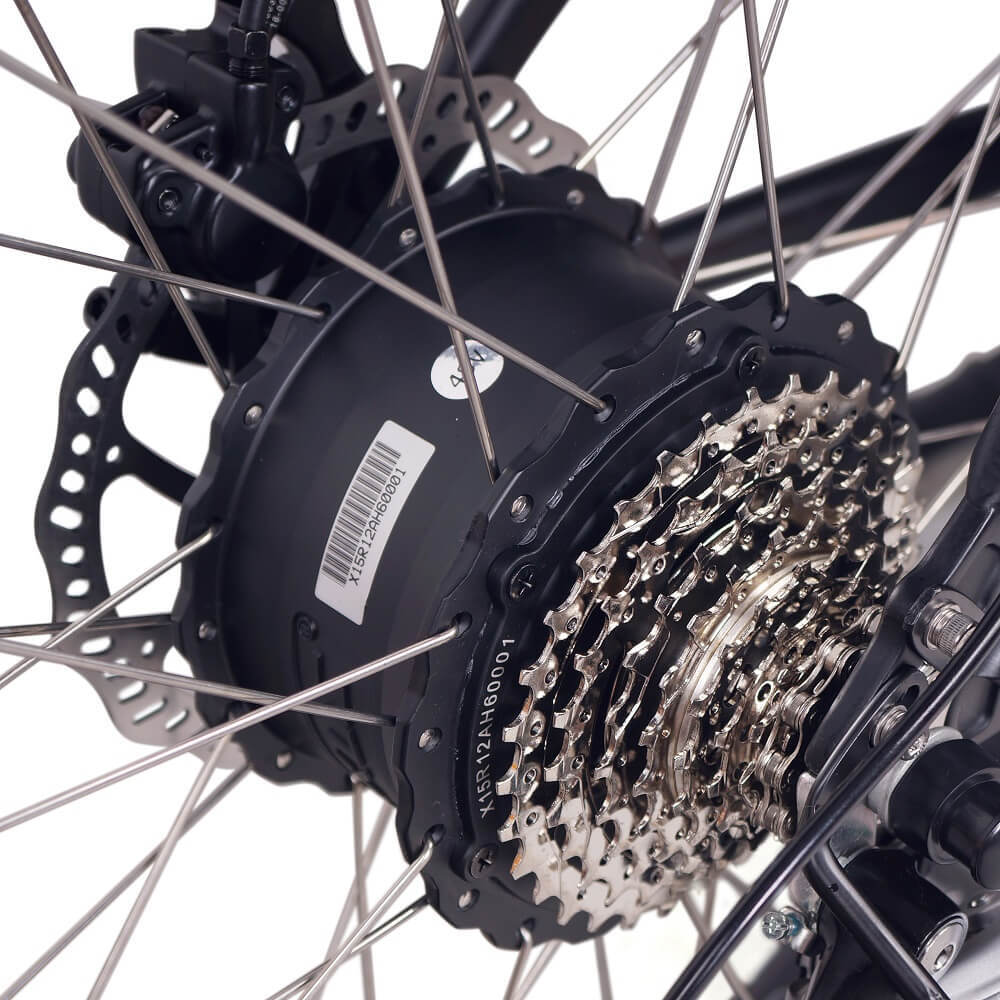

  • Motor: Das-Kit, X15F, 48V 250W-500W, 25km/h, rear hub motor

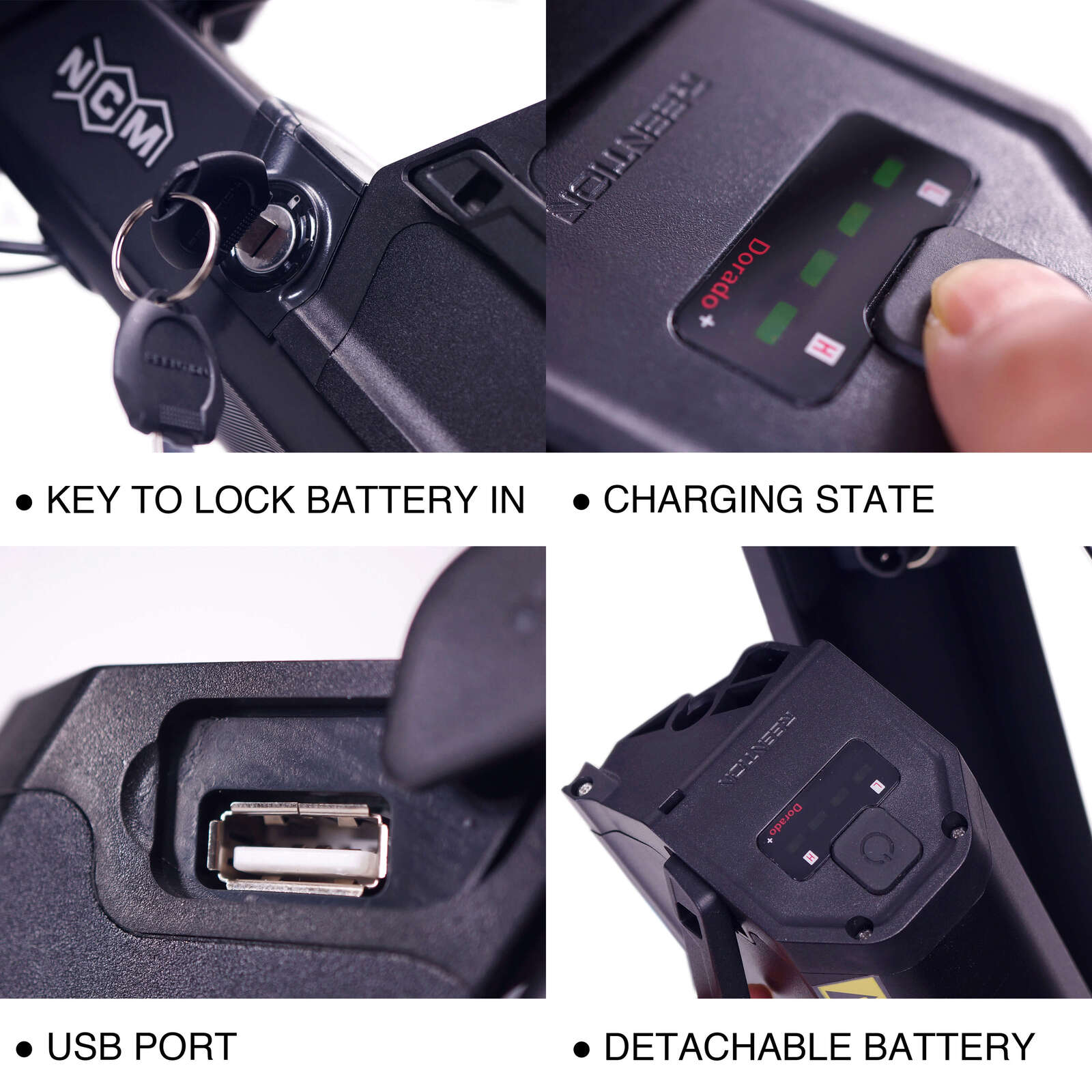

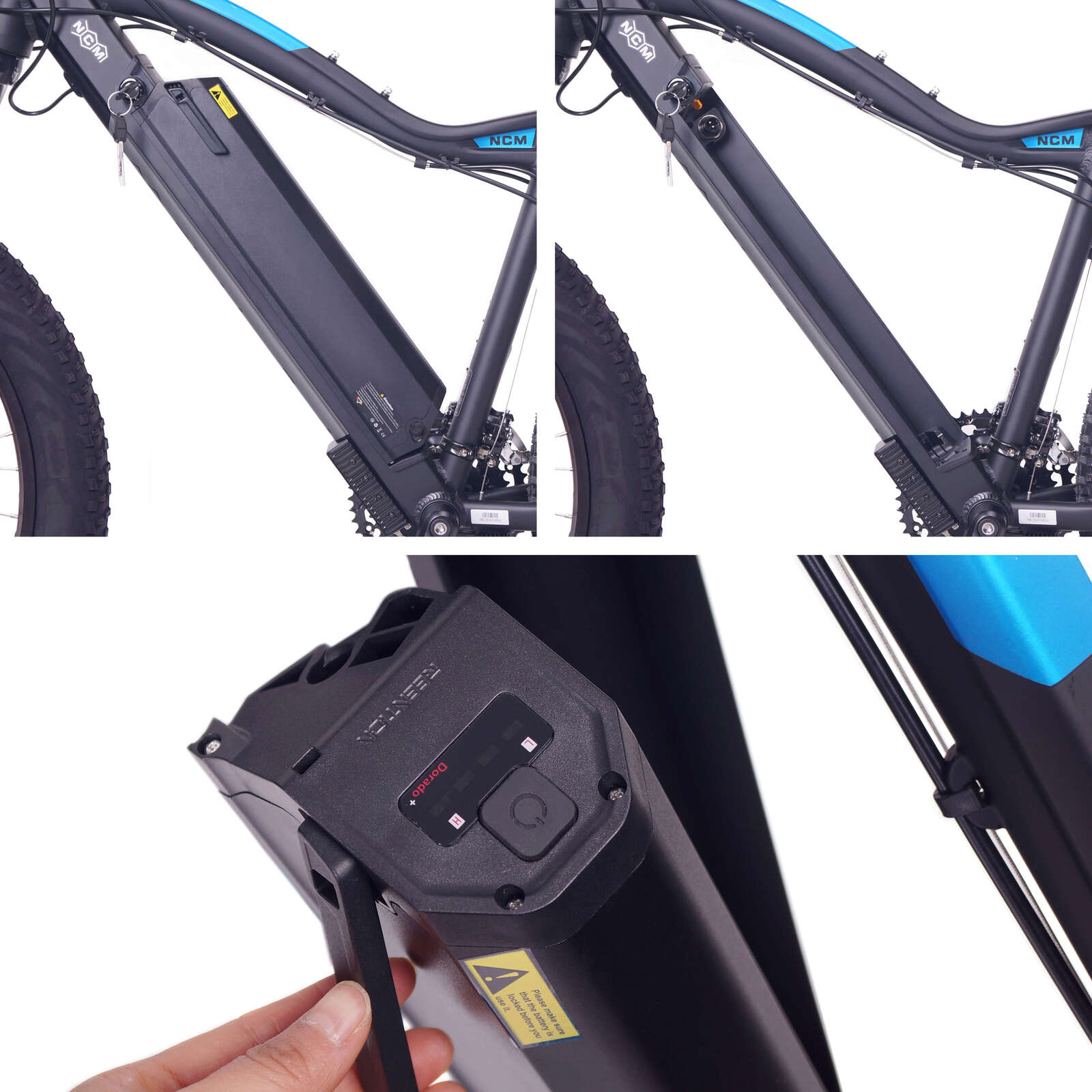

  • Battery: i5-4816P, 48V 16Ah, 768Wh high power Panasonic cells incl. USB portĀ
  • Front/Rear Light: Front/rear Cateye reflectors. Lights not included, must be purchased separately

Bike parts

  • Frame: Aluminium 6061, 26ā€œ 480MMĀ
  • Fork: Fork RST, GUIDE-TNL-26ā€ hydraulic with lock-outĀ
  • Brake Lever: Tektro, hydraulic with brake sensor on the both sides

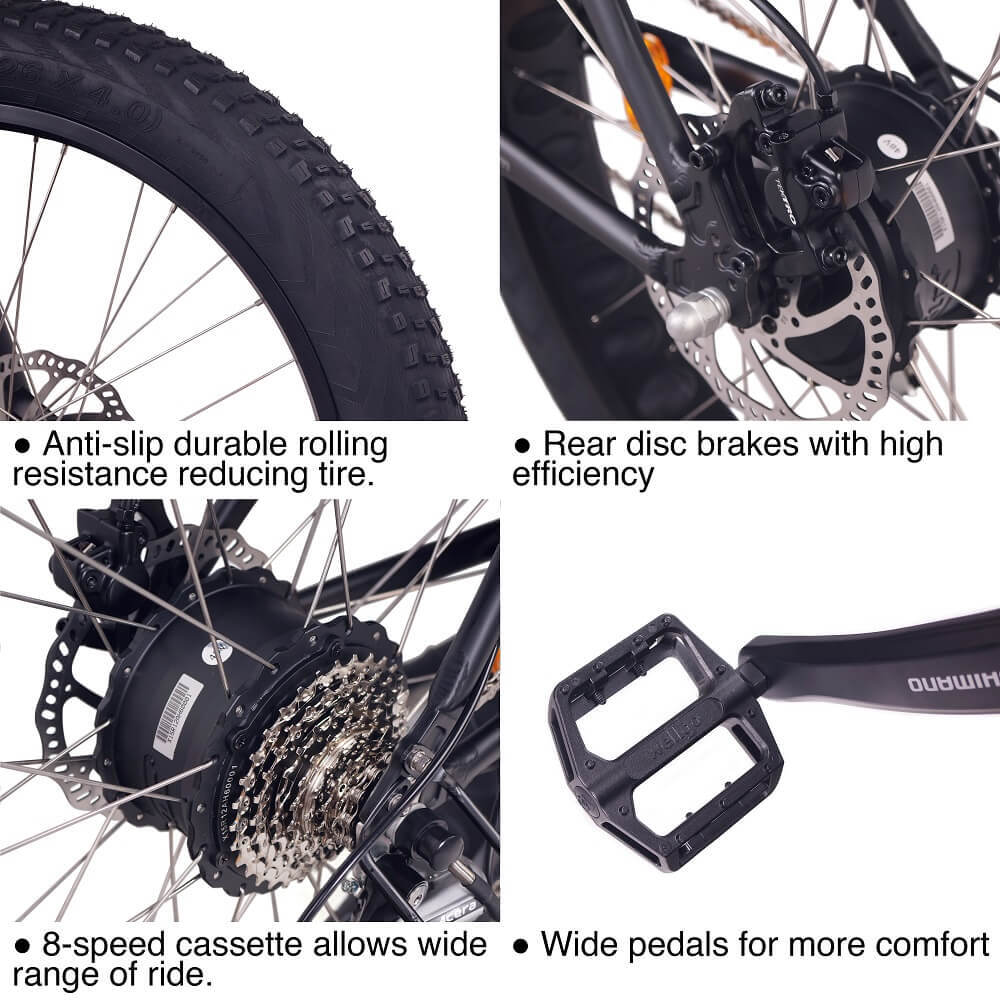

  • Brakes F/R: Hydraulic Tektro disc brakes
  • Crank: Shimano, Acera M361
  • Front Derailleur: Shimano,Altus M310, 3-speed
  • Rear Derailleur: Shimano,Acera 8-speed

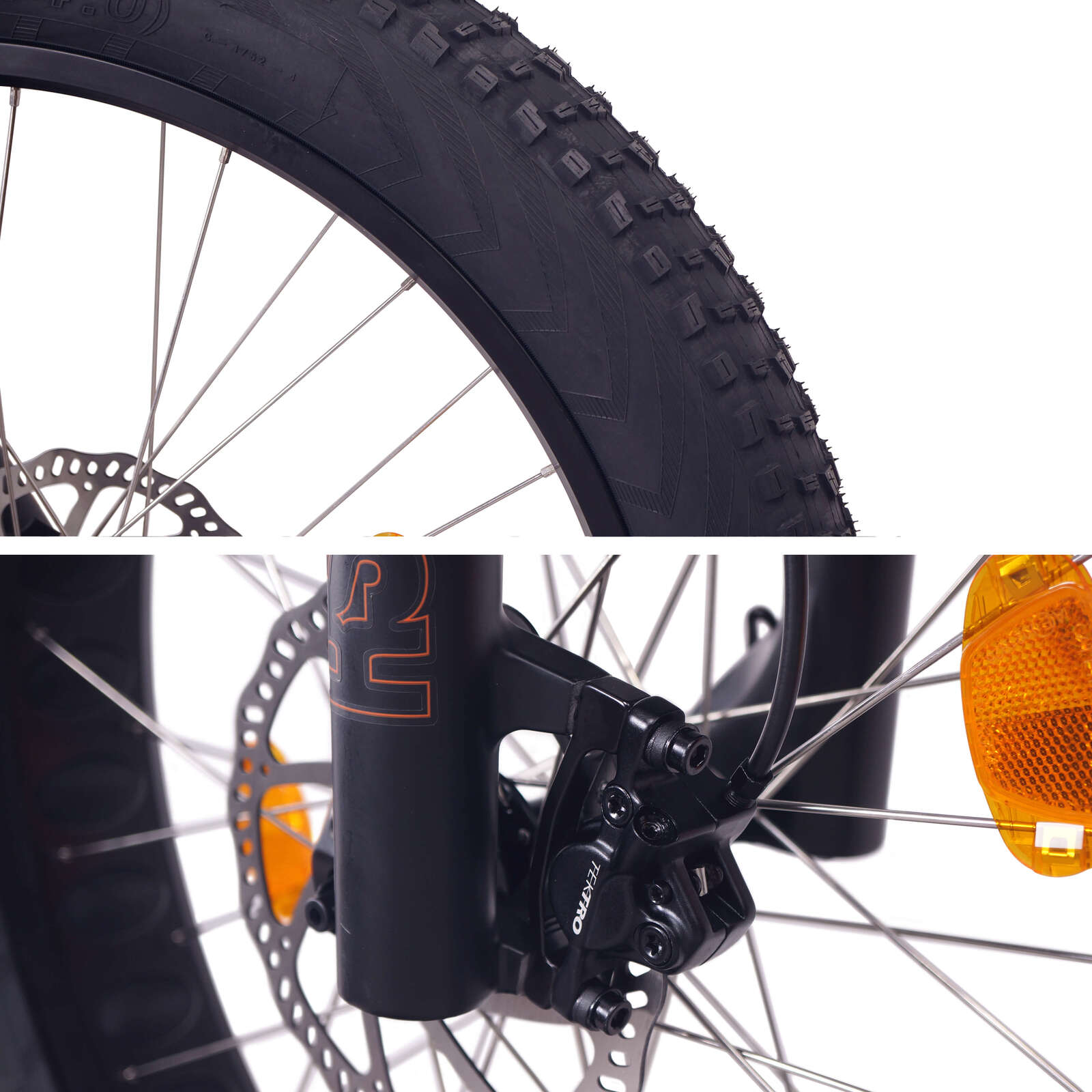

  • Tire: CST, 26ā€*4.0Ā Ā
  • Saddle: Selle Royal, black
  • Seat Post: Promax SP-252, aluminum 30.9*MM diameter
  • Grip: VVELO, ergonomic, black/grey (synthetic)
  • Pedal: Wellgo, B087, black

Warranty

1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
2 year warranty on the bike frame
Apart from manufacture defects that could be present, parts that wear due to normal use (such as tyres, brake pads, chains, etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.

​​​Disclaimer:Ā Once you received the e-bike, we recommend to have it assembled by a professional in bike shops near you and also get your bike serviced after 1 month of use to ensure all aspects of the bike are set and calibrated correctly.​

Estimated Delivery Time Frame:5 - 10 business days
