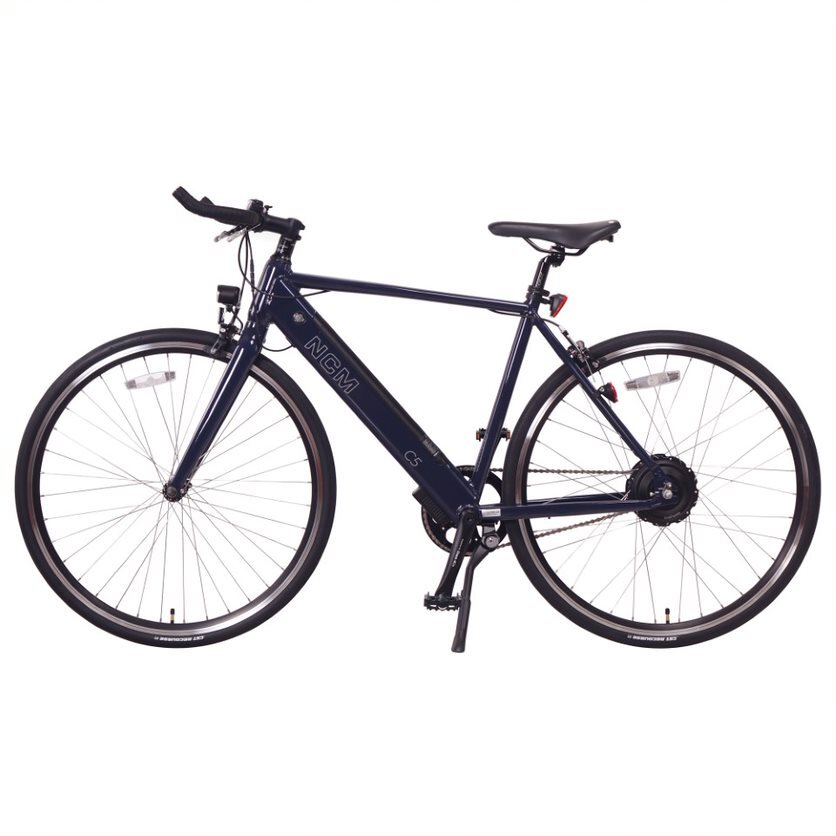

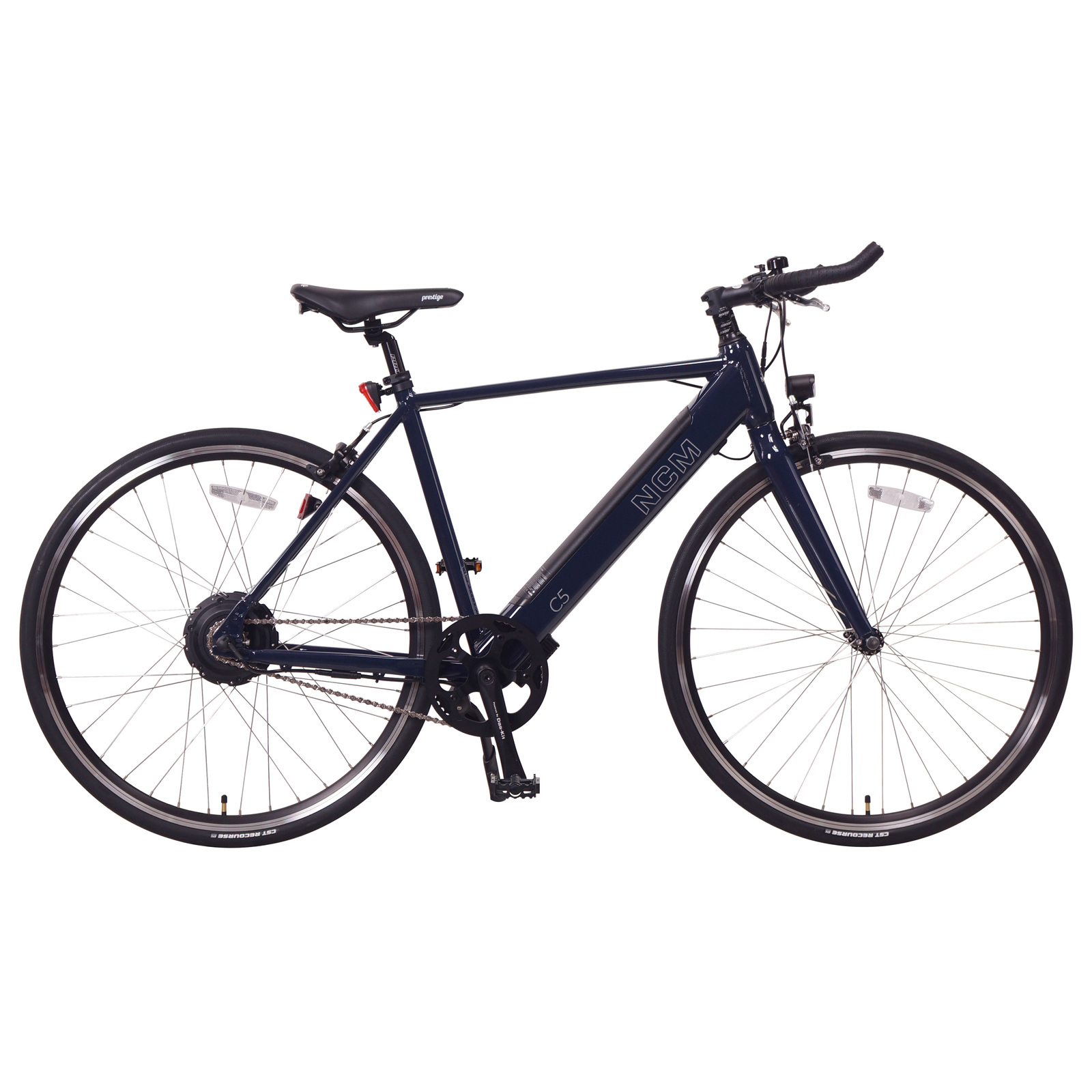

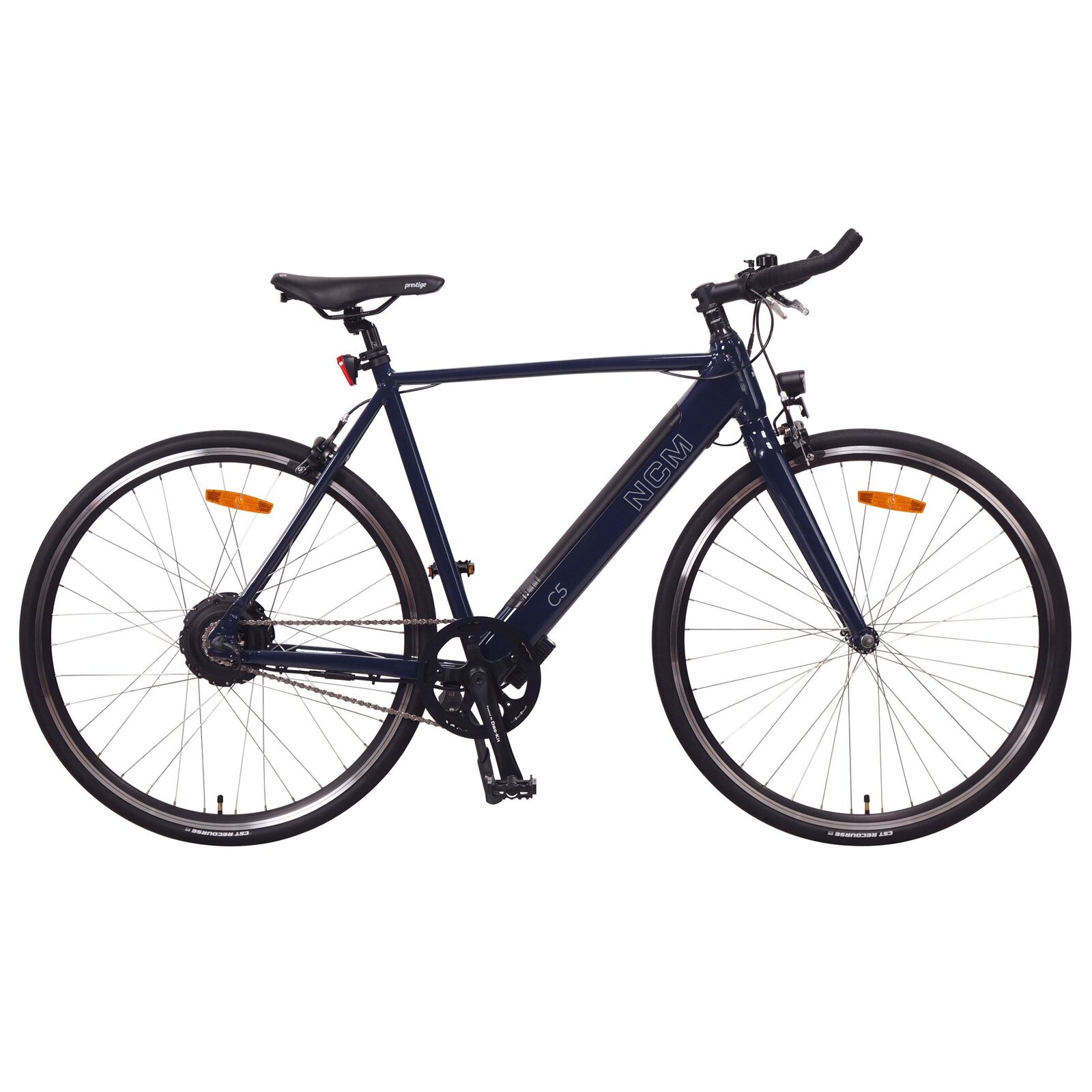

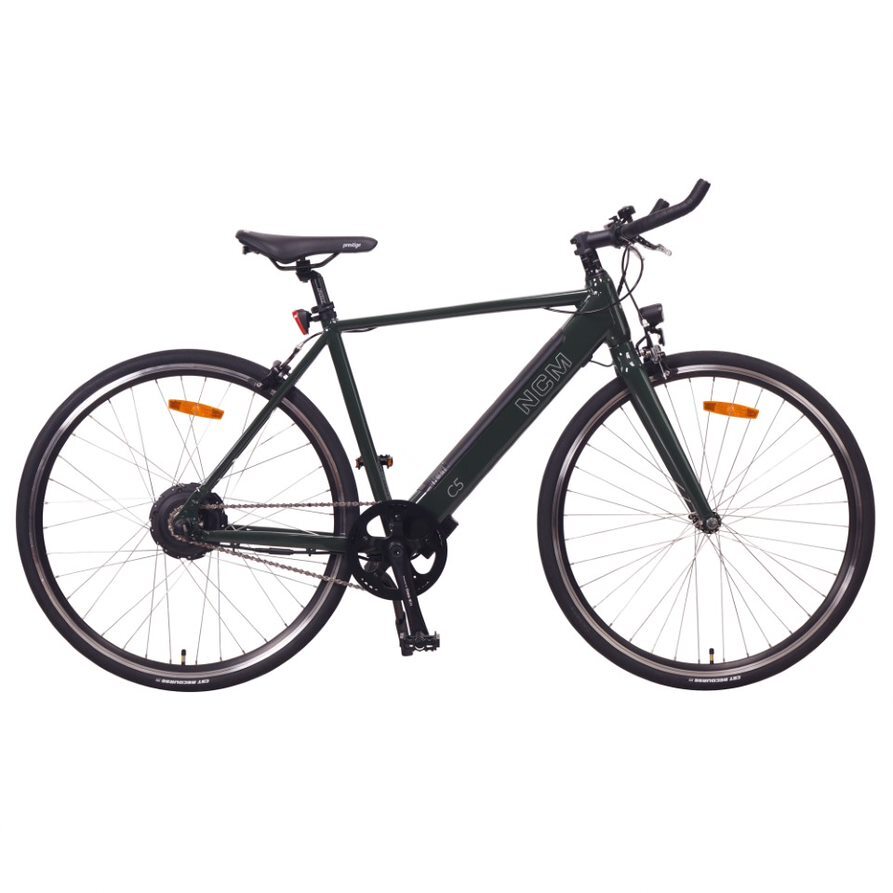

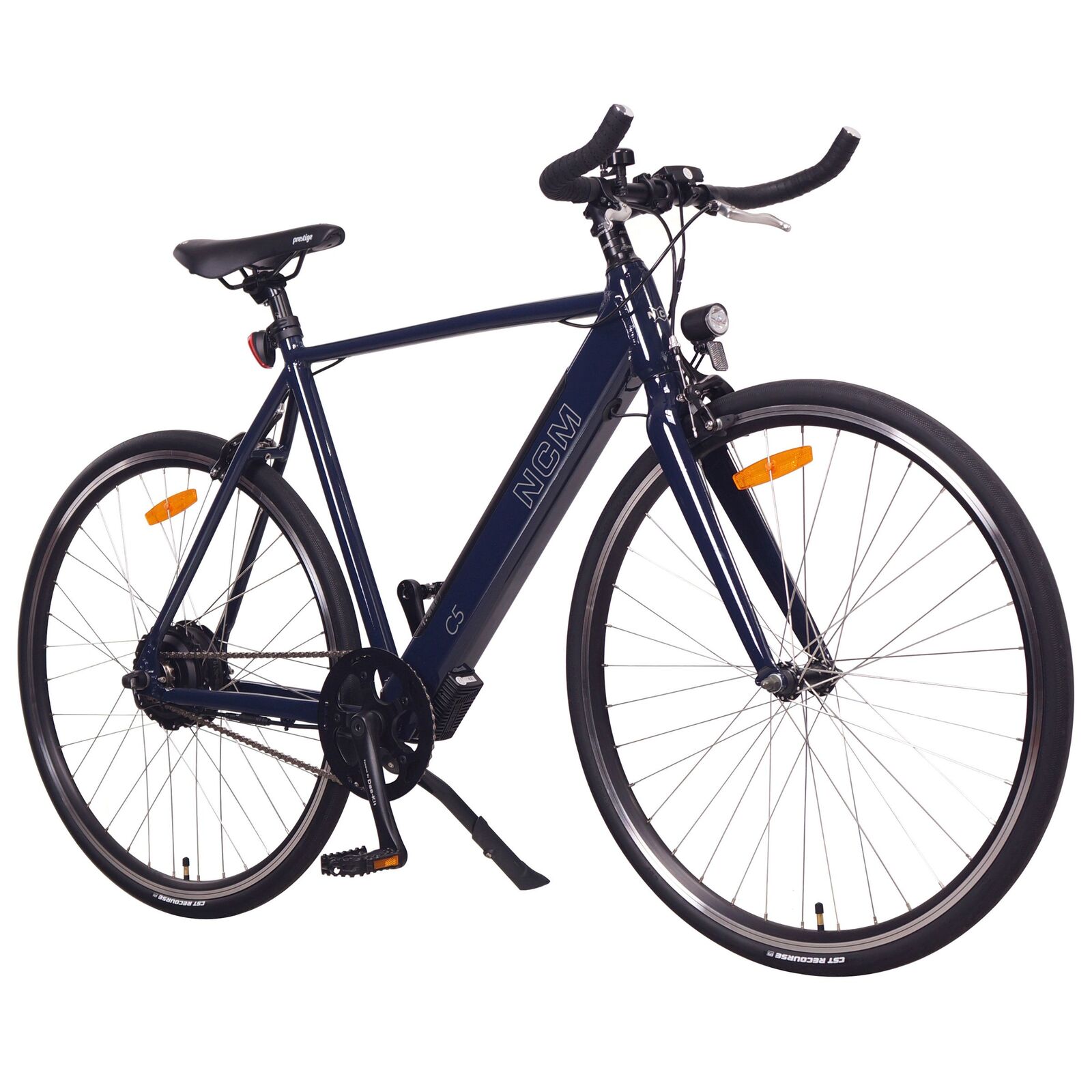

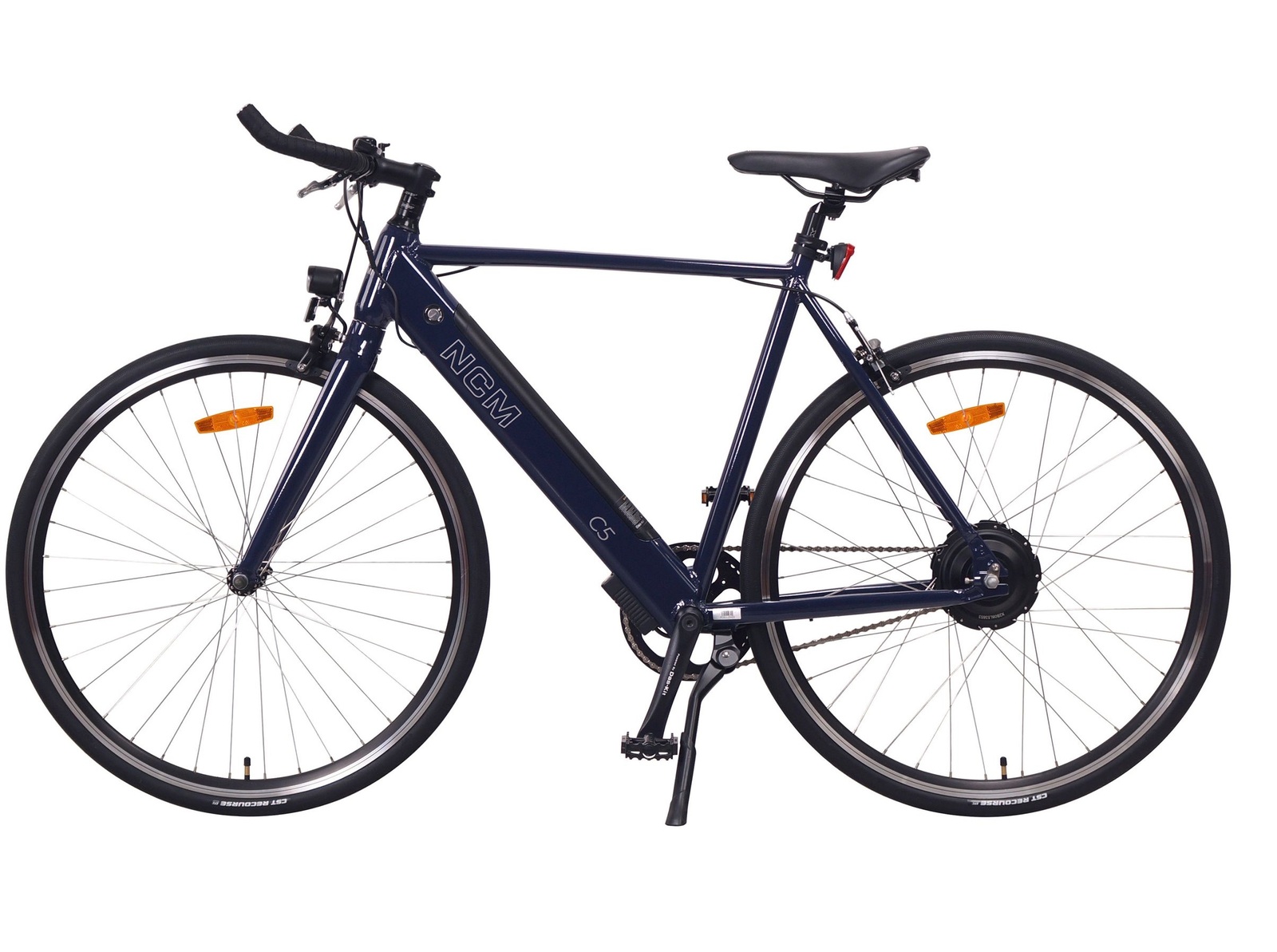

NCM C5 Trekking E-Bike, City-Bike 250W, 36V 12Ah 432Wh Battery

Leon Cycle is the manufacturer of NCM and ET.Cycle Electric Bikes. Buy from Leon Cycle & we will guarantee for our product quality, & warranty.

Do you want to avoid traffic jams and still arrive quickly and safely at your destination? Then our E-Trekking and City Bikes are just the thing for you. Roadworthiness, comfort and elegance are the main features of our NCM C5 Electric City Bike.

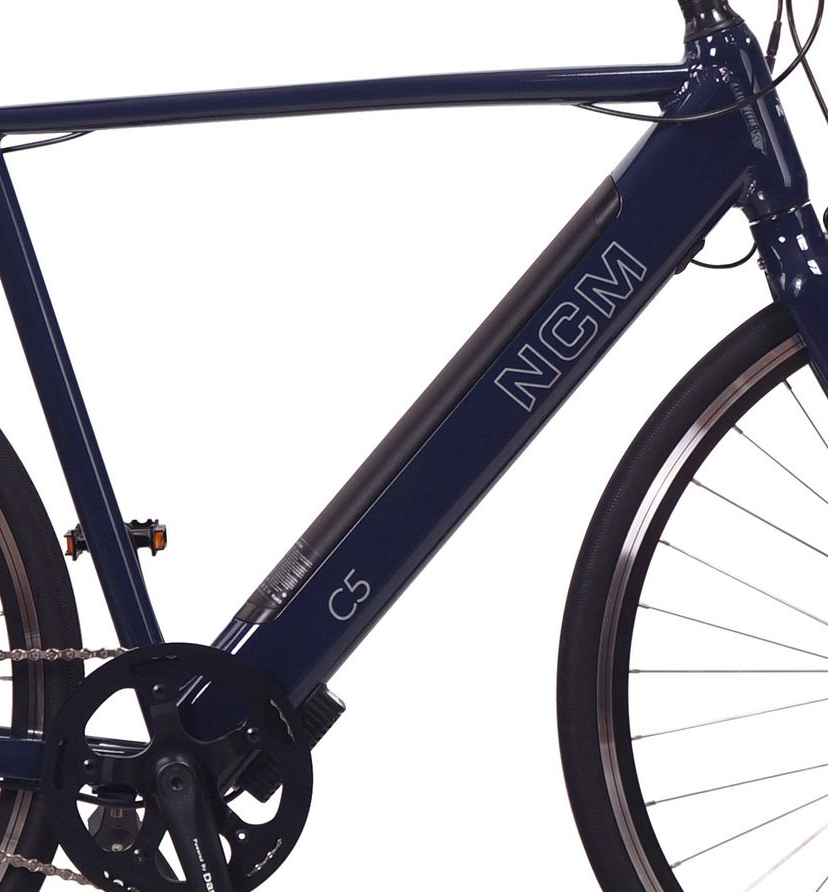

Minimal Design, Maximal Performance. The NCM C5 is fully equipped E-bike for city commutes. Whether you are trying to get to work on time, while being sweat free, or need to rush to your favourite place in style, the all new NCM C5 lets you cover your daily journeys with ease. This Electric bicycle is designed with a tough aluminium frame, and a strong rigid handlebar and saddle for improved ergonomics and performance. The high top tube, makes the bike sturdy and strong allowing the power you put down to be effectively transferred to the road. This electric bicycle is the lightest ebike in the market.

Upgraded to Torque Sensor Technology, the NCM C5 Pedal assist model activates the intelligent drive system delivering distributing the power being put into the pedals rather than simply the number of revolutions. Give you power when you need it most with a smooth and silent ride. The NCM C5 comes with Das-Kit 36V, 12Ah, 432Wh long lasting battery that will give you reach up to 100km per charge.

General Information

Load capacity: Max. 125kg
Maximum speed: 25km/h
Range: Upto 100km (Depending on the conditions)

Battery Information

Lithium-ion Battery
Model: i6-3612A
Ratings: 36V, 12Ah, 432Wh

Electric Parts

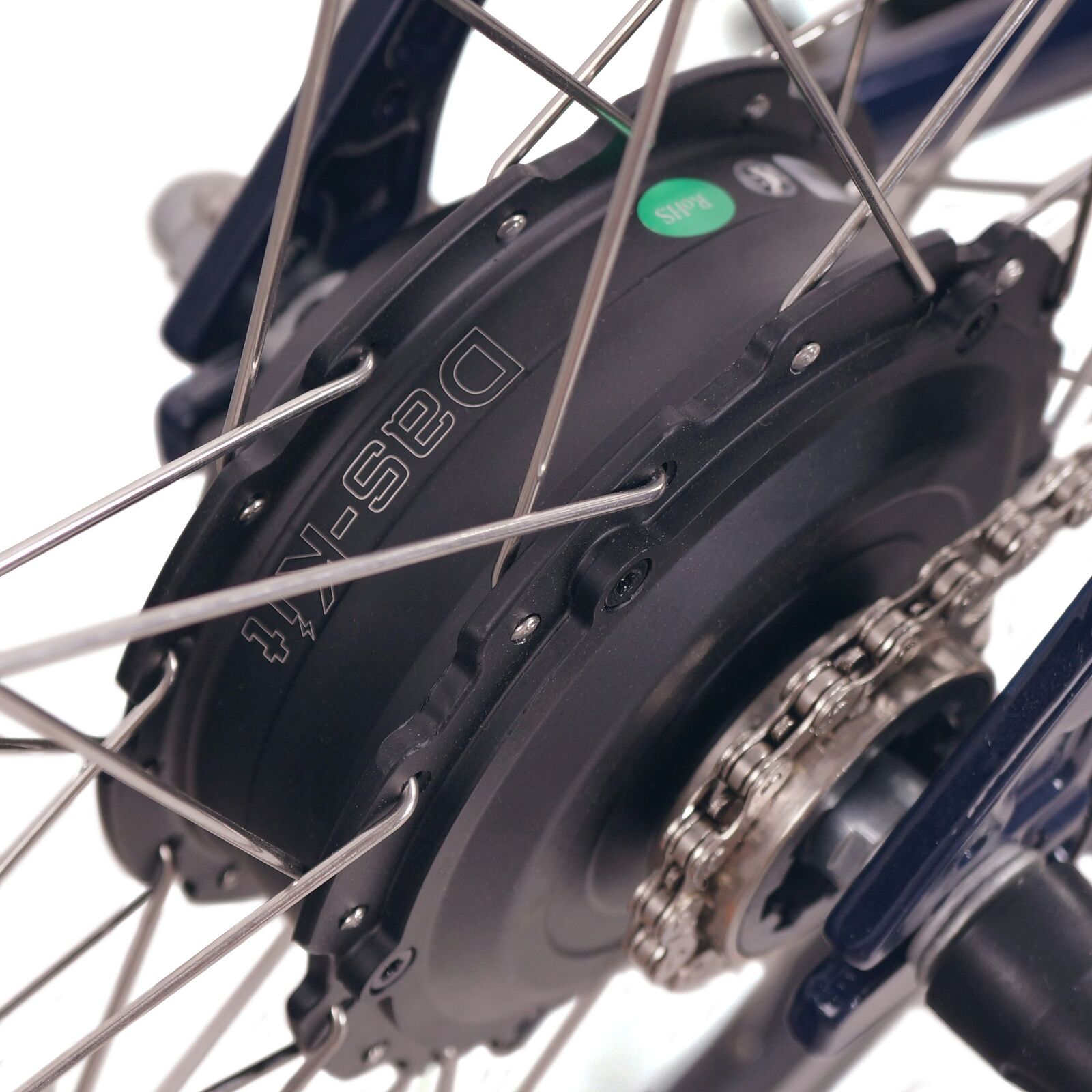

Motor: Das kit, X2, 36V 250W, 25km/h
Battery: I6-3612A, 36V12AH, 432WH
Charger: Das-Kit, DC363, 36V3A

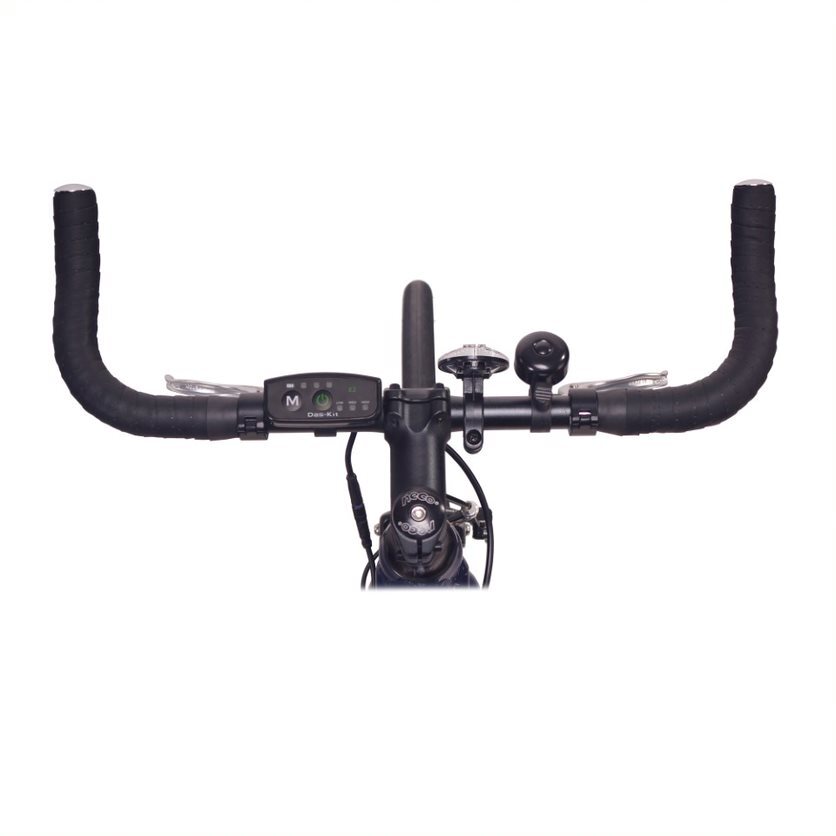

Display: Das-kit E2
Controller: T6, 36V15A

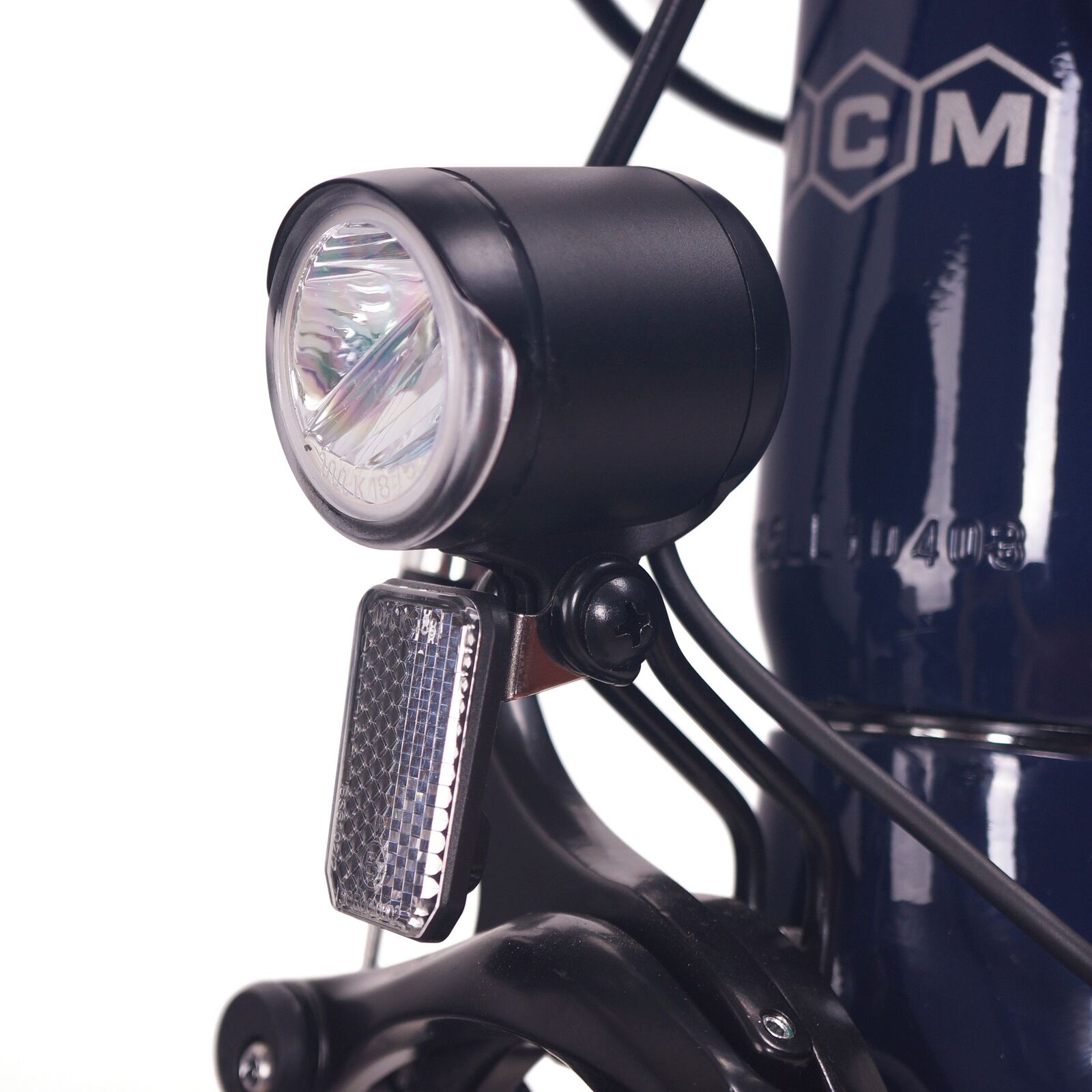

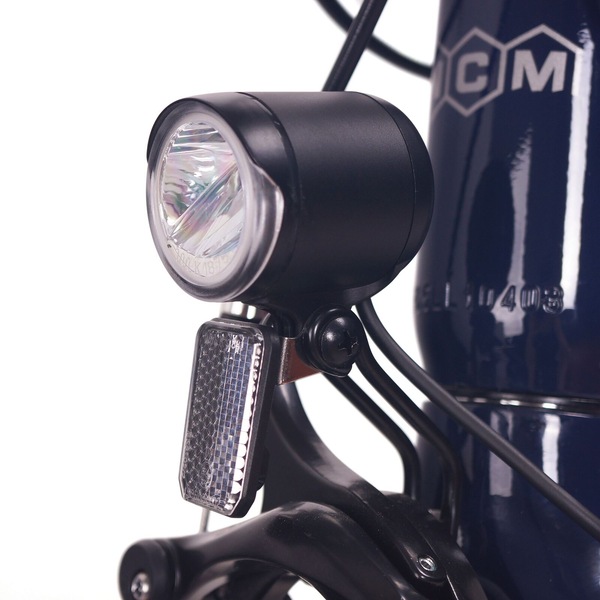

Front Light: DH002
Rear Light: DR004

Bike Parts

Frame: Alu. 6061, 560MM
Fork: ZF, 5058-02, 27.5'', rigid fork

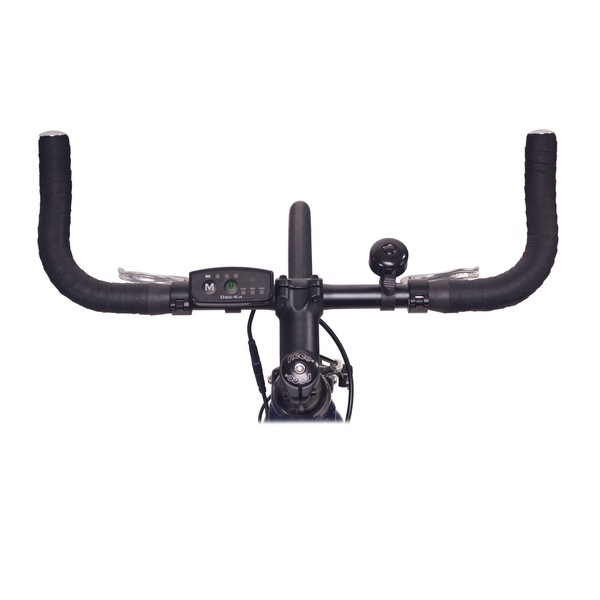

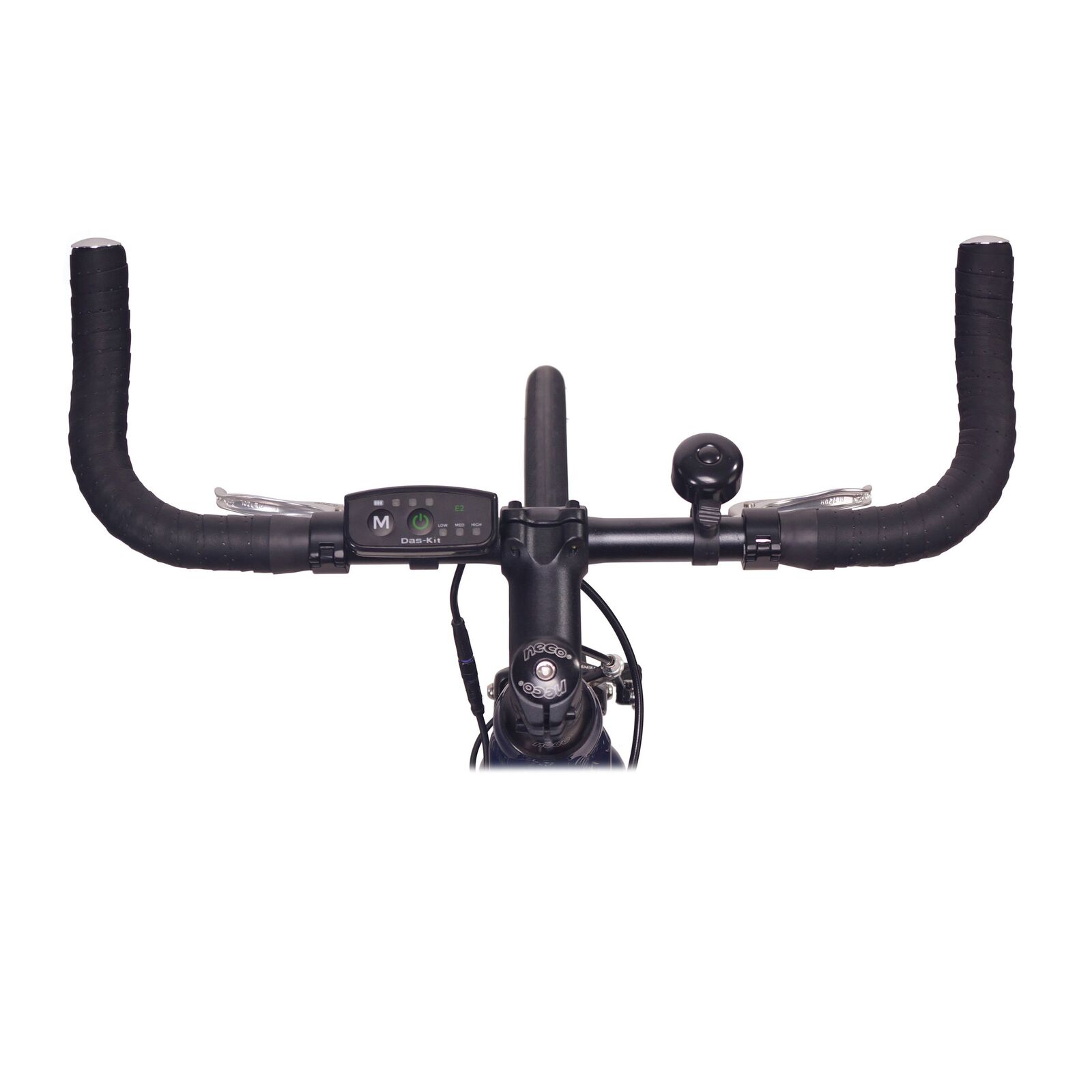

Handlebar: FQ 455mm
Stem: HP-HD75－8
Head Set: NECO,H384M
Brake Lever: Tektro RL570

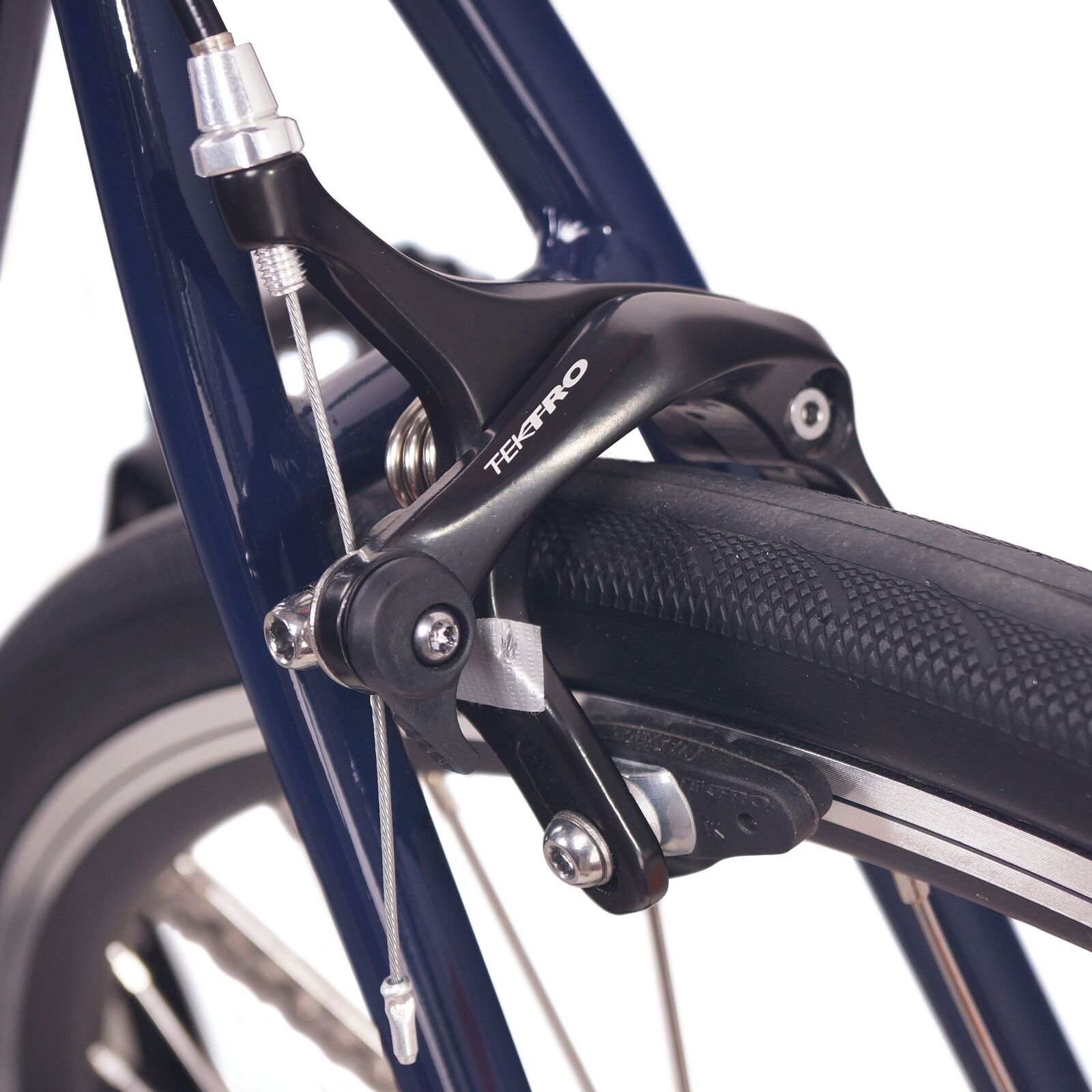

Brakes: F/R: Tektro  Dual pivot caliper Brakes,R315
Crank: Prowheel, 46T, Black
Chain: KMC
Freewheel: LY-BB16T8VNF, Single Speed
Tire: CST,C1808，700*30c （Black)
Saddle: Selle Royal, Prestige-1307URN (Black)
Seat Post: Promax, Alu., SP-252, 27.2*350MM,  Black
Seat Clamp: Zoom, AT-83
Grip: VELO,VLT-2019HD2-R
Pedal: Wellgo，C280DU
Kickstand: Leisger

Manufacturer Warranty

• Leon Cycle provides 1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
• Leon Cycle provides 2 years warranty on the bike frame. For more warranty information visit our FAQS.
• Apart from manufacture defects that could be present, parts that wear due to normal use (such as tyres, brake pads, chains, etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months. For more information contact Leon Cycle on 0390695443.
• Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.

​​​​Disclaimer: Once you received the e-bike, we recommend to have it assembled by a professional in bike shops near you and also get your bike serviced after 1 month of use to ensure all aspects of the bike are set and calibrated correctly.​
