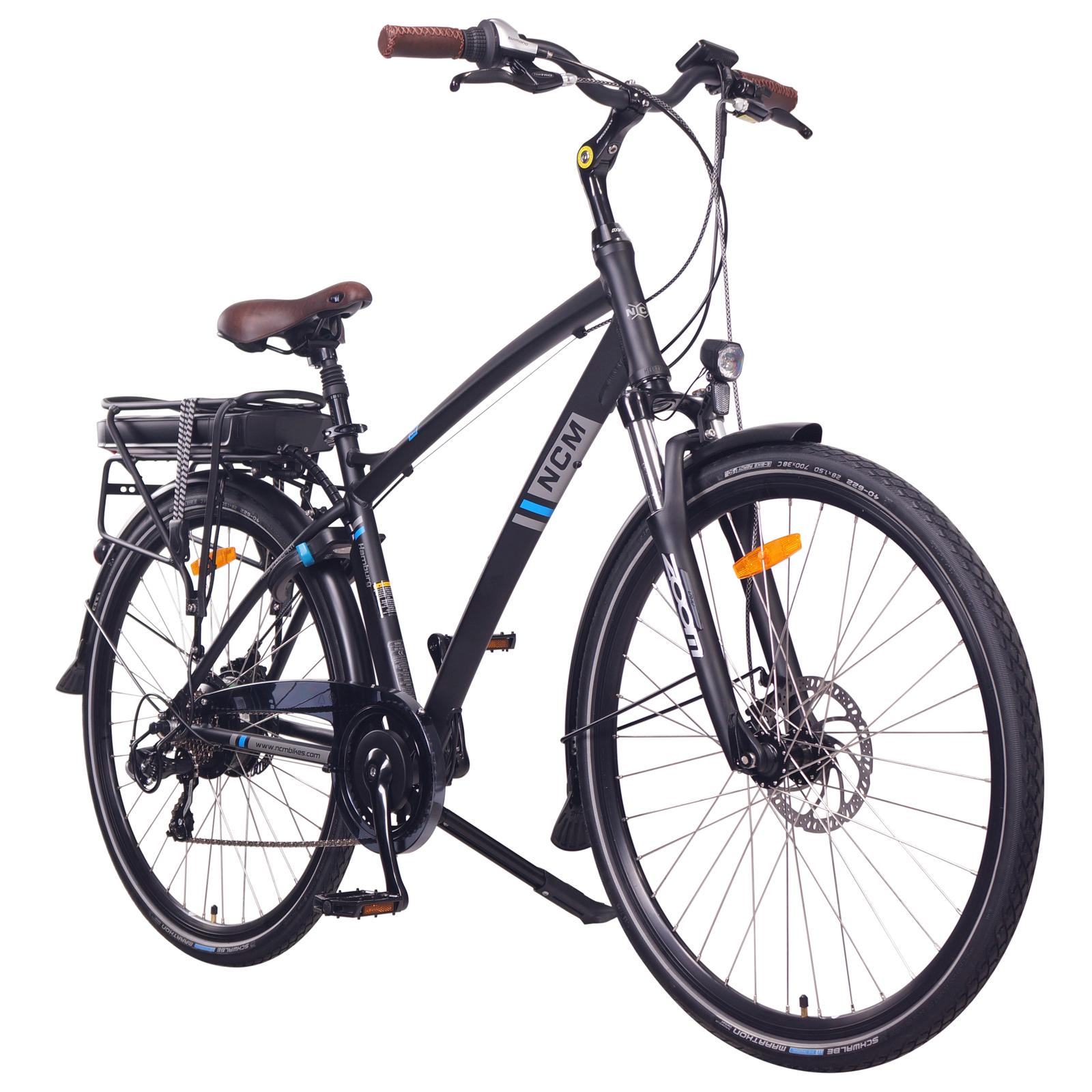

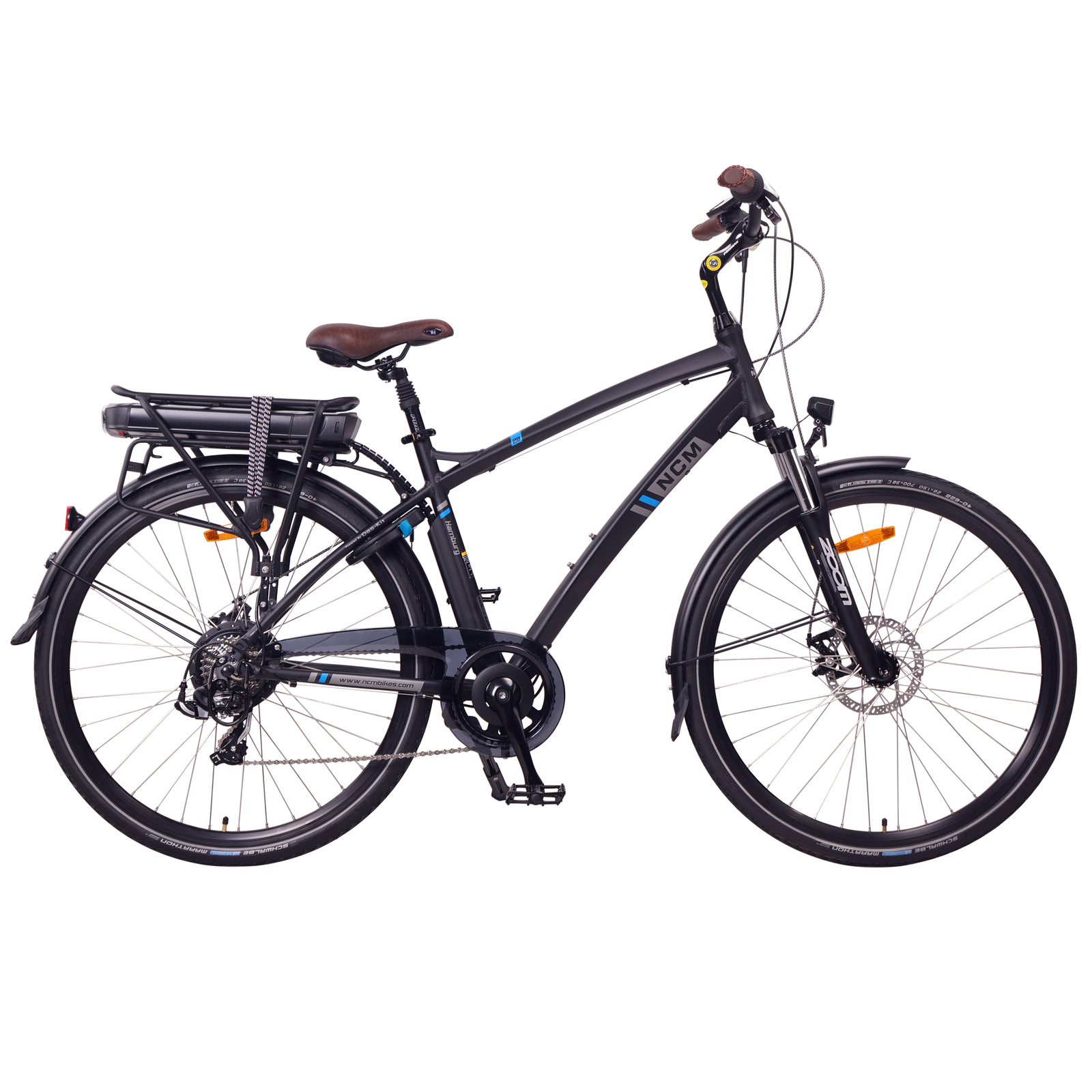

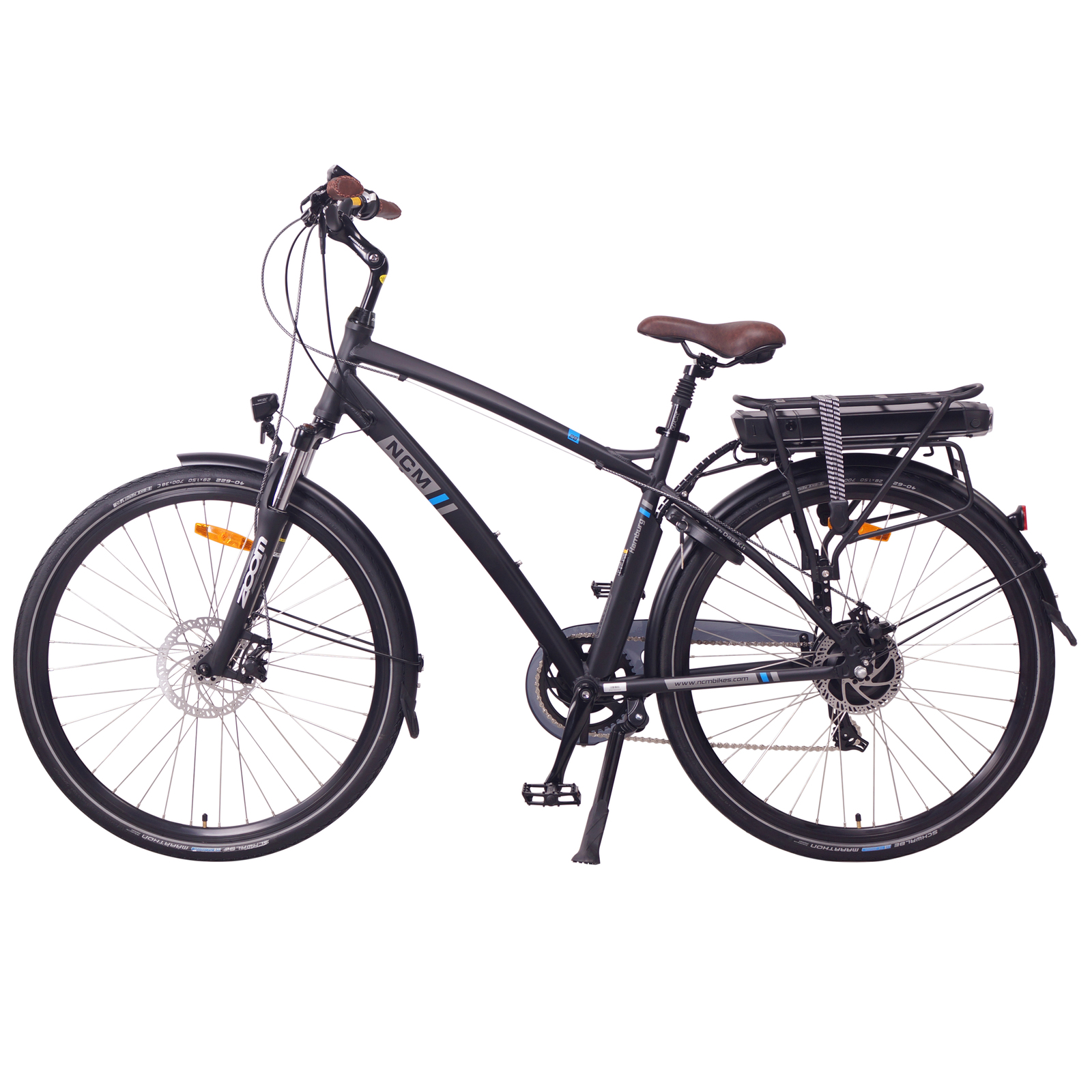

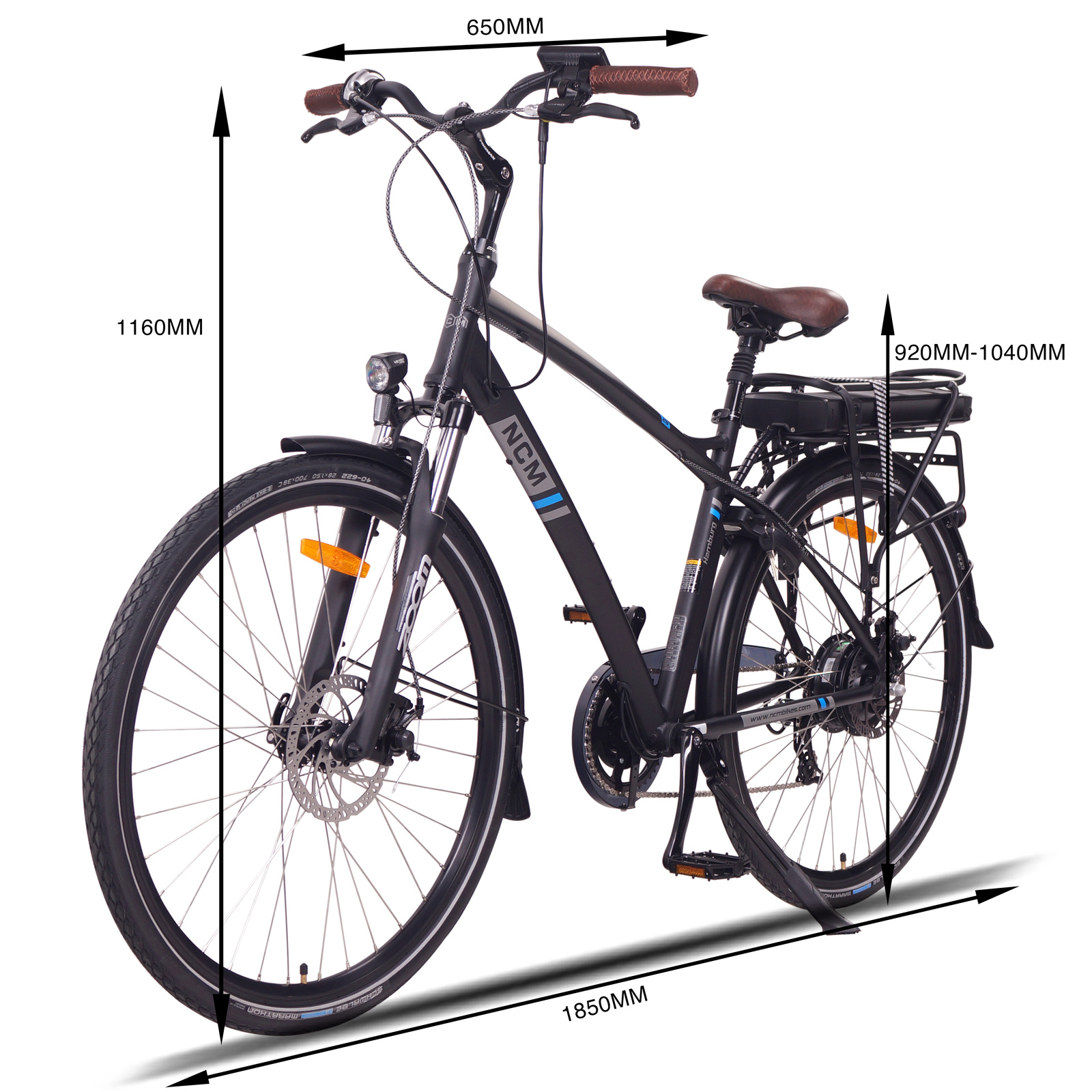

NCM Hamburg Trekking E-Bike, City-Bike, 250W, 36V 13Ah 468Wh Battery [Black 28"]

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Image 11
Hurry! 1 items left!
$1499

Collect 1499 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Leon Cycle
Secure ways to pay at checkout

General Information

Weight: 28”= 27kg
Type: E-Trekking
Wheel size: 28"
Load capacity: Max. 125kg
Maximum speed: 25 km/h

Battery Information

Lithium-ion Battery
Model: RS3-3613H
Ratings: DC 36V, 13Ah, 468Wh

Electric parts

Motor:Bafang SWX02 36V 250W rear drive
Controller: The kit L6B
Charger: 36V 2A included (round plug) DC362DE

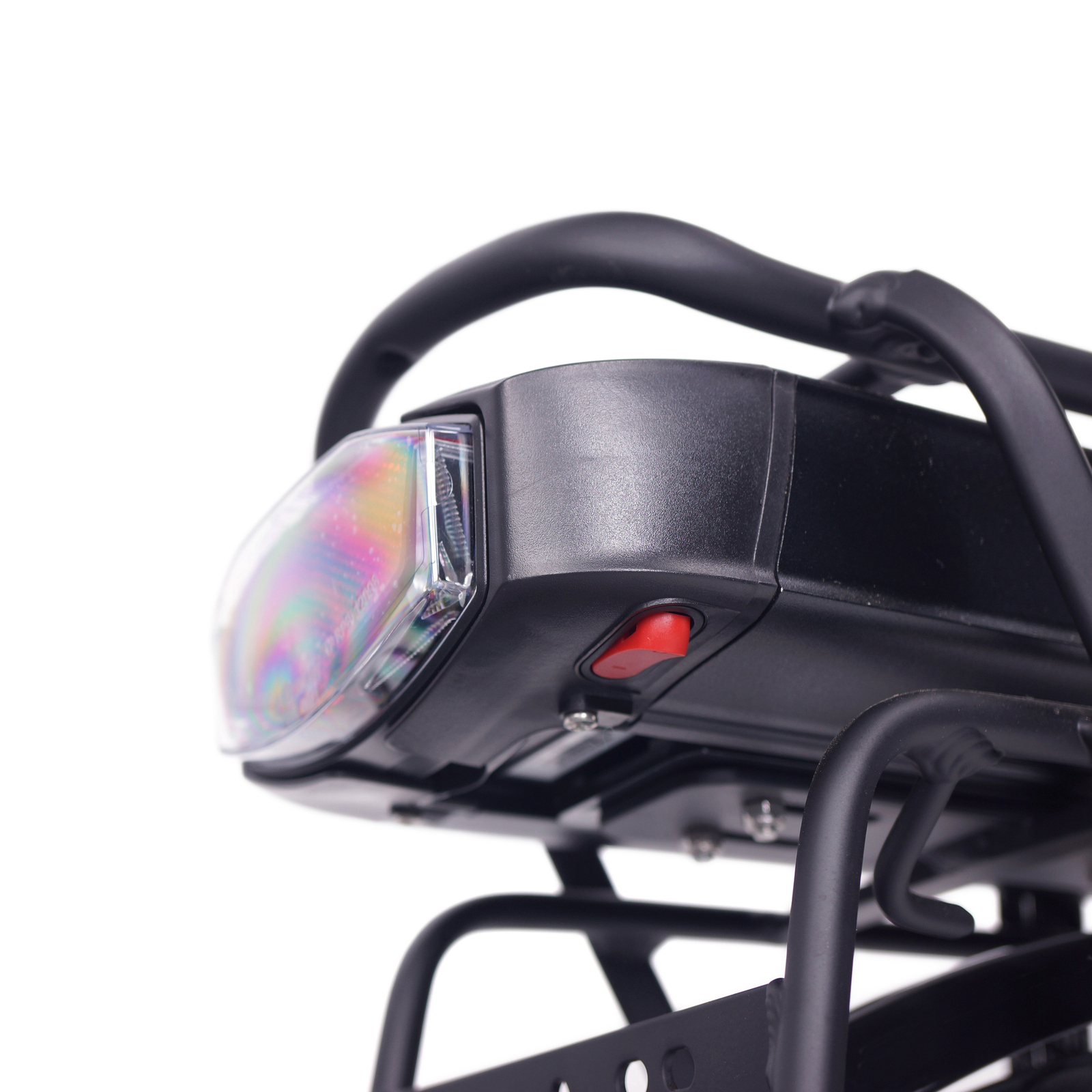

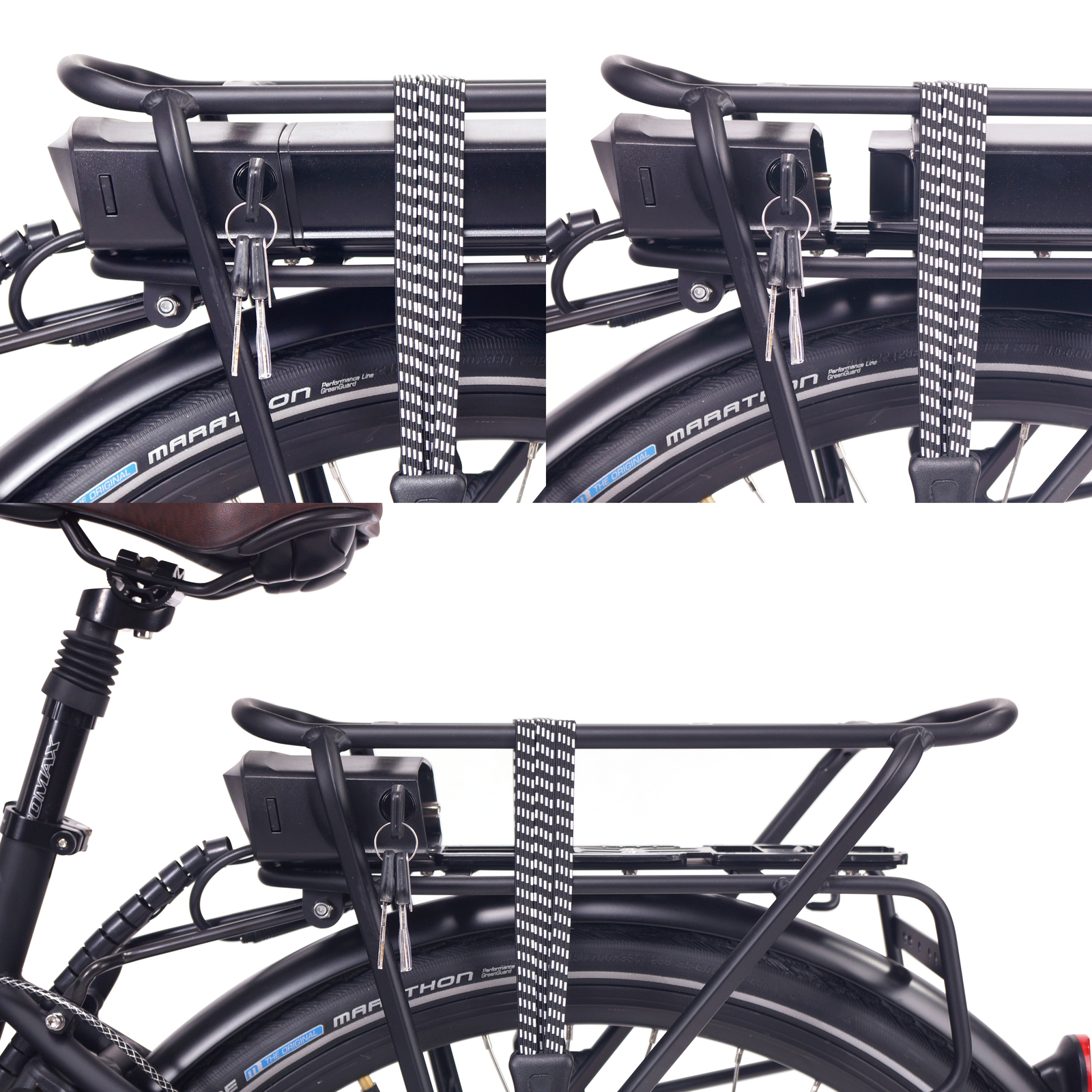

Battery: R3S-3613H, 36V 13AH, Li-Ion High Power cells, Li-NCM-18650, 468 WH, range approx. 50-70km, ECO mode approx. 90km (power button below the battery near the tail light)
Average range: 50-70km, ECO mode approx. 90km (power button below the battery near the tail light)

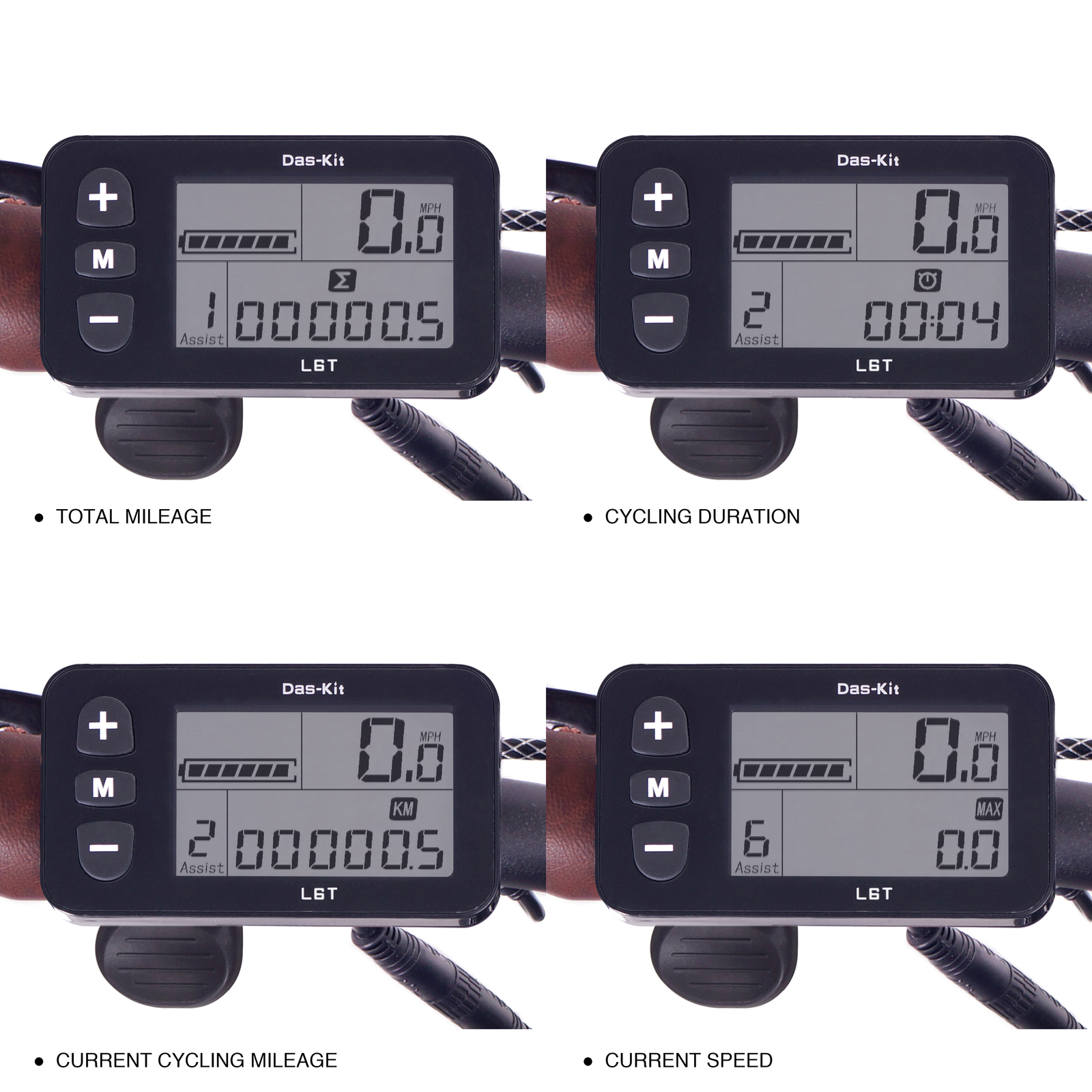

Display: The kit L6B

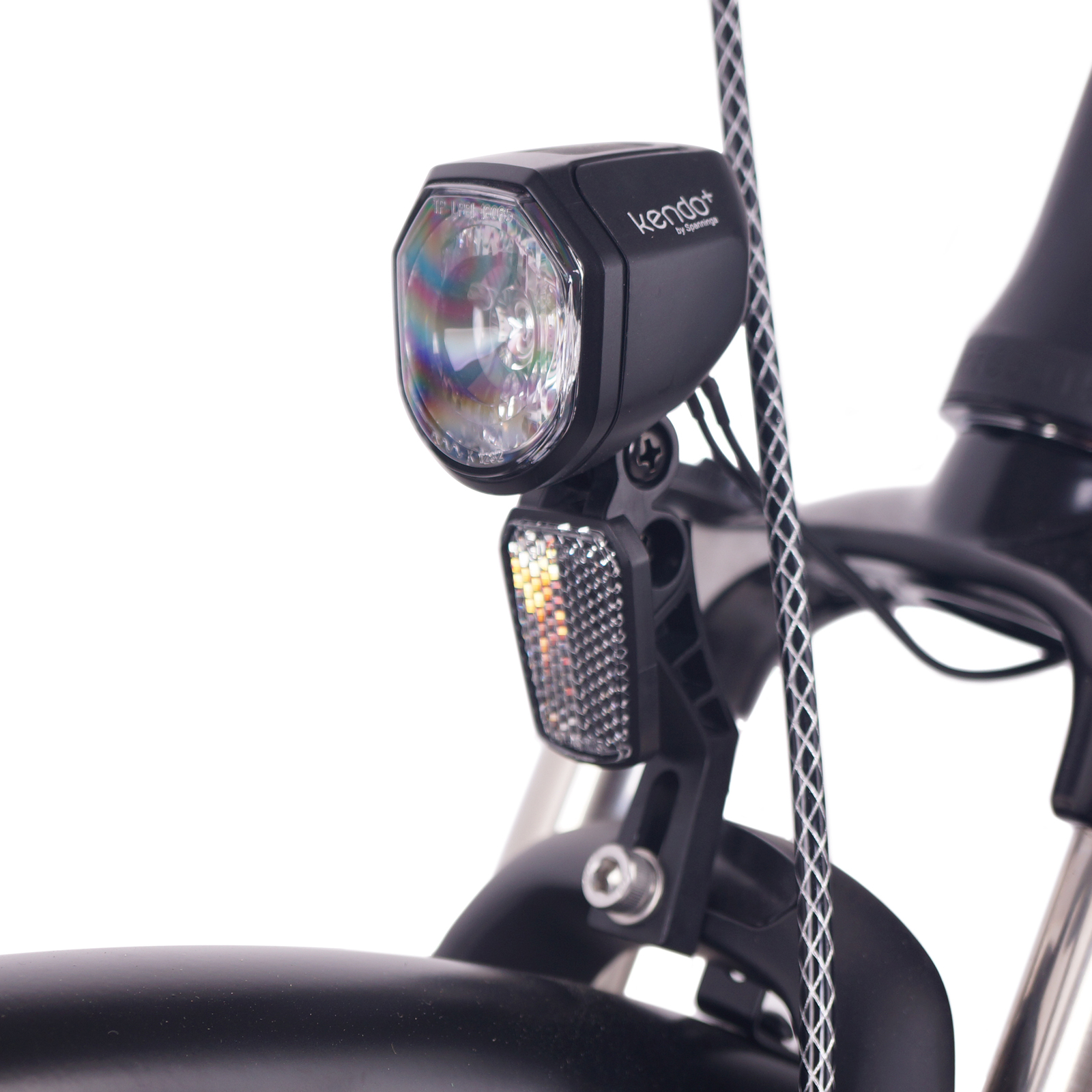

Front/Rear Light: LED, KENDO by Spanninga 20 LUX, powered directly by the battery and LED, SOLO by Spanninga Stvzo approved, battery operated with 2 x AAA 1.5V

Bike parts

Frame: Aluminum 6061, 28 "* 480MM, black

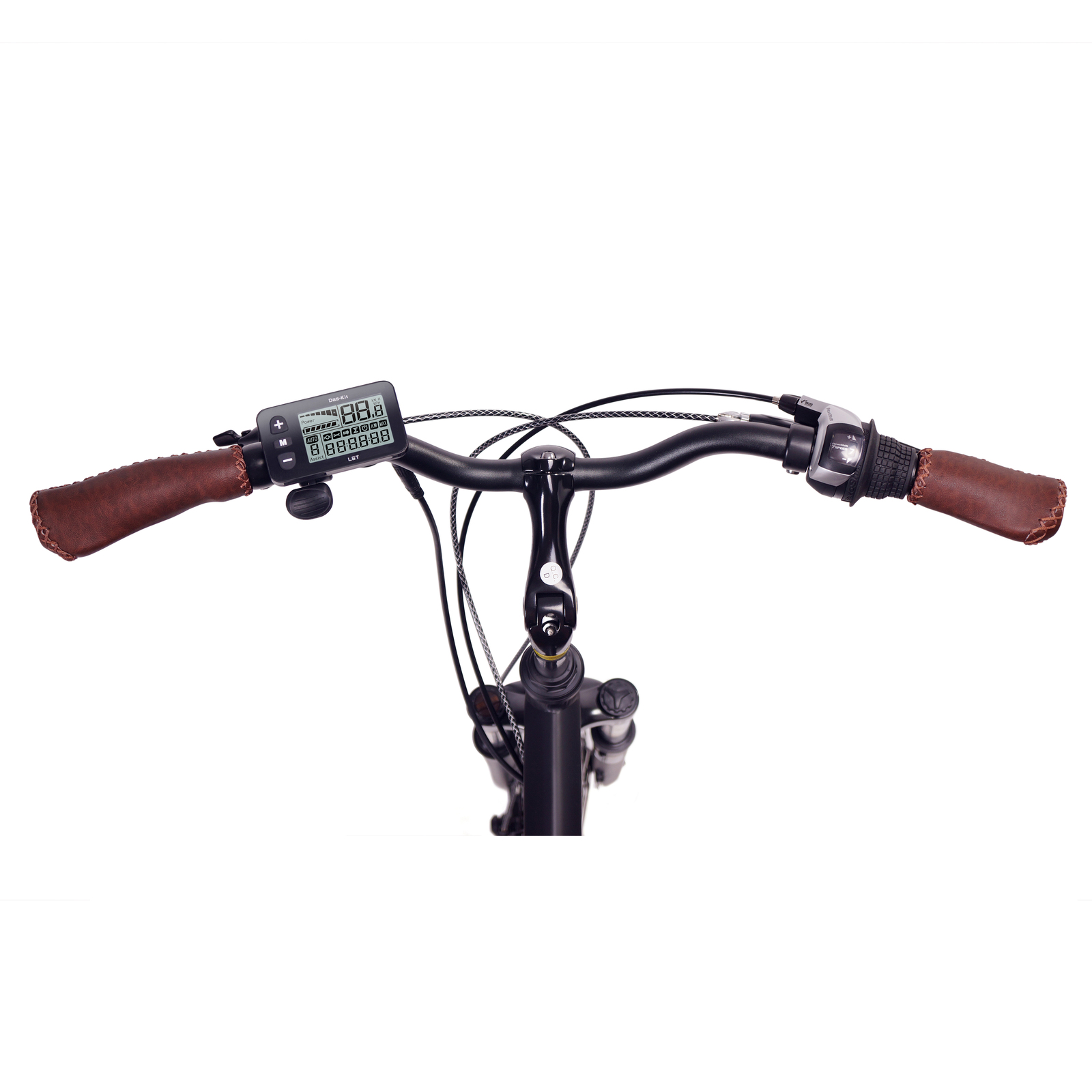

Handelbar: FQ, FQ-NR-14, width 595mm
Fork: ARIA ZOOM, 28 "with suspension
Brake Levers: Tektro, Left: EL555-RT with bung to the engine, Rrechts: CL530-TS

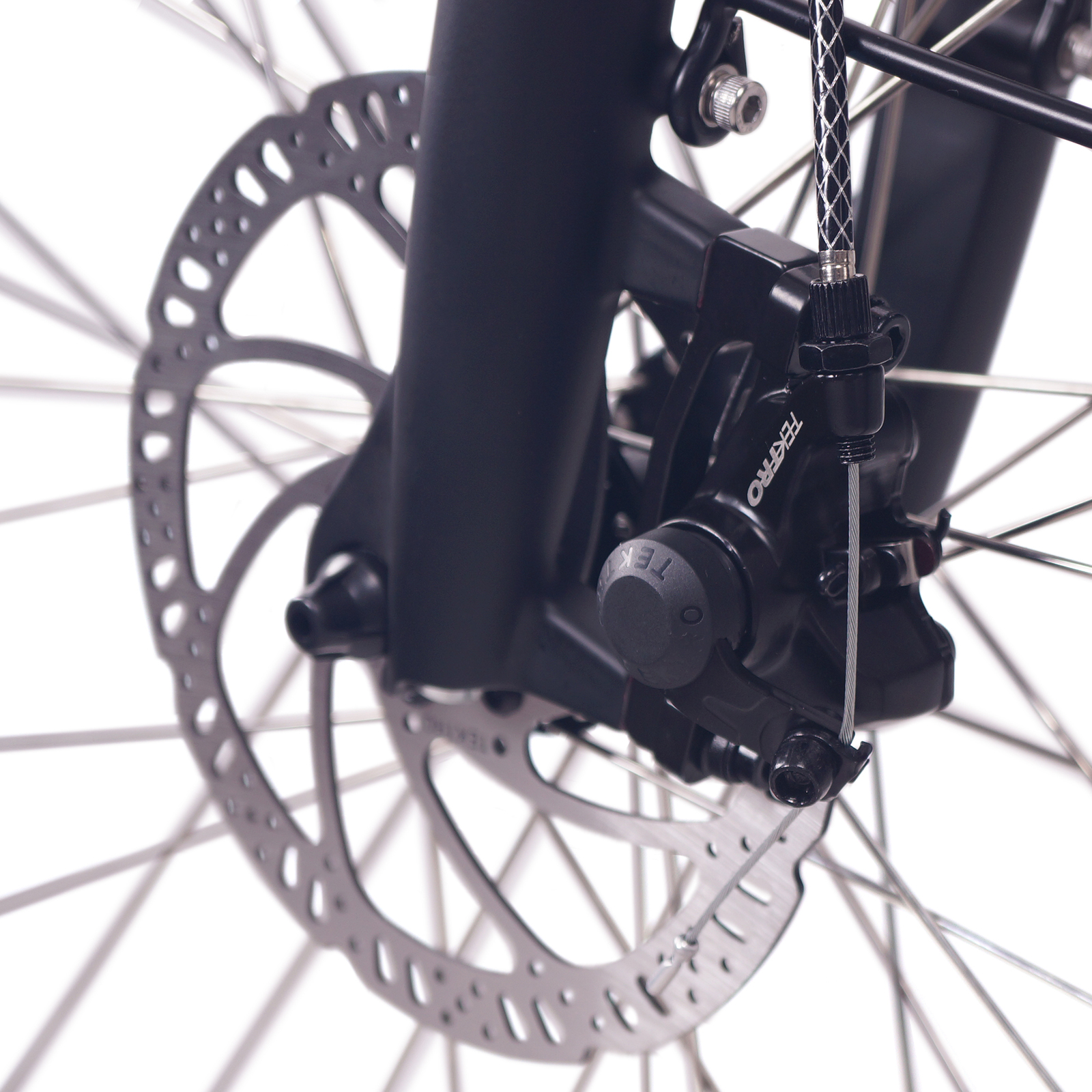

Brakes F/R: Tektro MD-M280, mechanical disc brake system
Chain derailleur: Shimano, Tourney, RD-TY500, 7 speed
Crank set: TL, ICA170ABK, 165mm, aluminum. 44T
Gear shift: Shimano, Tourney, SL-RS45-7R, 7 gears
Pinion: 7 times screw ring, 14-28T

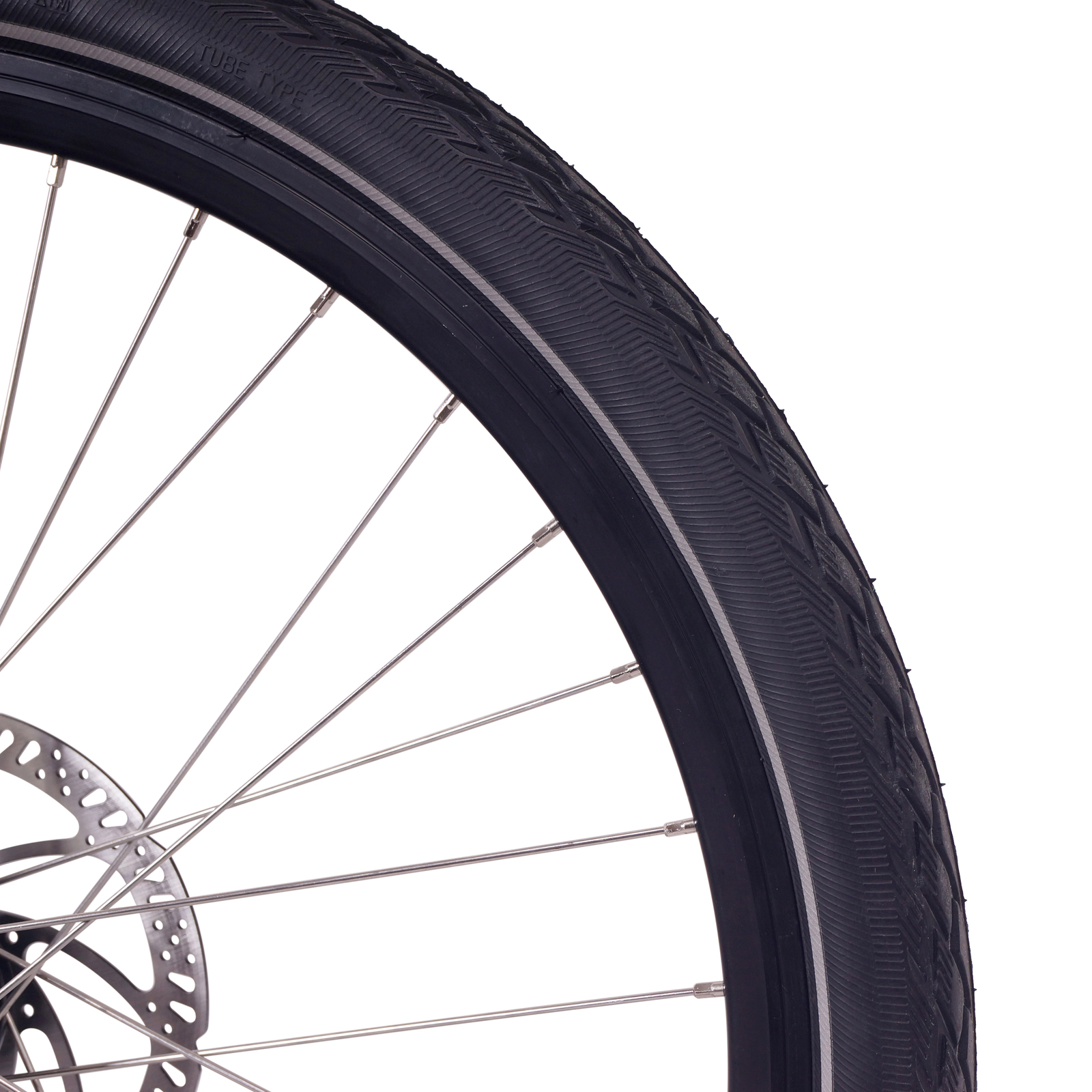

Tyre: Swallow, Marathon, 28 "* 1.5
Saddle: Selle Royal, gel saddle, brown (imitation leather)
Seatpost: Promax, Aluminum 27.2 * MM Diameter
Handles: Selle Royal, brown (imitation leather)
Pedals: Wellgo, B087, black

Warranty

1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
2 year warranty on the bike frame. For more warranty information visit our FAQS or contact us on 0390695443.
Apart from manufacture defects that could be present, parts that wear due to normal use (such as tyres, brake pads, chains, etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
