Leon Cycle is the manufacturer of NCM and ET.Cycle Electric Bikes. Buy from Leon Cycle & we will guarantee our product quality, & warranty.

With a traditional compact frame set and bottle mount battery set up, the NCM Prague is very capable and perfect for commuters and delivery riders. This E-bike is designed with a tough aluminium frame and a strong rigid handlebar and saddle for improved ergonomics and performance. The high-top tube makes the bike sturdy and strong allowing the power you put down to be effectively transferred to the road. Strong dependable and reliable workhorse capable of everything you throw at it. This is the Ute of E-bikes

General Information

• Weight: 26”= 25kg/ 27,5”= 25kg / 29"= 26kg
• Type: E-Mountain bike
• Wheel size: 26" / 27.5” / 29"
• Load capacity: Max. 125kg
• Maximum speed: 25km/h

ELECTRIC PARTS

• Display: Das-Kit, L6B, LCD, 6 Assistance levels, up to 6km/h power-assisted walk
• Controller: Das-Kit, CT-D5-44, 36V 15A
• Charger: DC362AU 36V 2A with round plug (Approvals: ERAC, NSW REAS #SAA-210827-EA, EESS: E2022081360)
• Motor: Das-Kit, X15, Rear drive motor, 36V 250W, 25km/h
• Battery: D5-3613P, 36V 13Ah 468Wh, Li-Ion cells (Approvals: NSW REAS #CCS-250387-EA)
• Average range: 30-90km depending on assistance level
• Front/Rear Light: Front/rear Cateye reflectors. Lights not included.

BIKE PARTS

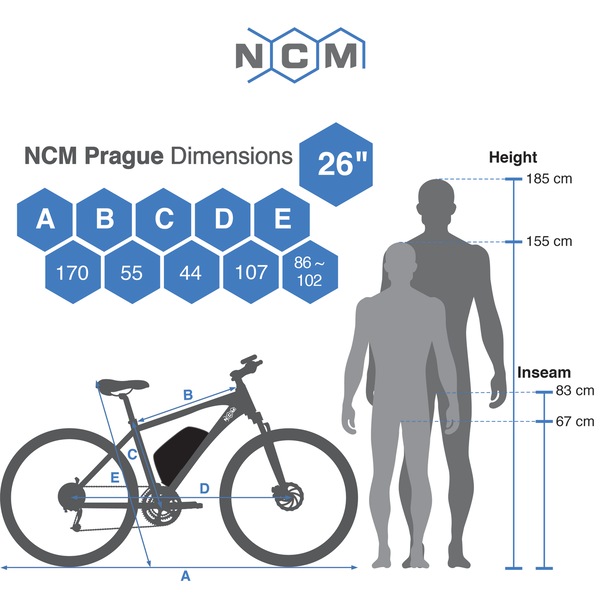

• Frame: Aluminium 6061, 26"* 440mm / 27,5“*480mm / 29"*520mm,
• Fork: Suntour, XCT-26" / 27.5" / 29"
• Brake Levers: Apse, H02D with brake sensor on the left side
• Brakes: F/R: Mechanical Tektro disc brakes

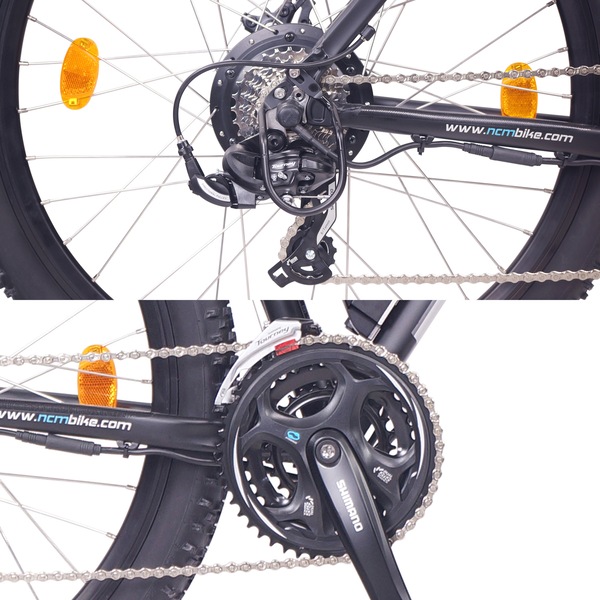

• Crank: Shimano, Altus M311
• Front Derailleur: Shimano, Tourney TX50, 3-speed
• Rear Derailleur: Shimano, Altus RD-M310, 7-speed
• Tyres: Schwalbe, BLACK JACK 26" 2.25 / SMART SAM 27.5" / 29" 2.25”
• Saddle: VELO with NCM logo, black
• Seat Post: Promax SP-252, aluminium 30.9*400mm
• Grips: VELO, ergonomic, black/grey (synthetic)
• Pedals: Wellgo, B087, black

Warranty

• Leon Cycle provides 1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
• Leon Cycle provides 2 years warranty on the bike frame.
• Apart from manufacture defects that could be present, parts that wear due to normal use (such as tyres, brake pads, chains, etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.

​​​​Disclaimer: Once you received the e-bike, we recommend to have it assembled by a professional in bike shops near you and also get your bike serviced after 1 month of use to ensure all aspects of the bike are set and calibrated correctly.​
