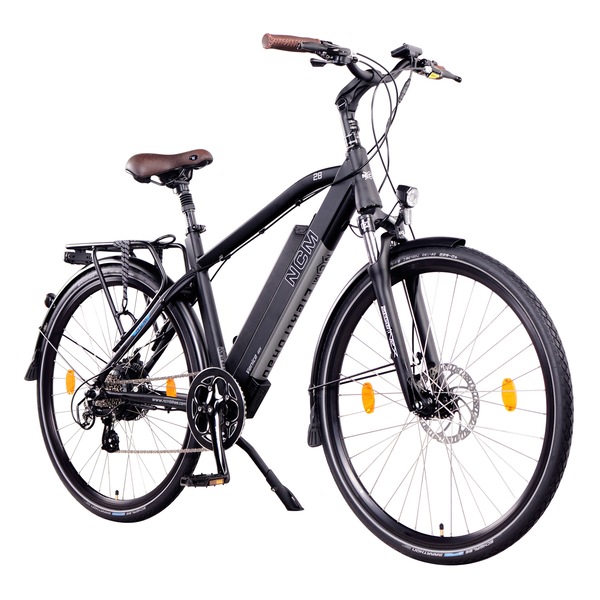

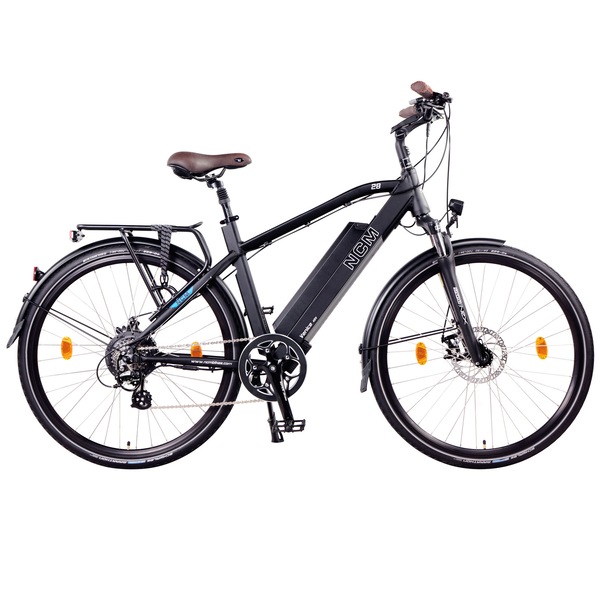

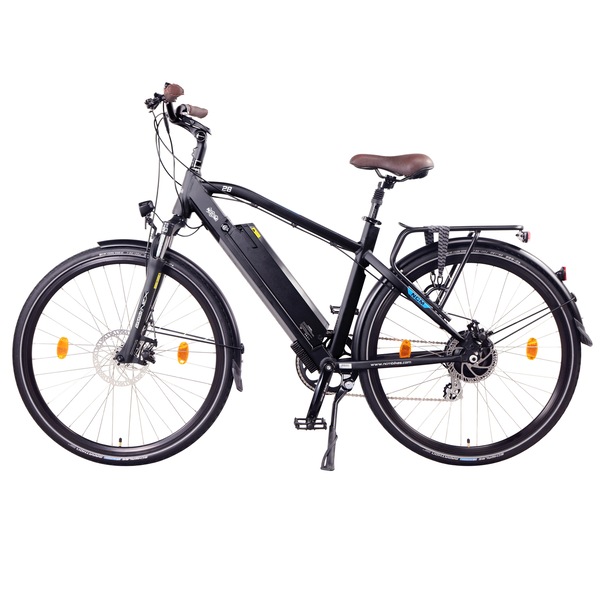

NCM Venice Trekking E-Bike, City-Bike, 250W, 48V 13Ah 624Wh Battery, [Black 28]
General Information
Weight: 28”= 27kg
Type: E-Trekking
Wheel size: 28"
Load capacity: Max. 125kg
Maximum speed: 25 km/h
Battery Information:
Lithium-ion Battery
Model: i5-4813H
Ratings: DC 48V, 13Ah, 624Wh
Electric parts

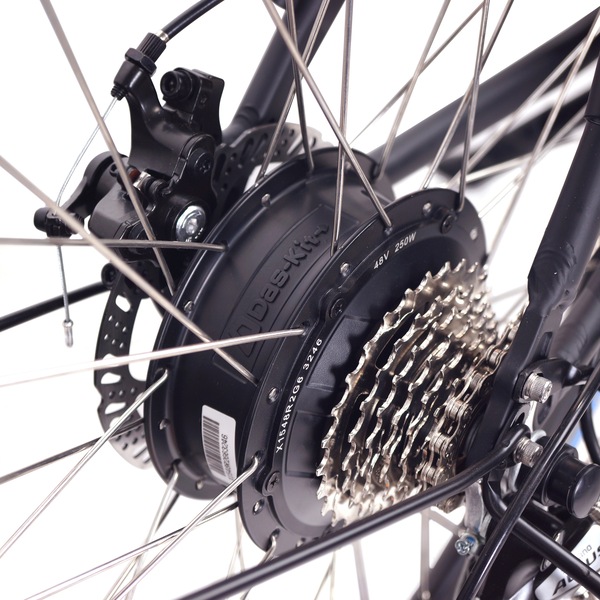

Motor: Das-Kit, X15 Rear-drive motor, 48V 250W, 25 km/h
Controller: Das-Kit, CT5-I5, 48V 15A

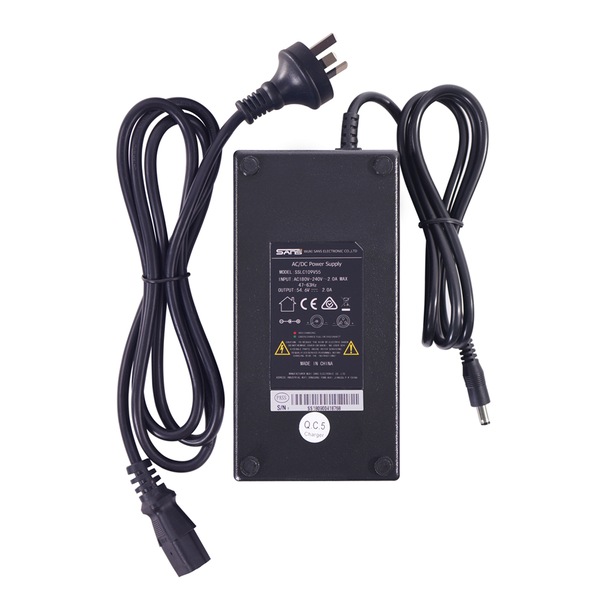

Charger: 48V 2A included (round plug) DC482AU

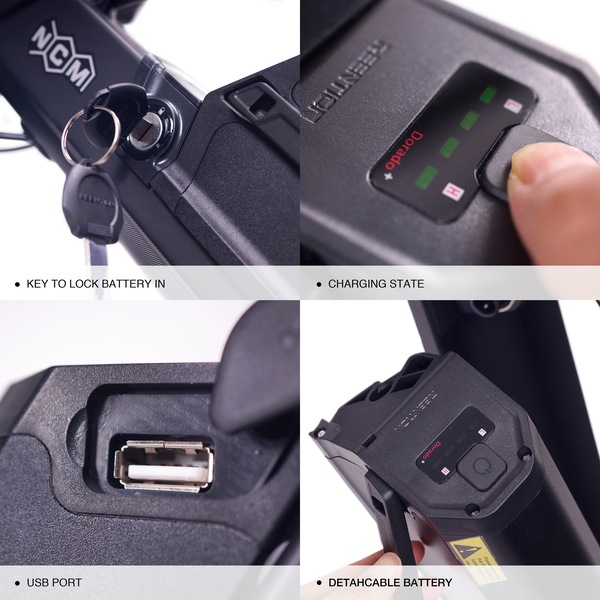

Battery: DEHAWK I5-4813H,48V 13AH, 624WH, with USB port
Average range: 40-100 km depending on assistance level

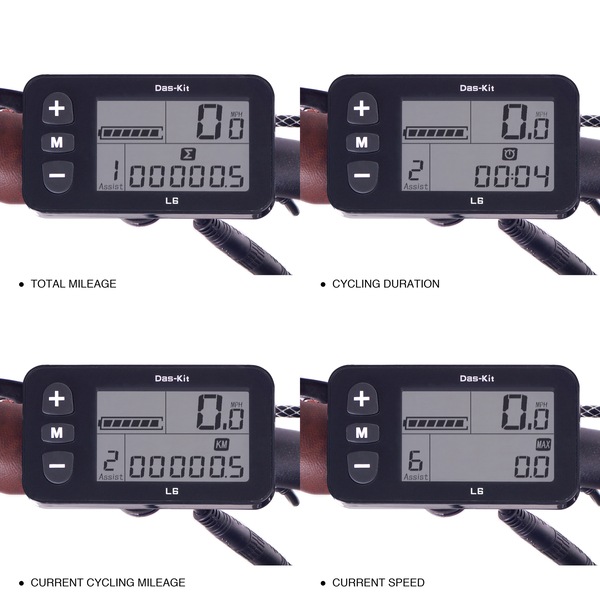

Display: LCD Das-Kit L7 display with many functions
Front/Rear Light: Spanninga, Kendo, 48V, 30 Lux Spanninga over the bike battery/ Solo, with 2xAA batteries
Bike parts
Frame: Alu. 6061, 28"*480MM
Handelbar: Promax MA579 adjustable
Fork: Suntour, NEX 28”
Brake Levers: Tektro, left with brake sensor
Brakes F/R: Tektro Mechanical Disc Brakes, MD-M280

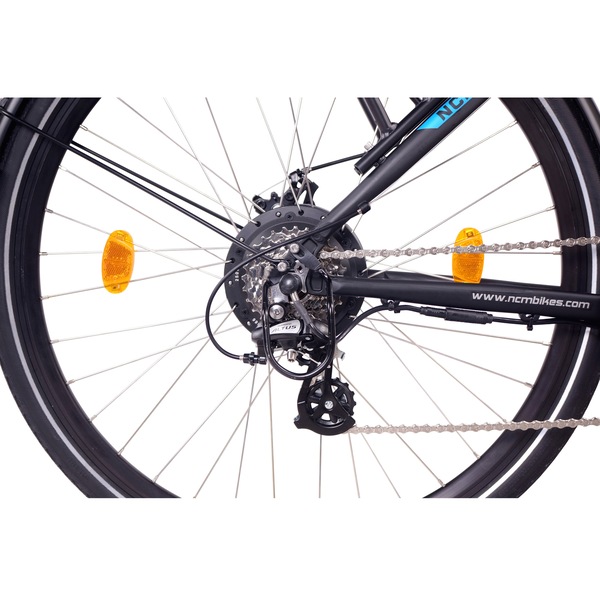

Chain derailleur: Shimano, Altus M310, 7 speed
Crank set: Prowheel, OUNCE-248AC, 48T
Gear shift: Shimano, Altus M310, 7 speed
Pinion: 7-speed screw ring, 14-28T
Tyre: Schwalbe Marathon 26"*1.75 / 28"*1.5 700C black

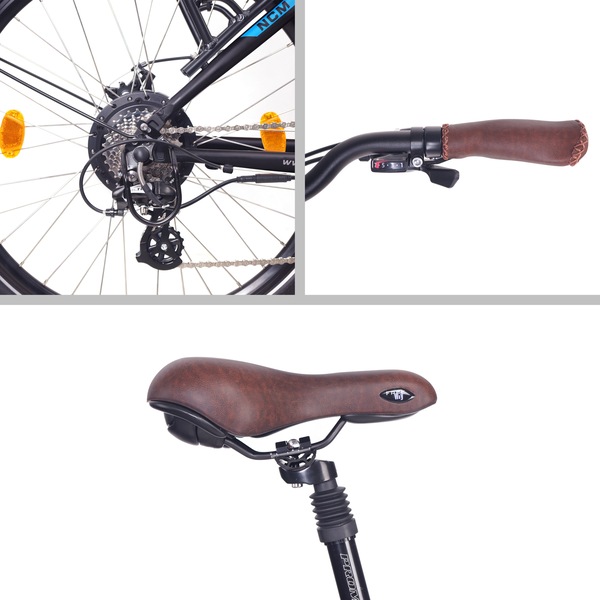

Saddle: Selle Royal, gel saddle, brown (imitation leather)
Seatpost: Promax, SP-884, with suspension, 27.2*300MM
Handles: Selle Royal, brown (imitation leather)
Pedals: Wellgo, B087, black
Warranty
1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
2 year warranty on the bike frame
Apart from manufacture defects that could be present, parts that wear due to normal use (such as tyres, brake pads, chains, etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
Disclaimer: Once you received the e-bike, we recommend to have it assembled by a professional in bike shops near you and also get your bike serviced after 1 month of use to ensure all aspects of the bike are set and calibrated correctly.
Returns Policy
We assess each refund and/or return enquiry on a case by case basis. Depending on the case you may be entitled to a replacement or refund.
Once the product has been received, we will either inspect your goods or investigate any claimed defect or, where we believe it is applicable, provide a remedy in relation to your goods. If we do not believe a remedy is applicable upon inspecting your goods (for example, where we believe the goods have been misused, or there was a failure to use in accordance with manufacturer's instructions, used it in an abnormal way or there has been a failure to take reasonable care), we will reject your claim and return your goods to you.
You must cover the cost of return shipping in order to receive goods we have rejected on inspection, and we will provide you with instructions on how to make this payment.
