Ness K-6311B D8XD Deluxe Panel & Noise Kit LCD Keypad K-6311B D8XD Deluxe Panel & Noise Kit LCD Keypad Ness

Image 1
Hurry! 2 items left!
$599

Collect 599 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by MAD Electronics Australia
Secure ways to pay at checkout

NESS D8X PANEL & NOISE KIT (LCD KEYPAD)






  • Flexible 8 Zone control panel & Dialler.


  • The Ness D8x is the most versatile Ness 8 zone control panel ever!


  • The D8x is available in Led keypad or LCD keypad models to suit any preference.supplied with keypad, plug pack, battery, telephone lead, housing and manuals.

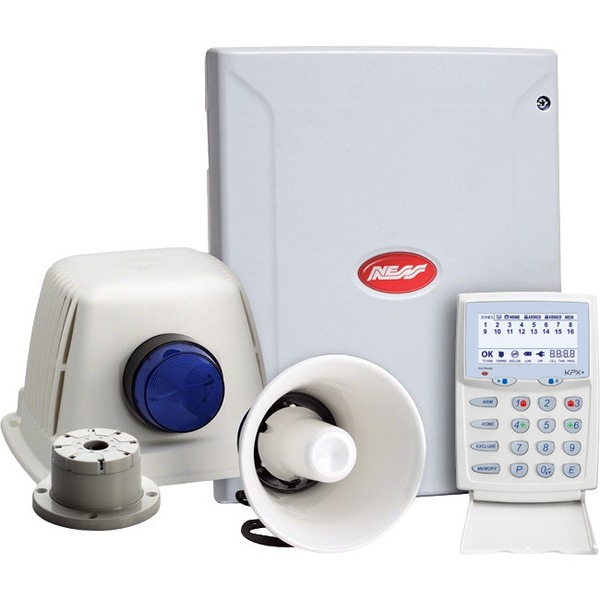

  • Panel & Siren Kits include the control panel complete with keypad, plugpack, battery, plus external horn speaker, siren cover, strobe light and internal screamer.


  • Choose your detectors from the Ness Quantum range.


  • Easy and convenient to order control panel and sirenkits.


  • Pre-packed for shipping.




FEATURES:






  • 8 Zones Tamper


  • Onboard 3 Door Access Controller


  • Auto-Time Control via onboard Real-Time Clock


  • Optional Radio Interface for integrated wireless security


  • Onboard Vibration Sensor Analyser


  • Multiple programmable EOL resistor values from 0k to 22k


  • 4 programmable auxiliary outputs


  • Direct Connect or Dial-up programming via NessComms(TM)


  • Contact ID and VOICE reporting dialler


  • Remote control of outputs via telephone


  • Up to 56 User Codes (PIN, RADIO KEY or PROX CARD)




SPECIFICATIONS:






  • Box dimensions: 235w x 300h x 90d mm.


  • Plug pack 240V Ac, output 17V Ac@1.4A.


  • Power supply 13.8V Dc @ 800mA.


  • Quiescent current draw 80mA with 1 keypad.


  • Operating voltage 9.5V- 14V Dc.


  • Rechargeable battery 12 volt 7.0 Amp/hour sealed lead Acid.


  • Battery charging current 350mA maximum, current limited.


  • Dynamic battery test backup battery is tested under load, hourly and on arming.


  • Fuses:







  1. 2 Amp auto resetting / siren output & reset output.


  2. 500mA auto resetting / 12 volt auxiliary outputs.


  3. 200 mA auto resetting / strobe output.







  • Zone inputs: 8 2 x 24hr tamper inputs.


  • End of line resistor choice of 12 programmable values including N/c. Default 2200 Ohms (2.2k)


  • Maximum keypads: 3.


  • Radio Header multi-pin connector for the Ness radio Interface.


  • Serial Header serial data port for direct connect programming using Nesscomms(TM) software. Also 2 way serial data (V5.6 )


  • Reader Header: multi-pin port for connecting up to 3 Ness proximity access card readers via 106-012 Weigand Interface.


  • Siren output: on board siren driver with timed output maximum 3 x 8 Ohm horn speakers.


  • Strobe output: 12V Dc timed output. maximum 2 x 1 Wattstrobe lights.


  • Reset output: 12V Dc timed output. max. 3 x 12V piezo screamers.


  • Equipment power output: 13.8V Dc output for powering detectors and other equip-ment. maximum 500mA.


  • AuX Header: multi-pin connector provides outputs Aux1,Aux2, Aux3, Aux4, 12V Dc.


MPN: 01301066
