Netonix Ws12250Dc 12 Port Managed Poe Switch Dc 250W

Image 1
Shop More Products

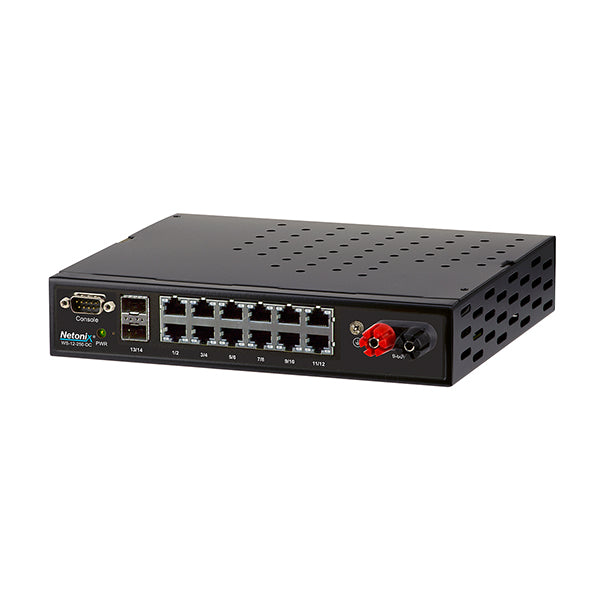

NETONIX WS-12-250-DC 12-PORT MANAGED POE SWITCH DC 250W

The Netonix WISP Switch model WS-12-250-DC is designed specifically for the WISP industry with a rugged chassis and extended operating temperature range. It features a simple yet powerful user interface providing the software features WISPs need in a switch. Monitor DC voltage and current into the switch from your batteries. Monitors the DC power supply temperature with auto and programmable thermal shutdown.

WARNING: These switches are not designed to operate on a -48V site, using -48VDC will damage the switch as it does not have isolated input output power.

FEATURES

Managed Passive PoE Switch

9-60 VDC variable input range

12 Gbps PoE ports

2 SFP Uplink ports

Manufactured and assembled in North America

SPECIFICATIONS

Standard 19” rack mount / Desktop / Wall mount: Yes

Dimensions: 223 mm x 181 mm x 44 mm

Weight: 2 kg

Power input: 9-60 VDC

Chassis Earth Ground Lug: Yes

Intelligent forced air cooling with fan RPM monitoring: YES

Switch core and PHYs: Vitesse

Processor: MIPS 24K 416 MHz

System memory: 128 MB

Flash storage: 16 MB

Total non-blocking line rate: 14 Gbps

Certifications: CE, FCC, IC

Operating temperature: -25 to 55°C (-13 to 131° F)

Operating humidity: 5 to 95% Non-condensing

Console port: RS-232

Ethernet ports: (12) 10/100/1000 Ethernet ports, (2) SFP ports

Passive PoE Configured Per Port via UI:

24V 1A pins 4,5(+) 7,8(-)

48V 1A pins 4,5(+) 7,8(-)

24VH 2A pins 1,2,4,5(+) 3,6,7,8(-)

48VH 2A pins 1,2,4,5(+) 3,6,7,8(-)

PoE out voltage range: 48-50 VDC / 22-24 VDC

Passive PoE current sensors per port: Yes

ESD rating: 24 kV Air / 24 kV Contact

PACKAGE CONTENTS

1 x Netonix Ws12250Dc 12 Port Managed Poe Switch Dc 250W

1 x Standard Desktop / Wall Mount

1 x User Manual

GTIN: 7427046293167

Reference ID: 2903140
