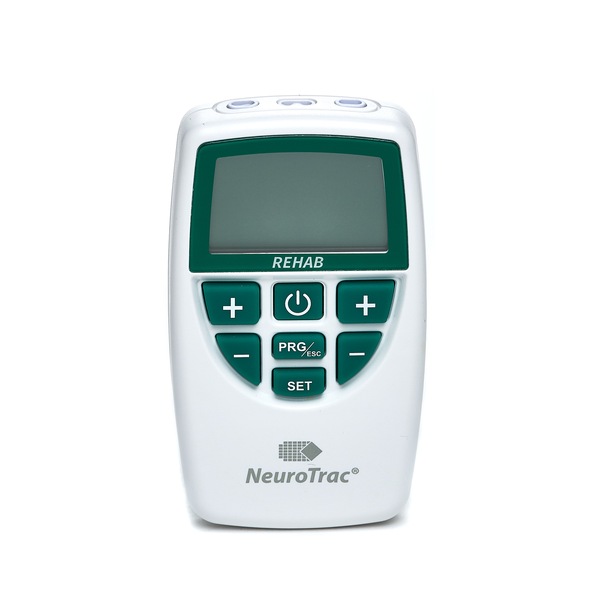

Neurotrac rehab tens unit

Image 1
Hurry! 1 items left!
$289.99

Collect 289 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Physio and More
Secure ways to pay at checkout


  • Dual channel TENS and NMES device with remote switch controlled programames.

  • 10 Preset TENS programmes, 10 Preset Neuromuscular Stimulation programmes. The wired remote switch control of mA by the patient ( to speed up the neuro-muscular re-education) facilitates a range of rehabilitation protocols, including Foot Drop

  • 2 Customisable TENS and 1 Customizable remote STIM programme.

  • Lock mode function for measuring and recording home compliance (mA and total time used).

  • Clear bright backlight LCD allows the display to be read more easily in low light or dark conditions.

  • Keypad with bigger buttons for ease of use.

  • Compact, light and reliable


TENS and STIM

  • Dual channel: individually isolated circuits.

  • Amplitude: 0-90 mA into 500 Ohm load ; indication only. Actual mA will tend to be less than indicated due to electrode impedance: at 1000 Ohms load (Electrodes in poor condition) the maximum will be limited to 70 mA, at 1500 Ohms load the maximum will be limited to 65 mA.

  • Type: Constant Current, maximum output voltage 180 Volts +10 / -30 Volts.

  • Waveform: Asymmetrical, rectangular bi-phasic with zero DC current.

  • Selectable pulse width: 50 ƬS ā€“ 450 Ī¼S [2% accuracy].

  • Pulse Rate selection: in the continuous mode 2 ā€“ 200 Hz [2% accuracy].

  • Mode: Continuous, Burst or Modulated.

  • Burst mode: Bursts of 9 pulses [200 Ī¼S] at 150 Hz or 185 Hz, over 2 seconds.

  • Modulation mode: 6-second cycle of concurrent width modulation and pulse repetition rate modulation. TENS 7: Width starting at50 ƬS and increasing exponentially to 250Ī¼S in three seconds and then returning back to 50 ƬS in the next three seconds. Rate starting 20 Hz, increasing exponentially to 85 Hz and then returning to 100 Hz. TENS 8: Width fixed at 200 Ī¼S.




    • Rate starting 32 Hz, increasing exponentially to 100 Hz over 3 seconds and then returning to 32 Hz in the next 3 seconds.

    • Time duration of the custom programmes selectable: 1 minute to 12 hours.

    • Low Battery Indicator: If the battery goes below 6.9 volts +/- 0.2 volts the battery symbol will flash on/off once every second.

    • If the battery voltage is below 6.6 (+/- 0.2) volts the unit will not turn on.

    • Open Electrode Detect: If an open circuit is detected at the output of channel A or B the output current will be reset at zero.

    • Physical dimensions: 119.2 x 69 x 28.7 mm

    • Weight: 0.07KG without battery, 0.1KG with battery.
















SKU: NEURRH
