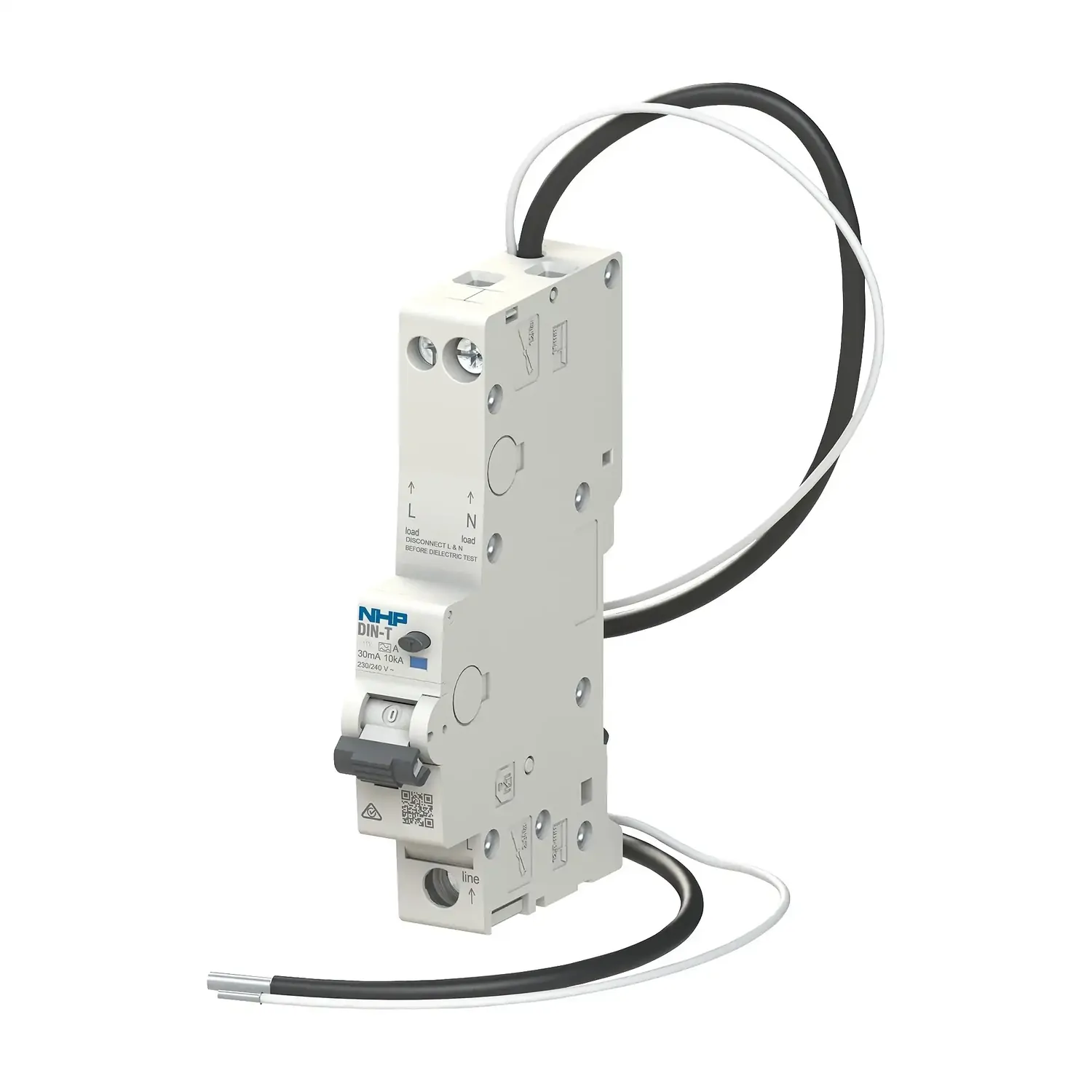

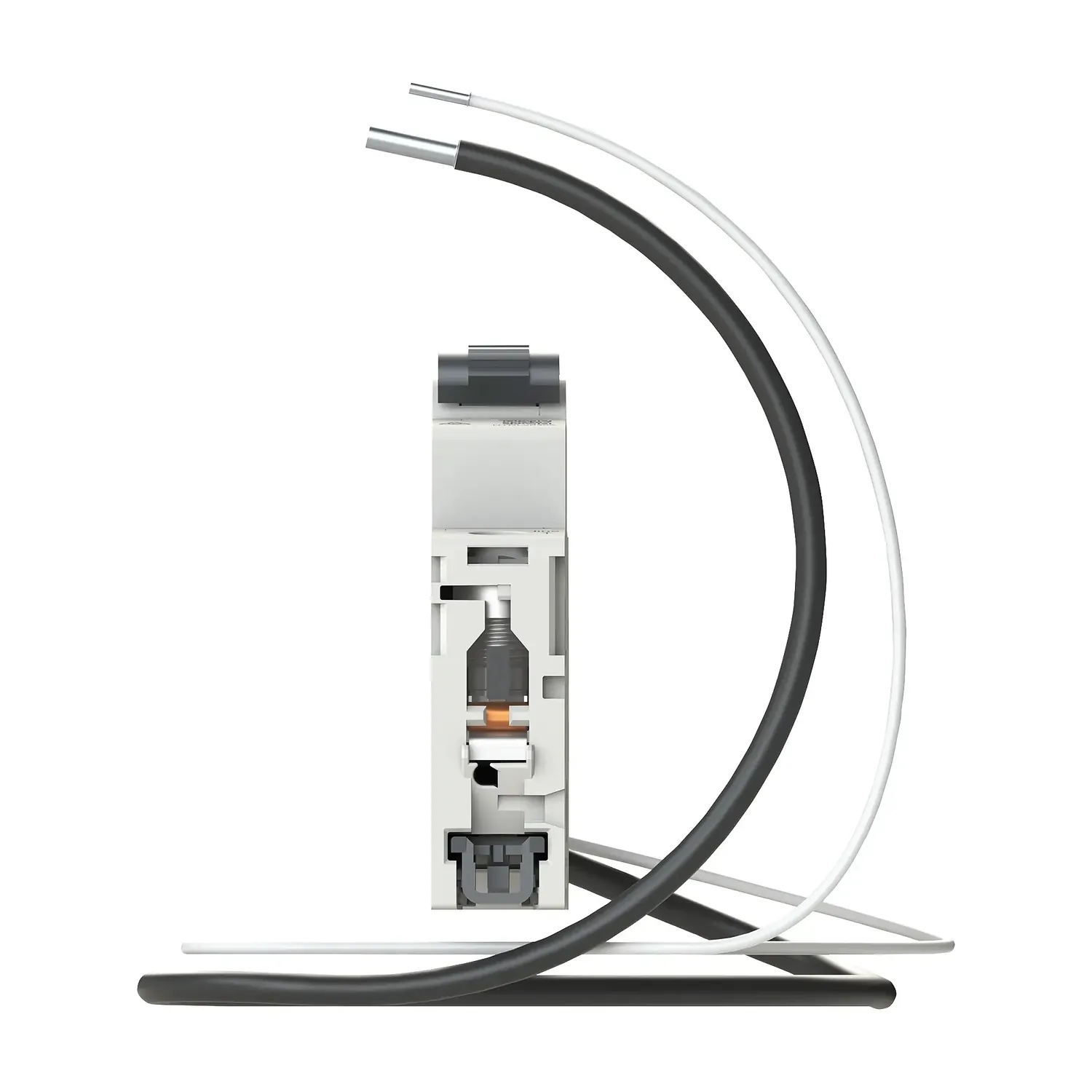

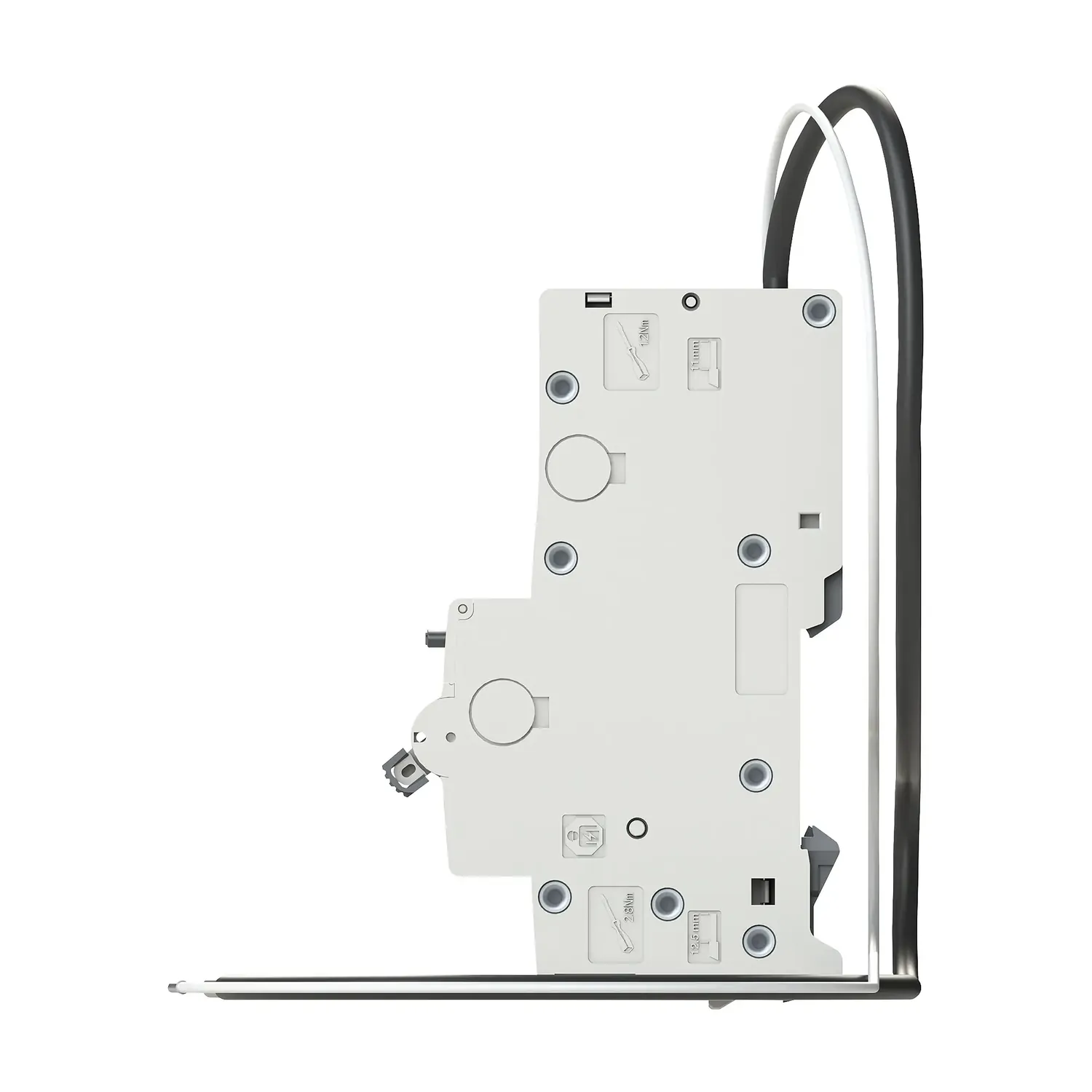

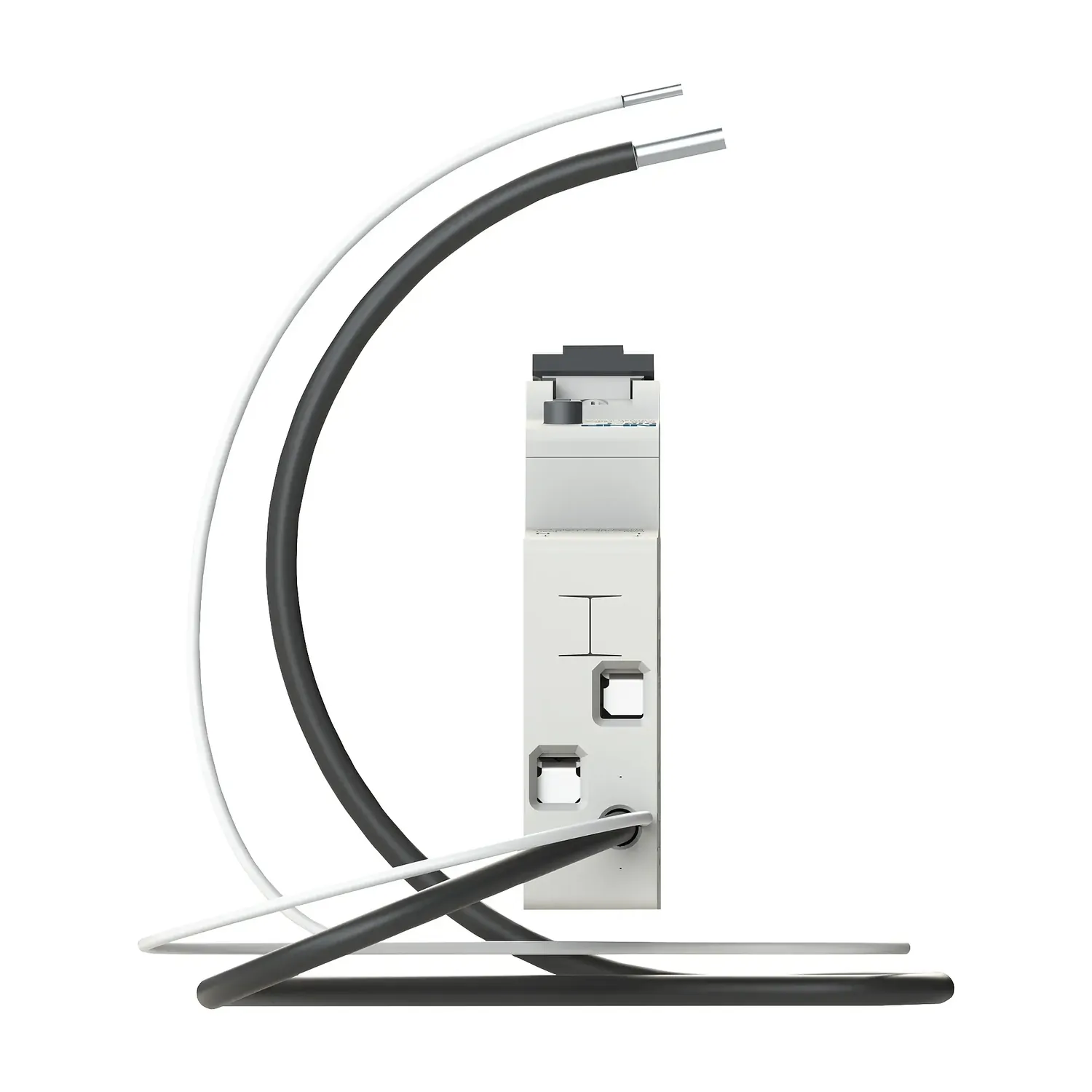

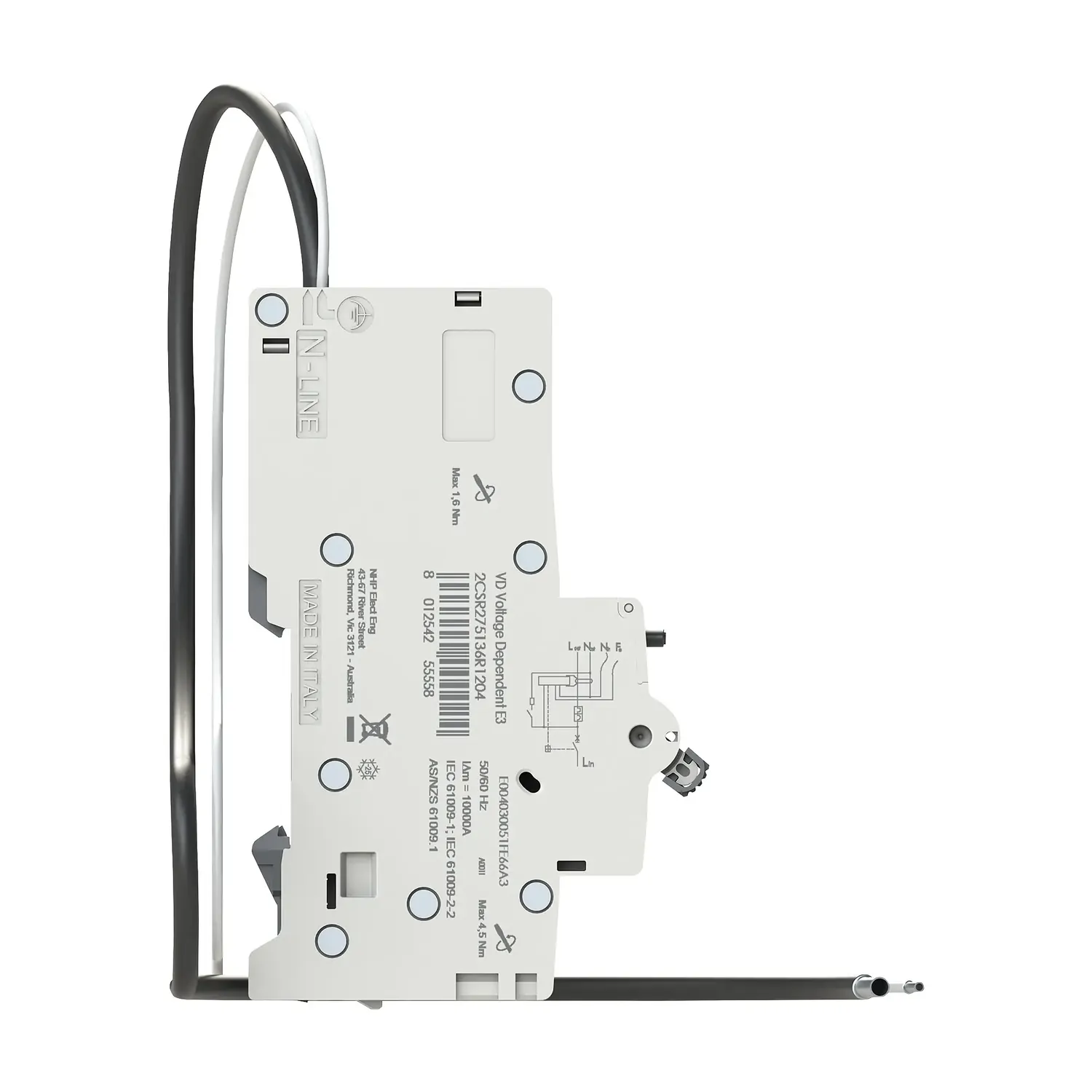

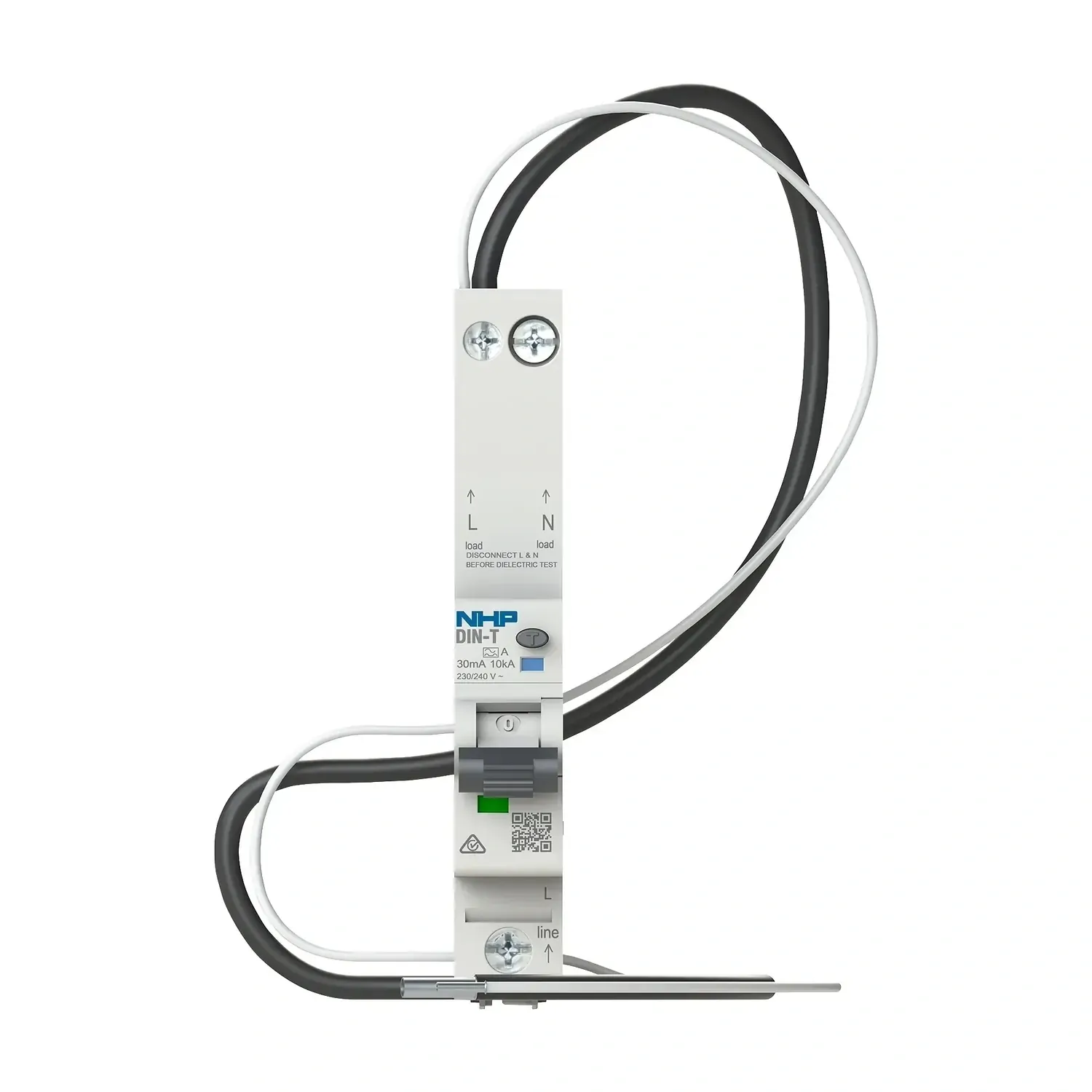

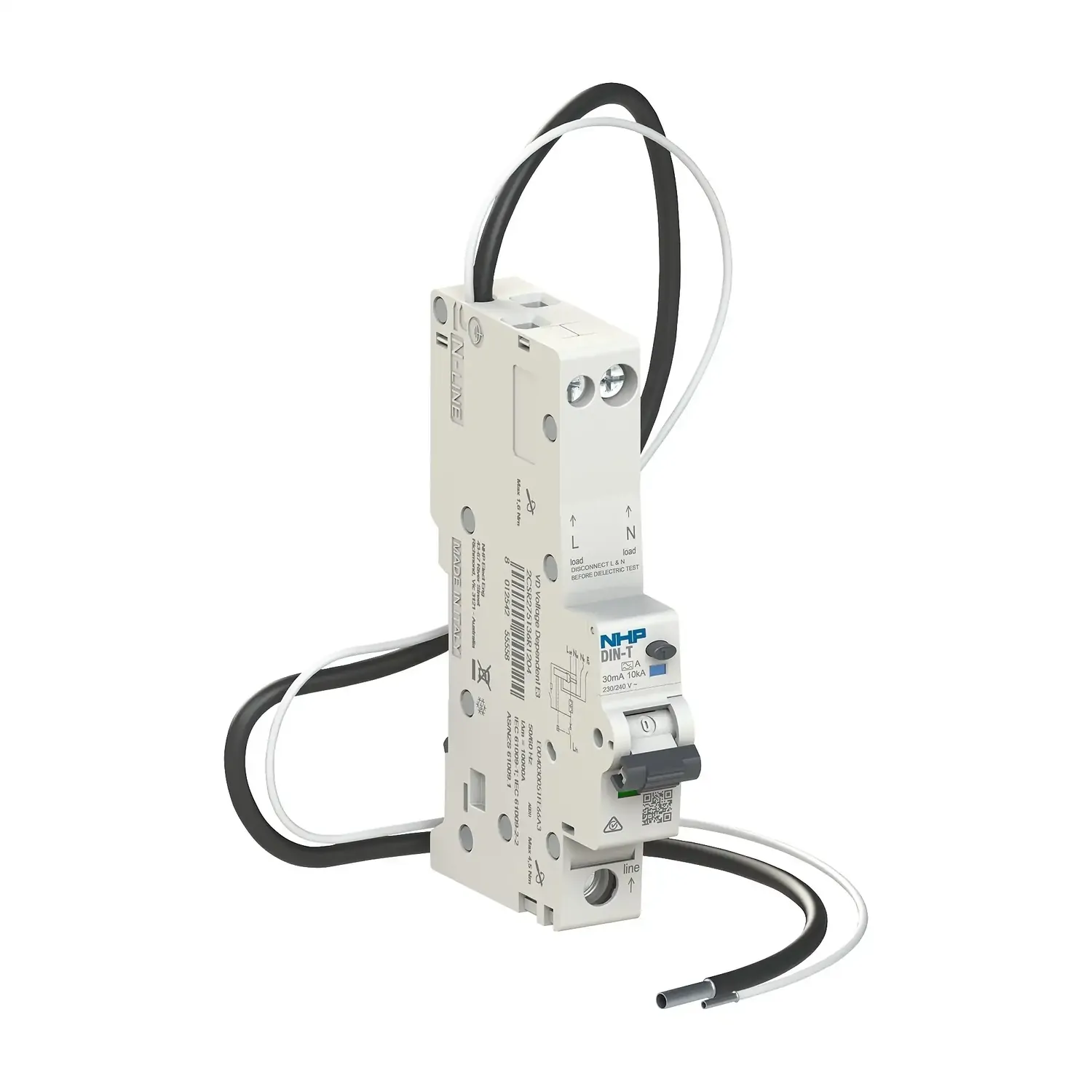

The NHP DTRL2530A is a 25A, 10kA RCBO engineered for commercial, industrial, and mining applications, delivering reliable residual current protection with built-in overload and short-circuit safeguarding. Its longbody DIN-rail design offers compact installation with easier wiring access — ideal for space-conscious switchboards.

Providing Type A leakage detection, it protects against AC and pulsating DC faults with a sensitive 30mA trip setting. The C Curve trip characteristic makes it suitable for most general-purpose circuits, and the pin-type terminal connection ensures fast, secure mounting. With a mechanical endurance of 20,000 cycles and operation from -25°C to 55°C, the DTRL2530A is built for tough environments.

NHP DTRL2530A Features

• 25A, 10kA RCBO with Type A Leakage Protection — Ideal for circuits requiring residual current and overload protection
• C Curve Trip Characteristic — Suited for circuits with typical inrush currents
• 30mA Leakage Sensitivity & 240V AC Rated — Provides effective personal and equipment protection
• DIN Rail Mounted, 1 Module Wide — Longbody design ensures secure fit and ease of access
• 20,000 Mechanical / 10,000 Electrical Cycles — Designed for durable operation in demanding field conditions

DTRL2530A FAQ

Q: What is the short-circuit breaking capacity?
A: It’s rated at 10kA, making it suitable for high fault current environments.

Q: Is this RCBO compliant with Australian electrical standards?
A: Yes, it meets AS/NZS 61009 and other relevant compliance standards.

Q: Can this be used as a circuit isolator?
A: Yes, the DTRL2530A also serves as a circuit isolator in addition to its protective functions.
