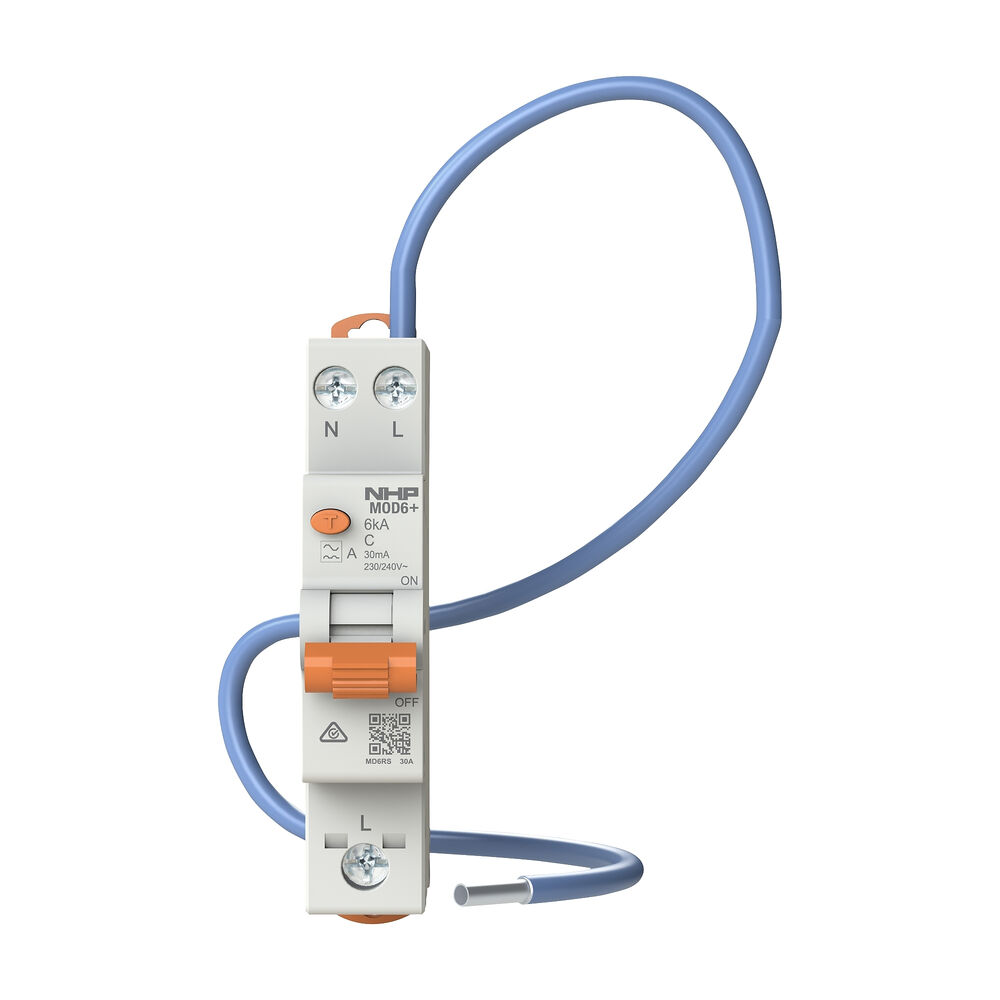

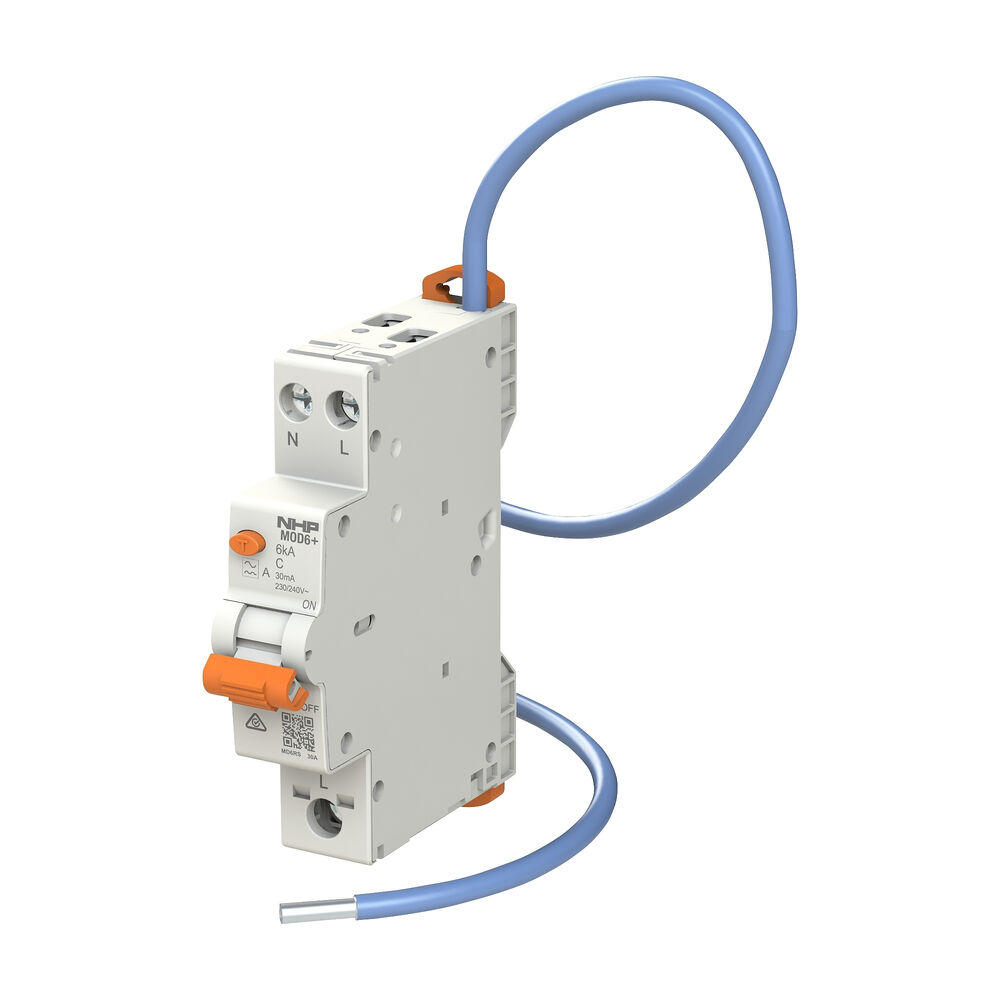

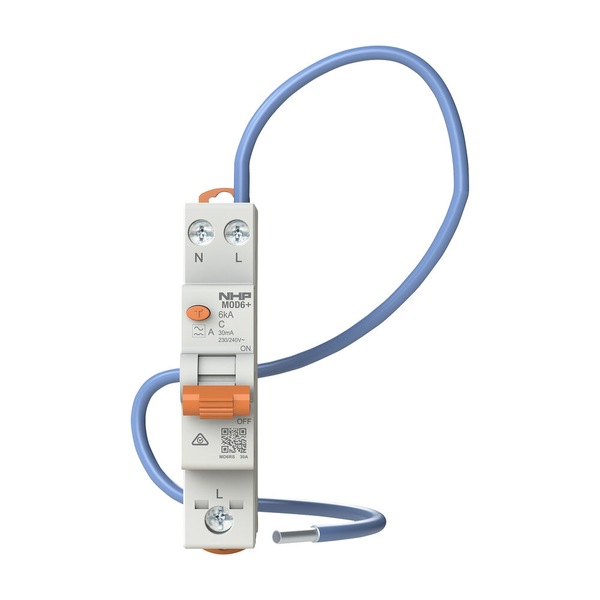

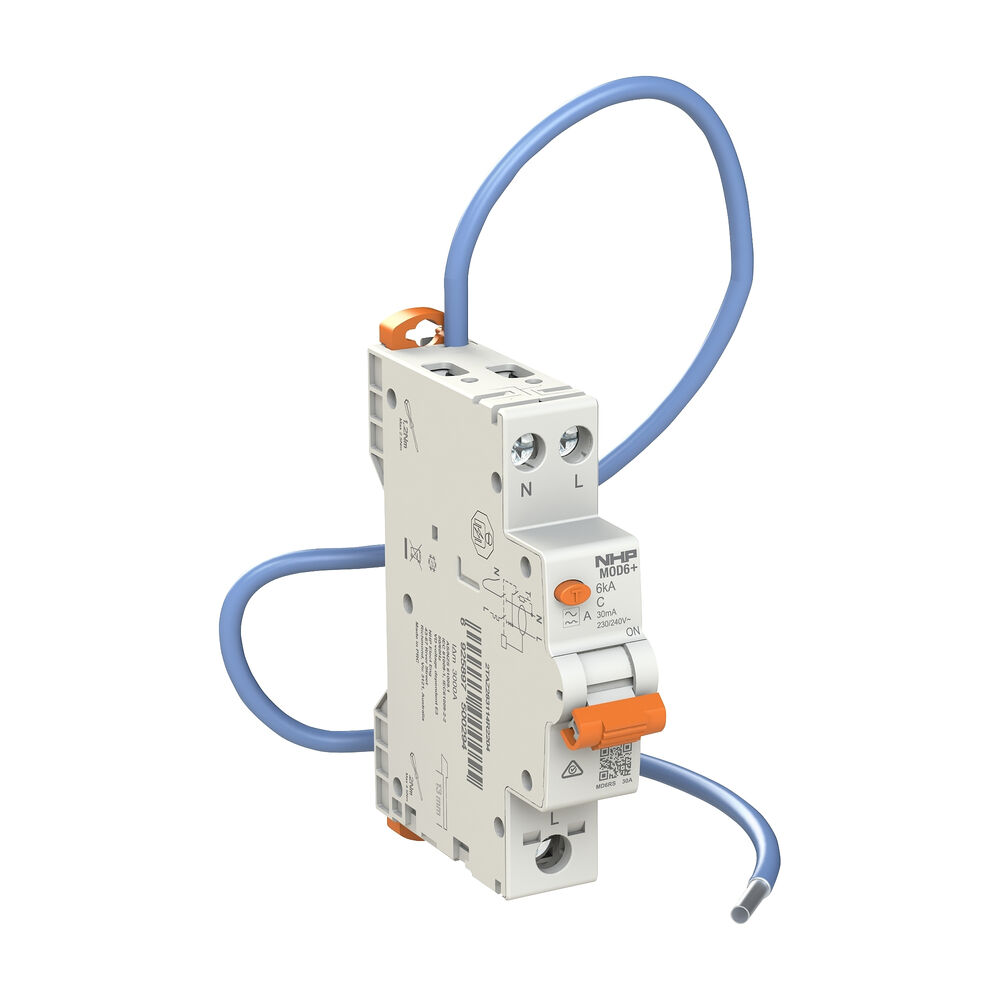

NHP MOD6+ 1 Pole 6kA 30mA RCBO with Neutral Tail

The NHP MOD6+ RCBO (MD6RS 30A) is a high-quality residual current breaker with overcurrent protection, designed for domestic, commercial, and light industrial installations. Featuring a 6kA short-circuit rating, 30mA earth leakage protection, and a neutral tail (pigtail) for easy installation, this compact device provides both overload and earth leakage protection in a single 18mm DIN-mounted module.

Key Features:

• Combined RCD and MCB Protection: Protects against short circuits, overloads, and earth leakage faults, providing complete circuit protection.
• 6kA Breaking Capacity: Suitable for installations requiring a 6,000A short-circuit withstand, meeting Australian standards.
• Type A Leakage Protection: Detects both AC and pulsating DC residual currents for enhanced safety across a wider range of electrical loads.
• C Curve Trip Characteristic: Ideal for general-purpose applications, handling inrush currents typically found in lighting, small motors, and general appliances.

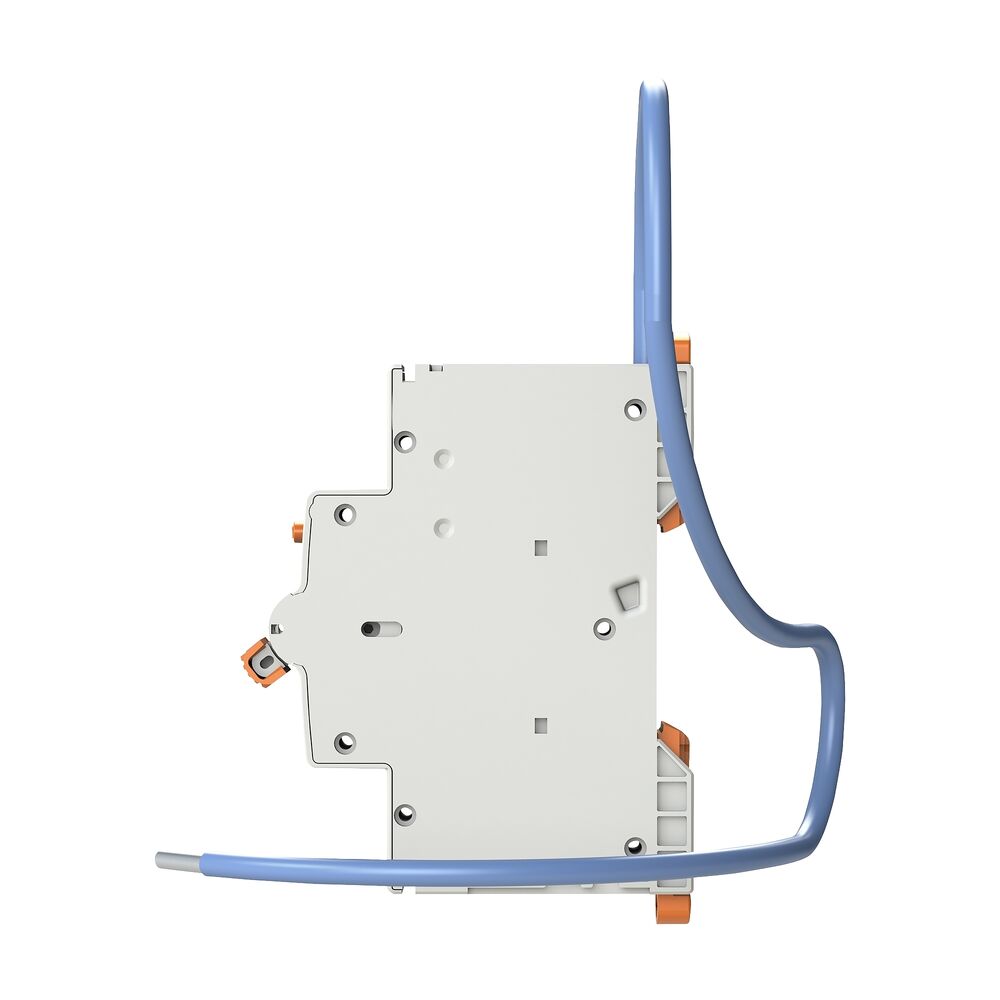

• Switched Neutral with Pigtail Tail: Includes a pre-wired 1-pole + switched neutral configuration with neutral tail, simplifying wiring and reducing installation time.
• Compact 18mm Width: Saves valuable space in crowded switchboards, ideal for modern distribution boards.
• Extended Mechanical and Electrical Life:
  • Mechanical life: 20,000 cycles
  • Electrical life: 10,000 cycles

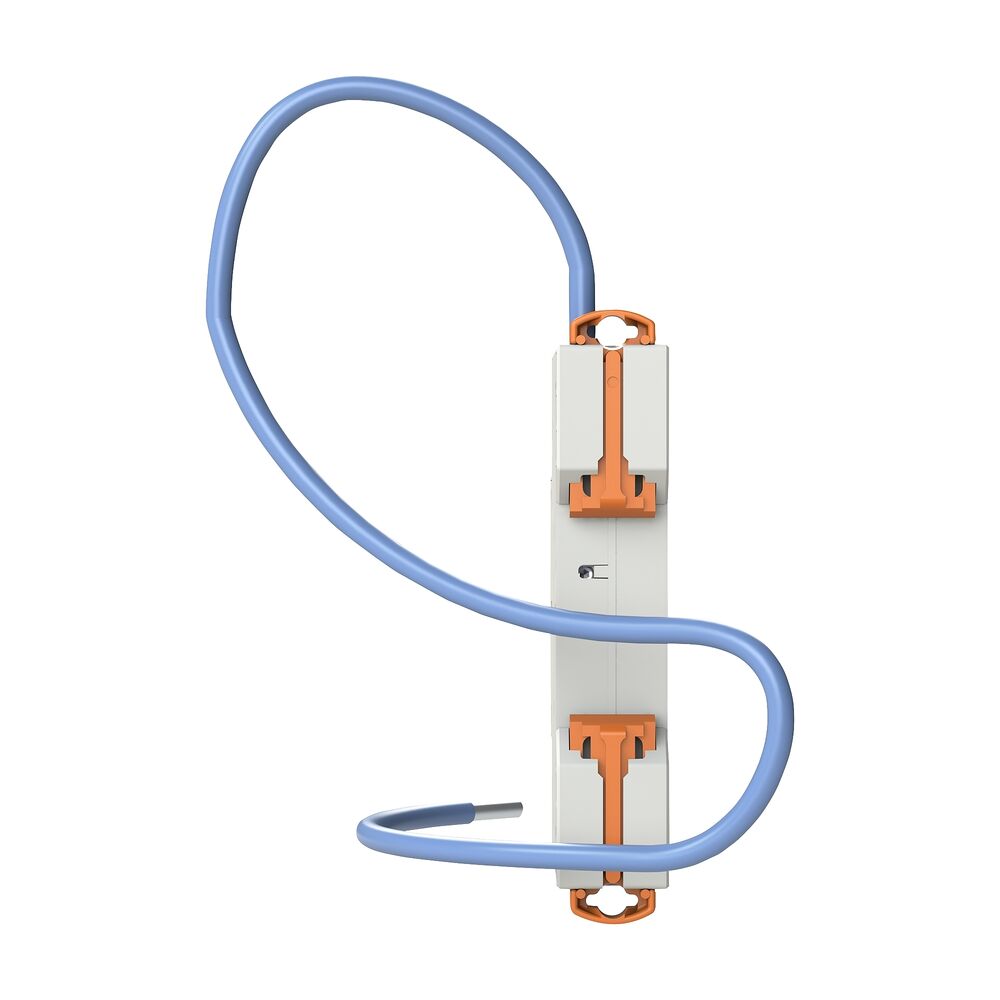

• DIN Rail Mounted: Quick and secure mounting into standard DIN rail switchboards.

Specifications:

• Model: MD6RS 30A
• Available in Rated Current: 6A, 10A, 16A, 20A, 25A, 32A
• Rated Voltage: 240V AC
• Rated Leakage Current: 30mA
• Frequency: 50/60Hz
• Breaking Capacity: 6kA (AS/NZS 61009 compliant)
• Trip Curve: C Curve
• Leakage Type: Type A
• Impulse Withstand Voltage (Uimp): 4kV
• Rated Insulation Voltage (Ui): 500V
• Neutral Switching: Yes (with neutral tail)
• IP Rating: IP40 (when installed)
• Terminal Capacity:
  • Solid-core: 1–25mm²
  • Multi-wired: 1–16mm²

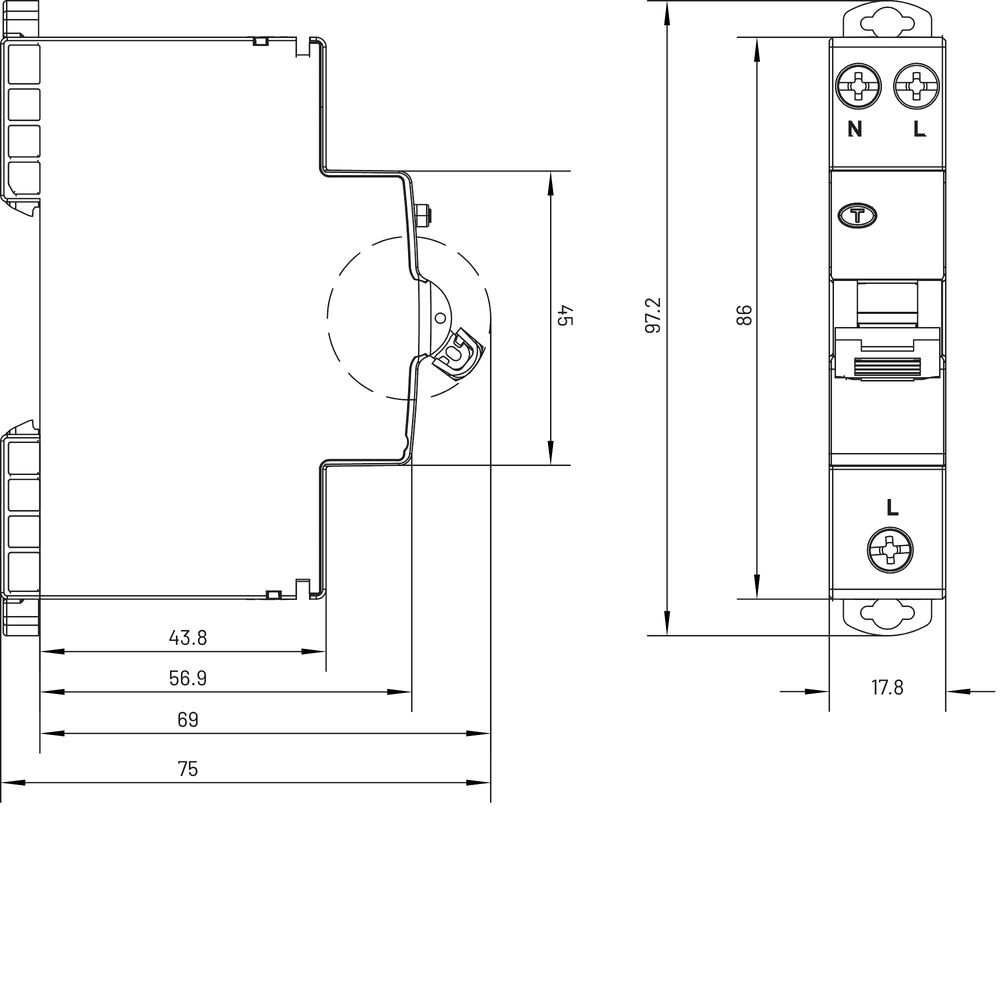

• Dimensions:
  • Height: 86mm
  • Width: 18mm
  • Depth: 76mm
• Operating Temperature: -25°C to +55°C
• Pollution Degree: 2
• Weight: 0.17kg
• Standards Compliance: AS/NZS 61009

Applications:

• Residential Subcircuits: Lighting and power outlet circuits requiring combined overload and residual current protection.
• Commercial Installations: Suitable for office, retail, and small commercial switchboards.
• Retrofit Projects: Slim design and neutral tail make it easy to upgrade existing installations without major switchboard modifications.
• Industrial Panelboards: Used for circuits requiring additional protection where space-saving is critical.

The NHP MOD6+ MD6RS 30A RCBO provides a compact, safe, and efficient protection solution for modern electrical installations. Offering 6kA breaking capacity, 30mA Type A earth leakage protection, and a neutral tail for quick installations, it’s the perfect choice for electricians and contractors seeking space-saving, high-quality circuit protection backed by trusted NHP reliability.
