Nice OXIBD 4CH receiver

OXIBD is a radio receiver specifically designed for integration into control units for automating gates, garage doors, and road barriers. It seamlessly interfaces with all Nice control units featuring an SM connector, offering the added capability of transforming existing Nice automations into bidirectional systems. OXIBD automatically adapts to the specifications of the host control unit.

When equipped with one-way transmitters exclusively, the receiver can efficiently manage up to 1024 memory locations. Each location can alternatively store a single transmitter (if its keys are recorded as a 'single set' using Mode 1 procedures) or a single key (if recorded using Mode 2 procedures). In the case of receivers exclusively containing two-way transmitters, a maximum of 750 such transmitters can be stored.

Leveraging the advanced Nice bidirectional radio protocol with mesh technology offers a multitude of advantages:

• An extended radio range of up to 500 meters (with a maximum of 10 hops)
• The automation system confirms the reception of commands, allowing for real-time status checks and ensuring high security through encrypted communication.
• The receiver also demonstrates low energy consumption in standby mode.


The Near Field Communication (NFC) feature provides convenient access to supplementary information. This is achieved simply by placing your smartphone in close proximity to the Era One Bidirectional transmitter.

Includes:

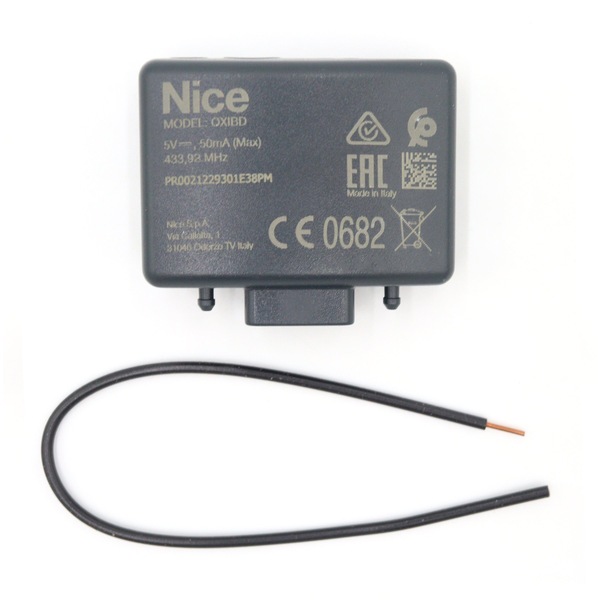

• 1x Receiver

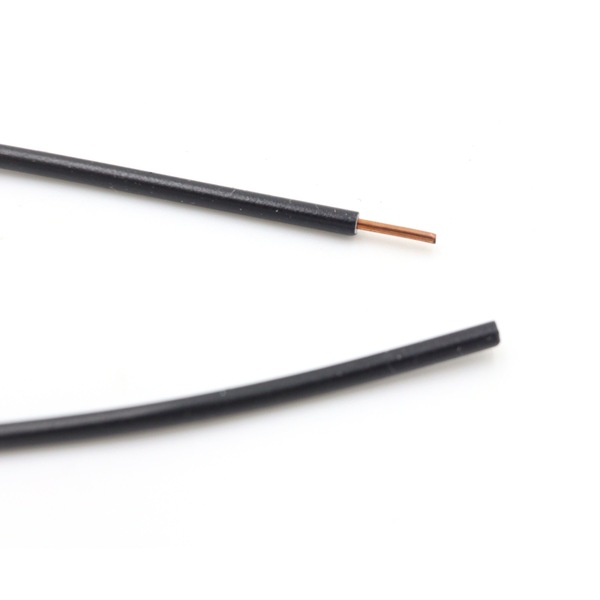

• 1x Antenna

Compatibility:

• O-Code
• FloR
• TTS
• Smilo
• Flo (one-way radio encoding systems)
• BD (two-way encoding system)

Technical features:

• Frequency: 433,92 MHz
• Power supply: 12-24V
• Sensitivity: -108 dBm

• Operating Temperature: –20 °C - +55 °C

• Number of Channels: 4

• Memory: 750 transmitters


Dimensions: 49.5W x 41.9H x 18D mm

Warranty: 12 months
