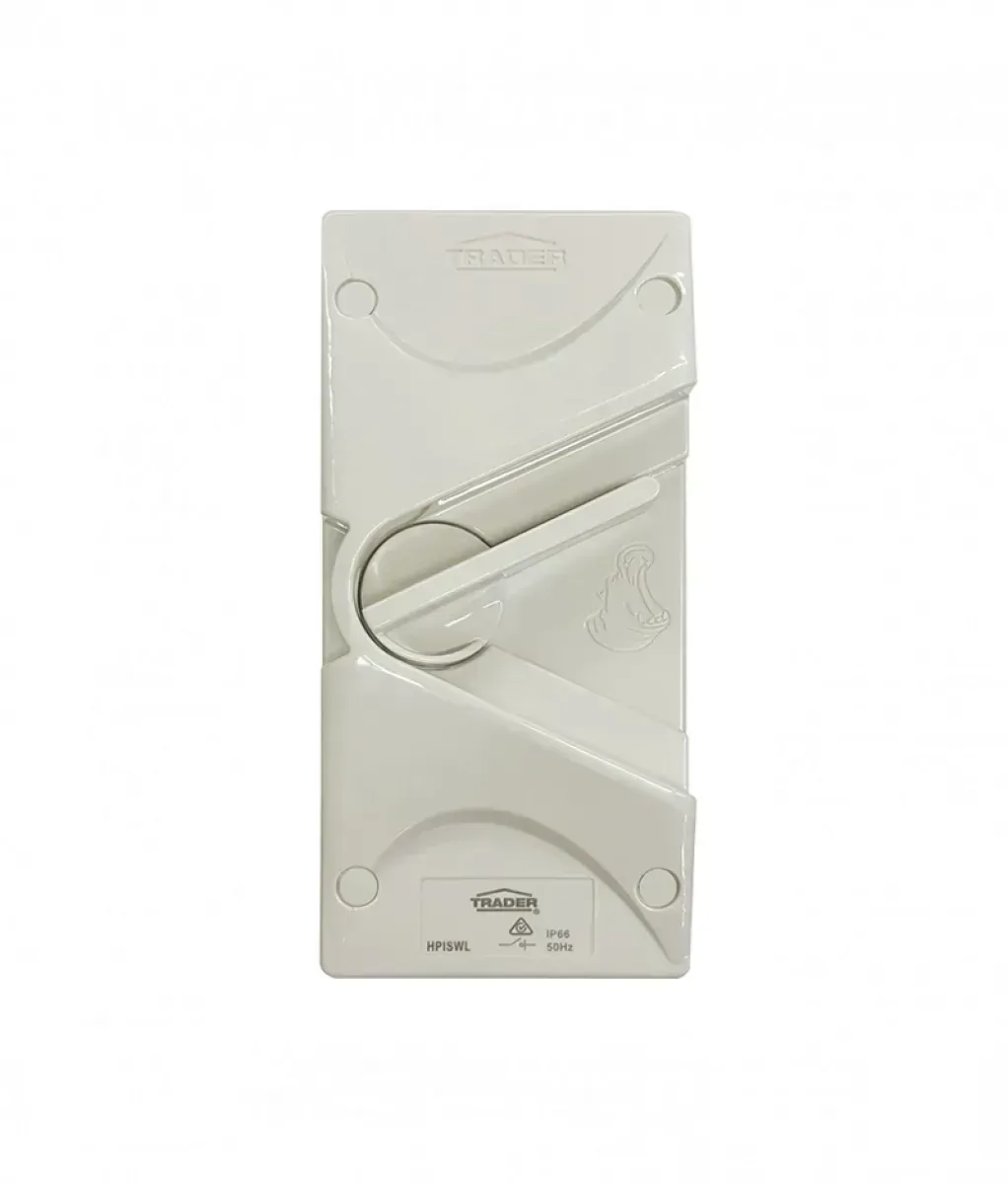

The Trader Hippo HPISWL363 is a tough, high-capacity 63A 3-pole isolator designed for secure disconnection in demanding residential, commercial, and industrial applications.
Rated at 440V AC and built with a full IP66 weatherproof enclosure, it offers complete protection against dust and high-pressure water — ideal for outdoor and harsh indoor environments.

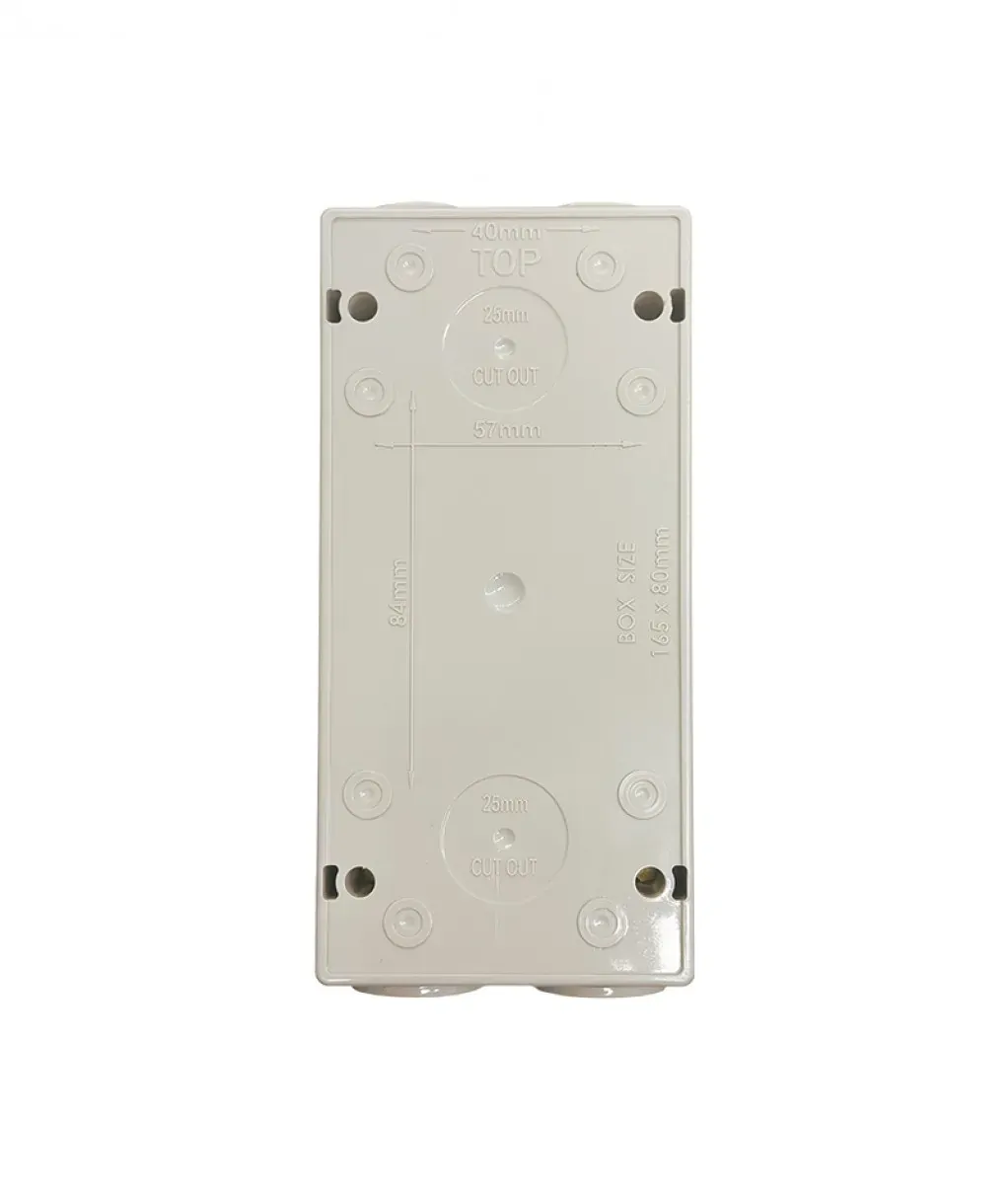

Tested to AS/NZS3133 and AS/NZS IEC60947-3 standards, the HPISWL363 features combination head terminal screws, large 25mm² cable capacity, and twin 25mm threaded entries top and bottom for fast, flexible installations.
The UV-stabilised grey housing resists fading and cracking, and a built-in padlock facility allows for secure lock-off during maintenance.
Installation must be carried out by a licensed electrician to comply with safety and regulatory requirements.
Q: What is the current and voltage rating of the HPISWL363?
A: It is rated at 63 Amps and 440V AC, suitable for heavy-duty applications.
Q: Can this isolator be installed outdoors?
A: Yes, with its IP66 rating, it’s ideal for outdoor and harsh indoor environments.
Q: Does the unit allow for locking during maintenance?
A: Yes, it includes a padlock facility to securely isolate circuits when needed.
| Specification | Details |
|---|---|
| Catalogue Number | HPISWL363 |
| Description | Isolator Switch Weatherproof IP66 63A 440V AC 3 Pole Large Grey |
| Rated Operational Voltage (Ue) | 440V AC |
| Rated Insulation Voltage (Ui) | 690V AC |
| Rated Thermal Current (Ith) | 63A |
| Rated Short Time Withstand (Icw) | 1.26kA for 1s |
| Rated Impulse Withstand Voltage (Uimp) | 4.0kV |
| Rated Short Circuit Making Capacity (Icm) | 1.789kA |
| Motor Rating (AS/NZS3133) | M180 |
| AC21A (440V) Current Rating | 63A |
| AC21A Operational Power | 41.0kW (54.9HP) |
| AC22A Operational Power | 34.5kW (46.2HP) |
| AC23A Operational Power | 28.0kW (37.6HP) |
| Rated Duty | Uninterrupted |
| IP Rating | IP66 |
| Terminal Torque (Recommended) | 2.5 Nm |
| Cover Screw Torque (Recommended) | 0.6 Nm |
| Earth/Neutral Terminal Torque (Recommended) | 2.0 Nm |
| Minimum Conductor Size | 2.5 mm² |
| Maximum Conductor Size | 25 mm² |
| Terminal Bore | 7.6 mm diameter suits 25 mm² |
| Earth/Neutral Terminal Bore | 6.3 mm diameter suits 16 mm² |
| Pollution Degree | 2 |
| Lock-off Padlock Size | 8.0 mm Padlock Staple |
| Certification Number | GMA-516781 |
Warranty starts from Invoice Date
Warranty Period: 10 Year Trader Warranty
Warranty Method: Return to Sparky Direct
GTIN: 9349703007581
