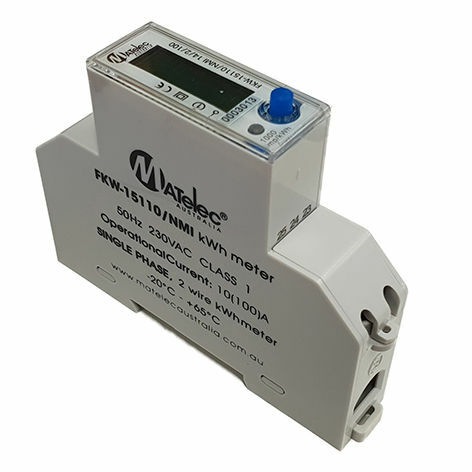

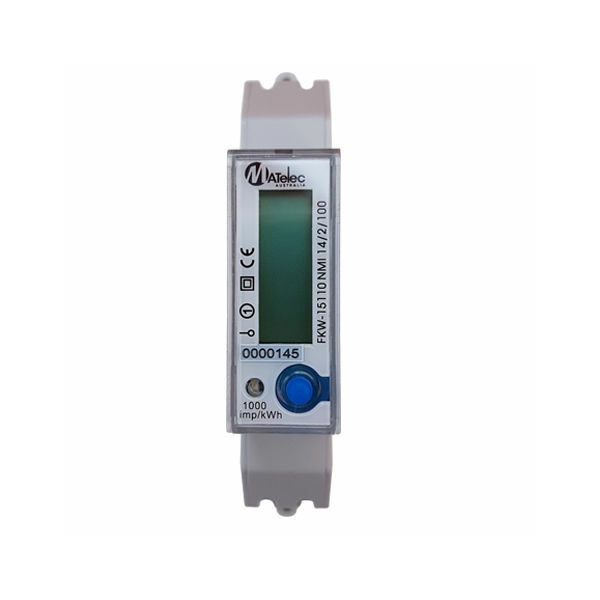

Matelec NMI Approved Single Phase 100A Din Rail KWH Meter

Image 1
Image 2
Shop More Products
  • Accuracy Class: 1
  • Insulation Class: 2
  • Maximum Rated Current: 100A
  • Nominal Voltage: 230Vac
  • Operational Current Range: 0.25A - 100A
  • Over Current Withstand: 1000A for 0.1s
  • Operational Frequency Range: 50-60Hz
  • Test Output Flash Rate: 1000 impulses per kWh
  • Power Supply Indicator: Mains power ON
  • Consumption Indicator: Flashing on load
  • Display: Backlit Blue LCD
  • Maximum Cable Capacity: 1 Phase: 25mm2 (neutral 2.5mm2)
  • Operating Temperature: -20°C to 65°C
  • Warranty: 1 Year
  • Battery Backup: 3.6V Lithium
  • Housing Material: Fire Resistant ABS
  • Weatherproof Rating: IP51
  • Tamper Seal Kit supplied

Specifications:

Report/Certification Number Date Issued
UL, LLC test report reference no. R11456868-NMI (NMI M6-1) 27 - 07 - 2017
NMI M6 Clause A.2.16 Short Term Overcurrent Test C, Ref PL1545-R1 19 - 04 - 2017
National Measurement Institute CoA NMI 14/2/100 04 - 10 - 2017
IEC Test Report IEC62053-21:2003, IEC 62053-11:2003, SICEM Ref WJ14297 (IEC 62053-21:2003 and IEC 62052-11:2003) 12 - 12 - 2014

MPN: FKW15110/NMI

Reference ID: 5456877
