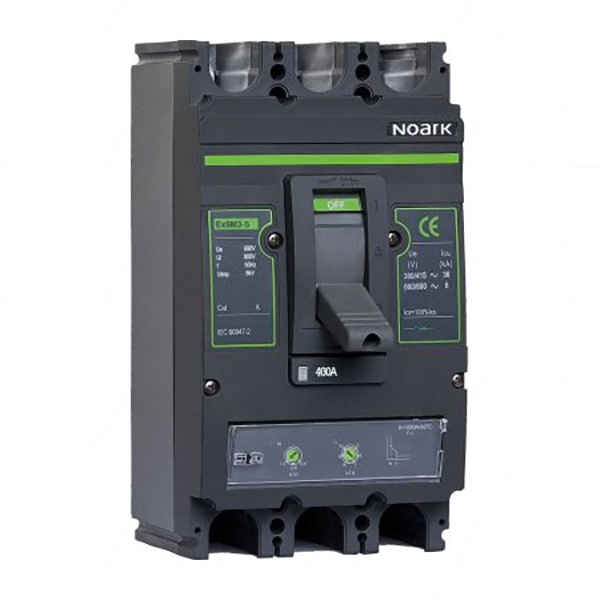

Noark N26027-3P-MCCB 400A/750VDC EX9MD3B 3 Pole DC Circuit Breaker

Image 1
Shop More Products

Brand New

Selling Unit EACH
Description N26027 MCCB EX9MD3B 400A 750V 3 Pole DC Circuit Breaker
Application Battery Banks, Solar, Automation, Control, Telecommunications, DC circuit applications
Voltage 750V
Size 400A
Width 255mm
Height 118.5mm
Length/Breadth/Depth 140mm
Weight 5000g
Brand

Noark Moulded Case High Current DC Circuit Breakers (Non-polarised)

The Ex9MD range of moulded case circuit breakers (MCCB) provide high current breaking capabilities for DC circuits.

Used primarily on battery banks, these MCCBs provide a more serviceable approach to protection than standard NH fuse bases..

Specifications

Noark Series EX9MD3B TM DC400 3P
Poles 3 (250VDC per pole)
Current Rating (A) 400A
Voltage (Max.) 750VDC
Rated Insulation Voltage (VDC) Ui 1000VDC
Rated Breaking Capacity 25kA
Release Technology Thermo Magnetic
Frame Size 3
Frame Rating 400A
IP Rating (All sides/terminals) IP40 / 20
Standards IEC/EN/AS60947-2




SKU: 65002-038

Reference ID: 10801858
