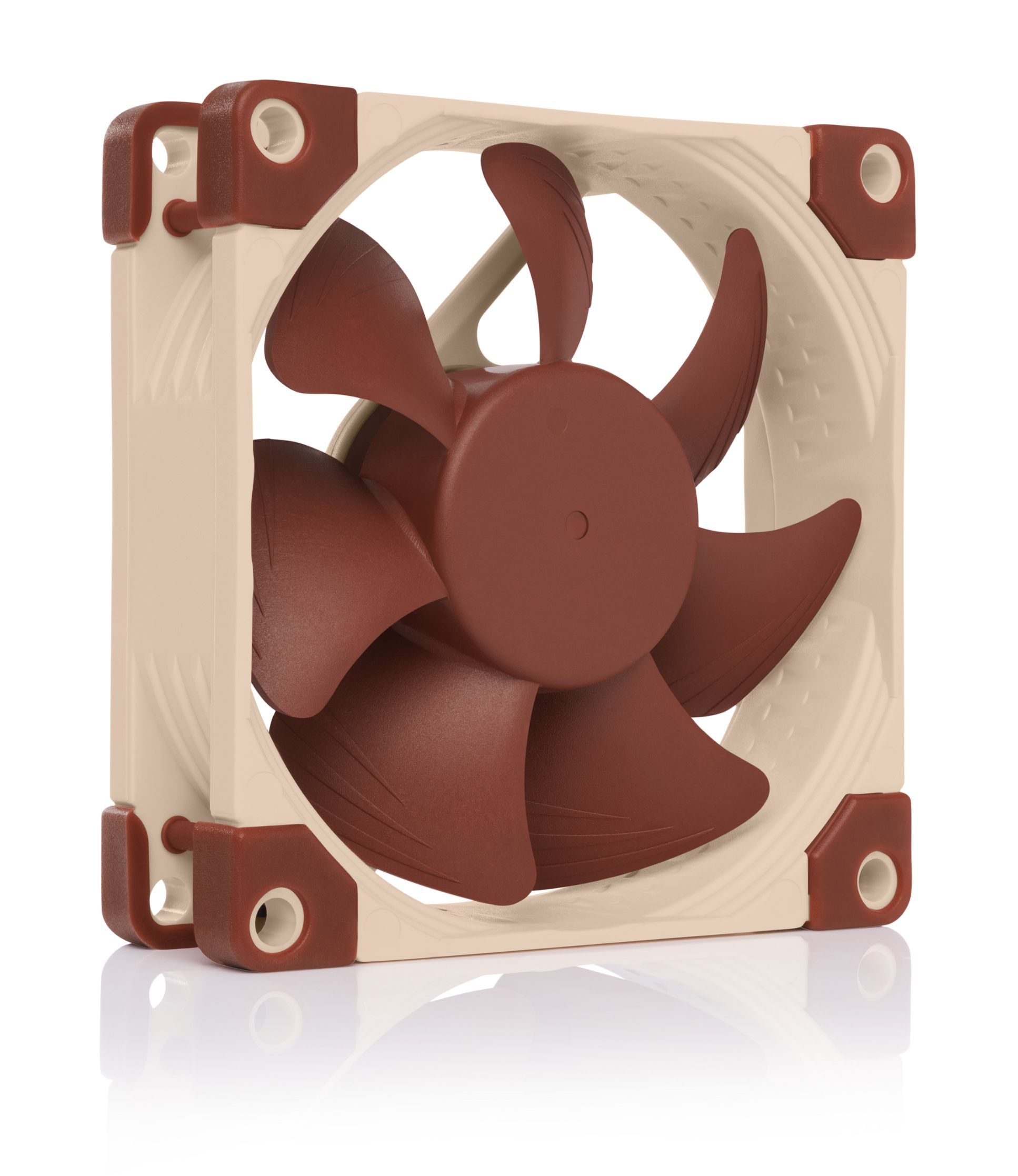

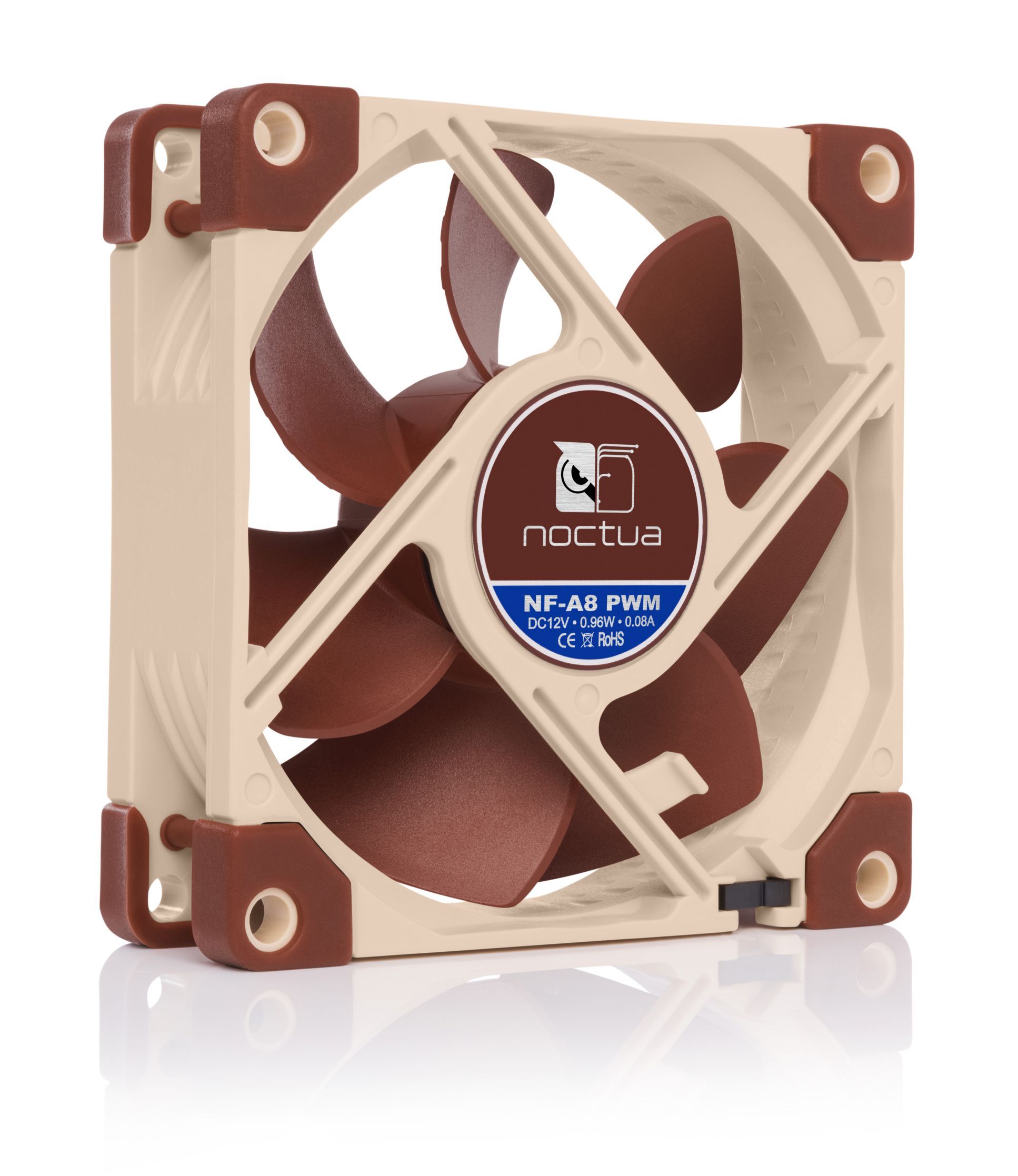

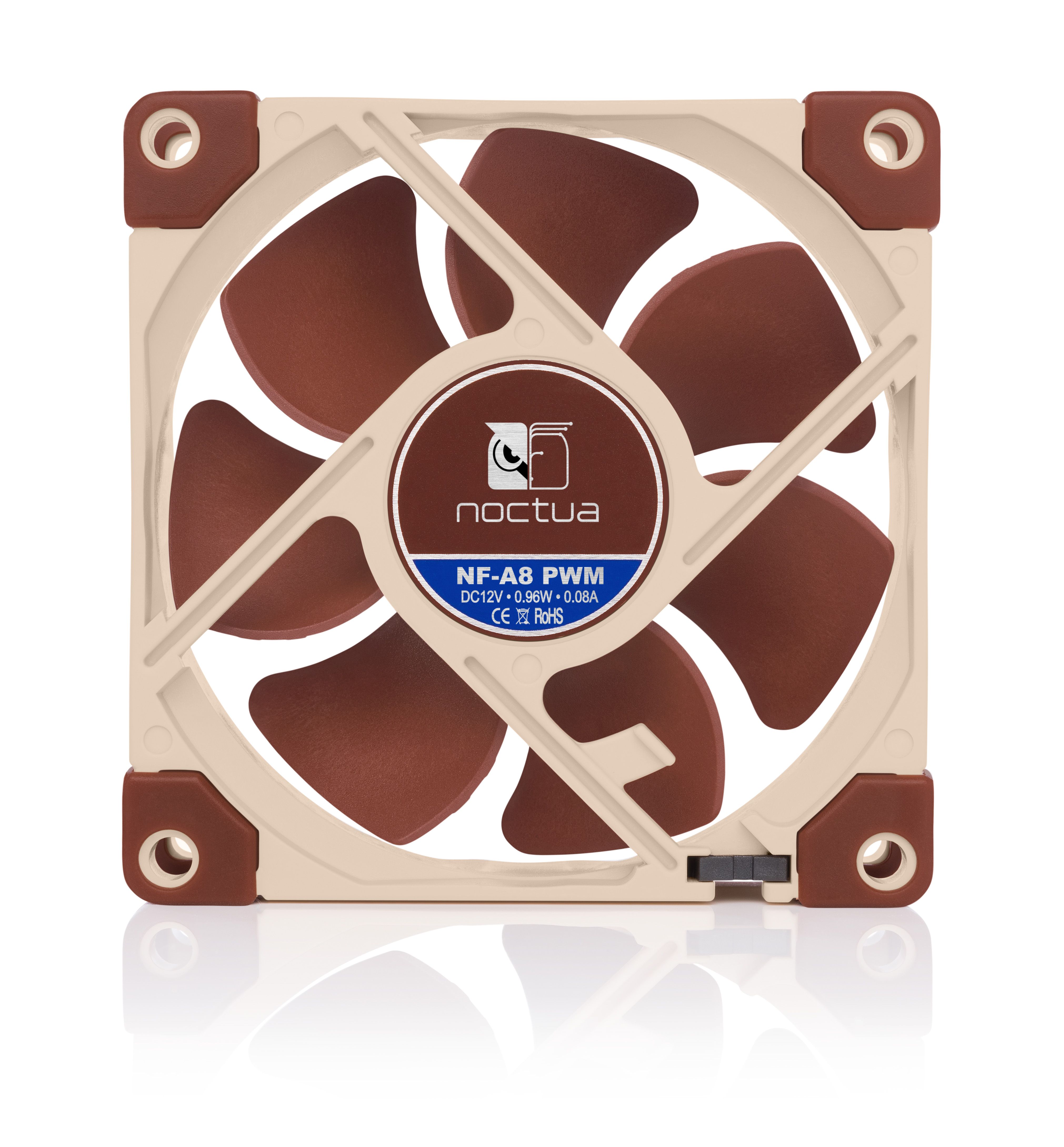

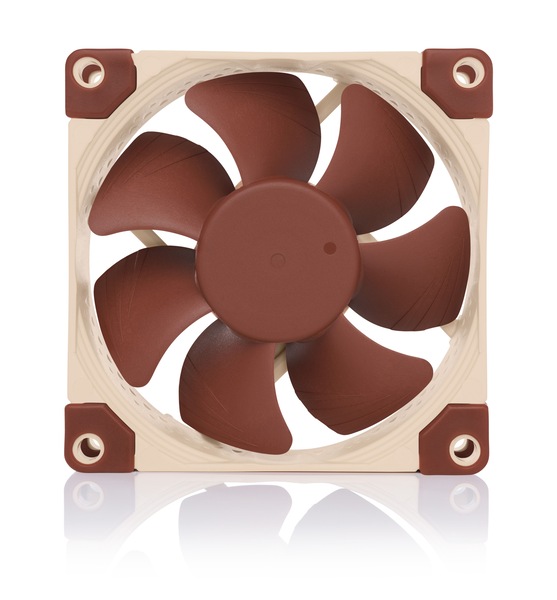

Noctua NF-A8 PWM 80x80x25mm 4-pin PWM 2200/450rpm

The NF-A8 is a highly optimised, premium quality quiet 80mm fan. Featuring Noctuas AAO (Advanced Acoustic Optimisation) frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A8 further improves the renowned quiet cooling performance of the award-winning NF-R8. The PWM version sports Noctuas custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise-Adaptor to reduce the maximum speed during PWM control from 2200 to 1750rpm. Its superb running smoothness, reference-class SSO2 bearing and Noctuas trusted premium quality make it an elite choice for the highest demands.

FAN Specification

Size 80x80x25 mm

Mounting hole spacing 71,5x71,5 mm

Connector & pin-configuration 4-pin PWM

Cable length 20cm + 30cm NA-EC1 extension cable

Bearing SSO2

Blade geometry A-Series with Flow Acceleration Channels

Frame technology AAO (Advanced Acoustic Optimisation)

Rotational speed (+/- 10%) 2200 RPM

Rotational speed with L.N.A. (+/- 10%) 1750 RPM

Min. rotational speed (PWM, +/-20%) 450 RPM

Airflow 55,5 m³/h

Airflow with L.N.A. 43,9 m³/h

Acoustical noise 17,7 dB(A)

Acoustical noise with L.N.A. 13,8 dB(A)

Static pressure 2,37 mm H?O

Static pressure with L.N.A. 1,54 mm H?O

Max. input power 0,96 W

Max. input current 0,08 A

Operating voltage 12 V

MTTF > 150.000 h

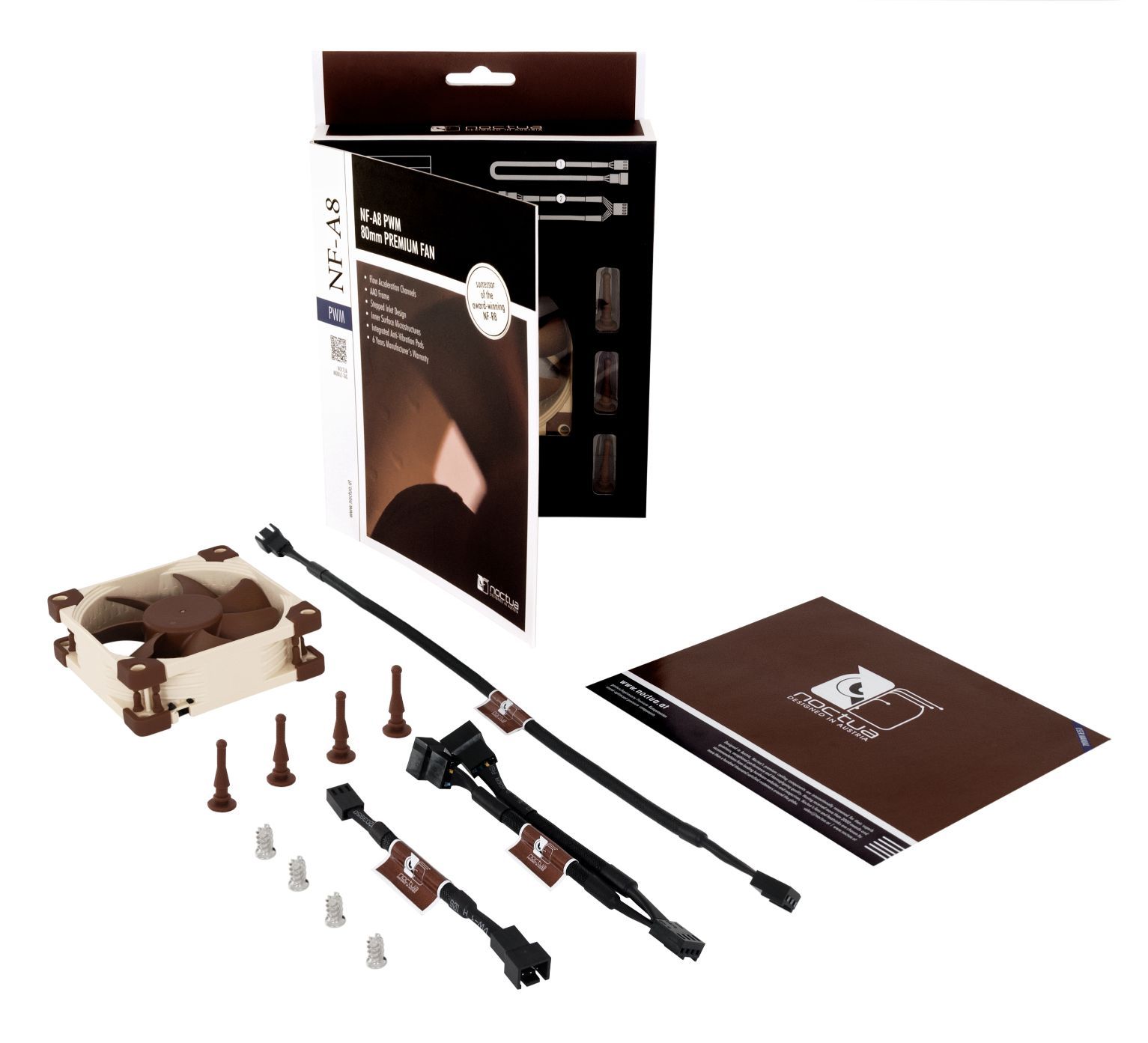

Scope of delivery

Low-Noise Adaptor (L.N.A.)

4-Pin Y-Cable

30cm Extension Cable

4 Vibration-Compensators

4 Fan Screws

Warranty 6 years
