NOVA3D Elfin3 mini 3D Printer 5.5" Mono PANEL 3.5" Touch Screen & Wi-Fi Printing

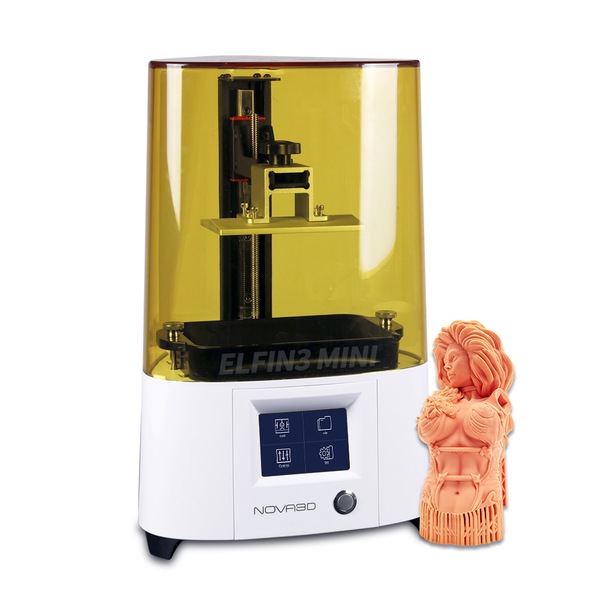

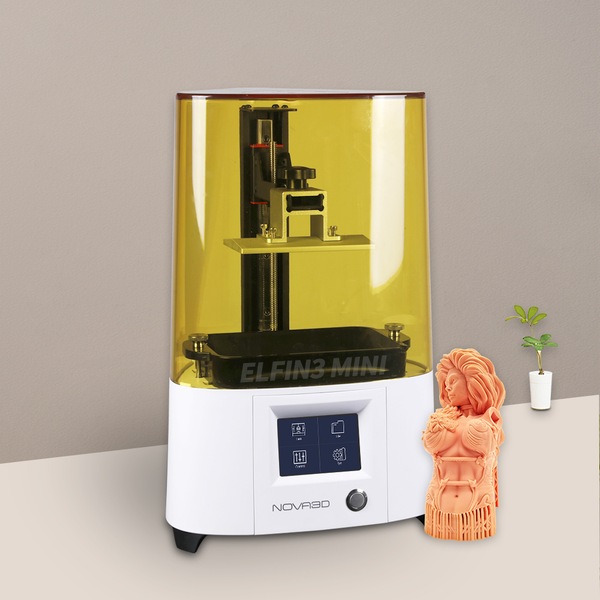

NOVA3D ELFIN3 Mini 3D Resin Printer

The best choice for Beginners - your first LCD 3D Printer

Faster?

• ELFIN3 Mini is equipped with a 5.5 inch mono LCD screen, which allows much faster exposure settings.

Precision?

• Used the latest 3rd gen crystal UV light source, uniform light output to obtain high-precision samples.

Brand new OS?

• Linux motherboard, open API port. Realizing your creativity.

Easy?

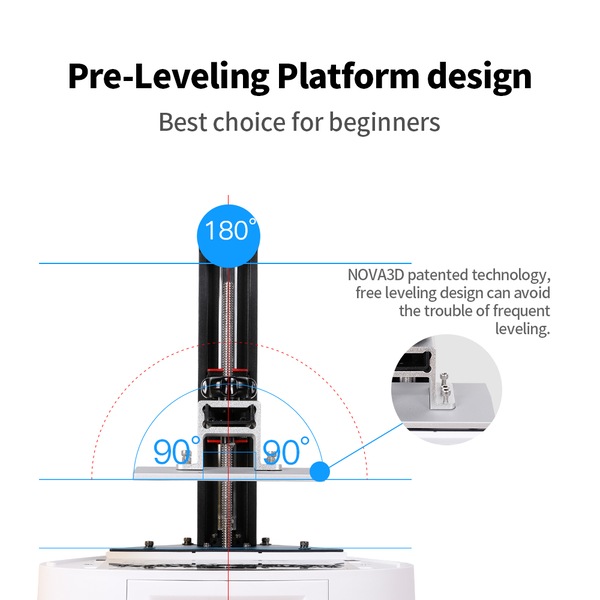

• NOVA3D free leveling design, you can directly print after you get the printer. Save your debugging energy.

5.5 inch Monochrome Screen

• 120 x 68 x 150 mm Printing Size.
• Monochrome LCD screens allow for much faster exposure settings.
• 4.6% light pass rate, 2000 hours lifespan, save your maintenance cost.

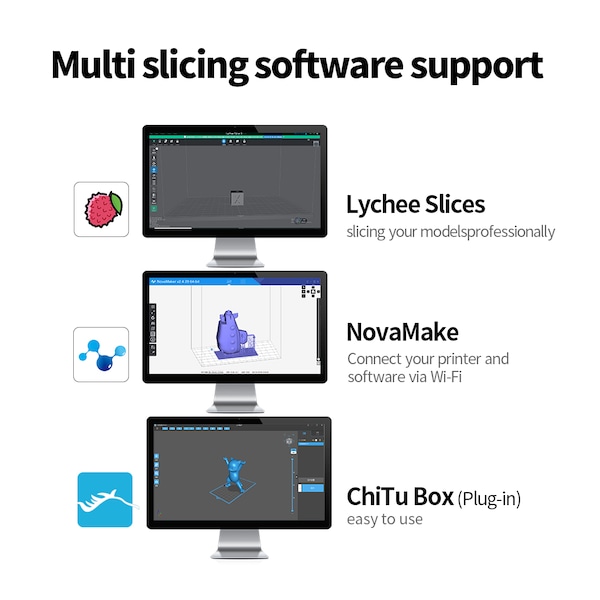

Multi-Software support

• NovaMake - suitable for basic users, connect your printer and PC via Wi-Fi
• Lychee Slices - help you slicing your models professionally
• ChiTu Box (Plug-in) - easy to use

User-friendly Design

• Volume mark on Resin tank to show the MAX volume of the vat in case of resin spilling.
• Feet on the vat avoid the scratch between the FEP and the table.
• FEP quick release design will save your time of replace.

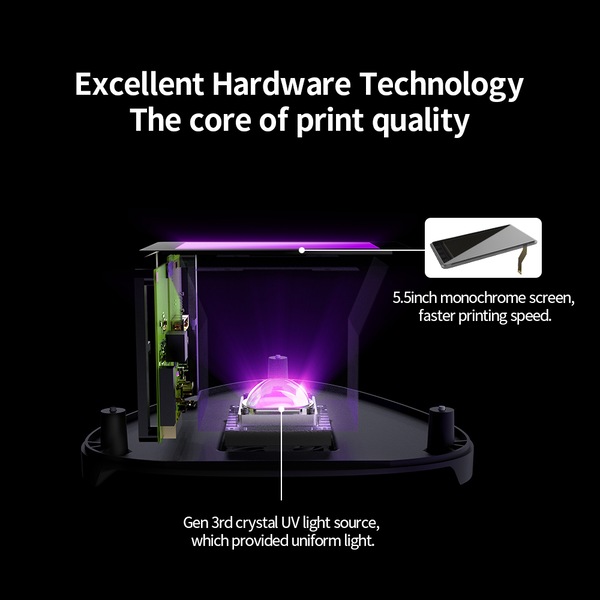

Excellent Hardware Technology

• Gen 3rd crystal UV light source, which provided uniform light.
• Work with monochrome screen can be improve the printing accuracy and speed.

LCD quick release Design

• Newly designed
• LCD screen quick disassembly buckle.
• Avoid damage when you replace and maintaining parts, save your time and cost.

Multi-connect Ways

• Elfin3 Mini support to WiFi printing (install U disk in advance), Ethernet, and off-line (USB disk) connect.
• Control and send your file to the printer via NovaMaker or App during they are under same internet.

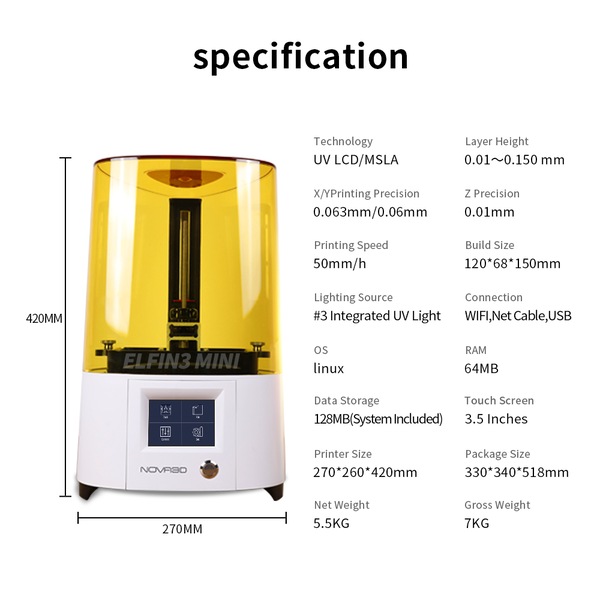

Specifications

• Technology: UV LCD/MSLA
• X/YPrinting Precision: 0.063mm/0.06mm
• Printing Speed: 50mm/h(max)
• Build Size: 120*68*150mm
• Connection: WIFI, Cable, USB (off-line)
• Operation System: Linux
• Touch Screen: 3.5 Inches TFP screen
• Slice software: NovaMaker，LycheeSlicer，CHITUBOX (Plug-in)
• Input Formats by Novamaker: .stl .obj .3mf .nmk
• Output Formats: .cws
• OS supported: Mac OS X, Windows 7 or above
• Max Power: 20W
• Package Size: 330*340*518mm
• Gross Weight: 7KG
