NOYAFA NF826 Underground In-Wall Wire Locator Voltmeter Circuit Tracing Fault Detection

Image 1
Image 2
Image 3
Image 4
Image 5
Hurry! 18 items left!
$256

Collect 256 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout

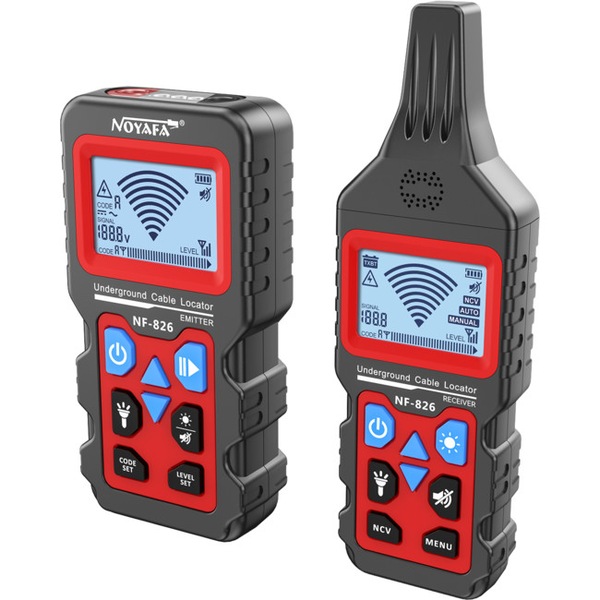

NF-826 Underground & In-Wall Wire Locator

Features

1. Multi-Functional Detection

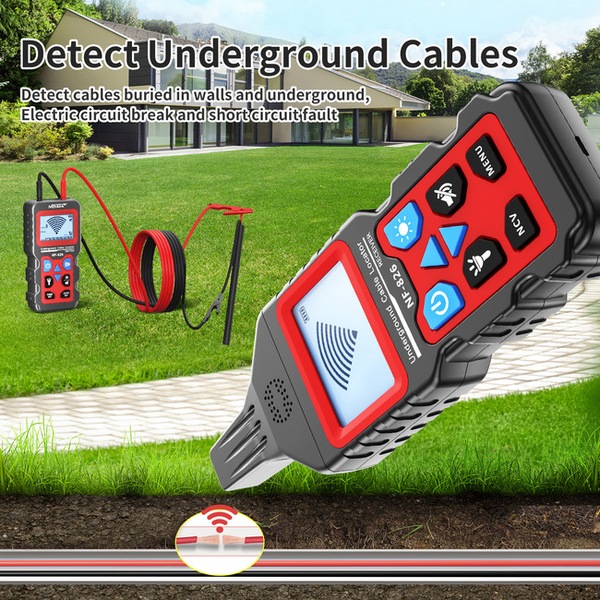

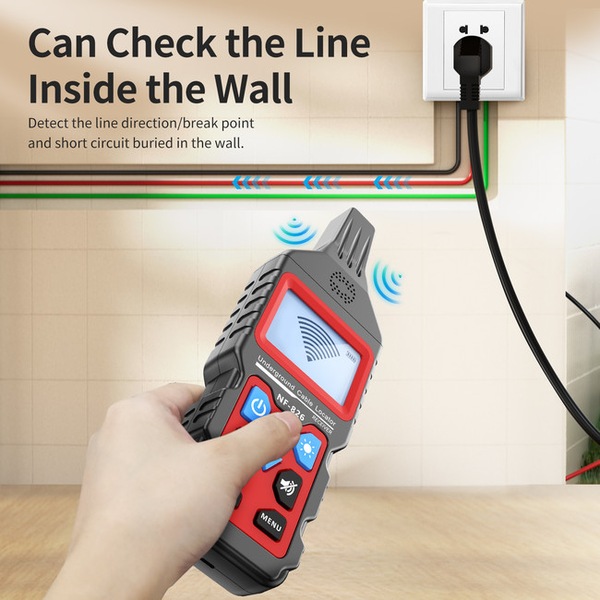

  • Circuit & Wire Tracing: Locate electrical wires, metal cables (copper, network, power), and pipelines (water, gas, heating) behind walls or underground (max depth: 2m / 80inch).
  • Fault Detection: Identify breaks, open circuits, and short circuits in wiring.
  • Breaker Finder: Quickly locate circuit breakers by plugging the transmitter into a socket
  • Pipe Locator: Detect underground pipes without excavation; find breakpoints easily.

2. Integrated Voltage & Electrical Detection

  • Built-in Voltmeter (Transmitter): Measures 12-400V AC/DC (accuracy: ±2.5%)
  • Non-Contact Voltage Detection (Receiver): Detects AC voltage >60V without direct contact.

3. Smart & User-Friendly Design

  • Adjustable Sensitivity: Manual or automatic frequency sweeping for precise detection
  • Mute Mode: Both transmitter and receiver support silent operation
  • Auto Power-Off: Shuts down after 10 minutes of inactivity
  • LCD Display with Backlight: Shows transmission power, battery level, voltage type (AC/DC), and fault warnings

4. Enhanced Usability

  • Built-in LED Flashlight: Illuminates dark workspaces
  • Portable & Durable: Compact design for fieldwork
  • Versatile Accessories: Includes adapters and tools for various scenarios

5. Applications

  • Electrical & network wiring maintenance
  • Telephone & computer network troubleshooting
  • Floor heating system fault detection
  • Locating hidden sockets, junction boxes, and fuse assignments
In the box
  • Transmitter x 1pc
  • Receiver x 1pc
  • Test lead x 1 pair
  • Test probe x 1 pair
  • Alligator test lead adaptor x 1 pair
  • Carry bag x 1pc
  • Grounding/Earth rod x 1pc
  • USB A to Micro USB B cable x 1pc
  • Manual x 1pc
Specifications
  • Max Depth Range: 2m (80 inches)
  • Max Cable Length: 1,000m
  • Voltage Detecting: Yes
  • Working Voltage Range: 0 - 400V
  • Sensitivity Adjustment: Various Modes
  • Power Supply: 3.7V 1400mAh LI-Battery Powered
  • Signals & Result Display: Tone & LCD
  • Support: Metal wires, cables, and pipes
Specification of Transmitter:
  • LCD Screen: 52*35mm screen with backlight
  • Transmitter signal frequency: 125KHz
  • Signal Vp-p transmitter self-inspection: Yes
  • Circuit voltage testing: AC: 12~400V(50~60Hz)+/-2.5%
  • Range of external DC: 12~400V +/-2.5%
  • Dielectric strength of external voltage: Max. 400V AC/DC
  • Interface type: multimeter jack
  • Max working current:
  • Overvoltage level: CAT III 300V
  • Power supply: 3.7V 1400 mAh Lithium battery
  • Power consumption: Min Current: 80mA, Max Current: 300mA
  • Fuse: 0.5A 500V, 6.3x 32mm
  • Operating temperature range: 0°C ~ 40 °C, Max. 80% RH (non-condensation)
  • Storage temperature range: -20°C ~ 60°C, Max. 80% RH (non-condensation)
  • Dimensions (HxWxD): 156 x 80 x 32 mm
  • Weight: 235g with battery (with battery)
Specification of Receiver:
  • LCD Screen: 52*35mm screen with backlight
  • Received signal strength display: Yes
  • Recognize the low battery warning of the transmitter: Yes
  • Received signal frequency: 125KHz
  • Short circuit detection: Yes
  • Open circuit detection: Yes
  • Automatic frequency sweep: Yes
  • Reception mode: Manual / Auto
  • NCV function: AC:50~400V(50~60Hz)+/-2.5%
  • Dimension (HxWxD): 226*73*29mm
  • Depth of tracking: depends on the material and specific applications. Single pole application: About 0~1m, Dual-pole application: About 0-0.5m, Single loop line: Up to 2.5m
  • Grid voltage identification: About 0~0.4m
  • Power supply: 3.7V 1400mAh Lithium battery
  • Power consumption: MIN current 100mA, MAX Current 300mA
  • Weight: 235g with battery
