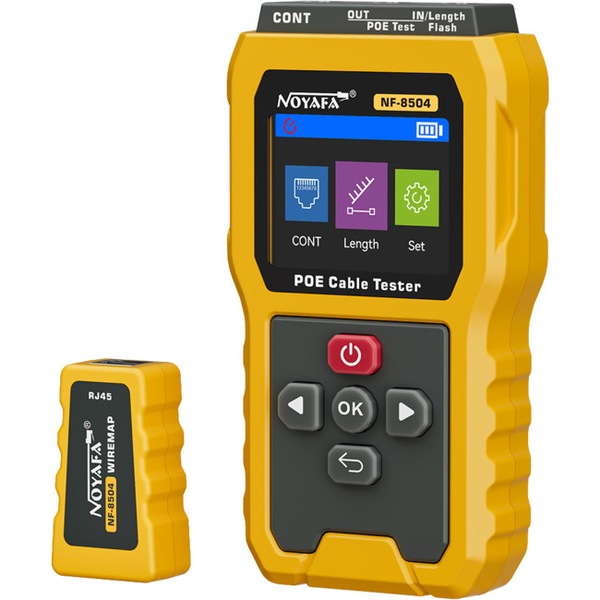

NOYAFA NF8504 Network PoE Cable Tester Length Continuity Port Flash Mapping

Image 1
Image 2
Image 3
Image 4
Image 5
$96

Collect 96 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout

NF8504 is compatible with the latest PoE++ standard. This model also measures and displays voltage load in real-time during PoE tests.

Features__
  • Continuity & Wiremap, Instantly checks CAT5/CAT6 cables for opens, shorts, or miswiring, ensuring proper termination and preventing network failures;

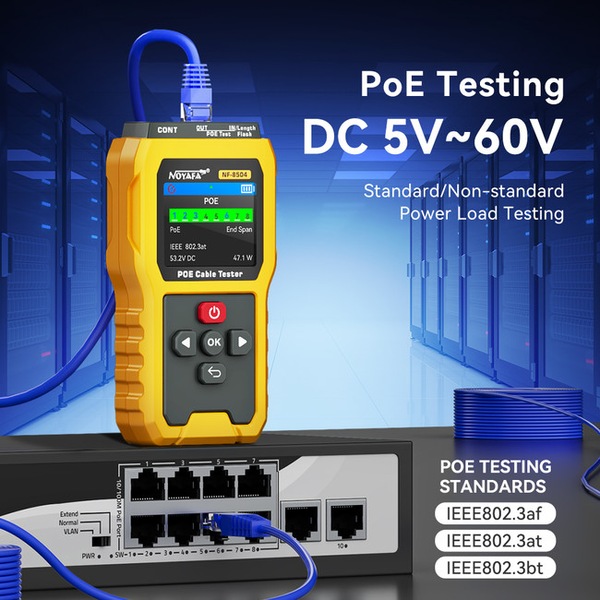

  • PoE Testing (5-60V DC),_Validates IEEE 802.3af/at/bt (PoE/PoE+/PoE++) compliance and tests non-standard PoE devices for safe, reliable power delivery;__

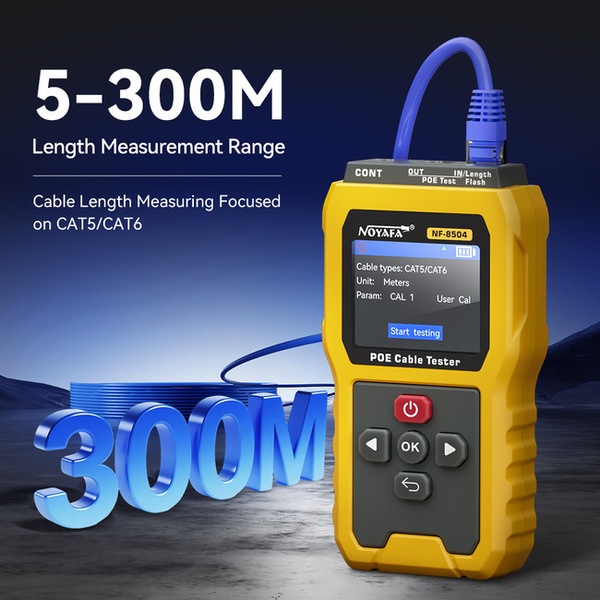

  • Cable Length Measurement (5-300m), measures cable distance and locates breaks or faults, saving time on troubleshooting long cable runs;_
  • Port Flash (10/100/1000 Mbps), Identifies active switch ports and confirms duplex mode (full/half) by triggering port LEDs for quick network verification;
  • Remote Continuity Alignment, Includes a detachable RJ45 remote for testing cable continuity behind walls or across patch panels, ideal for installers;__
  • 2.4" Full-Color LCD,__Bright, high-contrast display shows test results, icons, and diagnostics clearly, even in low-light conditions;
  • Overvoltage Protection (≤60V) Built-in safety protection against accidental live voltage exposure, ensuring durability and longevity;

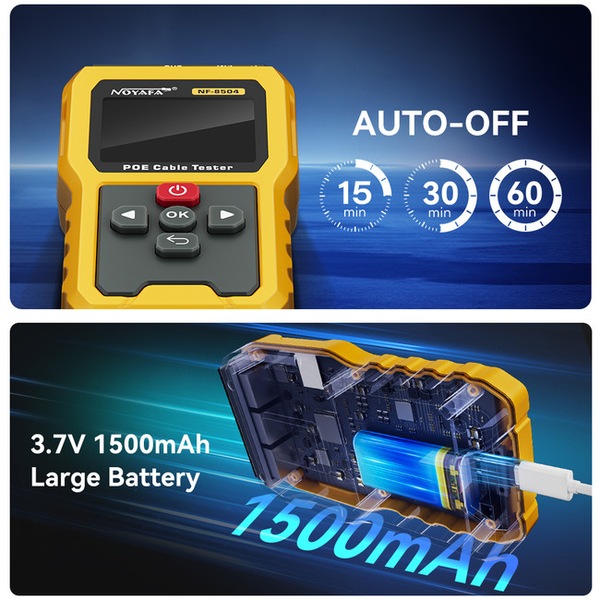

  • Rechargeable 1500mAh Battery (USB-C) Long-lasting 3.7V Li-ion battery supports hours of continuous use with USB-C charging;
  • Auto Power-Off (5/15/30/60 min)__ Customizable auto-shutdown conserves battery life during extended inactivity;
  • POE Testing & Power Load Measurement When performing a PoE test, NF8504 also displays the_power load value. This_power load testing_verifies whether the PoE switch can adequately power the connected device by showing the_voltage and power values under load.
Specifications
  • LCDDisplay: 2.4-inch Color Screen
  • Continuity Testing:
  • Cable Type: CAT5/CAT6
  • Testing Range: 600m
  • STP&UTP: Yes
  • Short Circuit: Yes
  • POE Testing:
  • Range:_DC5V~60V
  • Standards:_IEEE802.3af/at/bt
  • Load Testing:_2~80W
  • POE Output: Yes
  • Power Supply Pin: Yes
  • Port Flash Function: Yes
  • Length Measurement Range:_5~300m
  • Low Battery Indicator: Yes
  • Battery:_3.7V 1500mAh Lithium Battery
  • Auto Off:_15m/30m/60m/OFF
  • Over-voltage protection: DC60V
  • Dimension:_main unit 138.5×76×30mm, remote unit 65x37x23mm
What is in the box
  • NF8504 POE cable tester x 1pc
  • NF8504 RJ45 wiremap remote x 1pc
  • 15cm RJ45 8P8C flat cable x 1pc
  • 15cm RJ12 6P6C flat cable x 1pc
  • 15cm RJ12 and alligator clip cable x 1pc
  • USB A to USB C cable x 1pc
  • Carry bag x 1pc
  • Manual x 1pc

Weight: 0.35789
