NP203 NETCOMM Home Entertainment Kit 200Mbps Ethernet Over Power High Speed Data Rates of Up To
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)

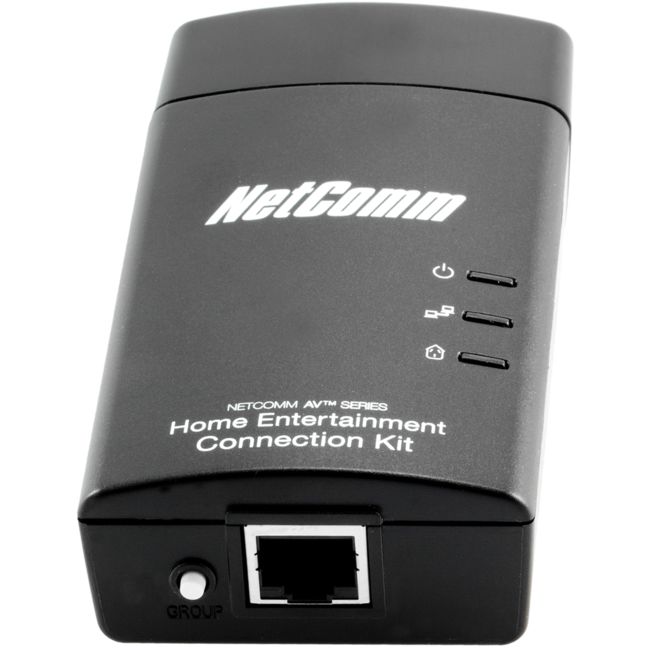

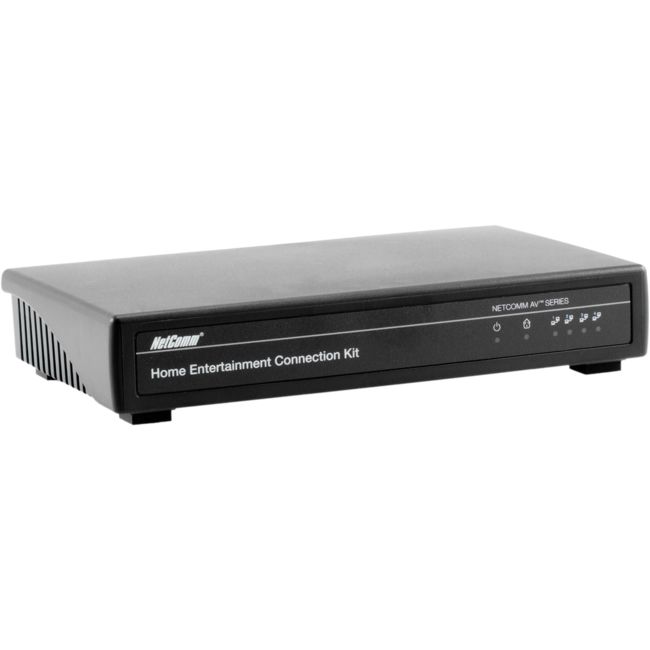

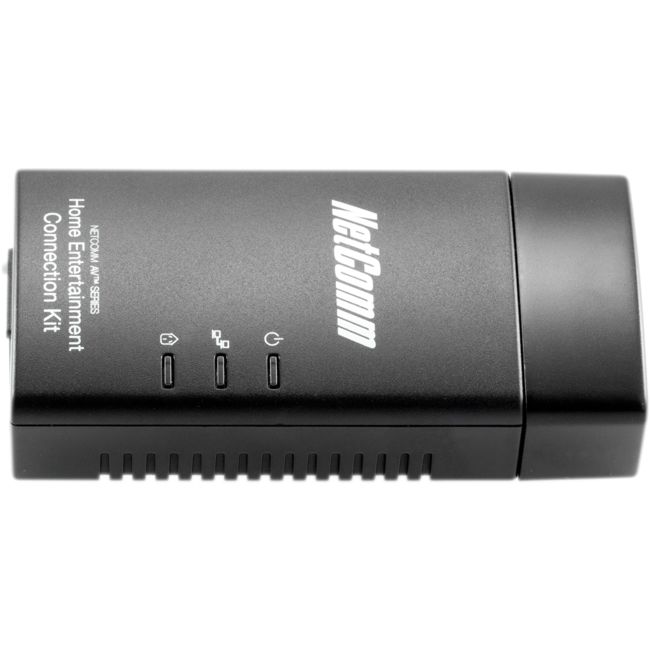

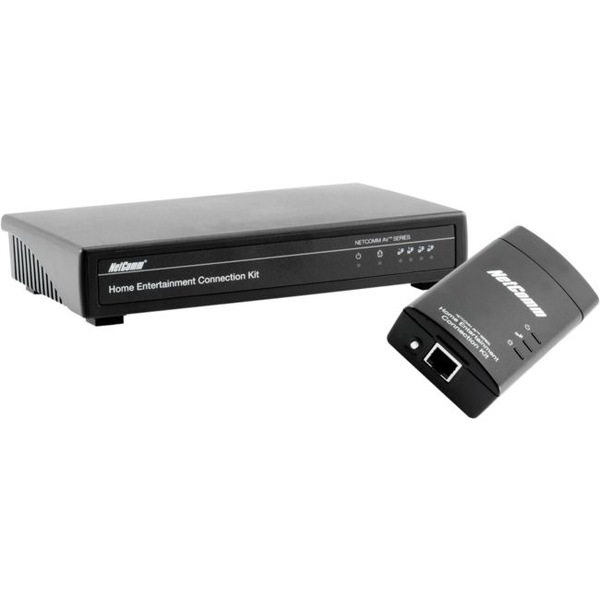

Enjoy a rich online entertainment experience in any area of your home by extending or creatingan Ethernet network using your existing power points. The Home Entertainment Connection Kit connects up to 4 devices to the Internet via your Powerline network with plug and play simplicity. Just connect the single port adapter to your broadband modem/router to achieve high-speed 200Mbps data rates over a range of up to 300 meters (point to point)using your Powerline network and benefit from consistent high-quality audio and HD streaming in any room without the need for additional cabling or connection points.
Main Chipset | Intellon INT6400 |
Computer Interface | IEEE802.3; IEEE802.3u |
Standards | HomePlug AV |

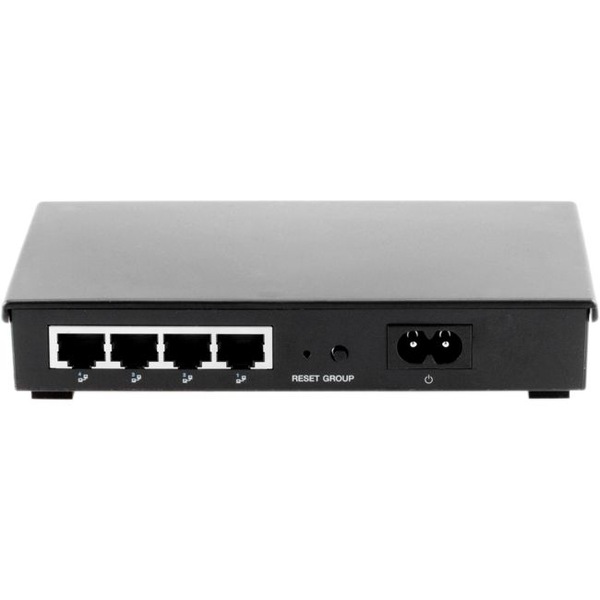

Network Interface | Four RJ-45 (10/100Base-TEthernet)/One RJ-45 (10/100Base-T Ethernet) One 200Mbps Power Line Port supporting co-existence with 14/85Mbps HomePlug |
Security | 128-bit AES Link Encryption with Key Management |
Data Transfer Rate | 200 Mbps over Powerline and 10/100Mbpsover Ethernet |
Modulation Schemes | OFDM Symbol Modulation on Line synchronization 1024/256/64/16/8 - QAM, QPSK, BPSK, ROBO Carrier Modulation |
Frequency Band | 2~ 28 Mhz |
Additional Protocols | Mix of TDMA and CSMA/CA channel access scheme;CO device generates a periodic beacon carrier for channel access scheme |
Operation Range | Estimated range of 300m in wall power lines |
Cabling | 100Base-T; Cat. 5 UTPCable |
Operating Temperature | 0°Cto 40°C ambient temperature |
Storage Temperature | -20°C to 70°C ambient temperature |
Humidity | 10 to 90% maximum (non-condensing) |
Power Input | 100 ~ 240V @ 50/60Hz Internal |
Power Connector | 6 ft AC power cord/Embedded AU Housing Plastic |
Software Utility | Device Detect/Diagnostic, NEK Password Setup for Local and Remote Device Windows 2000, ME, NT, XP, or Vista for Initial Setup |
LED | Power; PL-Link/Act (with dual-color throughput function); ETH 1 thru 4 Link/Act |
Certifications | C-Tick, CE |
Weight: 0.9530
