EDIMAX OFFICE+1 Office123 Slave Access Point Office+1 Dedicated Office Wi-Fi: Designed For High

EDIMAX OFFICE+1 Office123 Slave Access Point Office+1 Dedicated Office Wi-Fi: Designed For High

Hurry! 1 items left!

$156

Collect 156 Everyday Rewards points

Log in to MyDeal to link your card

Sold & shipped by Radio Parts

Secure ways to pay at checkout

Features

Add-on Access Point for Office 1-2-3 Wi-FiSystem

Zero Configuration, Self-Managed& Pre-Configured Wi-Fi System

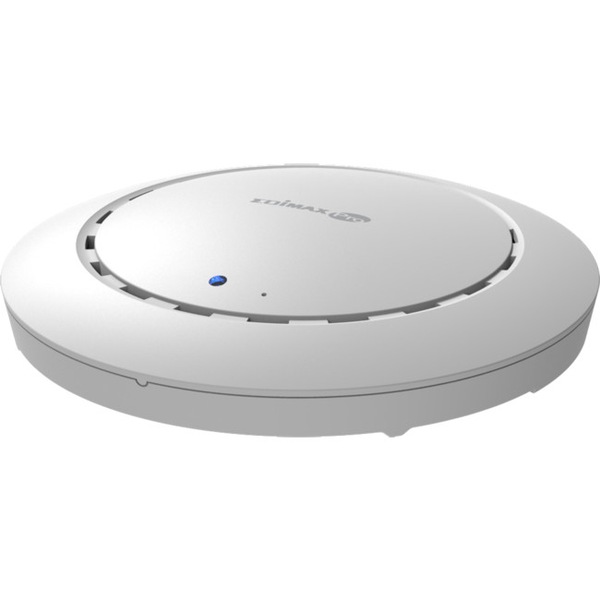

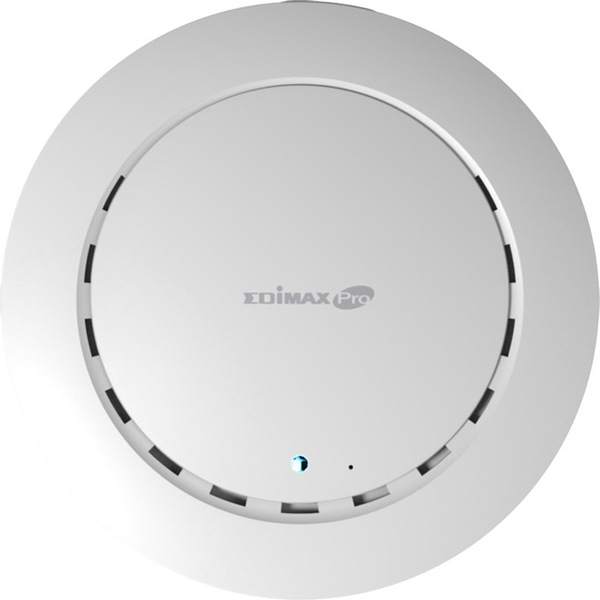

The CAP1300 Office +1 Add-on Access Point (AP) for Office1-2-3 Wi-Fi System comes with one pre-configured AP and is default as slave mode that can communicate between master APwith self-managed functions with zero configuration.

License-Free Intutive UI, Simple yet Powerful

Built-in with the AP management software, no need for server or controller software and no extra license fee. The dedicated icon-based user interface of Office 1-2-3 can easily walk you through the entire process of setting up theWi-Fi networks.

Secure& Separated 3 Wi-Fi Networks

By default, each AP has three Wi-Fi networks: office, guest and device networks. For Wi-Fi network security, each network has its own secure authentication.

Three Easy Ways of Authentication

Office networks use radius function that works like Wi-Fiaccess key. Enter the password once and it will remember. Each employee will have his/her own Wi-Fi access key.

Guest networks use SMS authentication and captive portal login. Administrators can print out account tickets for the guests and setup expiry time.

Device networks use access control list for equipment that are unable to enter account information.

E-MAP and Wireless Scheduling

Featuring E-MAP shows wireless coverage and statgus of your APs and Wireless Scheduling lets network manger to define when to provide Wi-Fi services to guest, office or devicenetworks.

Optimal Wi-Fi Performance

Featuring with 11ac Wave 2 MU-MIMO, Beamforming, AirTime Fairness, Band Steering improved Wi-Fi range, reliability and performance.Easy Setup

Get your office Wi-Fi up and running in minutes!

Connect the CAP1300 Office 1-2-3 Master AP to the existingnetwork via switch. (APs can be powered on by PoE)

Download the IP Finder utility and the system will findthe Office 1-2-3 APs automatically.

Follow the wizard instructions of web- and icon-based UI and easily configure the Wi-Fi networks in few steps.

Dedicated Office Wi-Fi System for SMBs

Suitable for a wide range of officeapplications such as the working area, meeting room, open spece, lobbyand others

Easy, Complete, Expandable Office Wi-Fi System

CAP1300 Office 1-2-3 MasterAPis expandable with CAP1300 Office +1 Add-on AP up to a total of 16 APs.

Specifications

*t is required to work with Office +1 Add-on Access Point.

HARDWARE

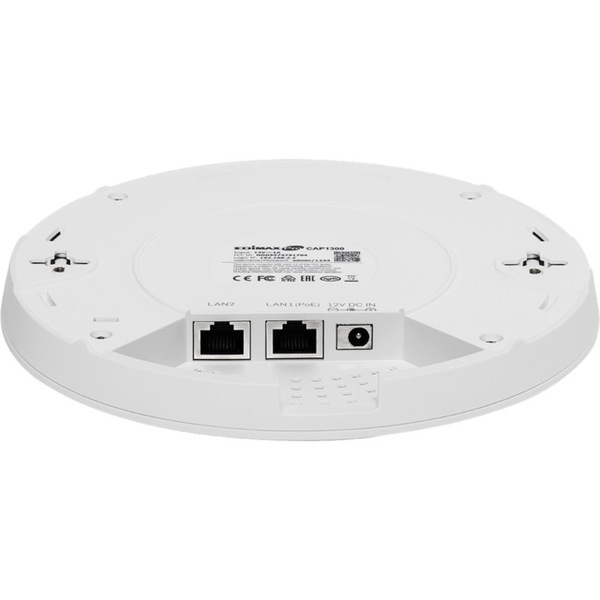

LAN Interface	Giga x 2
PoE	LAN1: PoE in
Antenna	Type: 4 x Built-In PIFA (2 x 2.4GHz, 2 x 5GHz) / Gain: 4dBi (2.4GHz), 5dBi (5GHz) Max.
Power	DC: 12V / 1A 802.3at (PoE Injector Optional)
Flash / DRAM	32MB / 256MB
Dimensions	17.6 (D) x 3.2 (H) cm
Weight	342g
Power Consumption (Full Loading)	11W
Mounting	Ceiling
Reset	Reset
LED Indicator	1. Power LED 2. Diag LED
Environmental Conditions	Operating Temperature: 0°C (32°F) to40°C (104°F) Operating Humidity: 90% or Less
Power Saving	802.3az
Internal Buzzer	Y
Housing	UL94-5VB Flammability Rating
Others	Kensington Security Slot & Ceiling/Wall Mount Holes
WIRELESS
Standard	802.11 a/b/g/n/ac Concurrent Dual-Band
No. of Radios	2
Receiver Sensitivity	≤ -93Bm
Certification	CE / FCC
Band Steering	Y
AirTime Fariness	Y
Beamforming	Y
Number of SSIDs	3 Default SSIDs (Office, Guest, Device), total up to 32 SSIDs (16 (2.4GHz) + 16 (5GHz))
PERFORMANCE
Maximum Data Speed	400 + 867Mbps
Concurrent Clients	Up to 100 Per Radio
RF SPECIFICATONS
Frequency Band	•Radio ?: 802.11b/g/n 2.412~2.484(GHz) •Radio ?: 802.11a/n/ac 5.18~5.24(GHz),5.745~5.825(GHz) (The supported frequency band is restricted by local regulations.)
Operation Channels	•2.4GHz : US/Canada 1-11; 2.412~2.462GHz Europe 1-13; 2.412~2.472GHz Japan 1-14; 2.412~2.484GHz •5GHz : Country dependent for the following ranges: US/Canada: Band 1:36, 40, 44, 48; 5.180~5.240(GHz) Band 2: 52?56?60?64;5.260~5.320(GHz) Band 3: 100?104?108?112?116?120?124?128?132?136?140;5.500~5700(GHz) Band 4:149, 153, 157, 161, 165; 5.745~5.825(GHz) Europe: Band 1:36, 40, 44, 48; 5.180~5.240(GHz) Band 2: 52?56?60?64;5.260~5.320(GHz) Band 3: 100?104?108?112?116?120?124?128?132?136?140; 5.500~5700(GHz)
Transmit Power	•802.11b 20dBm@1Mbps 20dBm@2Mbps 20dBm@5.5Mbps 20dBm@11Mbps •802.11g 20dBm@6Mbps 20dBm@9Mbps 19dBm@12Mbps 19dBm@18Mbps 18dBm@24Mbps 18dBm@36Mbps 17dBm@48Mbps 17dBm@54Mbps •802.11gn (2.4G) 20dBm@MCS0/8 19dBm@MCS1/9 19dBm@MCS2/10 18dBm@MCS3/11 18dBm@MCS4/12 17dBm@MCS5/13 16dBm@MCS6/14 16dBm@MCS7/15	•802.11a 19dBm@6Mbps 19dBm@9Mbps 18dBm@12Mbps 18dBm@18Mbps 17dBm@24Mbps 17dBm@36Mbps 16dBm@48Mbps 16dBm@54Mbps •802.11an(5G) 19dBm@MCS0/8 19dBm@MCS1/9 18dBm@MCS2/10 18dBm@MCS3/11 17dBm@MCS4/12 17dBm@MCS5/13 16dBm@MCS6/14 16dBm@MCS7/15 •802.11ac 18dBm@MCS0 18dBm@MCS1 18dBm@MCS2 17dBm@MCS3 17dBm@MCS4 17dBm@MCS5 16dBm@MCS6 16dBm@MCS7 15dBm@MCS8 14dBm@MCS9
Receiver Sensitivity	•802.11b ≤-93dBm@1Mbps ≤-85dBm@11Mbps •802.11g ≤-86dBm@6Mbps ≤-70dBm@54Mbps •802.11gn (2.4G) ≤-86dBm@MCS0 ≤-62dBm@MCS8 ≤-57dBm@MCS9	•802.11a ≤-85dBm@6Mbp ≤-68dBm@54Mbps •802.11an(5G) ≤-85dBm@MCS0 ≤-64dBm@MCS7 •802.11ac ≤ -85dBm@MCS0 ≤ -61dBm@MCS8 ≤ -54dBm@MCS9
SECURITY
Encryption	WEP / WPA / WPA2
Wireless L2 Isolation	Y
Station Isolation	Y
IEEE 802.1x Authenticator	Y
