Evacuate automotive and other low-tonnage units swiftly with the powerful portable AC vacuum pump from Orion Motor Tech!

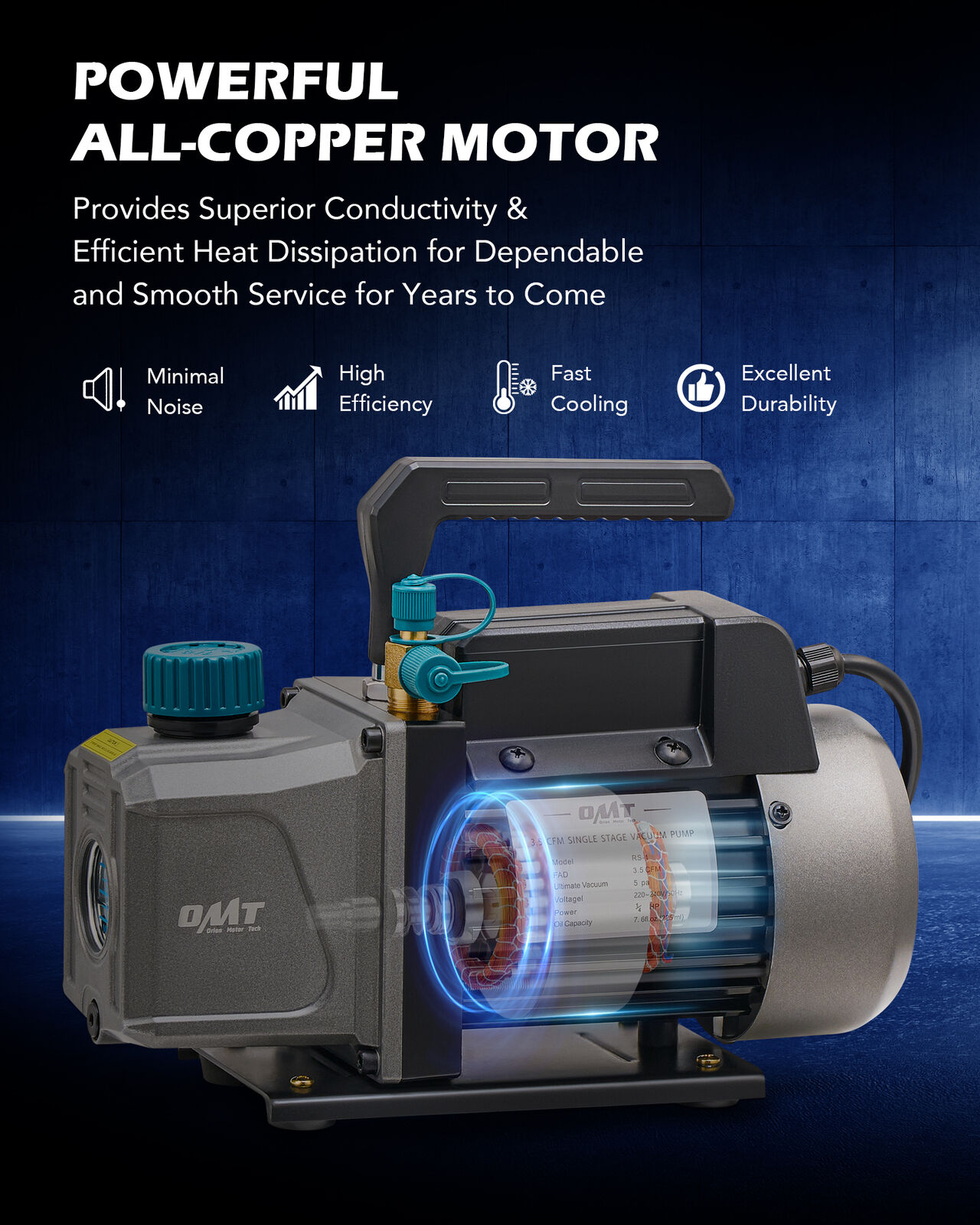

The 1/4 hp all-copper motor of our single stage rotary vane vacuum pump offers a 5.9 m3/h flow rate that is able to draw your vehicle HVAC system down as low as 5 Pa (37.5 microns). Easily monitor the pump's oil level and quality using the built in sight glass. Crafted with a reinforced aluminum alloy casing, this automotive AC vacuum pump ensures safe and stable operation, while its intake filter and trap maintain optimal performance by shielding against impurities and oil mist. Compatible with various hose sizes, this vacuum pump is perfect for automotive HVAC projects, vacuum packaging, wine degassing, and more. Plus, our service ready pump package includes everything you need for efficient maintenance, from lubricating and absorptive oil to Teflon tape for secure sealing.

Get this Orion Motor Tech HVAC vacuum pump today and start enjoying faster and easier HVAC servicing today!

• Pump It Out: Orion Motor Tech's single stage vacuum pump, powered by a 1/4 hp all-copper motor, ensures swift HVAC servicing. With a 5.9 m3/h flow rate, it can draw systems down to 5 Pa (37.5 microns) for quick and easy servicing of AC systems employing R12, R22, R134a, R410a, R502, and R1234yf refrigerants.
• Safe & Stable Operation: Built with a reinforced aluminum alloy casing, this auto AC vacuum pump efficiently disperses heat and resists corrosion for durability. Its intake filter and trap effectively shield against impurities and oil mist to maintain optimal performance.

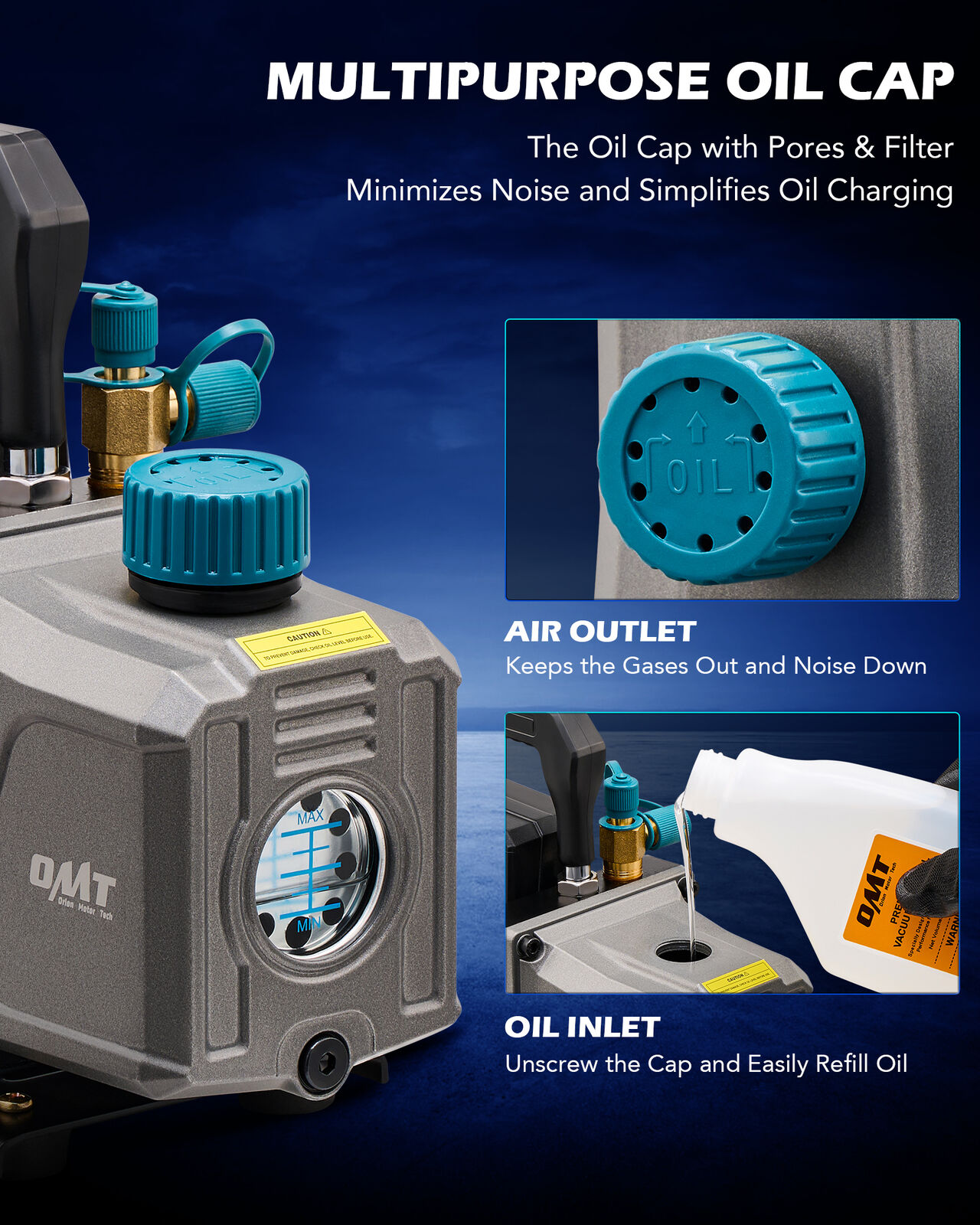

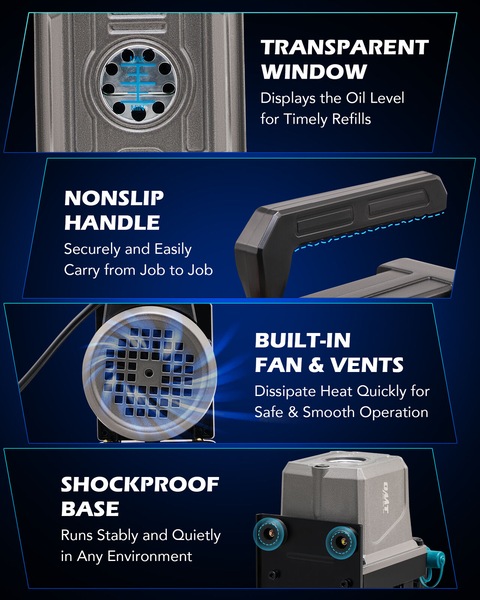

• User-Friendly Designs: The oil reservoir of this AC vacuum pump includes a convenient sight glass and scale for oil level monitoring and timely refills. Its nonslip handle keeps everything easily portable for transport or storage between jobs.

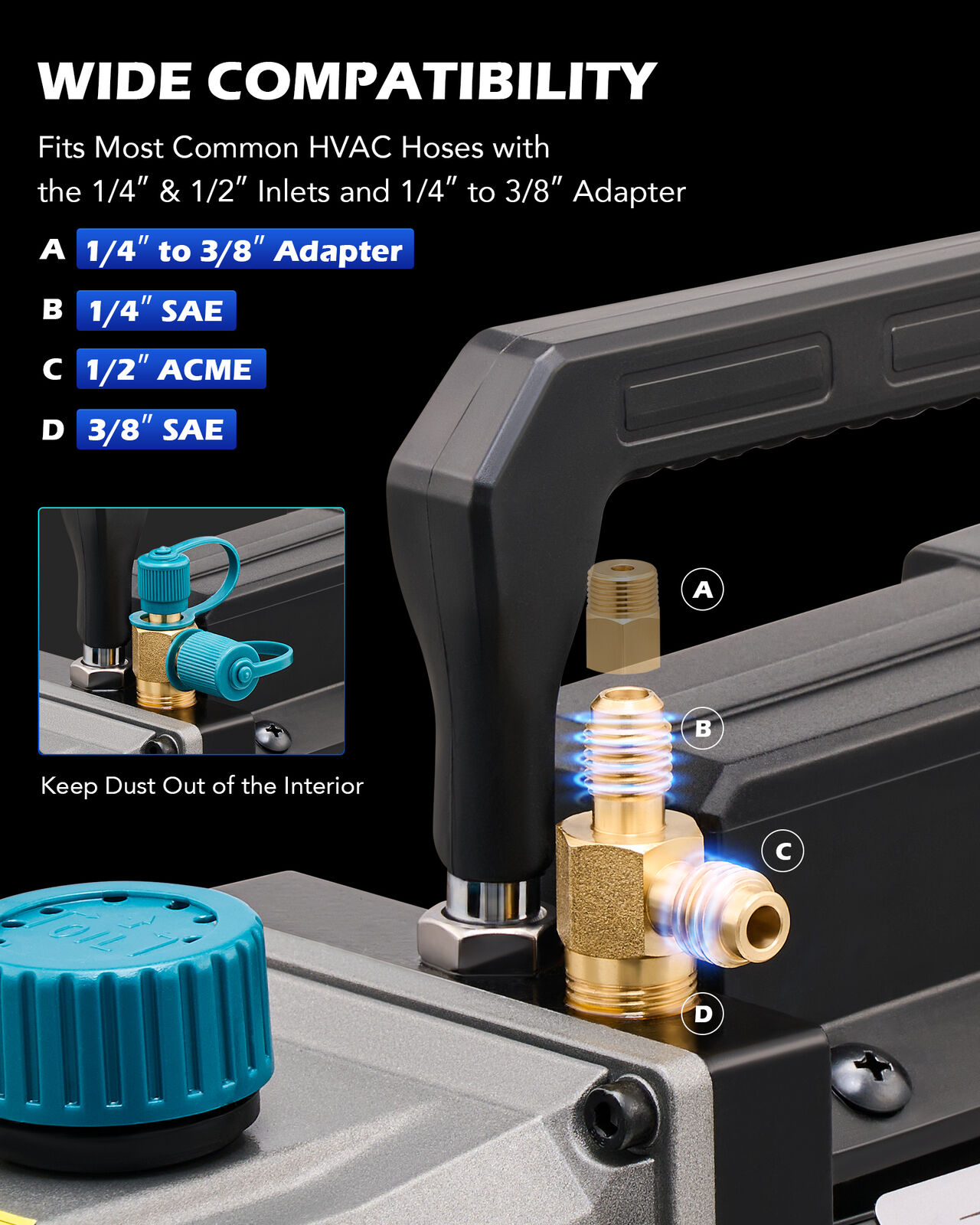

• Wide Application: Compatible with 1/4", 1/2", and 3/8" hoses, this HVAC vacuum pump is well-suited for a range of applications, from automotive HVAC servicing projects to vacuum packaging, wine degassing, thermoforming, and more.
• Service-Ready Pump Package: This automotive AC vacuum pump kit provides everything needed for efficient maintenance, including the necessary lubricating and absorptive oil, a pair of one-size-fits-most gloves for effortless oil refill, and Teflon tape for ensuring secure sealing of threaded connections.

Yes, it comes with 250 mL of vacuum oil.

The operating noise is below 75dB. It produces a normal sound during operation, which is acceptable.

It reaches 5 Pa vacuum within 3 minutes!

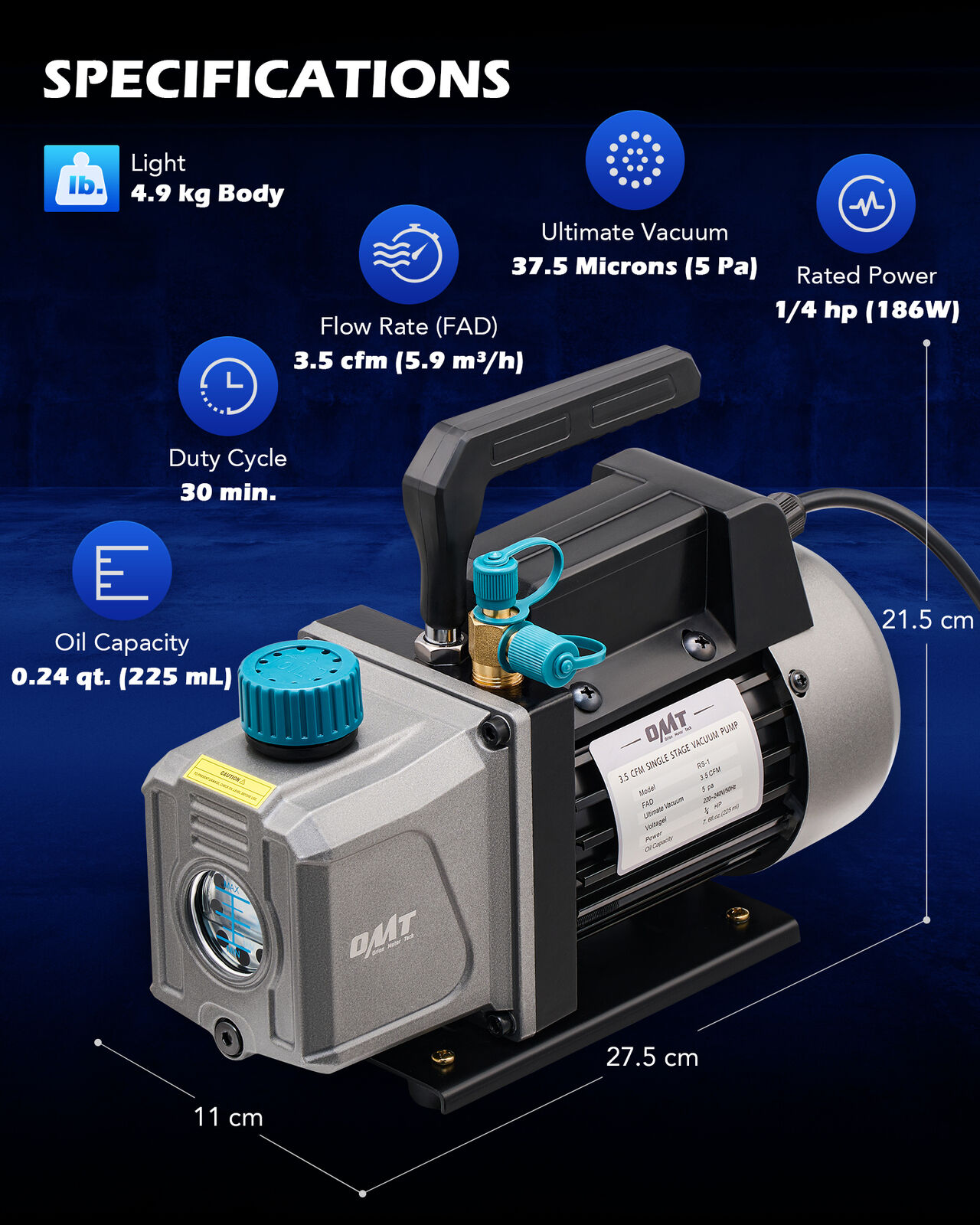

• Material: Aluminum, Copper, Rubber
• Flow Rate (FAD): 5.9 m3/h (3.5 cfm)
• Ultimate Vacuum: 5 Pa (37.5 Microns)
• Rated Power: 1/4 hp (186W)
• Duty Cycle: 30 min.
• Port Sizes: 1/4", 1/2", and 3/8"
• Oil Capacity: 225 mL (0.24 qt.)
• Power Cable Length: 1.4 m (4.6 ft.)
• Dimensions: 27.5 x 11 x 21.5 cm (10.8x4.3x8.5 in.)
• Net Weight: 4.9 kg (10.8 lb.)

• 1x Vacuum Pump
• 1x 1/4" to 3/8" Adapter
• 1x Vacuum Pump Oil
• 1x Teflon Tape
• 1x Pair of Gloves
• 1x Instructions
