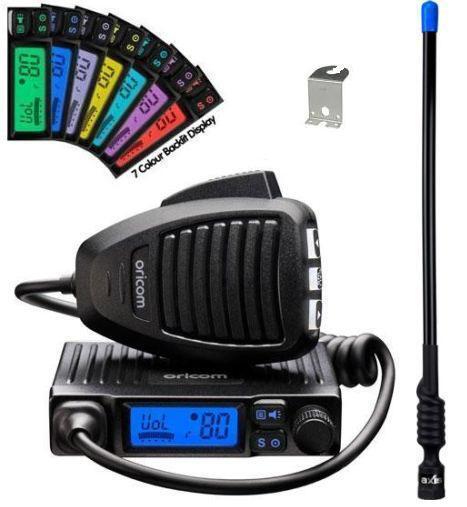

ORICOM UHF300/UHF310 UHF 80 CHANNEL MICRO 5WATT RADIO+CH300 FLEXIBLE RUBBER DUCKY AXIS UHF ANTENNA 35CM IN HEIGHT+BONUS Z MOUNT

FLIP FEATURE WITH DIFFERENT COLOUR SCREEN

UHF310 WILL BE SENT WHICH IS THE UPGRADED MODEL

We recommend this radio for customers who just want a basic radio with basic send and receive functions and also for customers who don't have much room or space within the vehicle. You really don't need too much than this for basic users. Our customers ask us for a basic radio and this is the one for you.

• 5.0 Watts (max TX power)
• 80 Narrowband Channels*
• Ultra compact micro size
• Flip LCD function
• Automatic level control (ALC) for consistant audio levels
• Heavy-duty microphone with volume control
• 38 CTCSS and 104 DCS Codes
• 7 Colour backlit display
• Duplex (range extender)
• Open/Group Scan
• Priority channel
• Rotary channel select
• Digital squelch control
• Busy channel lockout
• Die cast metal chassis with integrated heat sink
• Optional external speaker (3.5mm jack)

Dimensions of transceiver: 22.5(h) x 100 (w) x 84 (d) mm

Designed and engineered in Korea

• Compliance AS/NZS 4365:2011
• Frequency Range 476.425 - 477.4125 MHz
• Number of TX/RX Channels 80 UHF CB (75 Voice channels)
• Channel Spacing TX/RX 12.5KHz
• Operating modes Simplex, Repeater TX offset (+750kHz)
• Scanning Speed 130 msec per channel
• Automatic Level control (ALC) For consistant audio levels
• Antenna Impeadance 50 Ohms
• Operating Volts nominal 13.8 VDC
• Operating Volts Range 10 to 15 VDC
• Over Voltage Protection voltage regulator
• Over Current Protection 2 Amp fuse
• Reverse Polarity Protection Series diode
• Frequency Stability +/- 2.5ppm

• RF Output Power 5watts max.
• Modulation F3E (FM)
• Maximum Deviation 2.5KHz
• Spurious Emissions < -70 dBc
• TX Audio pre-emphasis + 6dB/octave from 300Hz to 3kHz
• Current Consumption during TX 1.5 Amps with 50 Ohm antenna termination

• Circuit Type Dual conversion superheterodyne
• IF Frequencies 1st IF = 21.4MHz , 2nd IF = 450kHz
• Current Consumption during RX 200mA
• Sensitivity < -121 at 12dB SINAD
• Selectivity +/-3.75kHz min @ 3dB to +/-15kHz max @ 40dB
• Intermodulation Immunity > 70dB
• Spurious Immunity > 70dB
• Audio Output Power 3 Watts Maximum
• RX Audio de-emphasis -6dB/octave 300Hz to 3kHz
• Audio frequency response 300Hz to 3kHz
• External speaker jacks for optional 8 Ohm mono speaker (3.5mm jack)

ORICOM AUSTRALIA

2 YEAR WARRANTY

This antenna can be used for universal type mountings as it is ground plane independant, ESPECIALLY WHERE THE ANTENNA MAY BE SUBJECTED TO TREES ETC BECAUSE OF IT'S FLEXIBLE DESIGN, the CH300 is Black nylon plastic type material with 4m of low loss coaxial cable. Antenna length is 350mm top to base and 3.0 db of gain. There is a fme connector pre-fitted the end of the cable so you thread the cable through a 9.5mm hole, then screw on the UHF pl259 connector also included to the end of that which is included for simpler fit with soldering or cutting required.

• DUCKY ANTENNA
• 4 METRE CABLE
• PL259 CONNECTOR
